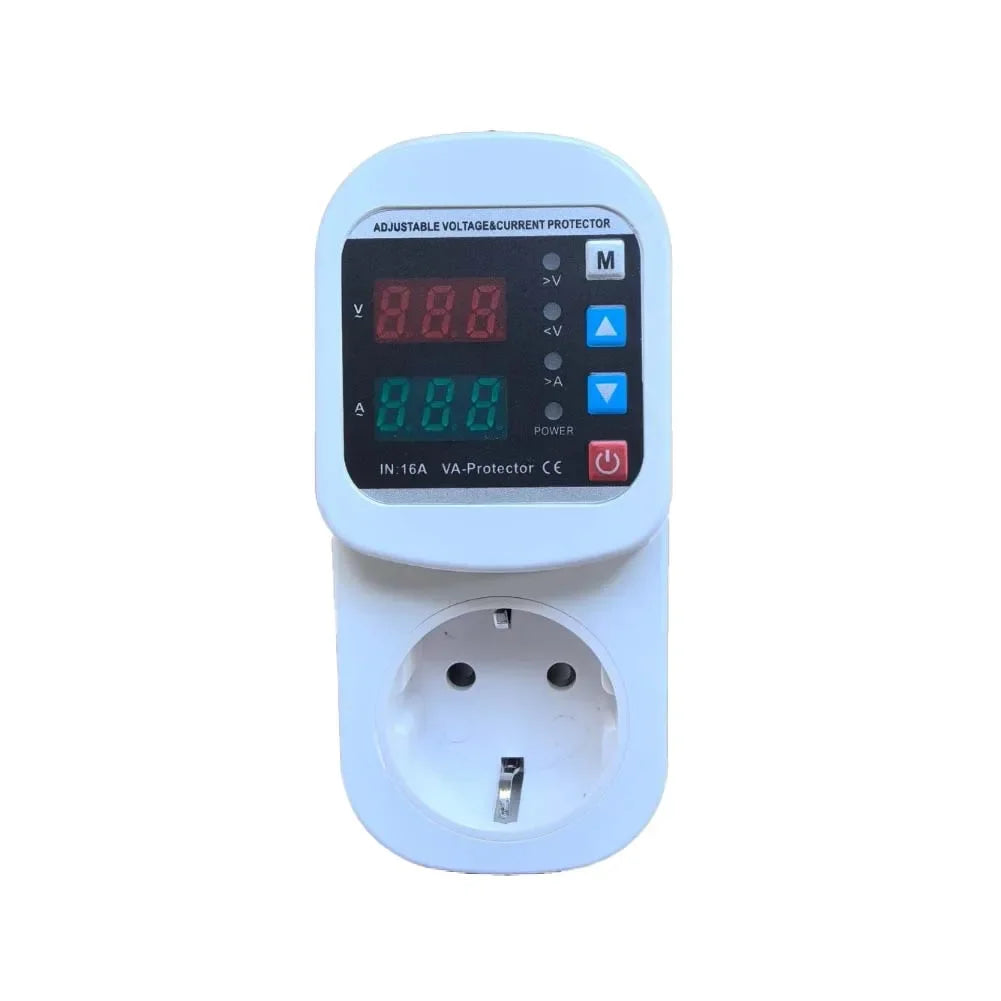

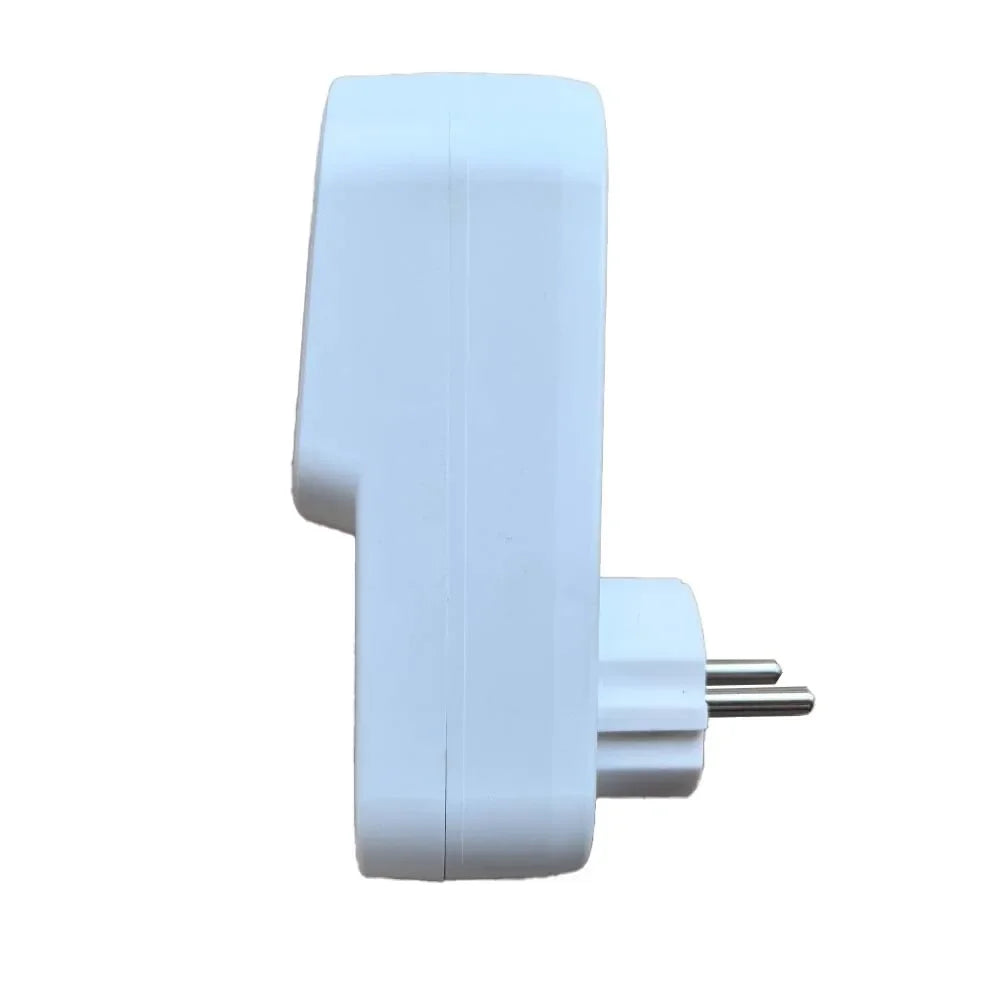

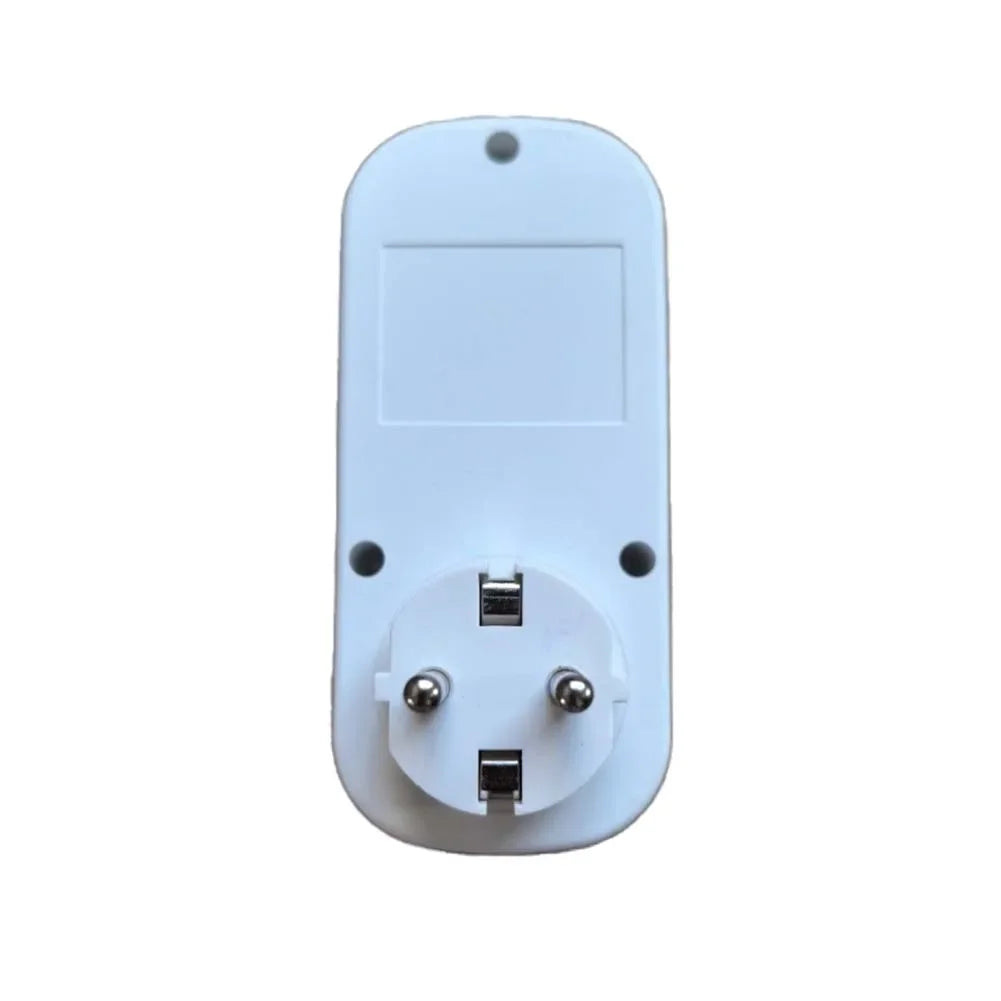

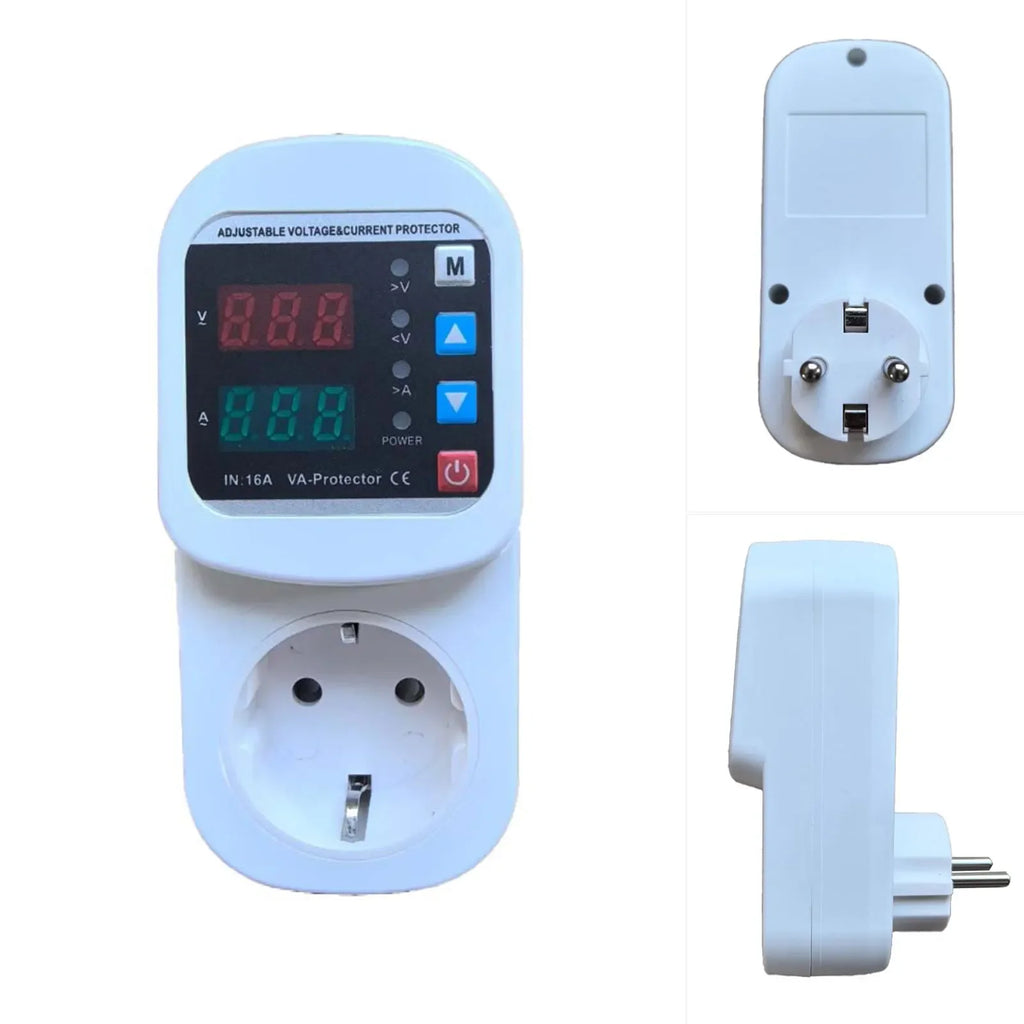

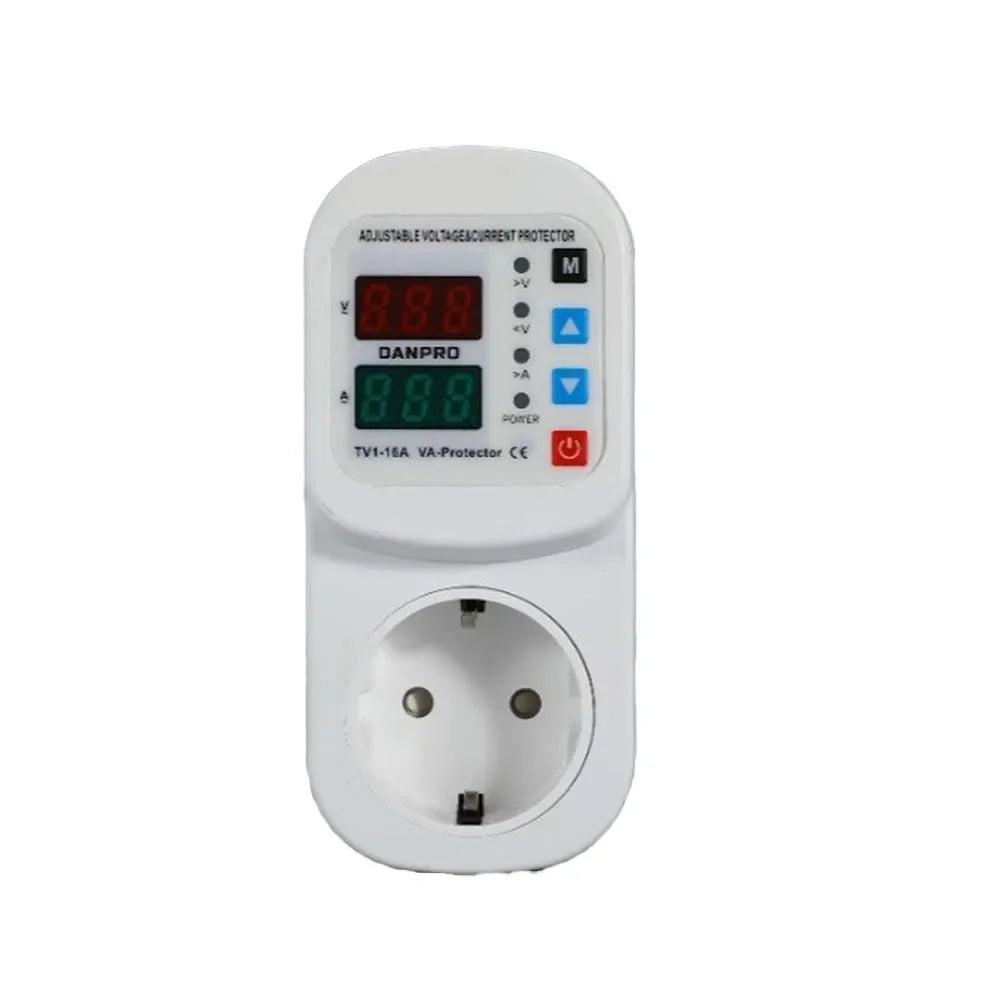

ZS9-VASK Adjustable 1–16A Voltage & Current Power Protector
ZS9-VASK Adjustable 1–16A Voltage & Current Power Protector
ZS9-VASK Adjustable Voltage & Current Power Protection Socket
Keep your appliances and electronics safe from electrical fluctuations with the ZS9-VASK Power Protector Socket. Featuring fully adjustable overvoltage, undervoltage, overcurrent, and leakage current protection, this intelligent socket acts as a comprehensive electrical safeguard for your home or workshop. With a wide operating range of 140–300VAC at 50/60Hz and a current limit adjustable from 1A to 16A, it suits a broad range of loads and electrical environments.
Key Features
- 100,000-Cycle Motor Lifespan: Built for long-term reliability — engineered to last far longer than standard electromechanical devices, making it a dependable addition to your circuit protection setup.
- Adjustable Current Limit (1–16A): Set your maximum current draw anywhere between 1A and 16A (default: 16A) for energy-efficient, safe operation tailored to your specific load.
- Overvoltage & Undervoltage Protection: Overvoltage protection activates between 230–300V (default: 270V); undervoltage protection covers 140–210V (default: 170V). Fully customizable action and recovery delay times (0.1–30s action / 1–500s recovery).
- Leakage Current Detection: Adjustable leakage protection threshold from 10–99mA (default: 30mA) helps guard against unsafe current leakage.
- ±20% Voltage/Current/kW Calibration: Fine-tune readings for precise control — ideal for sensitive or variable loads.
- Low Power Consumption: Draws less than 2W during operation, adding minimal overhead to your energy usage.
- ABS Construction: Durable white ABS housing for safe, everyday use.
Full Specifications
| Model | ZS9-VASK |
| Power Supply | 140–300VAC, 50/60Hz |
| Maximum Load | 1–16A adjustable (default: 16A) |
| Overvoltage Protection Range | 230–300V (default: 270V) |
| Overvoltage Recovery Range | 225–295V (default: 265V) |
| Undervoltage Protection Range | 140–210V (default: 170V) |
| Undervoltage Recovery Range | 145–215V (default: 175V) |
| Action Time (Over/Under Voltage) | 0.1–30 seconds (default: 1s) |
| Recovery Delay Time | 1–500 seconds (default: 10s) |
| Overcurrent Range | 1–16A (default: 16A) |
| Overcurrent Action Time | 0.1–30 seconds (default: 1s) |
| Overcurrent Recovery Delay | 1–500 seconds (default: 30s) |
| Leakage Current Protection | 10–99mA (default: 30mA) |
| Power-On Delay | 1–500 seconds (default: 10s) |
| Calibration Range | ±20% (Voltage/Current/kW) |
| Power Consumption | <2W |
| Motor Lifespan | 100,000 cycles |
| Material | ABS |
| Color | White |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× ZS9-VASK Adjustable Power Protector Socket
You May Also Like
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does the ZS9-VASK power protector socket protect against?
A: The ZS9-VASK protects connected appliances against overvoltage (230–300V), undervoltage (140–210V), overcurrent (1–16A), and leakage current (10–99mA). All thresholds and delay times are fully adjustable, giving you precise control over how and when the protection activates and resets.
Q: Can I use this power protector with both 50Hz and 60Hz electrical systems?
A: Yes. The ZS9-VASK is compatible with both 50Hz and 60Hz AC systems and operates across a wide voltage range of 140–300VAC, making it suitable for use in many countries and regions worldwide.
Q: How do I adjust the current limit on this device?
A: The current limit is adjustable between 1A and 16A (factory default is 16A). You can also fine-tune the overcurrent action time (0.1–30 seconds) and recovery delay (1–500 seconds) to match the requirements of your specific appliance or circuit.
Q: Is this device suitable for long-term use?
A: Absolutely. The internal motor is rated for 100,000 operating cycles, ensuring consistent and dependable performance over many years of regular use. Its ABS housing adds additional durability for both home and workshop environments.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
