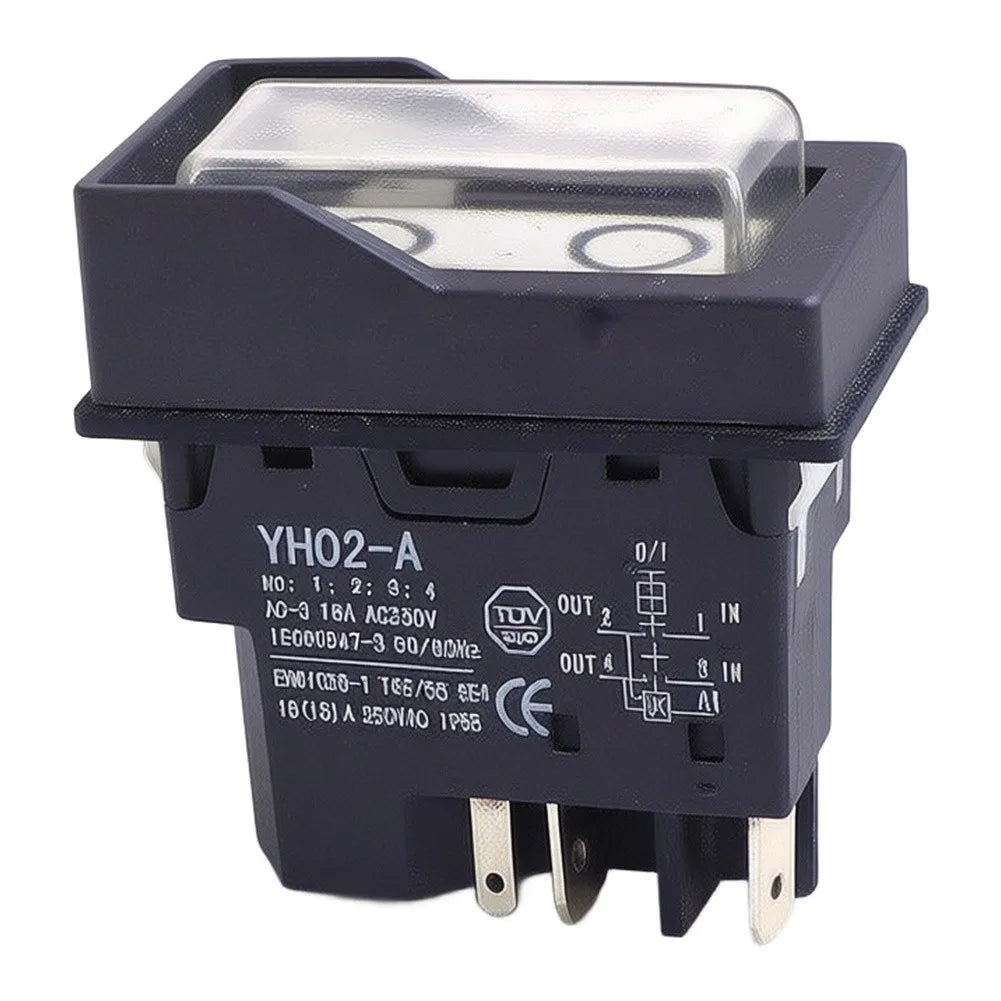

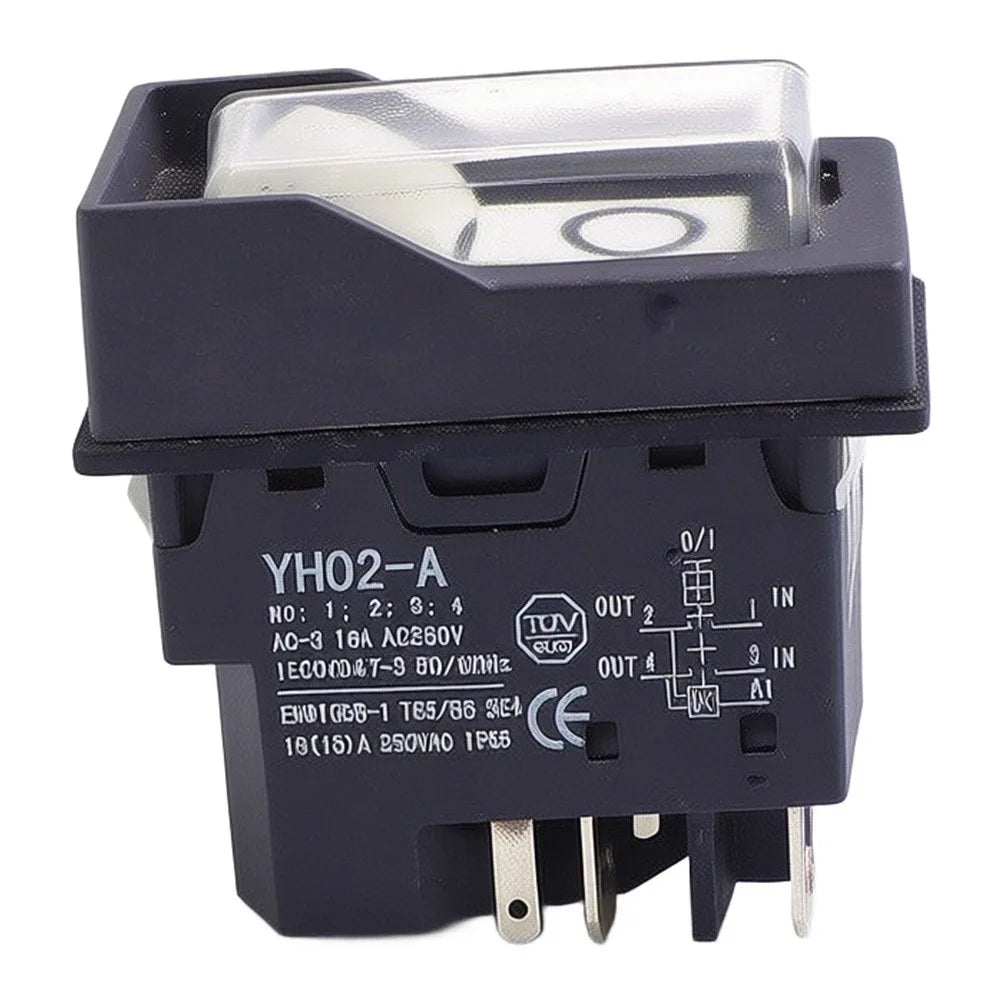

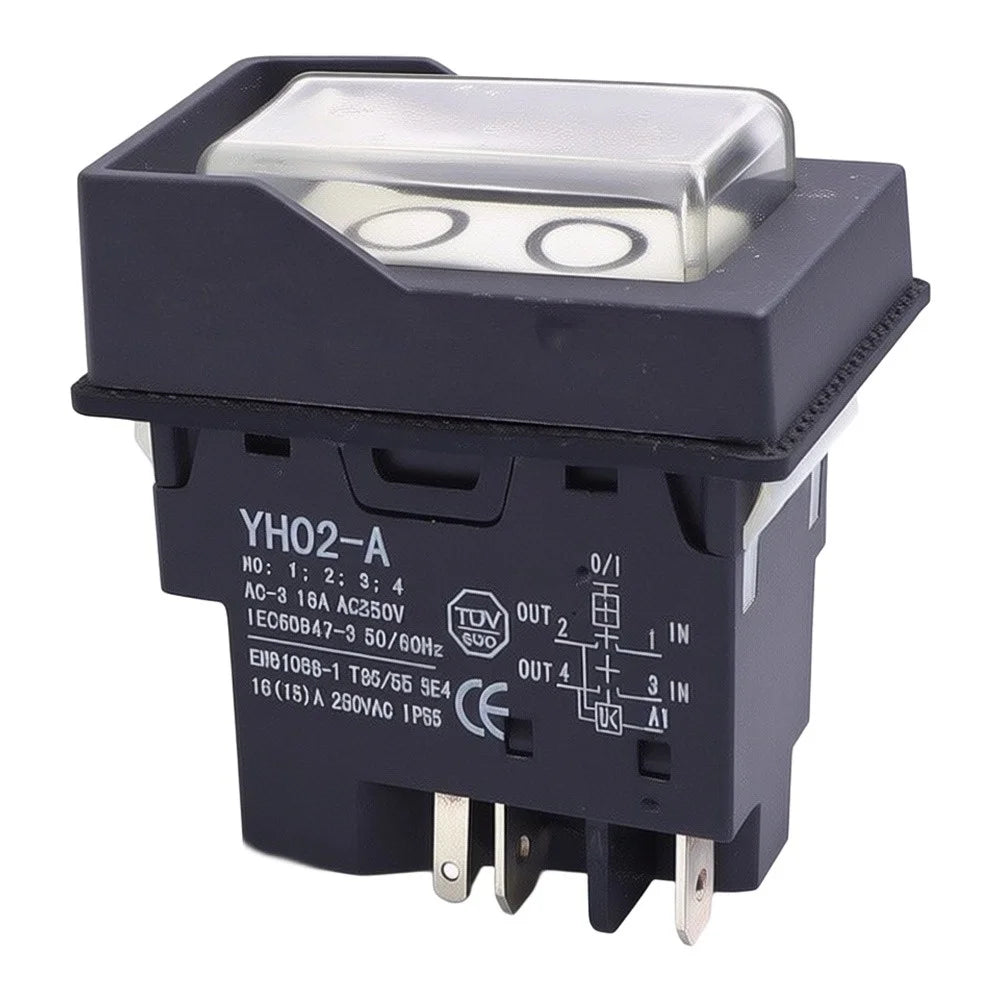

YH02-A 5-Pin Electromagnetic Switch – 250V AC / 16A
Keep your industrial machinery running safely and reliably with the YH02-A 5-Pin Electromagnetic Switch. Rated at 250V AC / 16A with silver contacts, this switch delivers dependable electrical performance for lathes, power tools, log splitters, and a wide range of industrial equipment. Its rugged PA66 plastic housing and IP54 protection rating make it ready for demanding workshop and outdoor environments.
Made in Mainland China.
Key Features
- High-Current Rated: 16A / 250V AC rating handles demanding machinery loads with ease.
- Silver Contacts: Ensures efficient electrical conductivity and long-lasting switch life.
- IP54 Dust & Splash Resistant: Protected against dust ingress and water splashes — suitable for outdoor or industrial workshop use.
- Wide Operating Temperature: Functions reliably from -5°C to +40°C, covering a broad range of working environments.
- Durable PA66 Housing: High-strength nylon construction resists wear, heat, and impact in tough conditions.
- Versatile Fit: Designed for lathes, log splitters, power tools, and other industrial equipment.
- 5-Pin Configuration: Straightforward wiring for easy installation and replacement.
Specifications
| Model | YH02-A |
| Pins | 5-Pin |
| Rated Voltage | 250V AC |
| Rated Current | 16A |
| Contact Material | Silver |
| Housing Material | PA66 Nylon Plastic |
| Protection Rating | IP54 (Dust & Splash Proof) |
| Operating Temperature | -5°C to +40°C |
| Color | Black |
| Dimensions | 53.2 × 29.5 × 52.8 mm |
| Applications | Lathes, Log Splitters, Power Tools, Industrial Machinery |
| Country of Origin | Mainland China |
Package Contents

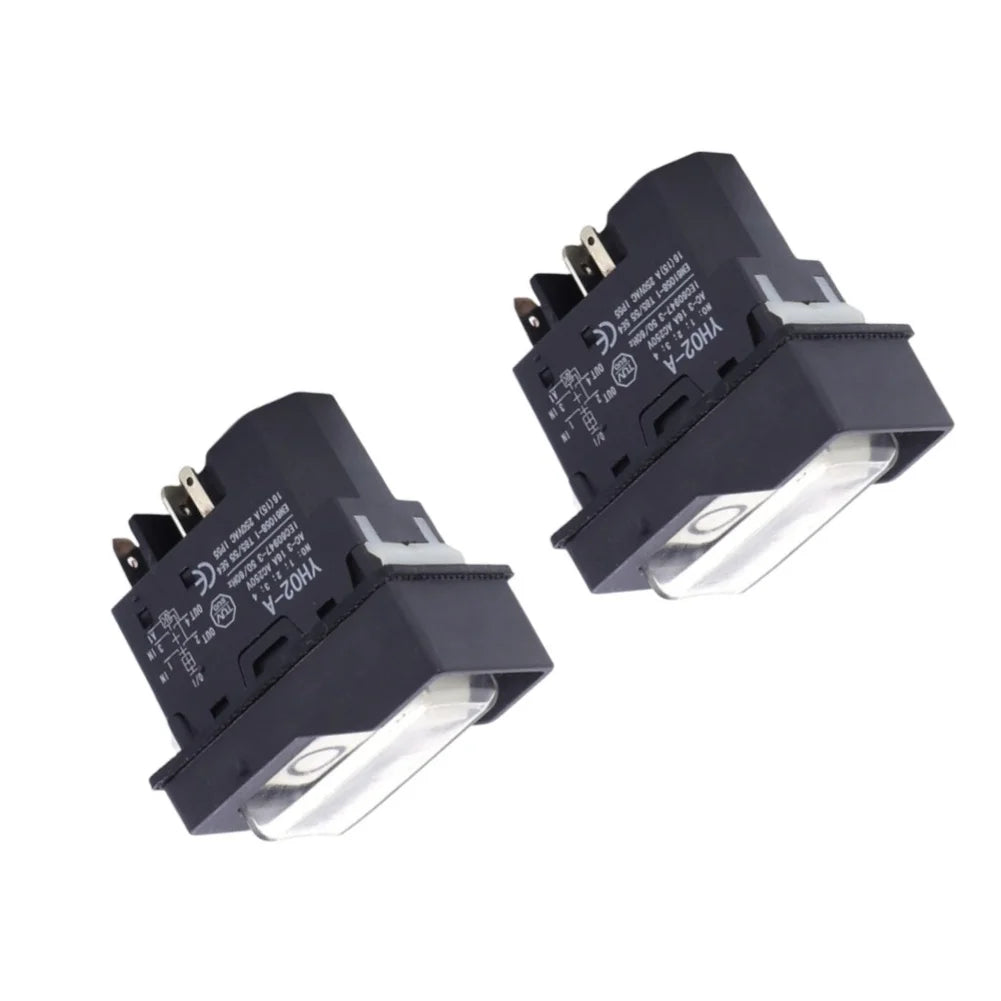

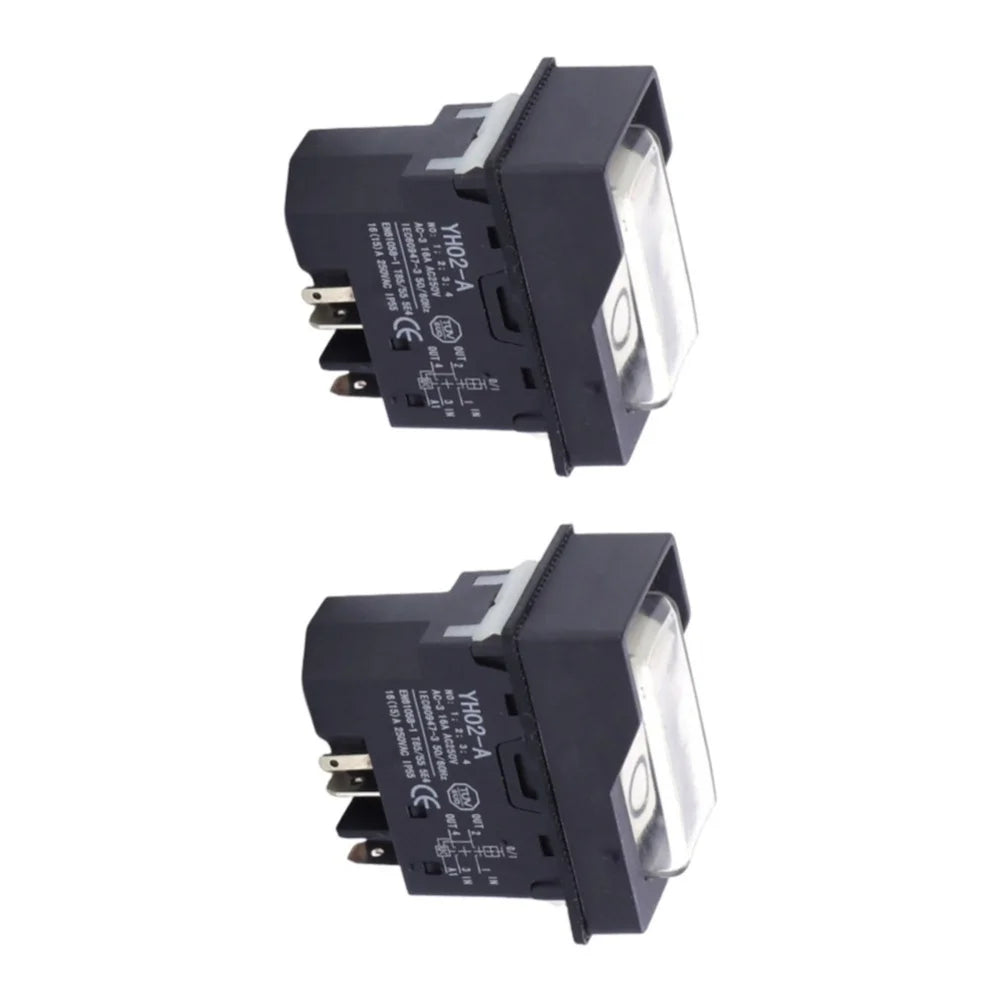

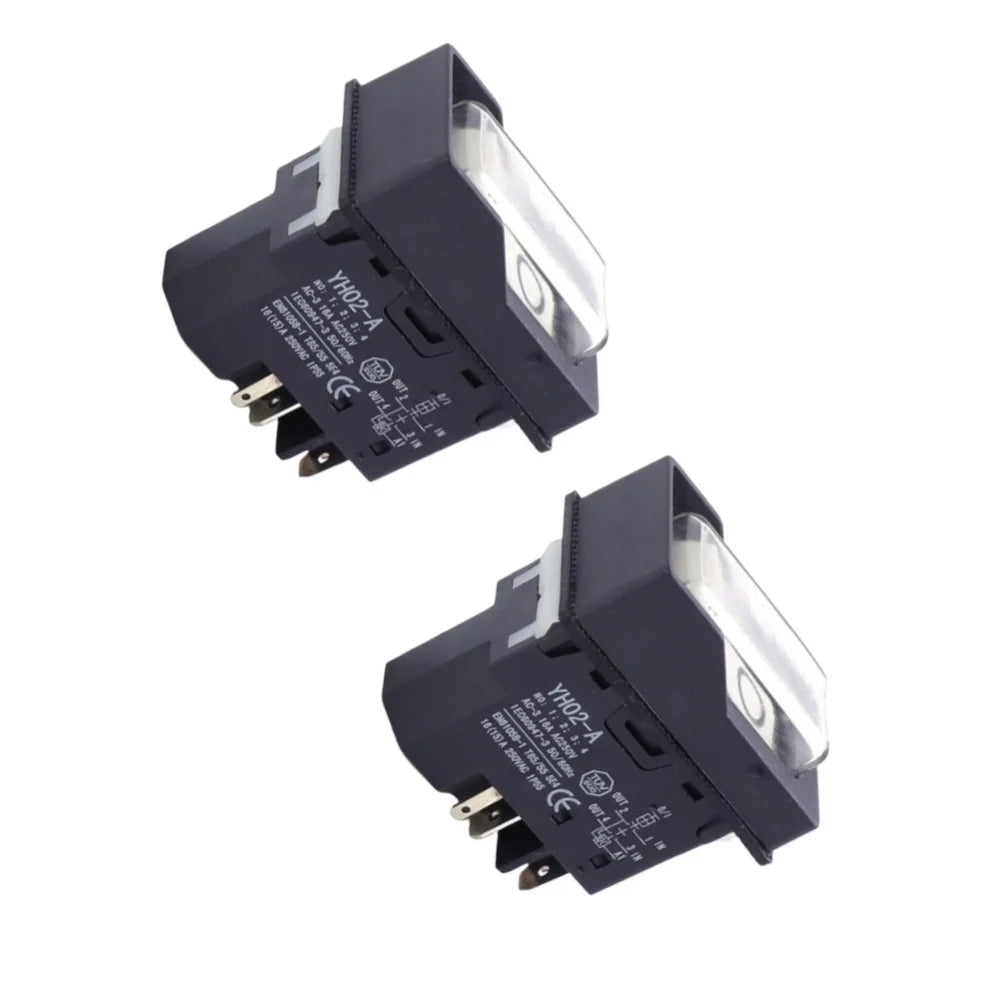

- 1× or 2× YH02-A Electromagnetic Switch (as selected)
You May Also Like
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- Snap-In Spring Switch Button for Shaver S3206 S3122 S3132
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What machinery is the YH02-A electromagnetic switch compatible with?
A: The YH02-A 5-pin electromagnetic switch is designed for use with lathes, log splitters, bench power tools, and a variety of industrial machinery that operate at up to 250V AC and 16A. Its compact 5-pin layout makes it a practical replacement or upgrade part for many standard workshop machines.
Q: Is this switch suitable for outdoor or wet workshop environments?
A: Yes. The YH02-A carries an IP54 protection rating, meaning it is resistant to dust ingress and water splashes. This makes it well-suited for use in outdoor workshops, garages, or industrial settings where moisture and dust are present.
Q: What does the 5-pin configuration mean for installation?
A: The 5-pin design provides dedicated terminals for a complete start/stop electromagnetic control circuit, simplifying wiring for forward or single-direction motor control on lathes and similar equipment. Always refer to your machine's wiring diagram and consult a qualified electrician if unsure.
Q: Why does the switch use silver contacts?
A: Silver contacts offer superior electrical conductivity, low contact resistance, and extended service life compared to standard copper contacts. This makes them ideal for switching high-current loads reliably over many cycles in industrial applications.
