XT60 Bidirectional Ammeter & Wattmeter – 5–34V 30A with Temperature & Humidity Sensor

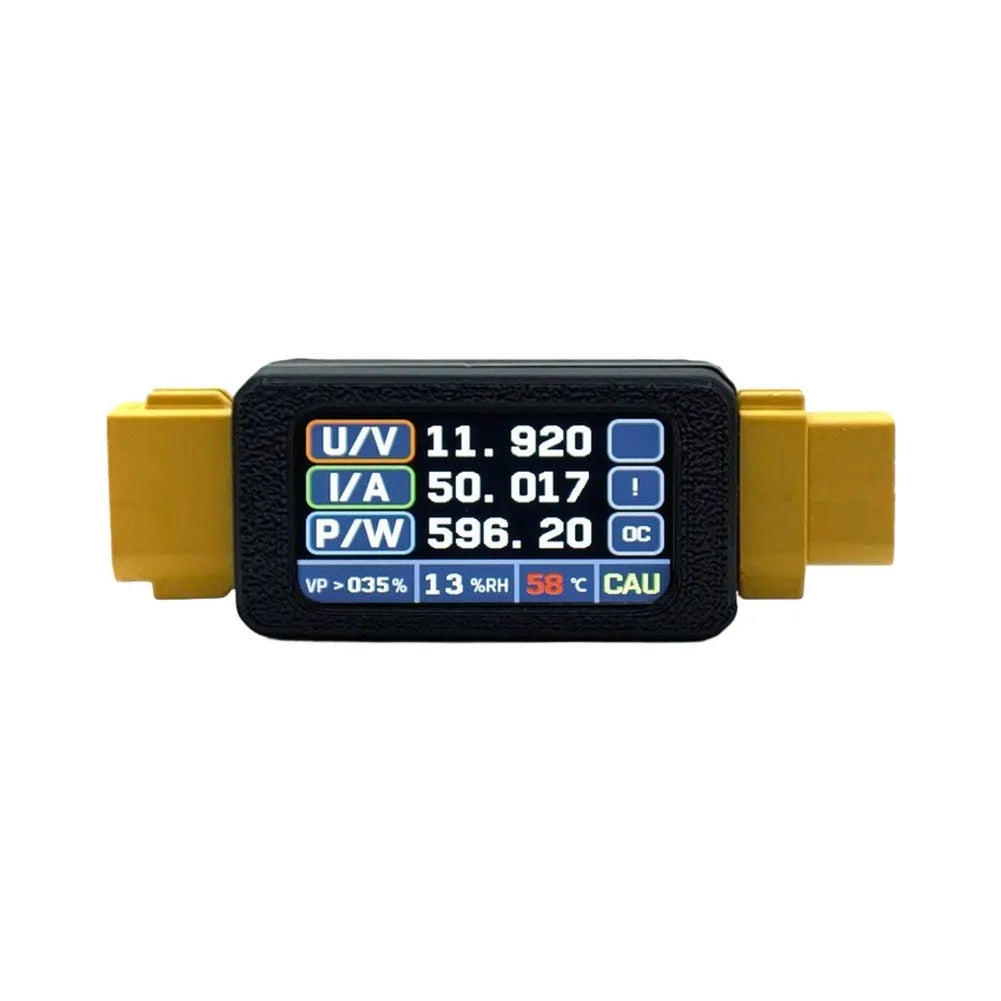

Monitor your DC circuits with precision using this compact XT60 Bidirectional Ammeter Wattmeter. Designed for engineering, RC battery testing, solar setups, and DIY electronics projects, it delivers real-time readings of voltage, current, power, energy, temperature, and humidity — all on a vivid 1.47-inch color display. Made in Mainland China.
Key Features
- Bidirectional Measurement: Accurately measures both charging and discharging current for complete battery cycle analysis.
- Built-in Temp & Humidity Sensor: Real-time environmental monitoring (0–80°C temperature; 20%–80% humidity) integrated directly into the device.
- High-Current Handling: Thickened 1mΩ shunt resistor with pure copper overcurrent busbar supports up to 30A continuous and an 80A instantaneous peak.

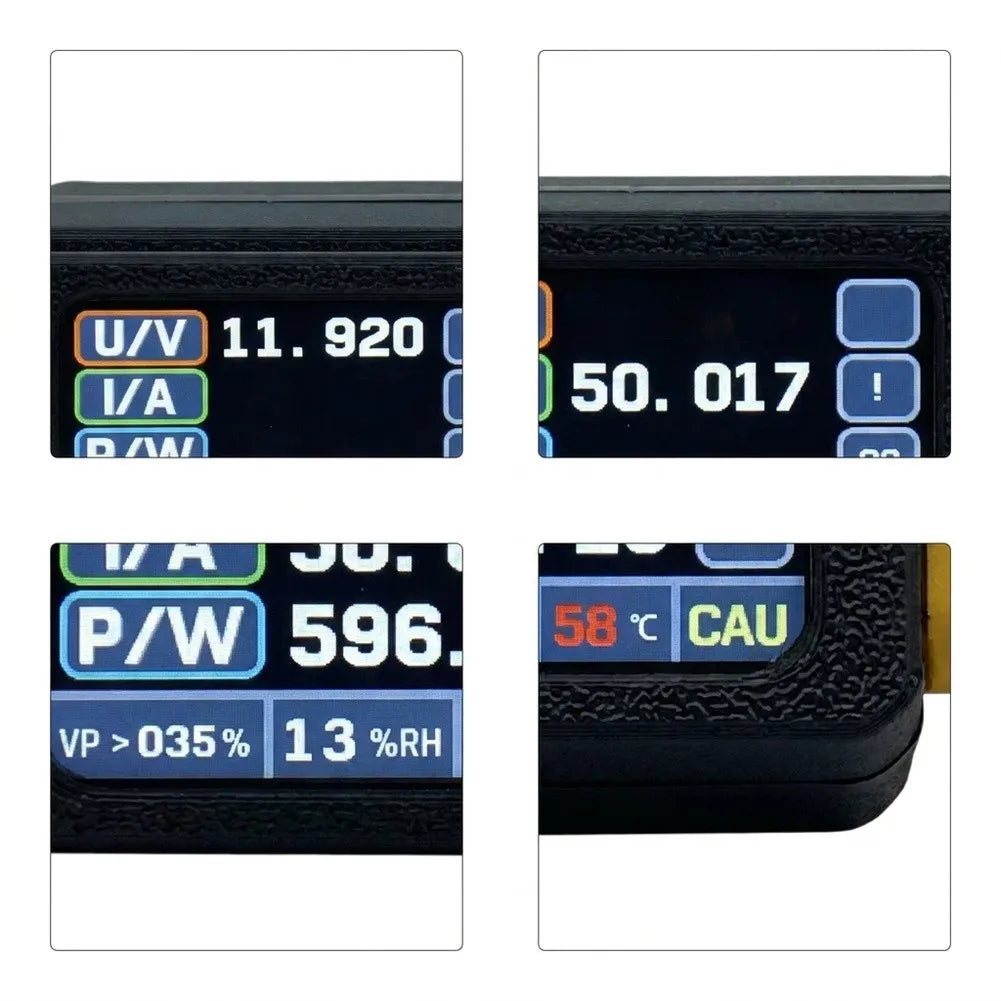

- Crisp Color Display: 1.47-inch IPS screen with 320×172 resolution, rounded edges, and rich color rendering for easy at-a-glance readings.
- Comprehensive Alarm Functions: Configurable over-voltage, over-current, and over-temperature alerts keep your project protected.
- Plug-and-Play XT60 Interface: Male/Female XT60 connectors for fast, tool-free inline installation in any compatible circuit.
- Wide Voltage Range: Operates from 5V to 34V DC with a maximum withstand voltage of 36V.
- High Accuracy: ±1% voltage and current accuracy for reliable, repeatable measurements.

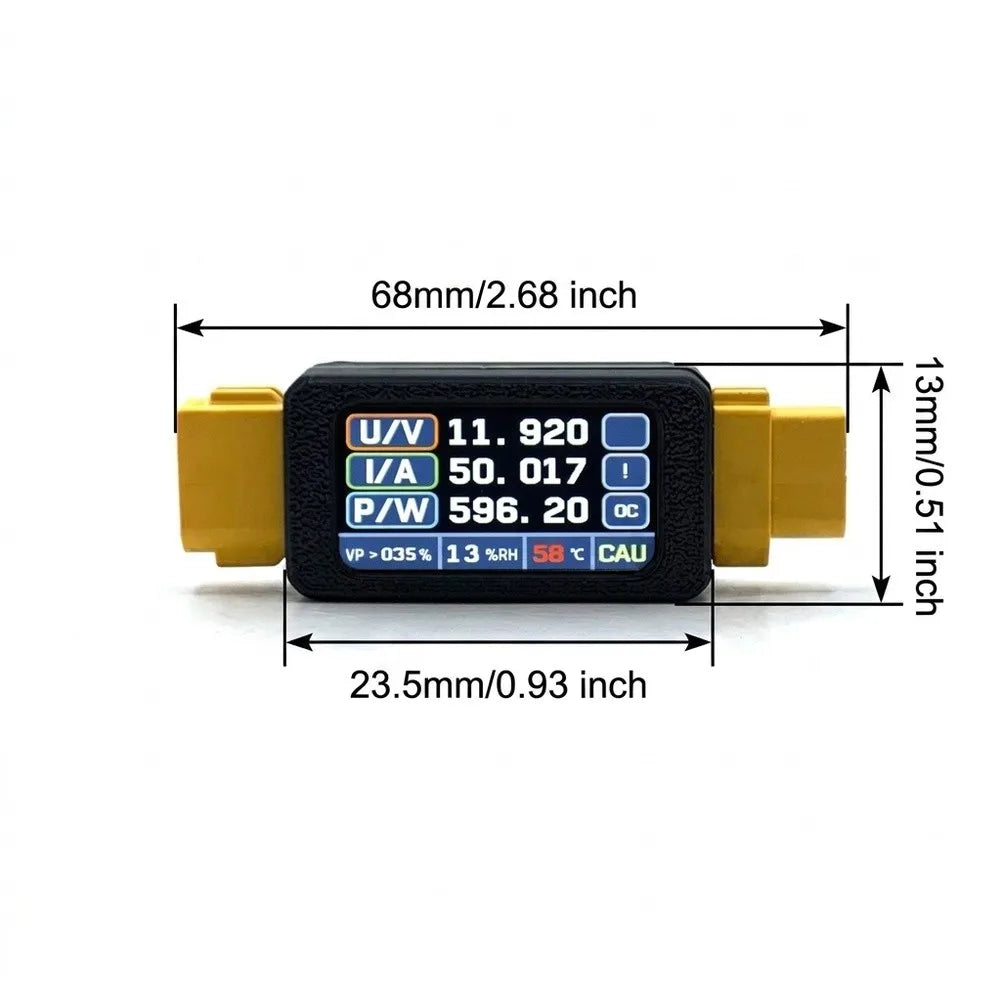

- Compact Form Factor: Only 68 × 23.5 × 11.6 mm (including connectors), fitting neatly into any workspace.
Specifications
| Material | ABS |
| Color | Black |
| Dimensions | 68 × 23.5 × 11.6 mm (including connectors) |
| Interface | XT60 Male / Female |
| Detection Type | DC |
| Voltage Detection Range | 5–34V |
| Rated Current | ≤30A (continuous) |
| Max Instantaneous Current | 80A |
| Start-up Voltage | 4.5V |
| Max Withstand Voltage | 36V |
| Temperature Detection Range | 0–80°C |
| Power Consumption | 5–12V: ≤0.3W; 13–34V: ≤0.5W |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% |
| Sampling Resistor | 1mΩ |
| Voltage Accuracy | ±1% |
| Current Accuracy | ±1% |
| Display | 1.47-inch color IPS, 320×172 resolution |
| Country of Origin | Made in Mainland China |
Important Safety Notes
- Observe Polarity: Reverse polarity connections will damage the ammeter. Double-check before powering on.
- Power-Up Sequence: Turn off both power supply and load switches before connecting or disconnecting. Never plug or unplug while powered on.
- Heat During Operation: The device may become warm during use. Avoid touching the shunt area to prevent burns.
- Avoid Overload: Do not short circuit or exceed rated voltage and current limits to ensure long-term reliability.
What's in the Box
- 1 × XT60 30A Bidirectional Ammeter Wattmeter with Temperature & Humidity Sensor
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What does "bidirectional" mean on this XT60 ammeter wattmeter?
A: Bidirectional means the ammeter can measure current flowing in both directions — both charging (into a battery) and discharging (out of a battery). This makes it ideal for battery charge testing, RC vehicles, solar storage systems, and any application where you need to track both energy input and output on a single inline meter.
Q: Is this ammeter compatible with LiPo, LiFePO4, and other battery types?
A: Yes. Because the device works with any DC circuit in the 5–34V range with up to 30A continuous current, it is compatible with LiPo, LiFePO4, NiMH, and lead-acid battery packs commonly used in RC models, e-bikes, solar setups, and engineering test benches — as long as the voltage and current stay within the rated specifications.
Q: How does the temperature and humidity sensor work on this wattmeter?
A: The built-in sensor continuously monitors the ambient temperature (0–80°C) and relative humidity (20%–80%) around the device. Readings are displayed in real time on the 1.47-inch color screen alongside the electrical measurements, giving you a complete picture of your operating environment without needing a separate instrument.
Q: Can I use this ammeter with XT60-equipped RC drones or vehicles?
A: Absolutely. The XT60 Male/Female inline connectors are specifically designed for RC drone, vehicle, and robot battery systems. Simply connect it inline between your battery and ESC or power distribution board to instantly monitor voltage, current, power, and energy consumption in real time.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
