USB Type-C Female 5-Pin SMD Socket – 2-Pack for PCB Soldering & DIY Repair

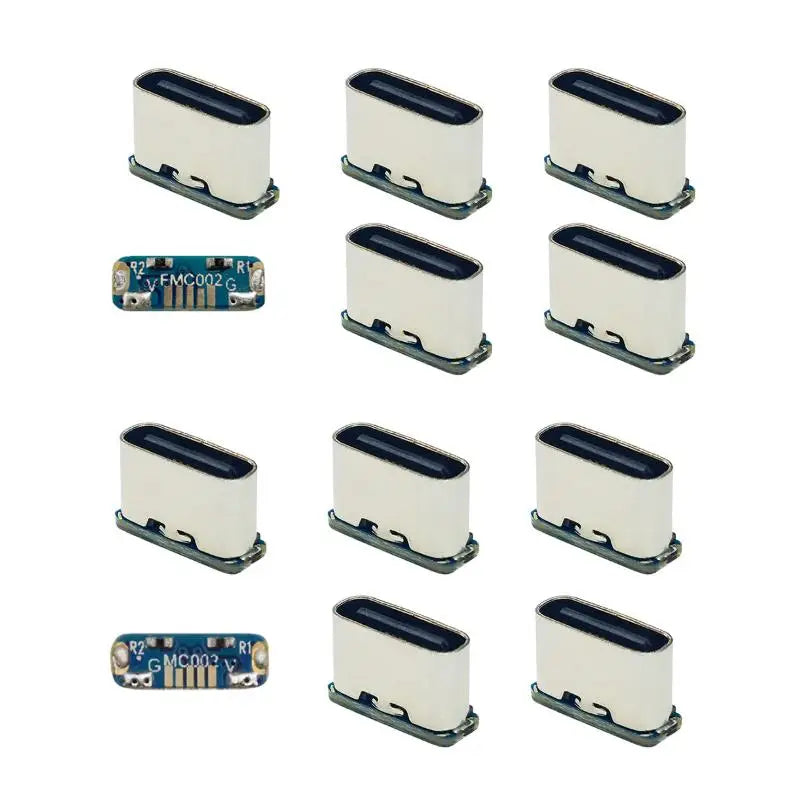

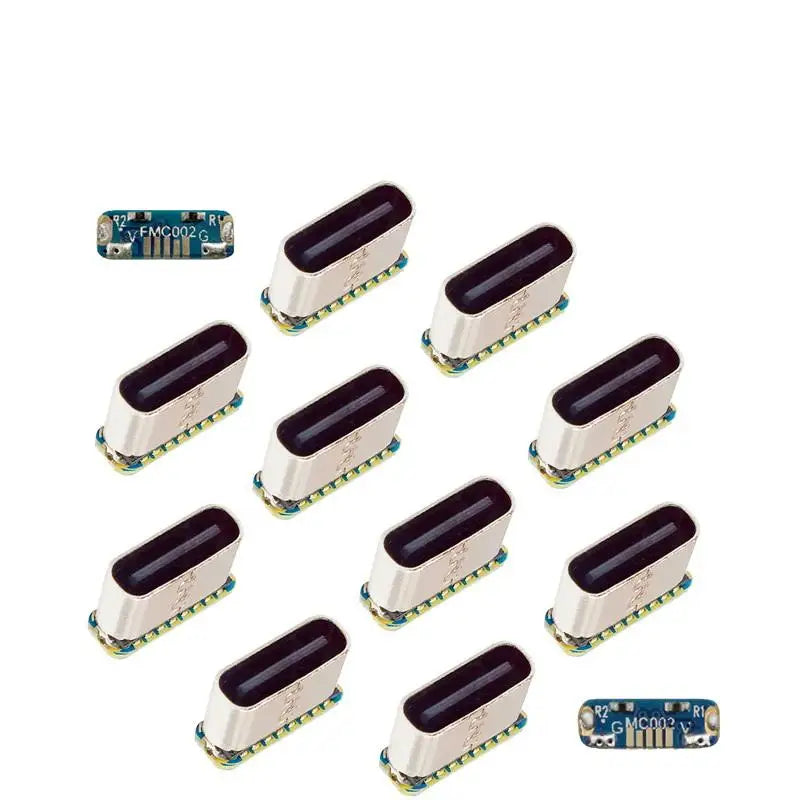

Upgrade or repair your electronics with these compact USB Type-C Female 5-Pin SMD/SMT Sockets. Designed as a direct surface-mount replacement for Micro-USB 5-pin connectors, these sockets are perfect for PCB soldering projects, DIY electronics builds, and device charging port repairs. Each pack includes 2 connectors so you always have a spare on hand.
Key Features

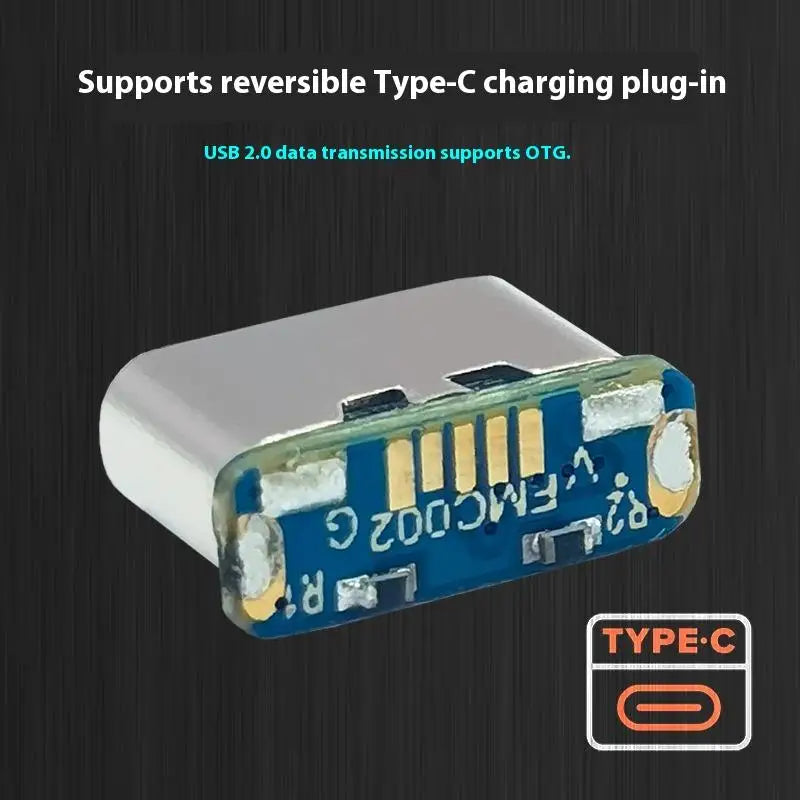

- USB 2.0 Compliant: Supports USB 2.0 Hi-Speed (480 Mbps) and USB 1.1 Low-Speed (1.5 Mbps) for fast, reliable data transfer and charging.
- 5V 2A Power Delivery: Handles up to DC 5V 2A output when paired with a compatible USB Type-C 2.0 power source.
- SMD/SMT Design: Surface-mount format for clean, stable integration directly onto your PCB without through-hole drilling.

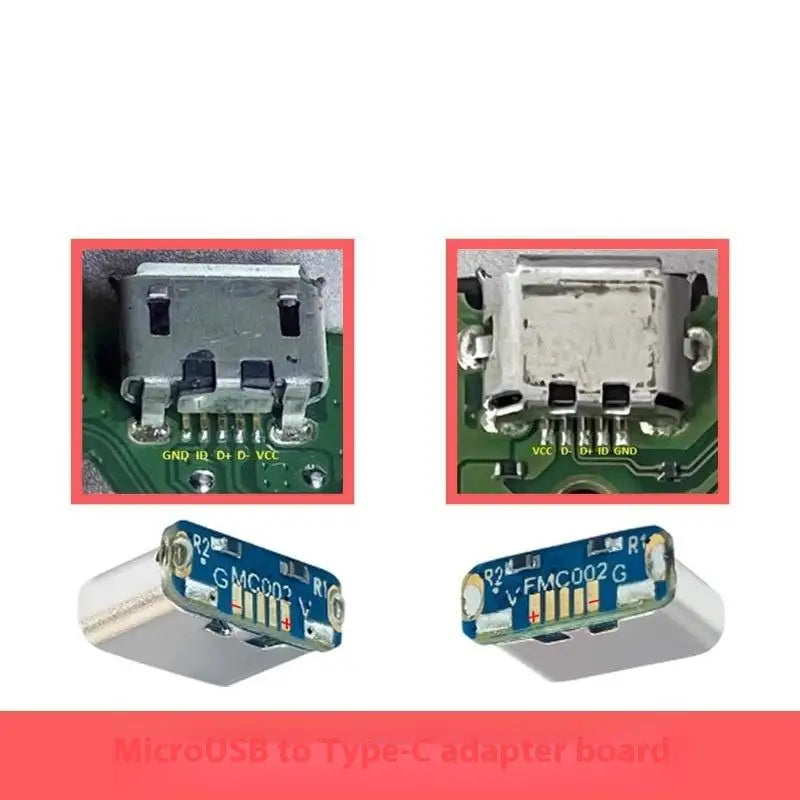

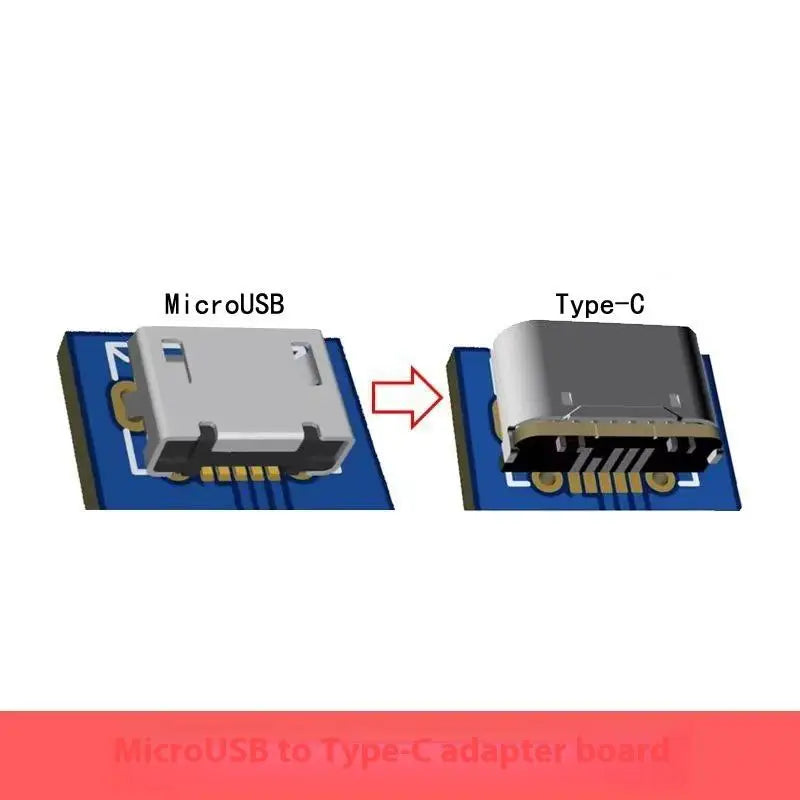

- Replaces Micro-USB 5-Pin: A convenient, modern upgrade from legacy Micro-USB connectors on custom or repaired boards.
- Broad Peripheral Compatibility: Works with mice, keyboards, smartphones, speakers, and any device using a Micro-USB or Type-C connection.
- Durable Construction: Built from plastic and metal for long-lasting performance through repeated plug/unplug cycles.
Specifications
| Connector Type | USB Type-C Female, 5-Pin |
| Mount Type | SMD / SMT (Surface Mount) |
| USB Standard | USB 2.0 (480 Mbps), USB 1.1 (1.5 Mbps) |
| Max Power | DC 5V 2A |
| Voltage | Below 50V AC or 75V DC (EU LVD Compliant) |
| Material | Plastic + Metal |
| Battery Included | No |
| Wireless | No |
| Country of Origin | Made in Mainland China |
What's in the Box

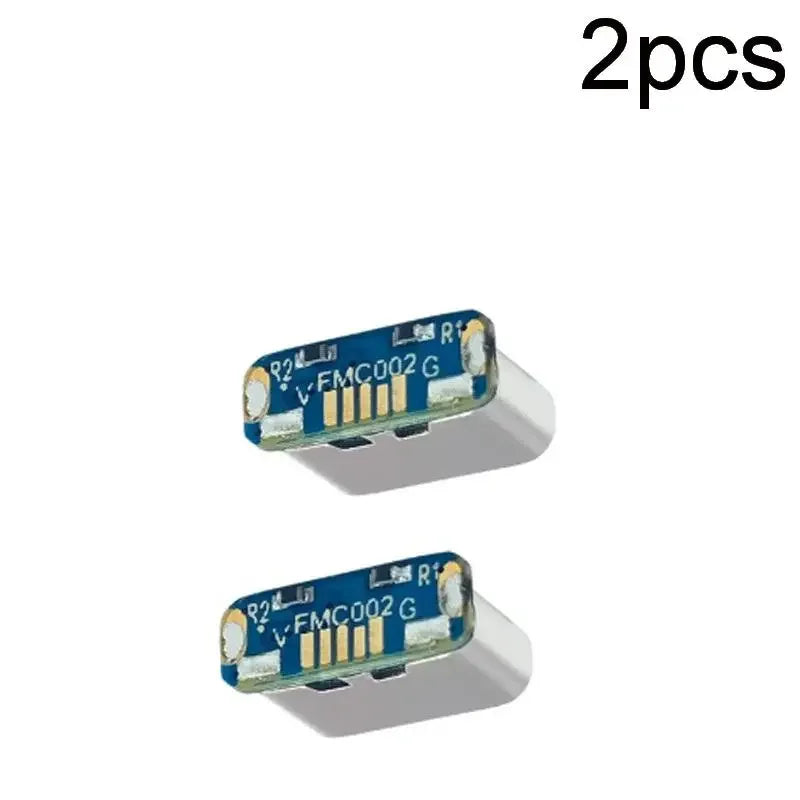

- 2 × USB Type-C Female 5-Pin SMD/SMT Connectors

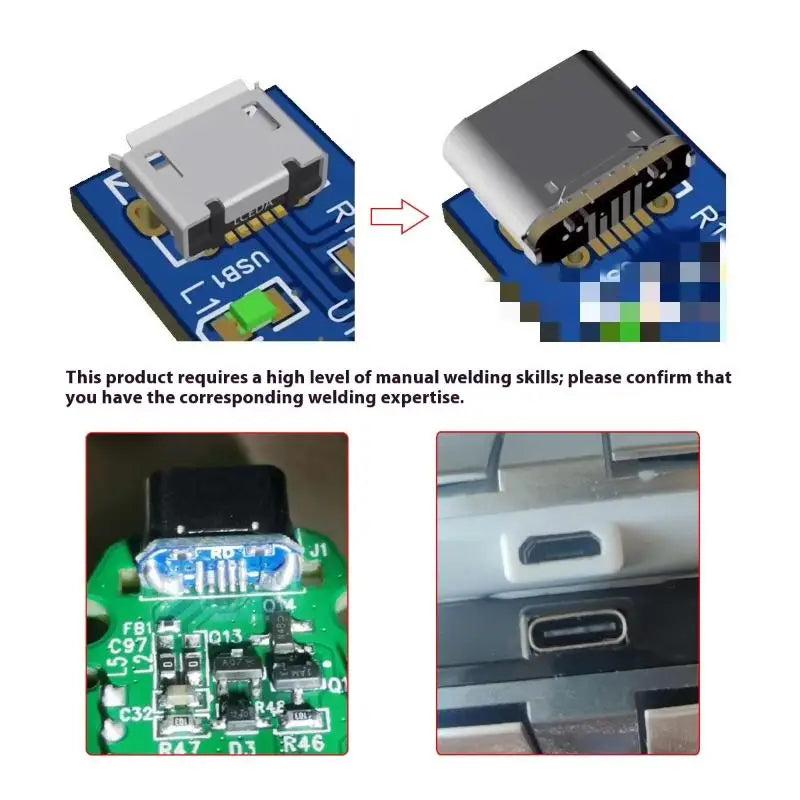

Please Note: Soldering is required. Proficiency in manual surface-mount soldering techniques is recommended before installation. Color may vary slightly from images due to monitor brightness and lighting conditions. Slight dimensional tolerances may apply.
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Can I use these USB Type-C female sockets to replace a broken charging port on a PCB?
A: Yes. These 5-pin SMD Type-C female sockets are designed specifically for PCB-level charging port repair and replacement. You will need to desolder the old connector and solder these in its place. Surface-mount soldering skill is required for a successful installation.
Q: Are these connectors compatible with USB 3.0 or fast-charging protocols like PD?
A: These connectors are USB 2.0 compliant and support up to DC 5V 2A. They are not designed for USB 3.0 SuperSpeed or USB Power Delivery (PD) fast-charging protocols. They are ideal for standard charging and data transfer applications at USB 2.0 speeds.
Q: Do I need any special tools to solder these SMD connectors?
A: A fine-tip soldering iron, solder flux, and ideally a magnifying aid are recommended for SMD soldering. Hot-air rework stations can also be used. These connectors are suited for hobbyists and technicians with experience in surface-mount soldering techniques.
