USB Cable Tester Board – LED Data Cable Fault Detector
USB Cable Tester Board – LED Data Cable Fault Detector
USB Cable Tester Testing Board with LED Indicators
Stop guessing which cable is causing your connectivity issues. This compact USB Cable Tester Board lets you quickly diagnose faults in data cables with a simple plug-and-test workflow. LED indicators instantly show charging and data transmission status, making cable diagnostics effortless for technicians, hobbyists, and everyday users alike.
Made in Mainland China.
Key Features
- Fast Fault Detection: Instantly identifies data cable faults using clear LED indicators — no guesswork needed.
- Wide Cable Compatibility: Supports testing across multiple USB cable types and connector configurations.

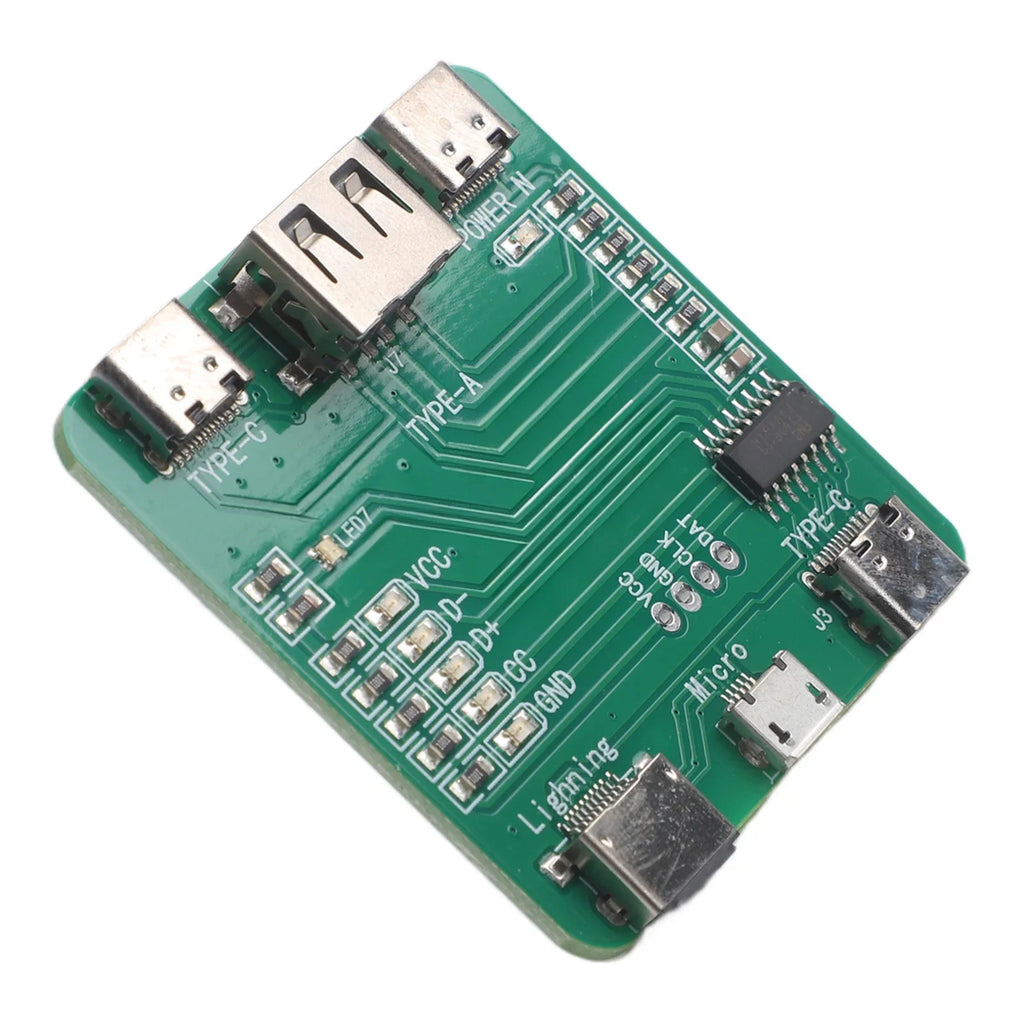

- Multi-LED Status Display: Multiple LED lights clearly show charging status and data transmission lines for precise diagnostics.
- Short-Circuit Switch Testing: Dedicated short-circuit switch function lets you safely test cable integrity before use.
- Easy Plug-and-Test Operation: No complicated setup — simply connect the cable to test and read the result from the LEDs.
- Compact & Portable: Lightweight blue design is easy to carry in a toolbox, laptop bag, or workbench drawer.
Specifications
| Product Name | USB Data Cable Tester Board |
| Color | Blue |
| Brand | HpLive |
| Package Contents | 1× Test Board |
Package Contents

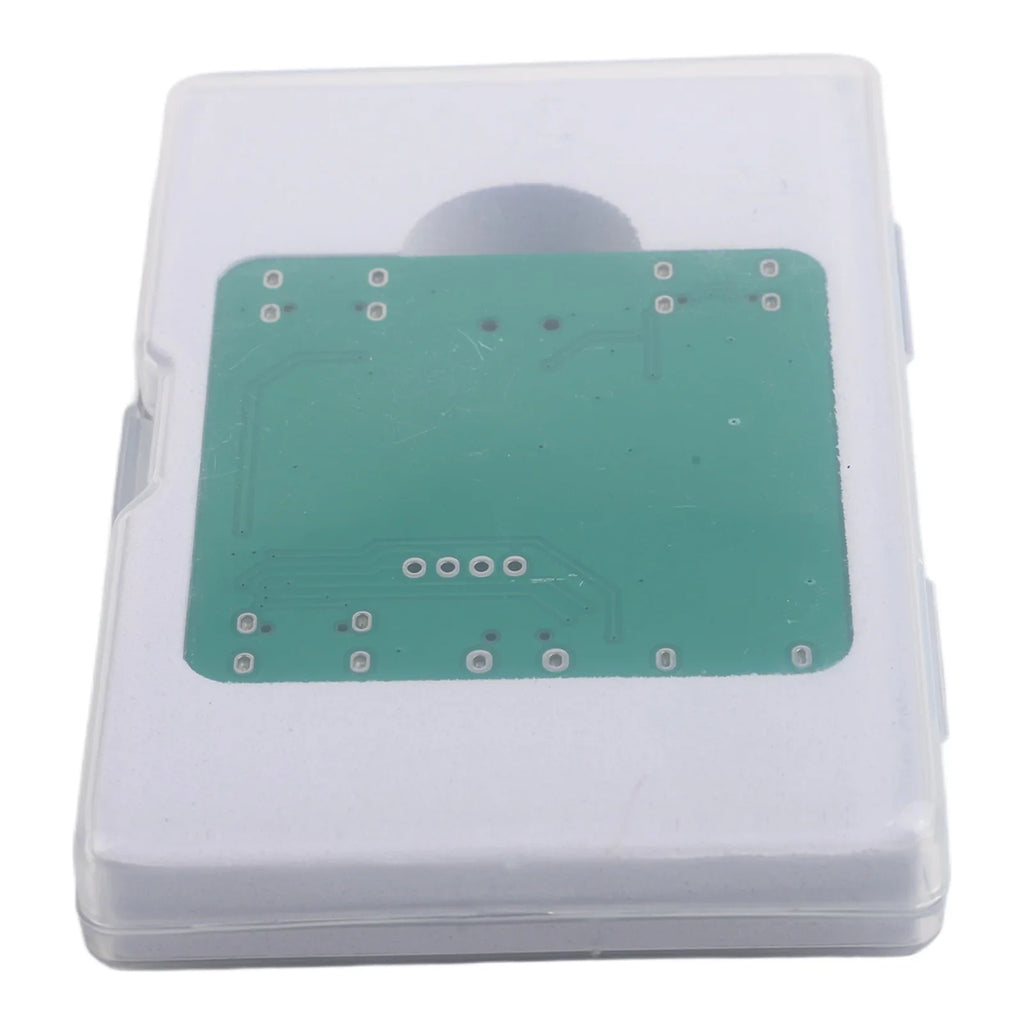

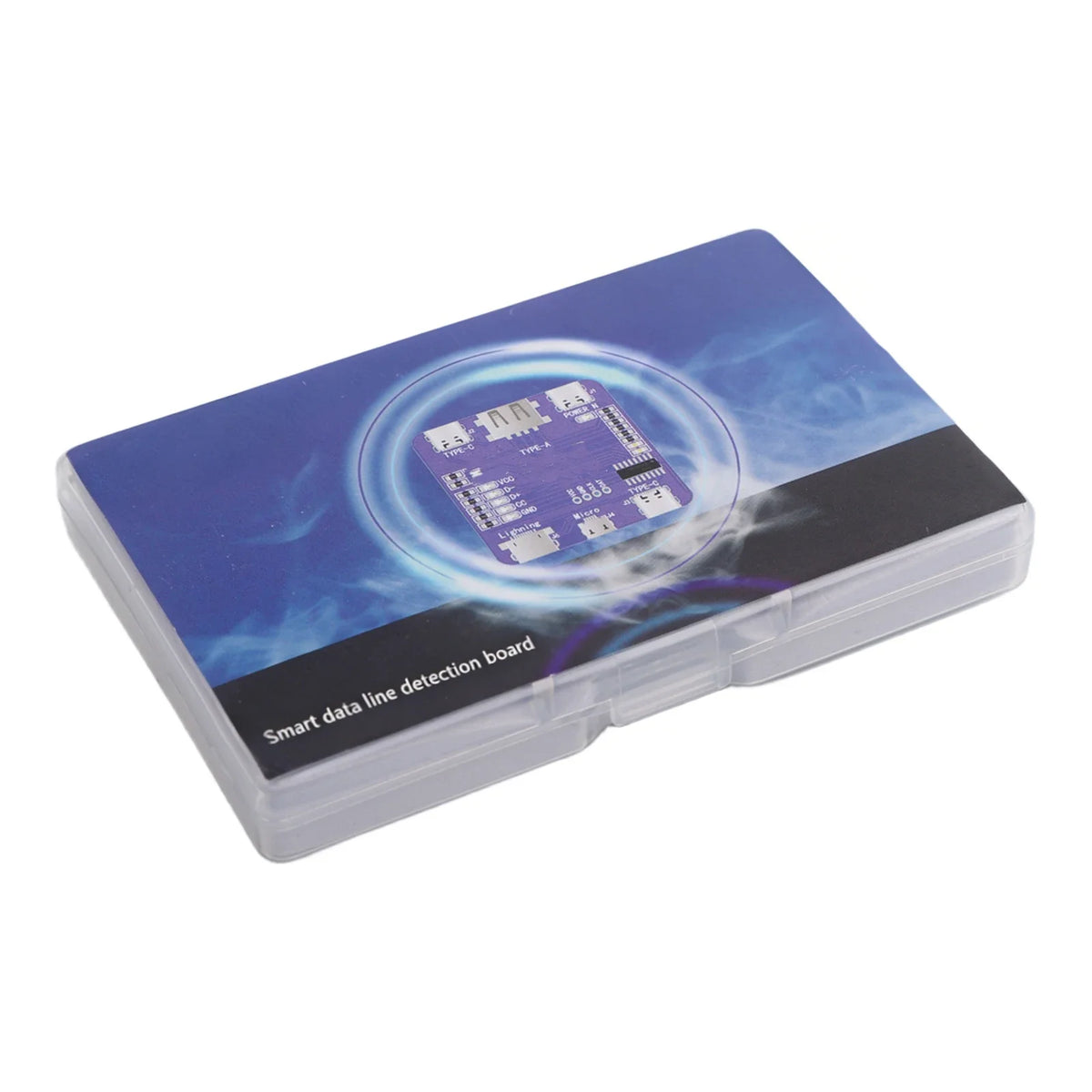

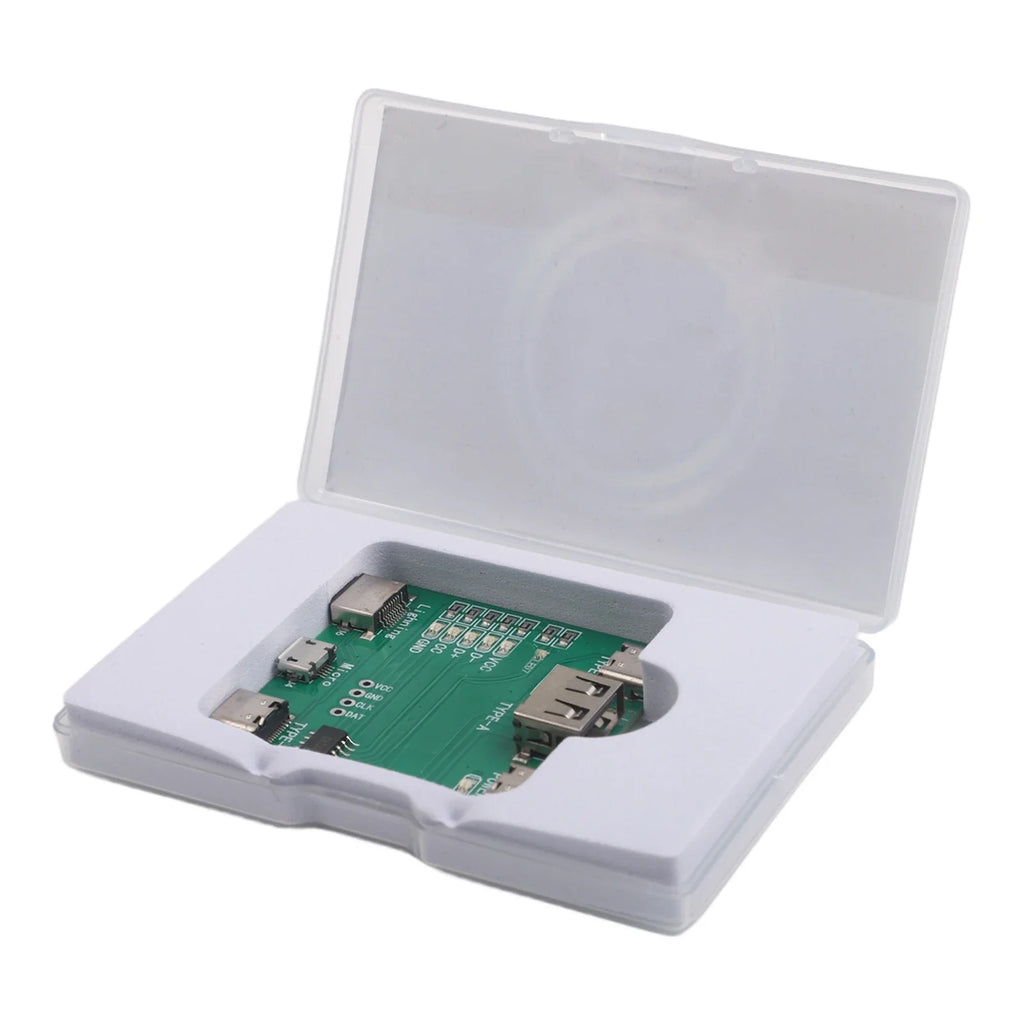

- 1× USB Cable Tester Test Board
Related Products You May Find Useful
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of USB cables can this USB cable tester board test?
A: This USB cable tester board is designed to support a variety of USB cable types and connector configurations. It can detect faults in data lines, charging lines, and short-circuit conditions across common USB cable formats, making it a versatile tool for electronics workbenches and DIY electrical projects.
Q: How do I use the USB cable tester board?
A: Simply plug the cable you want to test into the corresponding ports on the tester board. The onboard LED indicators will light up to show the status of each data and charging line. The short-circuit switch function lets you further verify cable integrity. No software or additional tools are required — it's a fully standalone, plug-and-test device.
Q: Do I need a power source to operate this cable tester?
A: The tester board is powered directly through the USB connection being tested, so no separate external power supply is typically required. Just connect your cable and the LED indicators will display the diagnostic results immediately.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
