USB-C 2-Pin Waterproof Female Connector Jack PH2.0 Snap Lock
USB-C 2-Pin Waterproof Female Connector Jack PH2.0 Snap Lock
USB-C 2-Pin High Current Charging Socket with PH2.0 Snap Lock Plate
Keep your devices powered up and protected with this durable USB Type-C Female Waterproof Connector Jack. Designed for high-current charging applications, this compact socket features a secure nut snap-lock plate and a PH2.0 interface — making it an ideal choice for electronics builders, repair technicians, and DIY enthusiasts who need a reliable panel-mount USB-C port.
Key Features
- Waterproof Design: Sealed construction keeps moisture and dust out, making it suitable for outdoor enclosures, marine applications, and rugged builds.
- High Current Capacity: Supports up to 24V for demanding charging scenarios where a stable, high-current connection is essential.
- PH2.0 Connector Interface: Compatible with PH2.0 pitch wiring systems for easy integration into custom PCB and wiring harness setups.
- Snap Lock Nut Plate: Secure panel-mount installation using the included nut and snap-lock mechanism — no soldering to the chassis required.
- Durable Materials: Constructed from plastic, alloy, and copper for long-lasting performance and excellent electrical conductivity.
- Compact & Versatile: A single-unit package that fits neatly into standard panel cutouts — perfect for custom enclosures, robotics, power banks, and more.
Specifications
| Type | USB Type-C Female Socket / Connector Jack |
| Pins | 2-Pin (High Current) |
| Interface | PH2.0 |
| Rated Voltage | 24V |
| Mounting Style | Panel Mount with Nut Snap Lock Plate |
| Material | Plastic + Alloy + Copper |
| Waterproof | Yes |
| Package Includes | 1 × USB-C Female Waterproof Connector Jack |
| Country of Origin | Made in Mainland China |
What's in the Box?

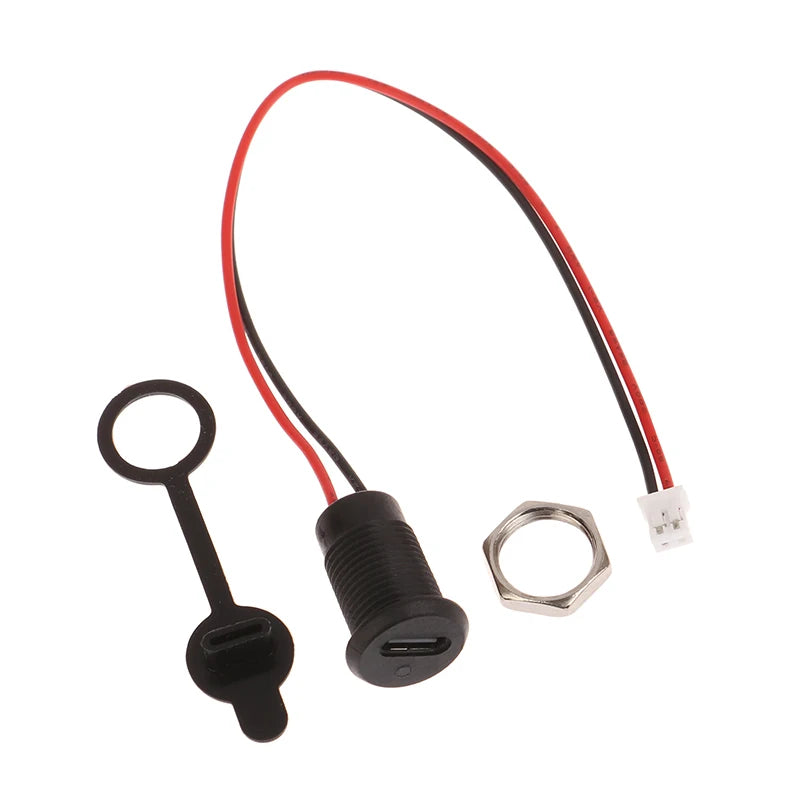

1 × USB-C 2-Pin High Current Waterproof Female Connector Jack with PH2.0 Nut Snap Lock Plate
Perfect For
- Custom electronics enclosures & DIY charging stations
- Robotics, RC vehicles, and drone builds
- Industrial panels requiring waterproof USB-C ports
- PCB prototyping and repair projects
- Marine, automotive, and outdoor power setups
Note: Due to monitor calibration differences, the actual color may vary slightly from product images. Please allow 1–2 cm measuring deviation due to manual measurement.
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is this USB-C connector suitable for fast charging applications?
A: Yes. This 2-pin USB Type-C female connector supports up to 24V and is designed for high-current charging use cases, making it compatible with many fast-charging power delivery setups in custom electronics and industrial panels.
Q: How is the waterproof USB-C socket mounted to a panel?
A: The connector uses a nut snap-lock plate system — simply insert the socket through your panel cutout and tighten the included nut on the rear to secure it firmly. No chassis soldering required.
Q: What wiring does the PH2.0 interface require?
A: The PH2.0 interface uses a 2.0mm pitch connector housing. It is compatible with standard PH2.0 JST-style cables and wiring harnesses commonly used in DIY electronics, robotics, and battery projects.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
