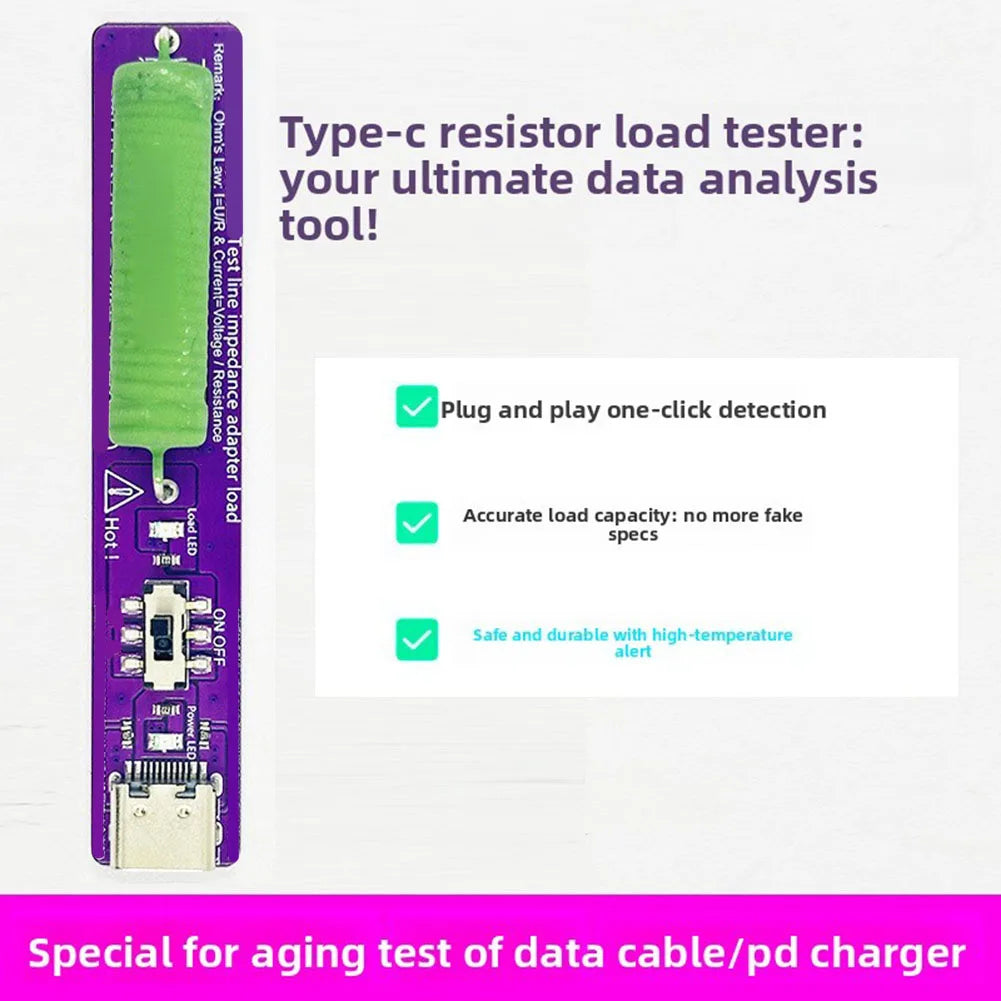

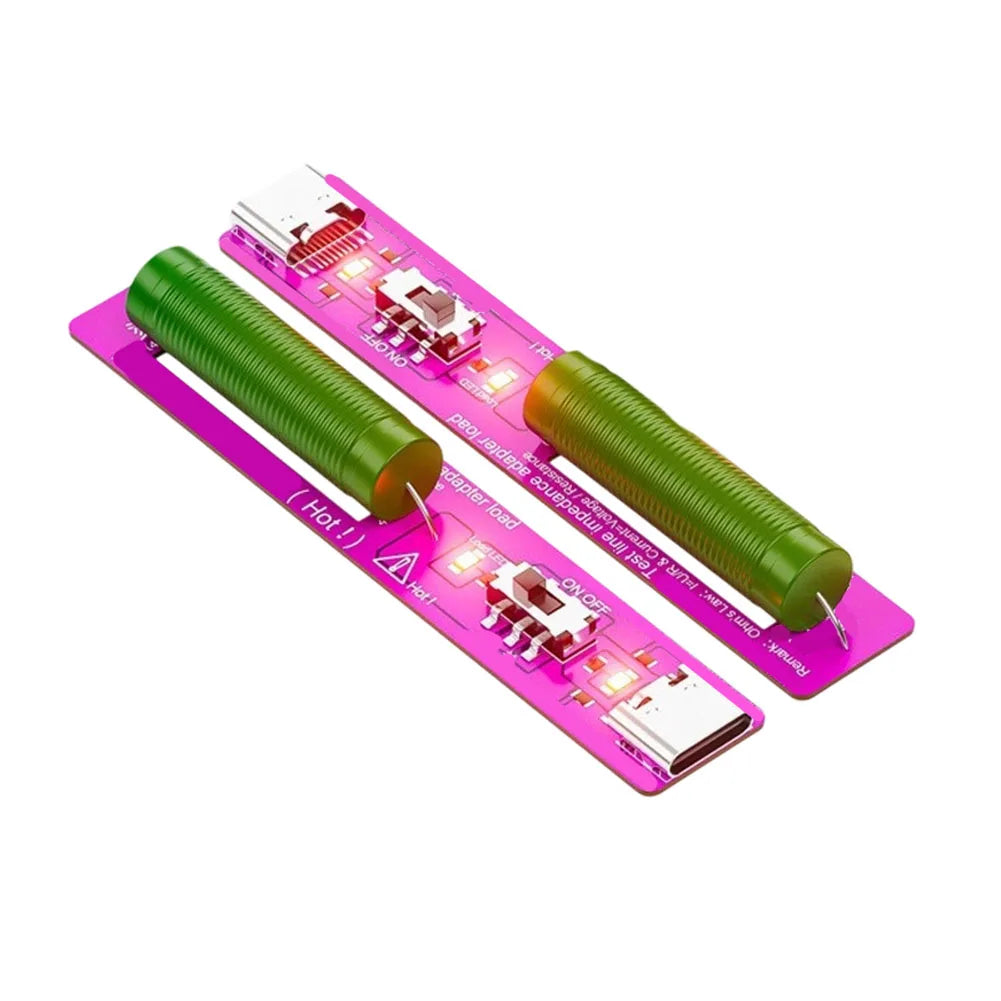

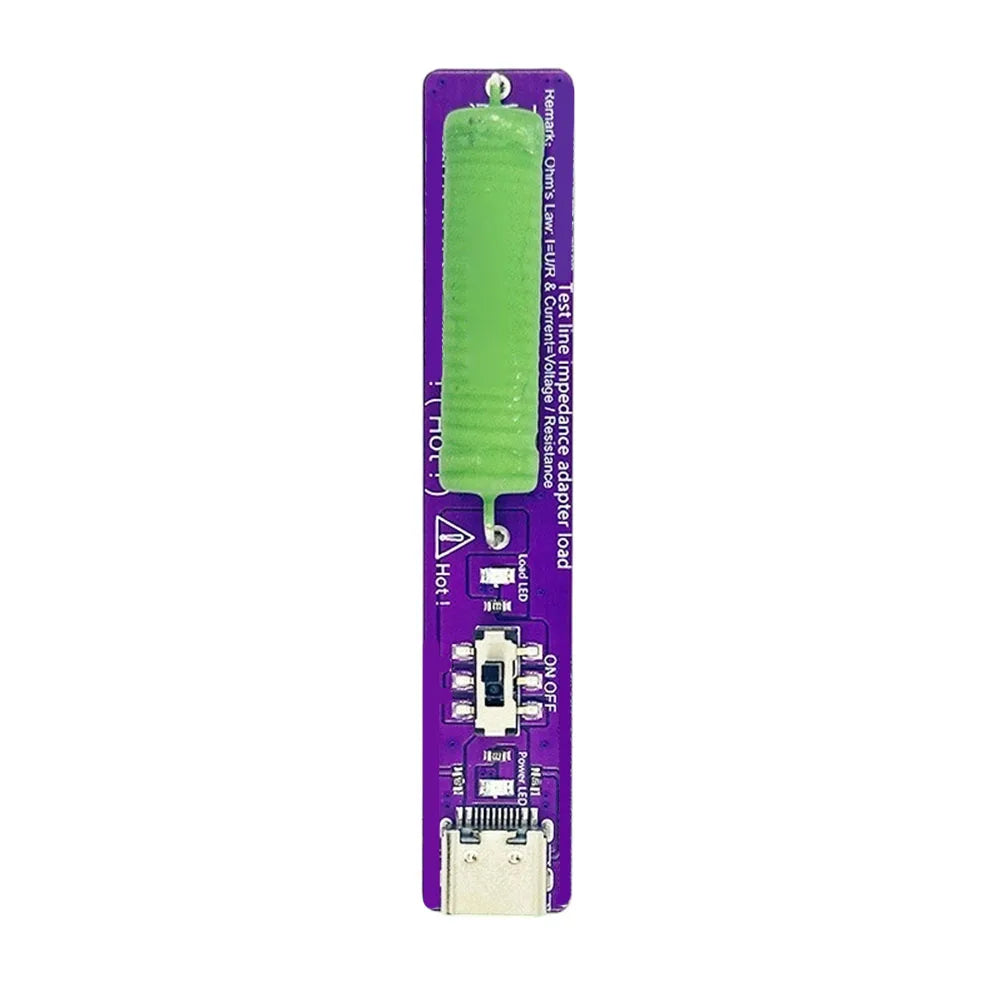

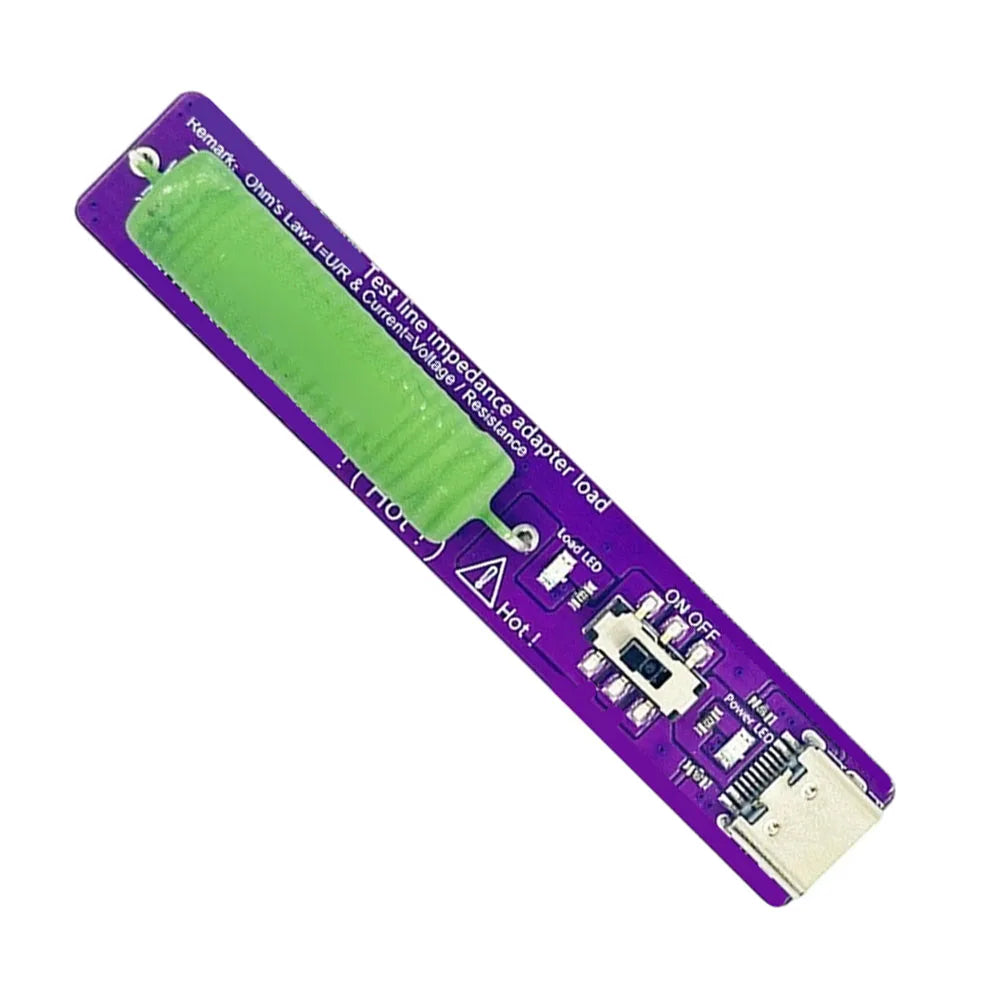

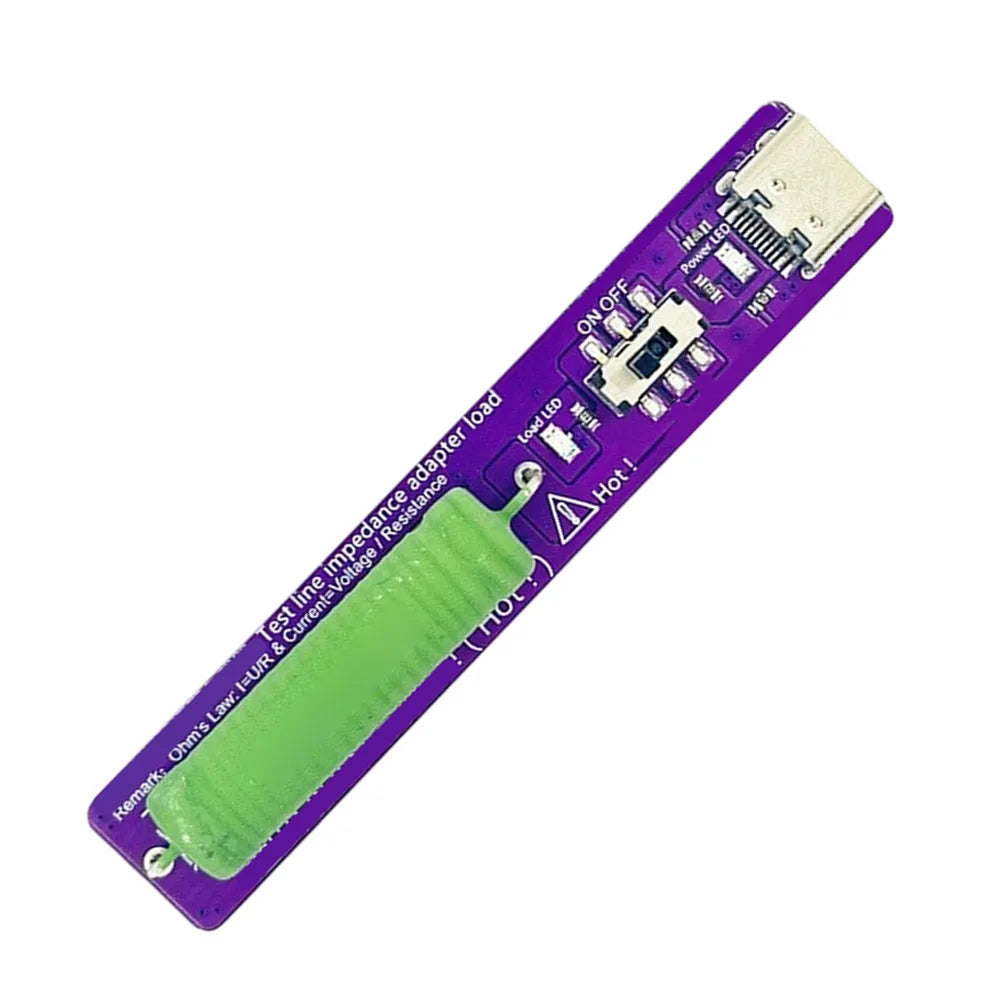

Type-C PD Resistive Load Tester – 10W USB-C Discharge Tool
Type-C PD Resistive Load Tester – 10W USB-C Discharge Tool
Type-C PD Resistive Load Tester – Instant Charger & Cable Verification
The Type-C PD Resistive Load Tester by HpLive is the go-to compact tool for electronics enthusiasts, repair technicians, and DIYers who need a fast, reliable way to verify Type-C PD charger output and cable performance. No complicated setup — just plug it in and get accurate readings in seconds.
Key Features
- 1-Click Testing: Simply connect to any Type-C interface and hit the onboard switch. Instantly apply or remove the resistive load — no configuration needed, perfect for beginners and pros alike.
- Precise Load Measurement: Built with a 10W 4.7Ω high-precision resistor, this tester accurately measures your charger's actual output power, exposing overblown wattage claims from low-quality adapters.

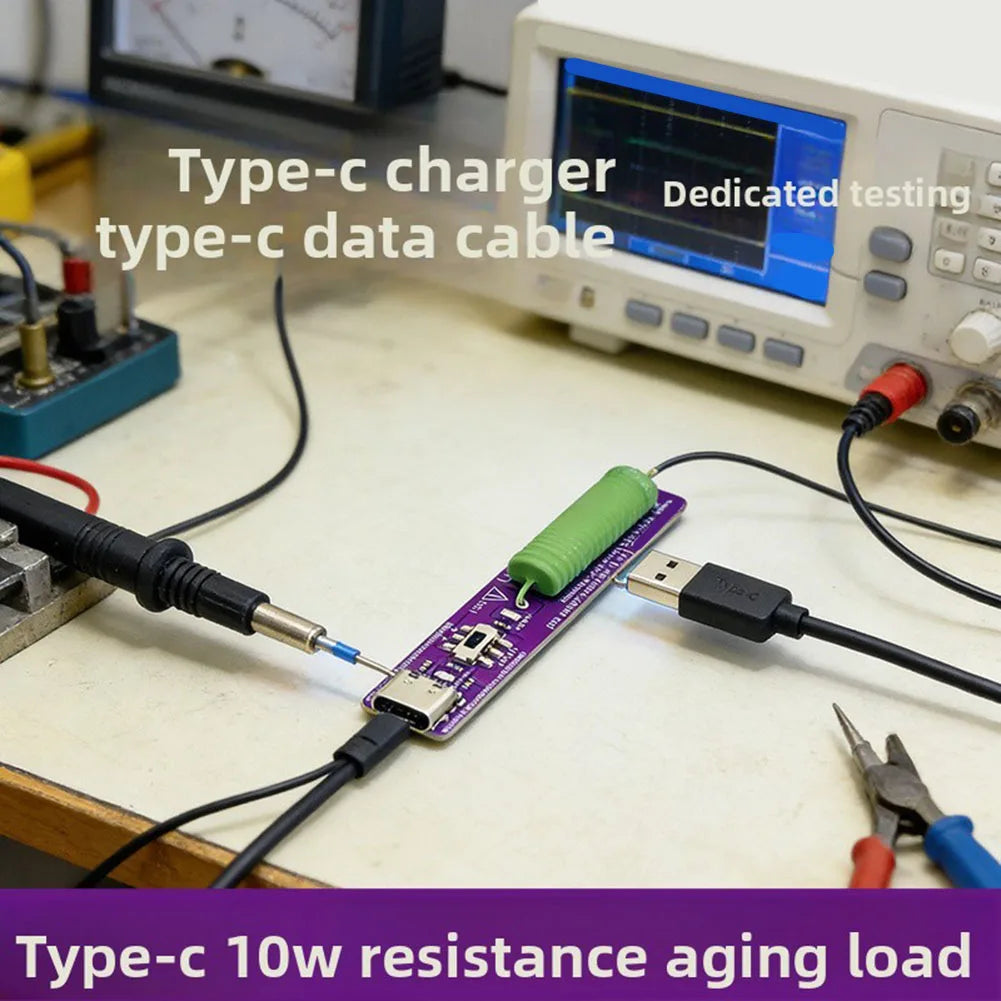

- Type-C Versatility: Designed exclusively for Type-C interfaces, it tests both chargers and data cables, and doubles as a device aging/burn-in test tool — indispensable for repair shops and electronics labs.
- Status Indicator Lights: Onboard load and power LED indicators give you instant visual confirmation of operating status at a glance.
- High-Temperature Protection: Built-in thermal protection safeguards the tester during extended use, ensuring reliable and worry-free operation.
- Compact & Intuitive Design: ABS housing in a sleek purple finish. The onboard control switch makes load on/off control straightforward — an essential accessory for every digital enthusiast and repair professional.
Specifications
| Product Name | Type-C PD Resistive Load Tester |
| Brand | HpLive |
| Resistor Load | 10W, 4.7Ω High-Precision |
| Interface | Type-C (USB-C) |
| Material | ABS Plastic |
| Color | Purple |
| Battery Required | No |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Type-C PD Resistive Load Tester
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does a Type-C PD resistive load tester actually do?
A: A Type-C PD resistive load tester applies a fixed electrical load (in this case 10W via a 4.7Ω resistor) to a USB-C charger or cable to measure its real-world output power and stability. It helps verify whether a charger or data cable delivers its advertised wattage and can also be used for device aging/burn-in tests in repair and testing environments.
Q: Is this tester compatible with all Type-C chargers and cables?
A: Yes — the tester is designed for the standard Type-C (USB-C) interface, making it broadly compatible with Type-C PD chargers and data cables. Simply plug it into any Type-C port and use the onboard switch to apply or remove the load.
Q: Does the tester require any batteries or external power?
A: No batteries are required. The tester draws power directly from the Type-C charger or cable being tested, so there is nothing extra to charge or install before use.
Q: Is it safe to use for extended aging or burn-in tests?
A: Yes. The tester features built-in high-temperature protection and onboard status indicator LEDs that clearly show load and power status, making it suitable for prolonged discharge and aging tests while maintaining safer operating conditions.
