TISHRIC PCIe 3.0 16X to 16X 90-Degree Adapter Riser Card – 1U/2U Server Compatible

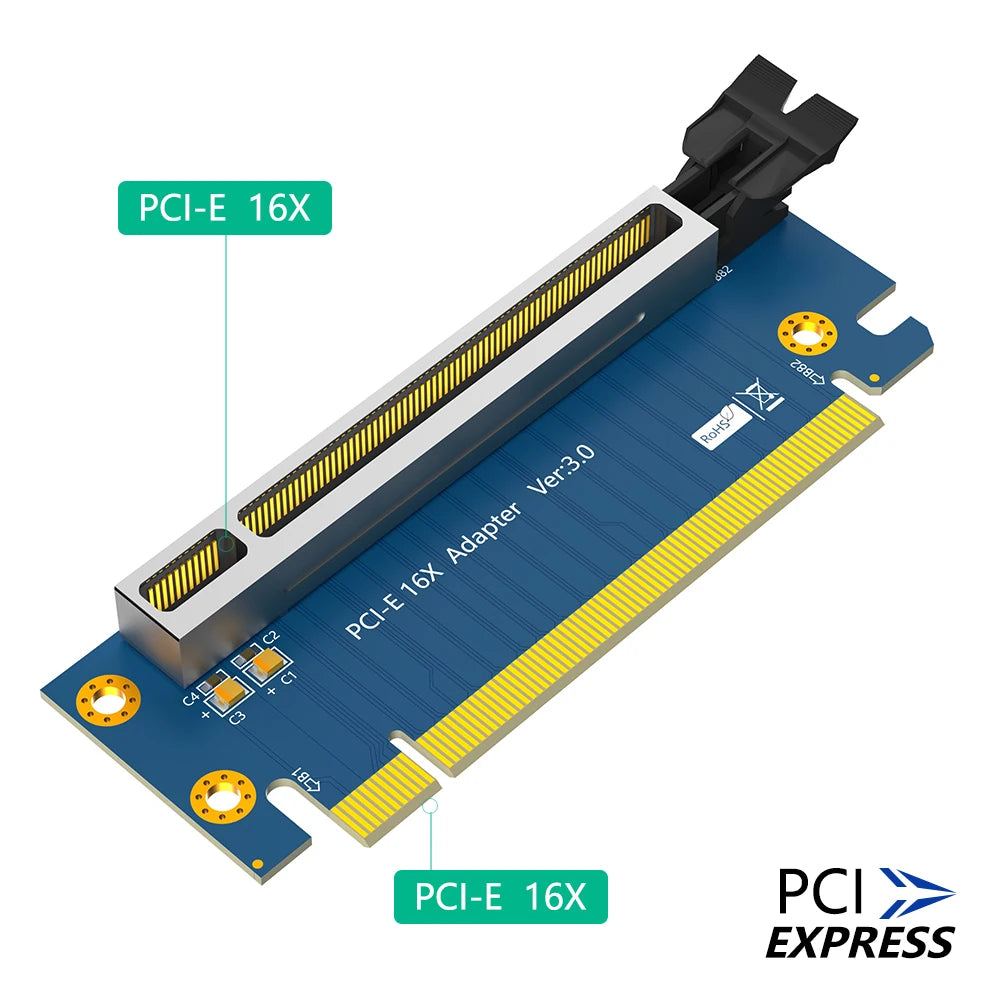

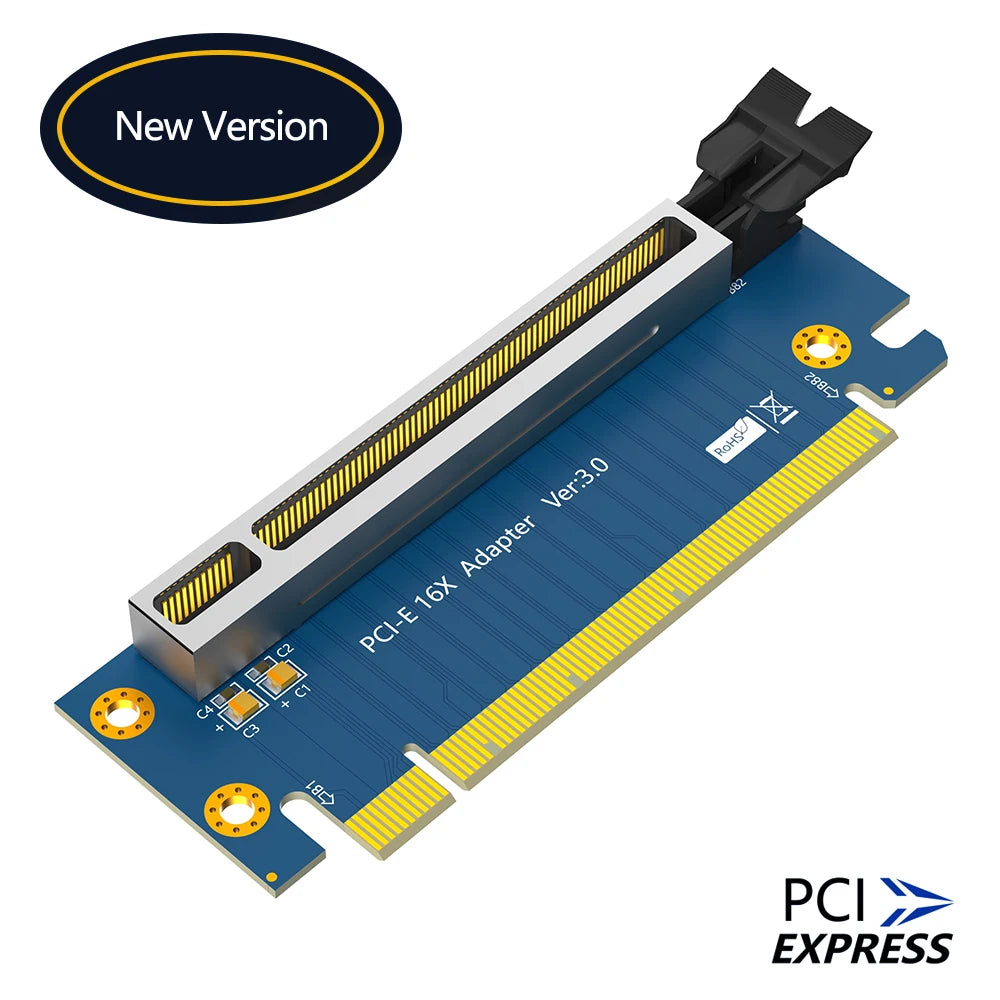

Upgrade your compact server build without compromise. The TISHRIC PCIe 3.0 16X to 16X Right-Angle Riser Card lets you mount a full-sized PCI Express x16 card inside a 1U or 2U server chassis — no need to buy expensive small form factor PCIe cards. It delivers a clean, high-speed connection between your motherboard and expansion card, all in a compact 90-degree form factor.
Made in Mainland China.
Key Features
- PCIe 3.0 x16 to x16: Full-bandwidth PCI Express 3.0 connection — no speed bottleneck, no signal loss.
- 90-Degree Right-Angle Design: Perfectly engineered for 1U and 2U server cases where vertical card clearance is limited.
- Golden Finger Protection: Gold-plated connectors with dustproof cover for long-term reliability and reduced oxidation.
- Direct In-Line Socket Alignment: The PCIe x16 socket sits in direct line with your motherboard slot for a secure, stable fit.

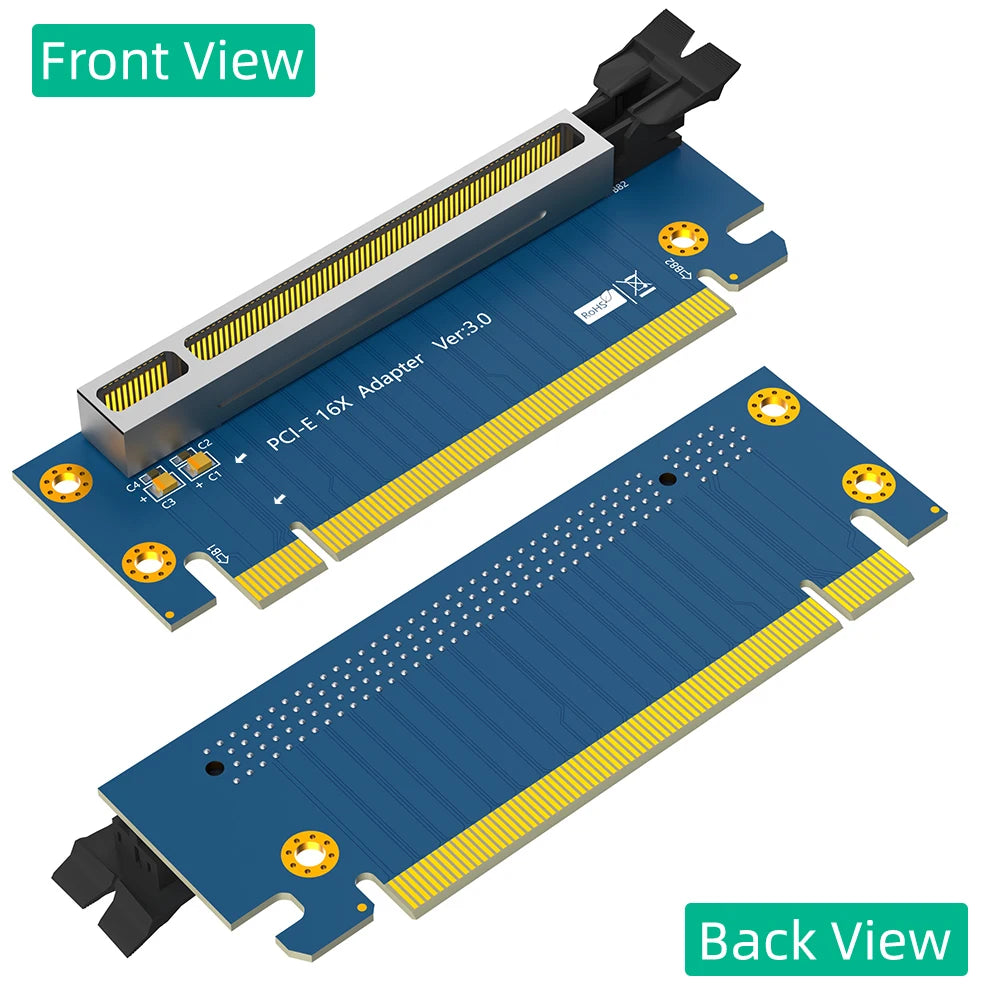

- B-Side Connector Mount: Connector is soldered on the component side (B side) of the board — when an I/O card is inserted, its component side faces down toward the motherboard.

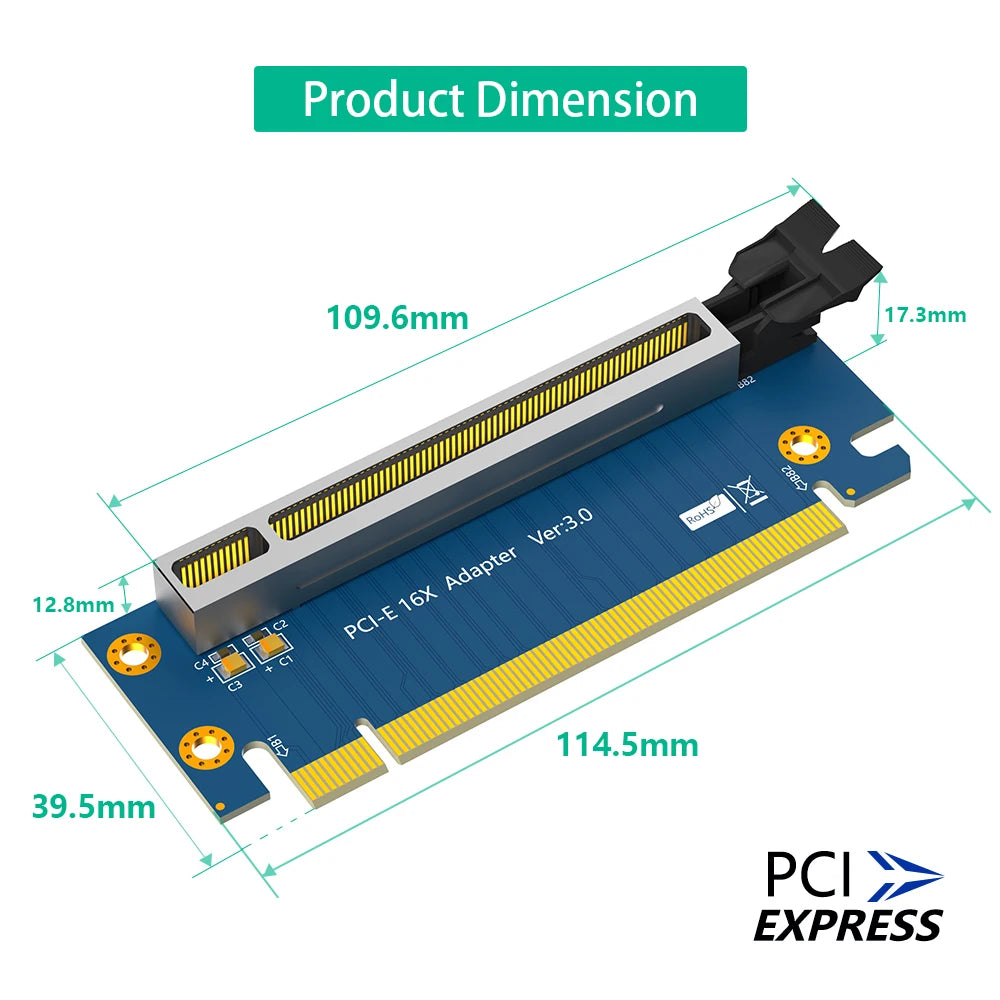

- Compact Dimensions: 115 × 39 mm (L × W) — purpose-built for tight server enclosures.
- No Assembly Required: Plug-and-play installation — simply seat into the PCIe slot on your motherboard.
Specifications
| Brand | TISHRIC |
| Model | PCIE 16X Riser Card |
| Interface | PCI Express 3.0 x16 to x16 |
| Angle | 90 Degrees (Right Angle) |
| Compatible Cases | 1U, 2U Server Chassis |
| Dimensions | 115 × 39 mm |
| Color | Blue |
| Assembly Required | No |
| Origin | Mainland China |
Package Contents
- 1 × TISHRIC PCIe 3.0 16X to 16X 90-Degree Riser Card (Blue)
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is this PCIe riser card compatible with standard ATX motherboards?
A: This TISHRIC PCIe 3.0 16X riser card is specifically designed for 1U and 2U server motherboards where the standard PCIe x16 slot is present. It can function in any motherboard with a PCIe x16 slot, but its primary purpose is to redirect a full-size expansion card flat within low-profile server chassis.
Q: Will this riser card reduce PCIe performance or bandwidth?
A: No. The TISHRIC PCIe 3.0 16X to 16X riser maintains a full PCIe 3.0 x16 connection, preserving the maximum available bandwidth. The gold-plated connectors and direct in-line socket alignment help ensure signal integrity.
Q: Which direction does the expansion card face when installed?

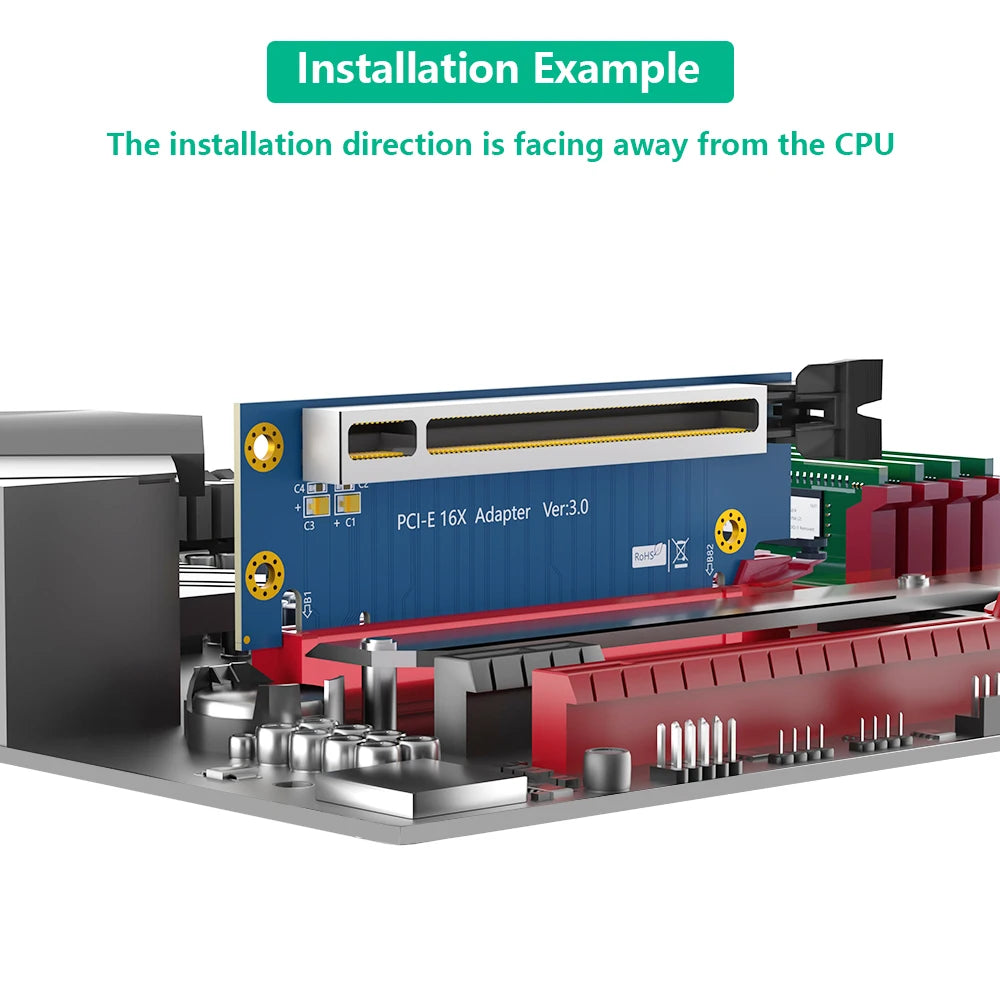

A: When an I/O or expansion card is inserted into this riser, the component side of that card will face downward, toward the motherboard. The connector is soldered on the B side of the riser board, which creates the 90-degree right-angle redirect needed for 1U/2U server builds.
Q: Does the riser card require any drivers or software?

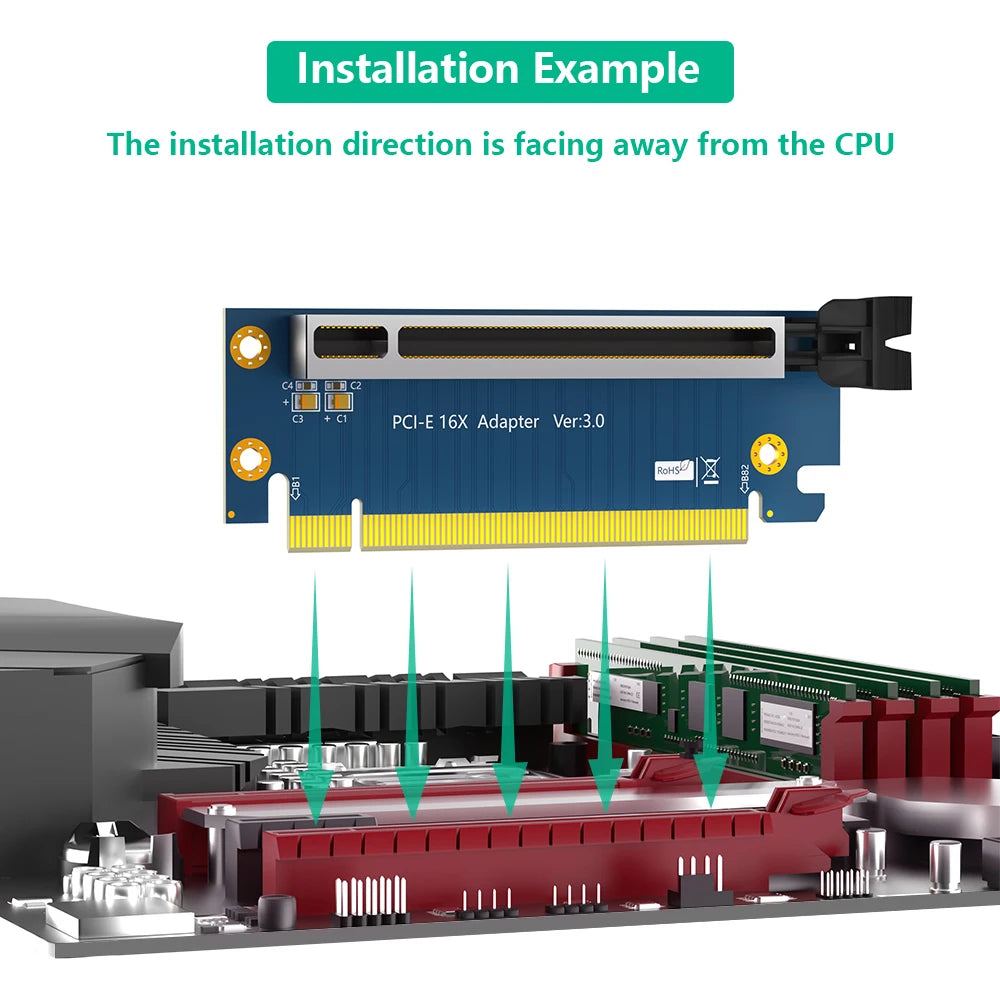

A: No drivers or software are required. This is a passive hardware adapter — simply insert it into your motherboard's PCIe x16 slot and seat your expansion card into the riser. Your operating system will recognize the connected card as normal.
