TISHRIC M.2 NVMe to U.2 SFF-8639 Adapter with Aluminium Case
TISHRIC M.2 NVMe to U.2 SFF-8639 Adapter with Aluminium Case
TISHRIC M.2 NVMe to U.2 SFF-8639 Adapter with Aluminium Enclosure
Unlock the full potential of your M.2 NVMe SSD by connecting it to a U.2 (SFF-8639) interface on your motherboard. The TISHRIC M.2 to U.2 Adapter features a durable aluminium case enclosure, making it an ideal internal converter for server builds, workstations, and high-performance desktop systems. Compatible with M-Key NVMe M.2 SSDs in 2230, 2242, 2260, and 2280 form factors — no external power or extra cables needed.
Made in Mainland China.
Key Features

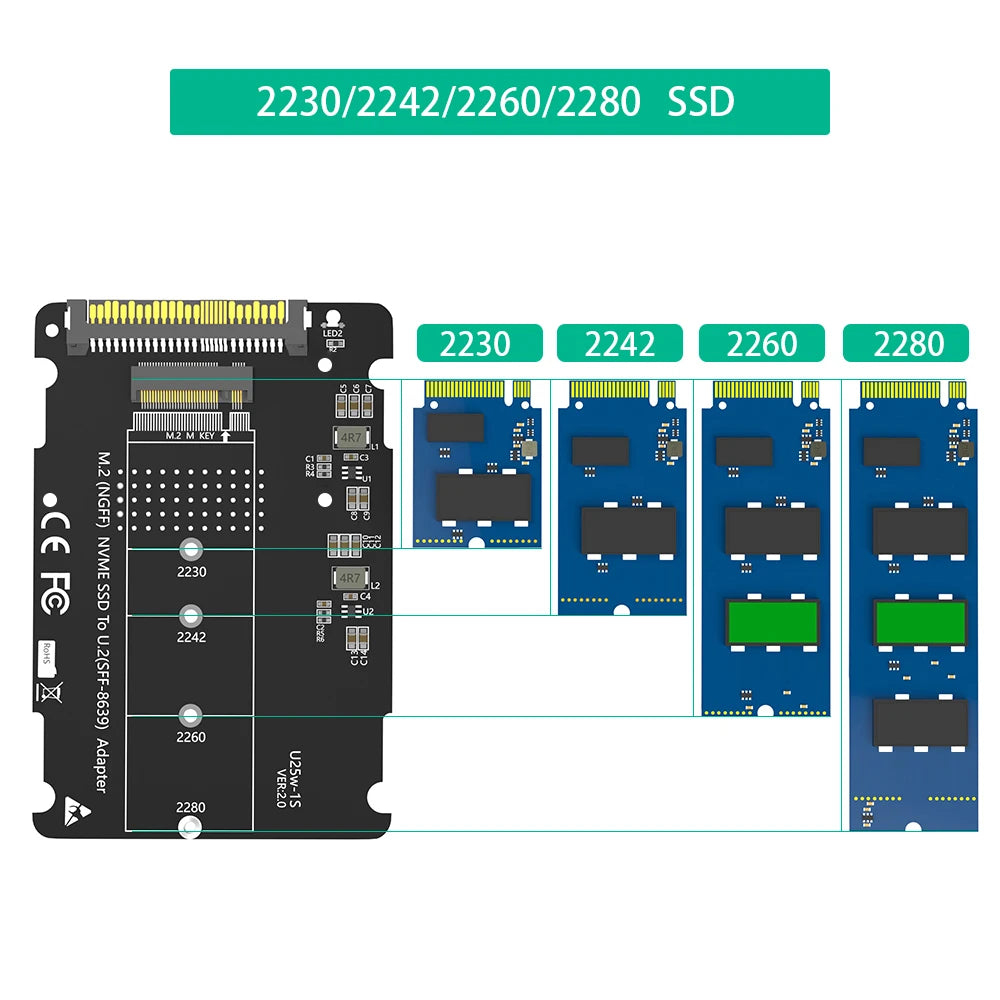

- Wide M.2 Format Support: Compatible with M.2 NGFF NVMe M-Key SSDs in 2280, 2260, 2242, and 2230 form factors.

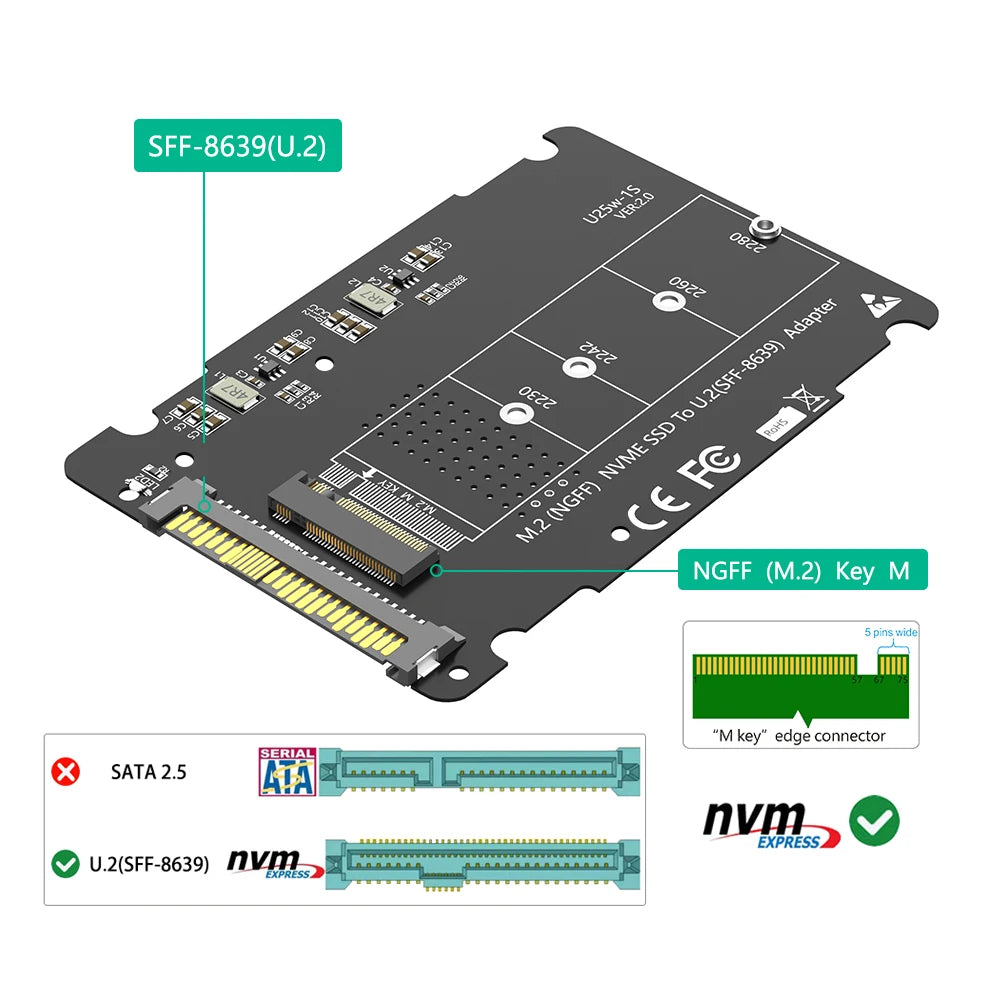

- U.2 / SFF-8639 Interface: Installs internally via a free U.2 (SFF-8639) or SFF-8643 port on your motherboard — a perfect replacement solution for Intel SSD 750, P3600, and P3700 drives.

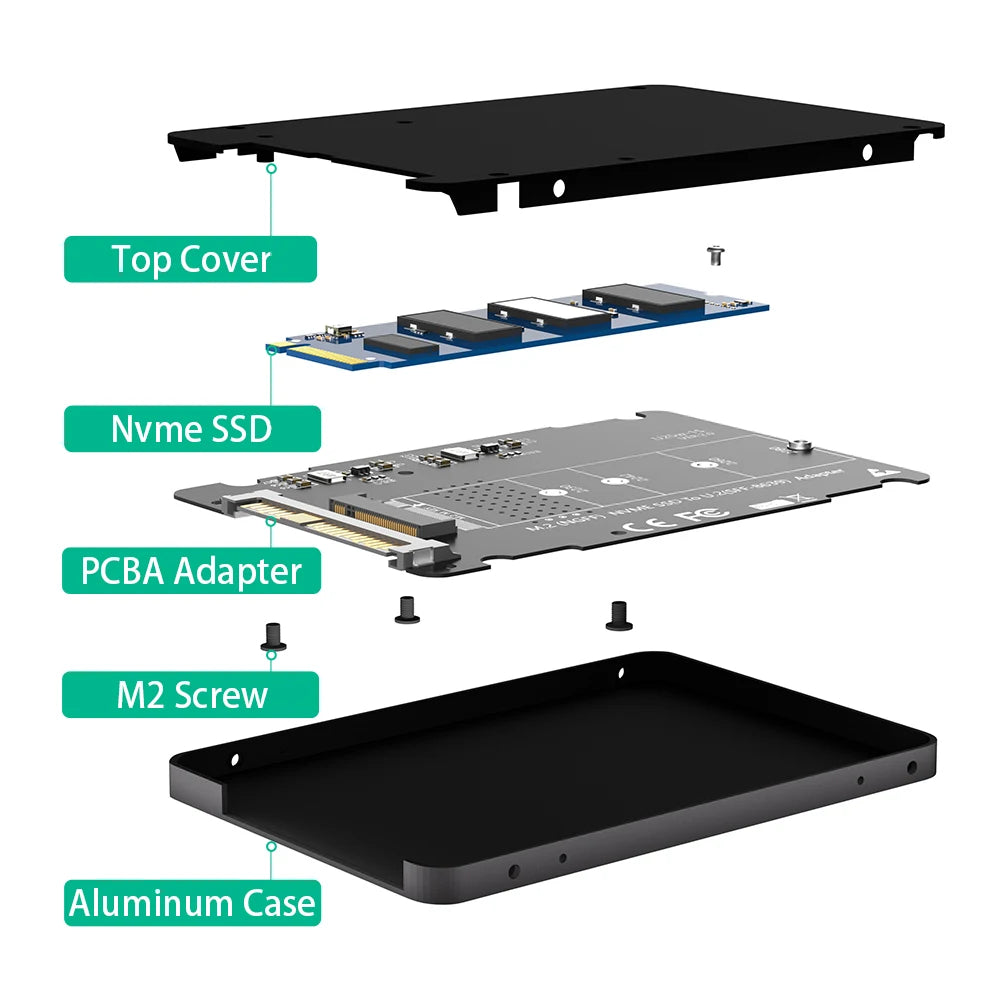

- Aluminium Case Enclosure: Sturdy black anodised aluminium housing protects your SSD and supports double-sided assembled modules with a maximum component height of 1.5 mm.
- PCIe Performance: Transfers data over the PCIe lane via the M-Key interface for maximum throughput — no performance bottleneck.
- Broad OS Compatibility: Supports Windows 8 / 8.1 / 10 (32-bit and 64-bit) and Linux Kernel 3.16+.
- No Assembly Required: Ready to install straight out of the box with all necessary screws and hardware included.
- CE Certified: Meets CE safety and compliance standards.
Important Compatibility Notes
- Requires an M-Key or NVMe M.2 SSD — B-Key or B/M-Key SATA SSDs are not supported.
- Does not work with Key-B SATA ports.
- Requires a free U.2 SFF-8639 or SFF-8643 interface on your system.
Specifications
| Brand | TISHRIC |
| Model | U.2 To NVMe M.2 |
| Interface (Host) | U.2 SFF-8639 / SFF-8643 |
| Interface (Drive) | M.2 NVMe M-Key (PCIe) |
| Supported Formats | 2230, 2242, 2260, 2280 |
| Max Component Height | 1.5 mm |
| Case Material | Aluminium (Black) |
| Certification | CE |
| OS Support | Windows 8/8.1/10 (32/64-bit), Linux Kernel 3.16+ |
| Origin | Mainland China |

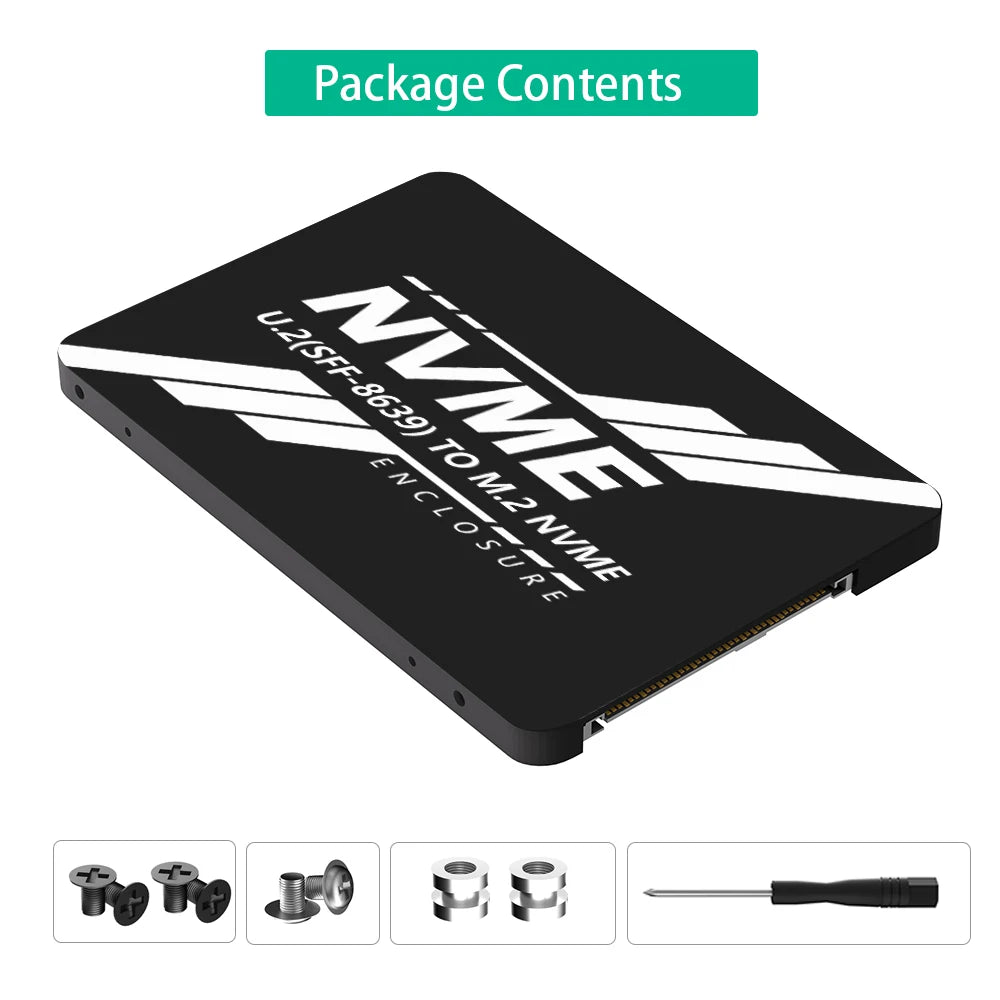

Package Contents
- 1 × U.2 to M.2 NVMe M-Key SSD Enclosure
- 4 × M.2 Black Screws
- 2 × M.2 Screws
- 2 × Standoffs
- 1 × Screwdriver
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Will this M.2 NVMe to U.2 adapter work with a SATA M.2 SSD?
A: No. This TISHRIC M.2 to U.2 SFF-8639 adapter is designed exclusively for NVMe M-Key PCIe M.2 SSDs. B-Key and B/M-Key SATA M.2 SSDs are not compatible. Please verify your SSD uses the M-Key NVMe interface before purchasing.
Q: Which M.2 SSD form factors are supported by this adapter?
A: The adapter supports M.2 NVMe SSDs in the following form factors: 2230, 2242, 2260, and 2280. Both single-sided and double-sided modules are supported, provided the component height does not exceed 1.5 mm.
Q: Does this adapter work with Linux operating systems?
A: Yes. This U.2 to M.2 NVMe converter is compatible with Linux Kernel 3.16 and later, as well as Windows 8, 8.1, and 10 in both 32-bit and 64-bit editions.
Q: What host interface does my motherboard need to use this adapter?
A: Your motherboard or server system must have a free U.2 SFF-8639 or SFF-8643 interface. This adapter will not function on standard PCIe slots, M.2 slots, or SATA ports without an appropriate adapter or cable.
