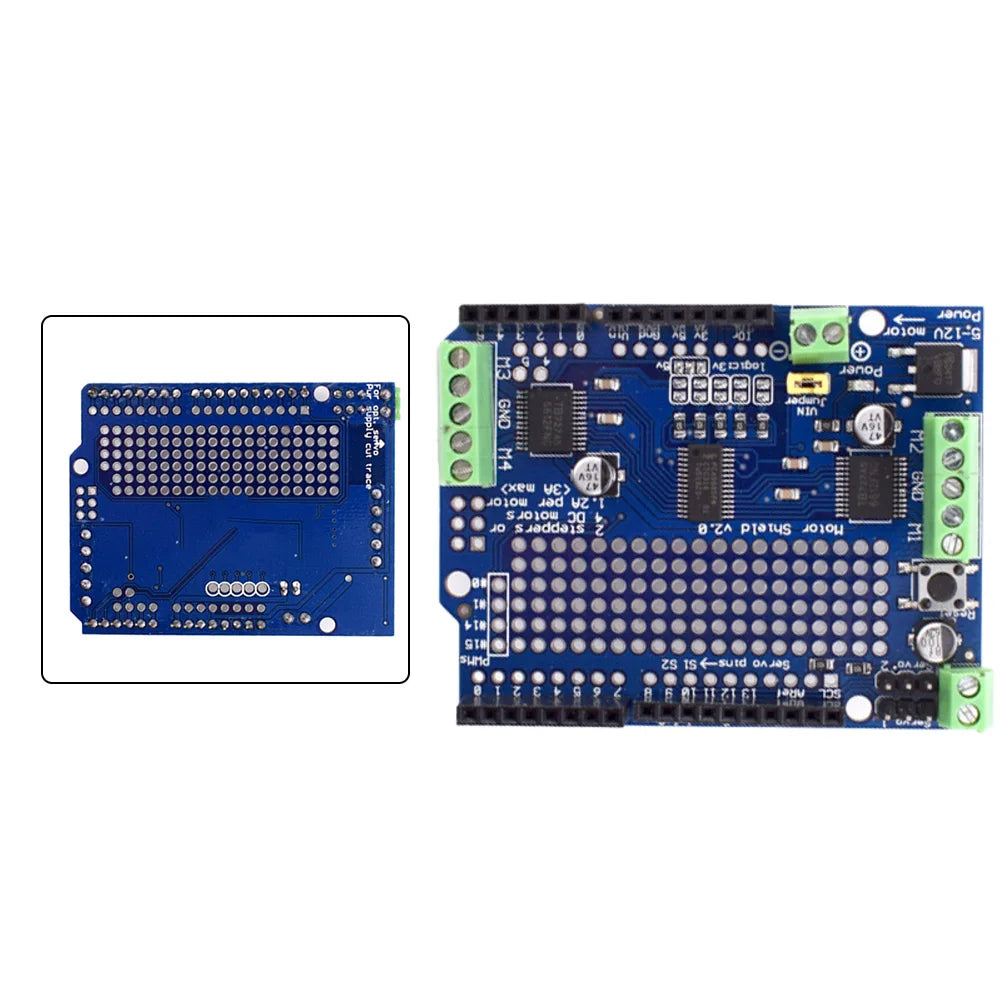

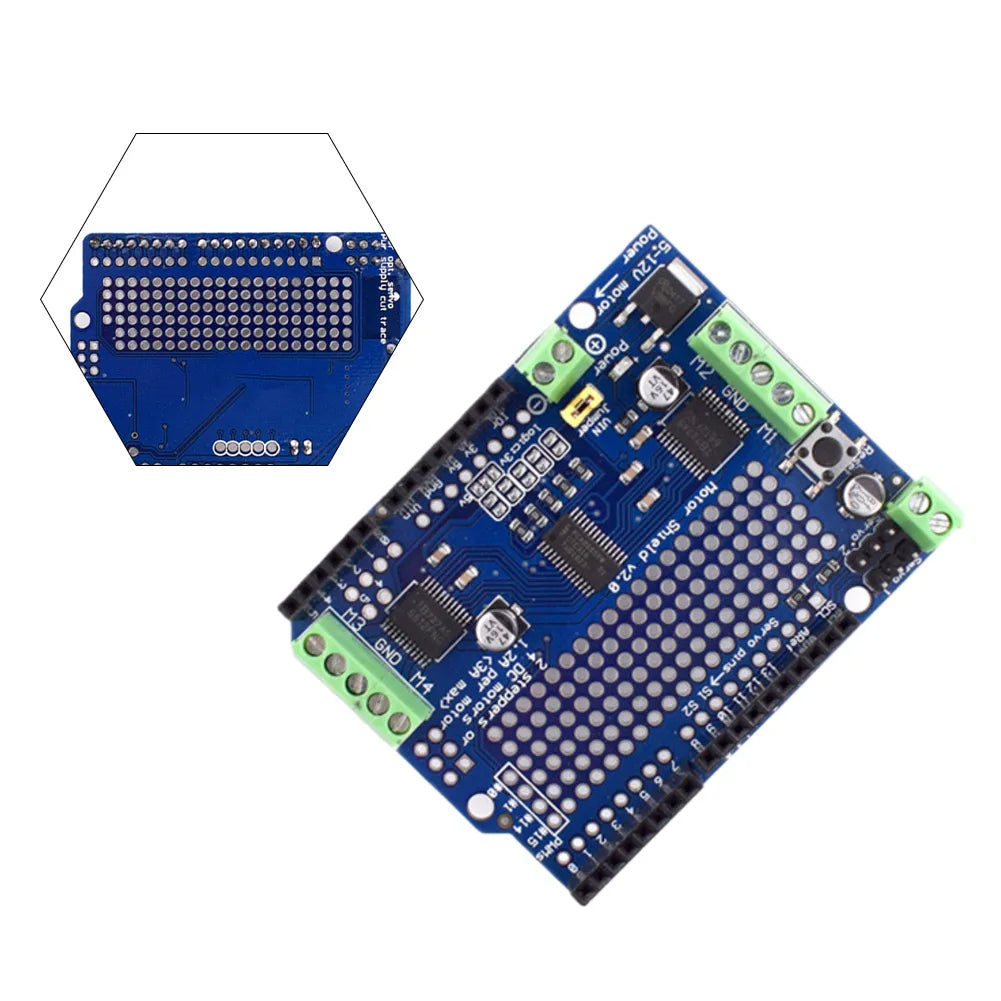

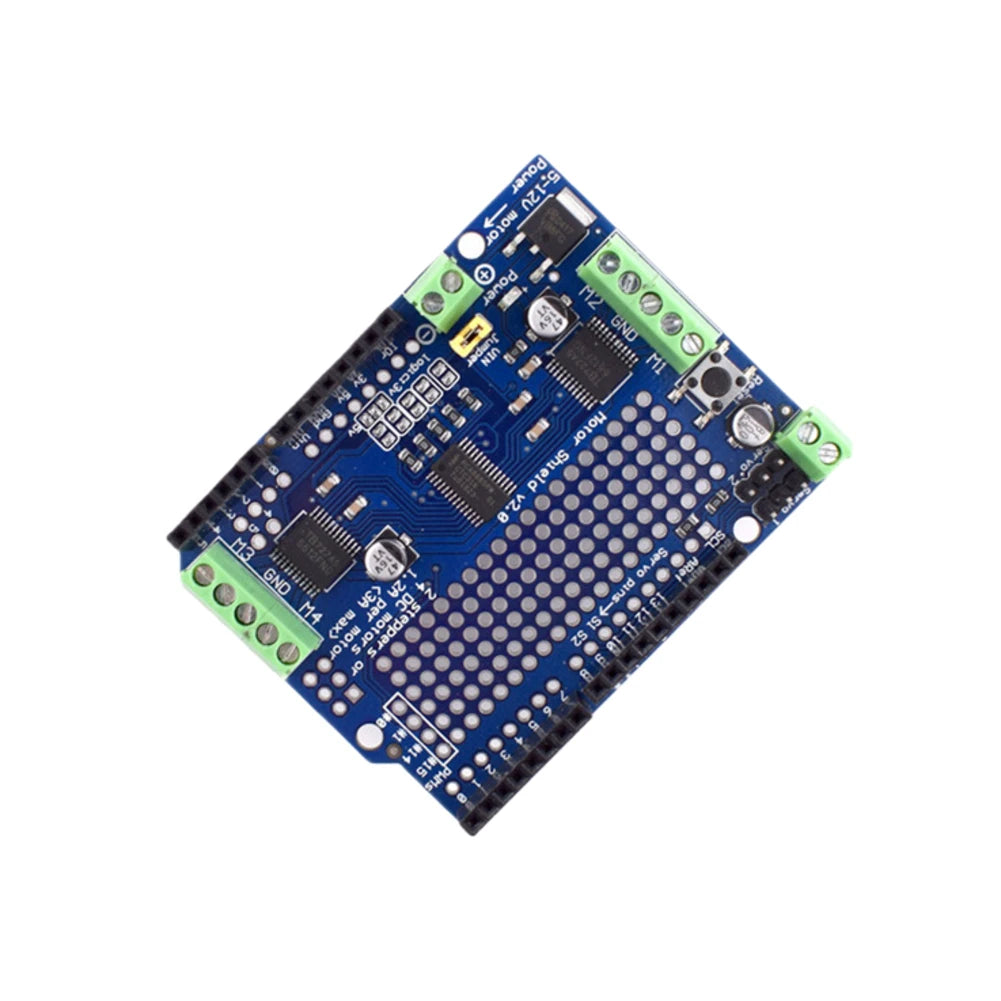

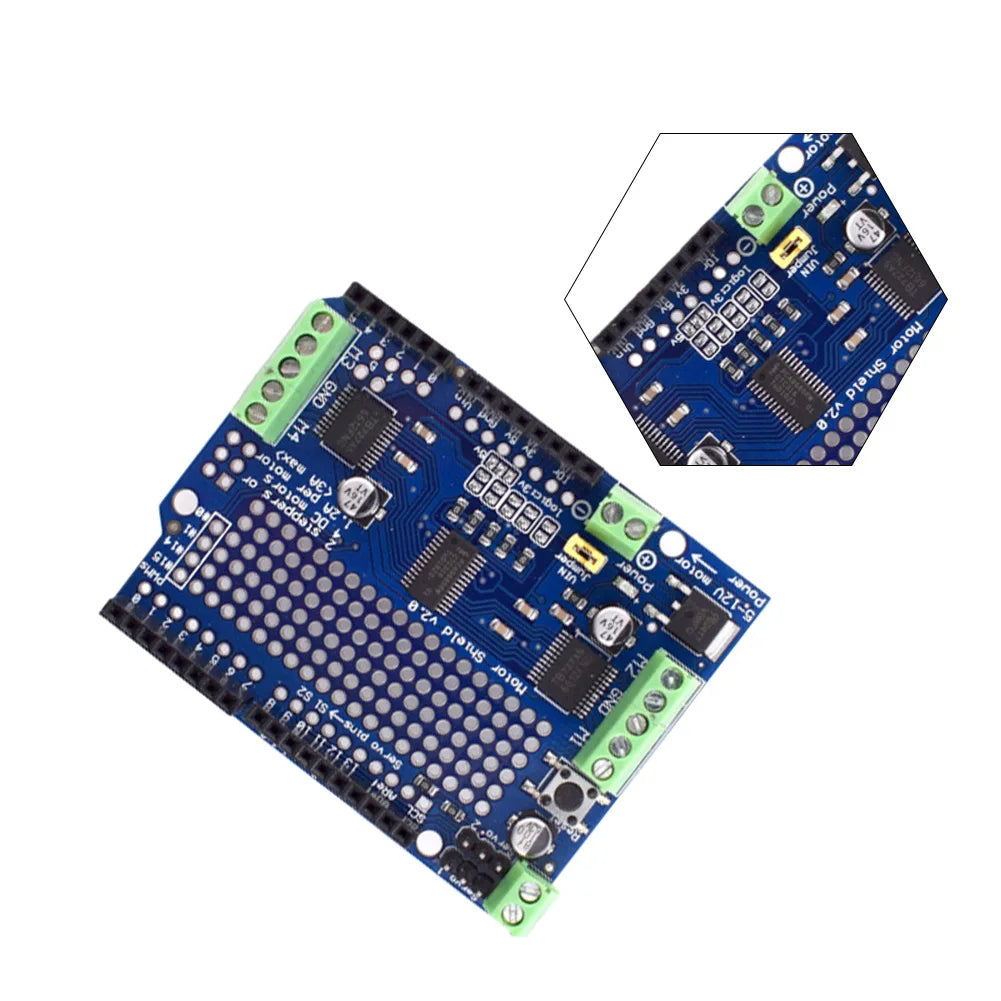

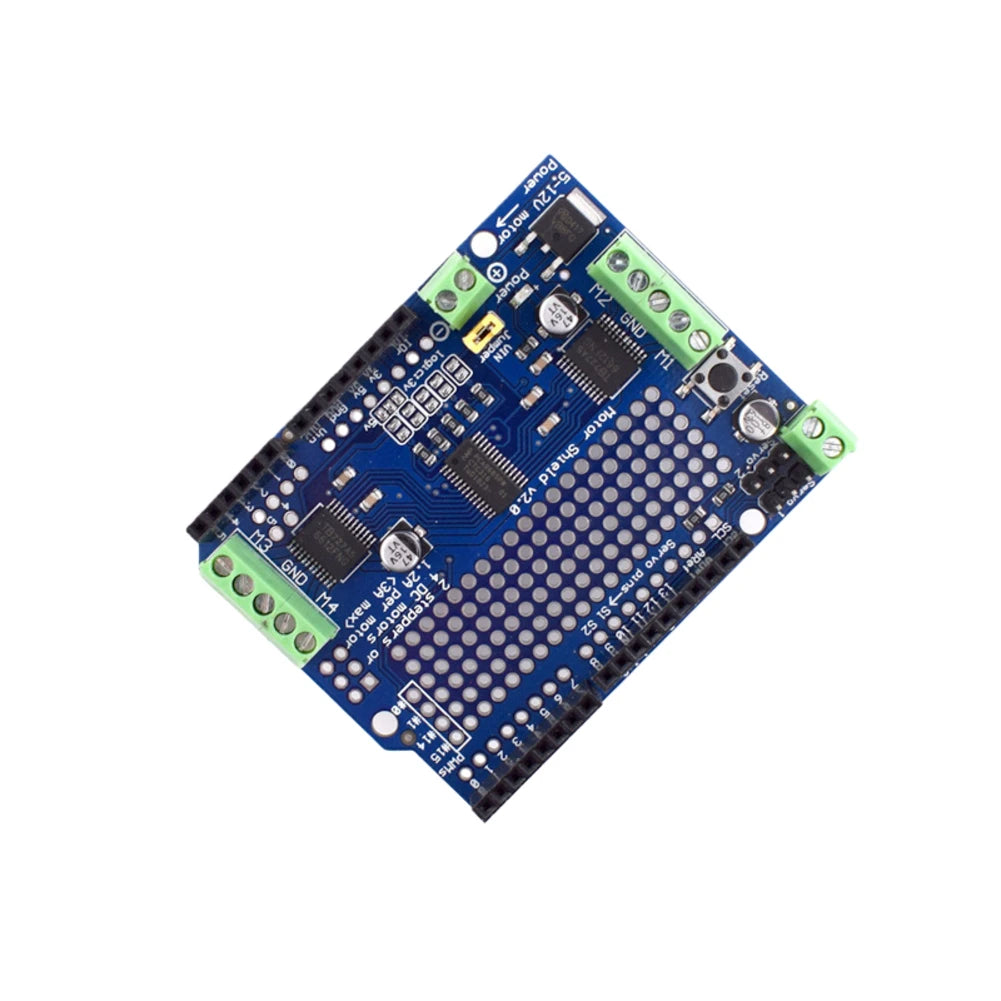

TB6612FNG Motor Driver Module – Versatile Control for Robotics & Automation
Take your Arduino-based robotics and automation projects to the next level with the TB6612FNG DC Stepper Motor Driver Module. Powered by the reliable TB6612FNG motor driver chip, this compact PCB shield delivers efficient, precise motor control with minimal wiring — perfect for hobbyists, engineers, and makers alike.
Key Features
- Arduino Compatible: Seamlessly integrates with Arduino systems, offering easy-to-use control and expansion interfaces for rapid prototyping and development.
- Versatile Motor Control: Drive up to four DC brushed motors or two four-wire stepper motors — ideal for projects requiring multiple motor configurations in robotics, automation, and more.
- Efficient Power Management: The TB6612FNG chip delivers a peak current of 3.2A with low voltage drops, translating to higher torque and improved efficiency from your power source.
- Dedicated PWM Driver: Built-in PWM driver manages motor speed and direction via I2C communication (SDA & SCL), simplifying control to just two pins for multiple motors.

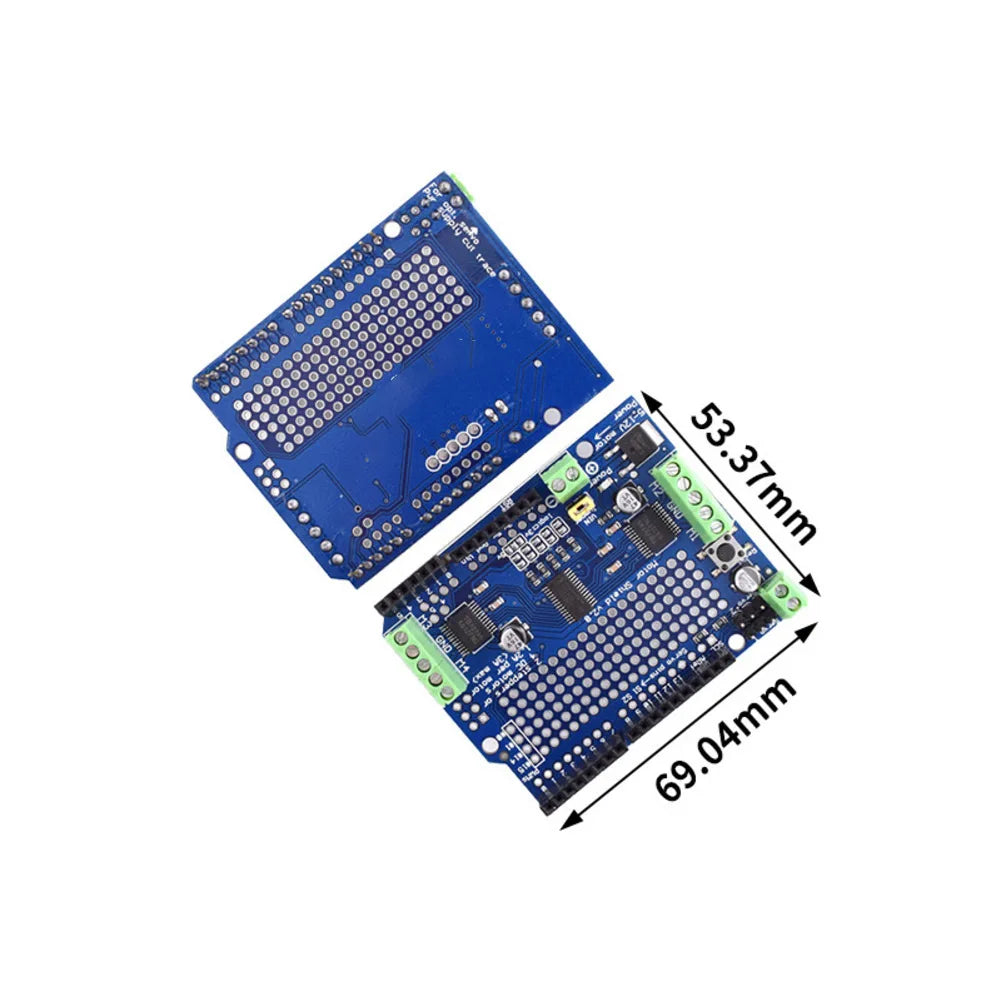

- Compact & Stackable Design: At just 6.8 × 5.2 cm, this shield fits easily into tight project enclosures. Its stackable design allows you to add more shields for expanded functionality without any hassle.
Specifications
| Part Name | Motor Driver Module |
| Driver Chip | TB6612FNG |
| Peak Current | 3.2A |
| Communication | I2C (SDA & SCL) |
| Material | PCB |
| Dimensions | 6.8 × 5.2 cm |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × TB6612FNG Motor Driver Module
Notes
- Color may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow slight manual measurement deviations for the listed dimensions.
You May Also Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: How many motors can the TB6612FNG Motor Driver Module control simultaneously?
A: The TB6612FNG Motor Driver Module can control up to four DC brushed motors or two four-wire stepper motors simultaneously, making it highly versatile for complex robotics and automation projects that require multiple motor outputs.
Q: Is this motor driver module compatible with Arduino boards?
A: Yes, this module is fully compatible with Arduino systems. It communicates via I2C (SDA and SCL pins), meaning you only need two control pins to manage multiple motors, greatly simplifying your circuit design and code.
Q: What is the peak current output of the TB6612FNG chip on this module?
A: The TB6612FNG chip supports a peak current of 3.2A, providing robust, high-torque performance with lower voltage drops — ideal for demanding robotics and automation applications where motor efficiency matters.
Q: Can I stack multiple TB6612FNG motor driver shields together?
A: Absolutely. This module features a stackable design that allows you to connect multiple shields together, expanding the number of motors you can control without requiring additional microcontroller pins or complex wiring changes.
