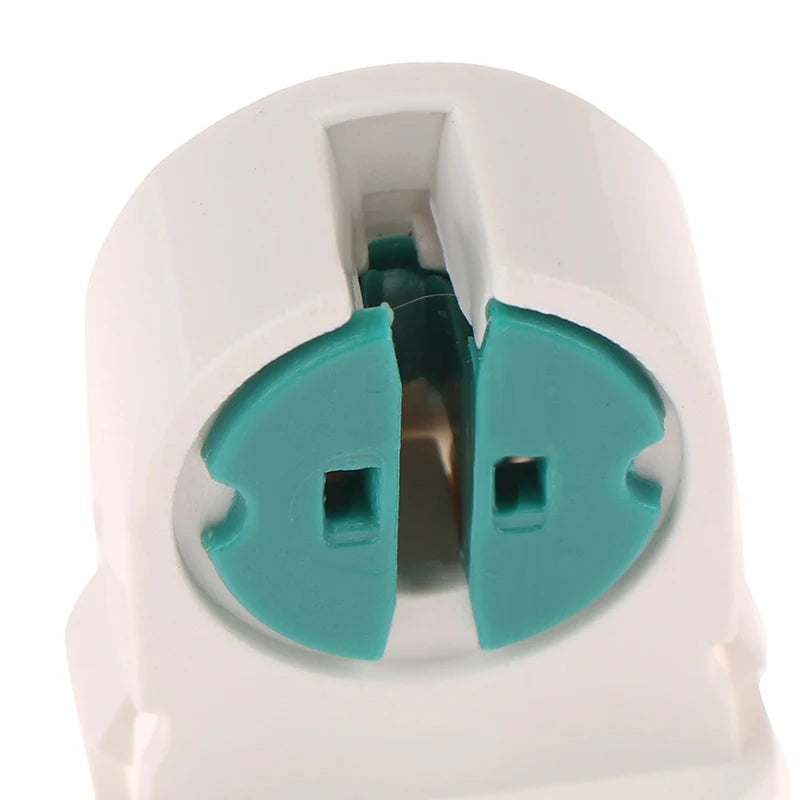

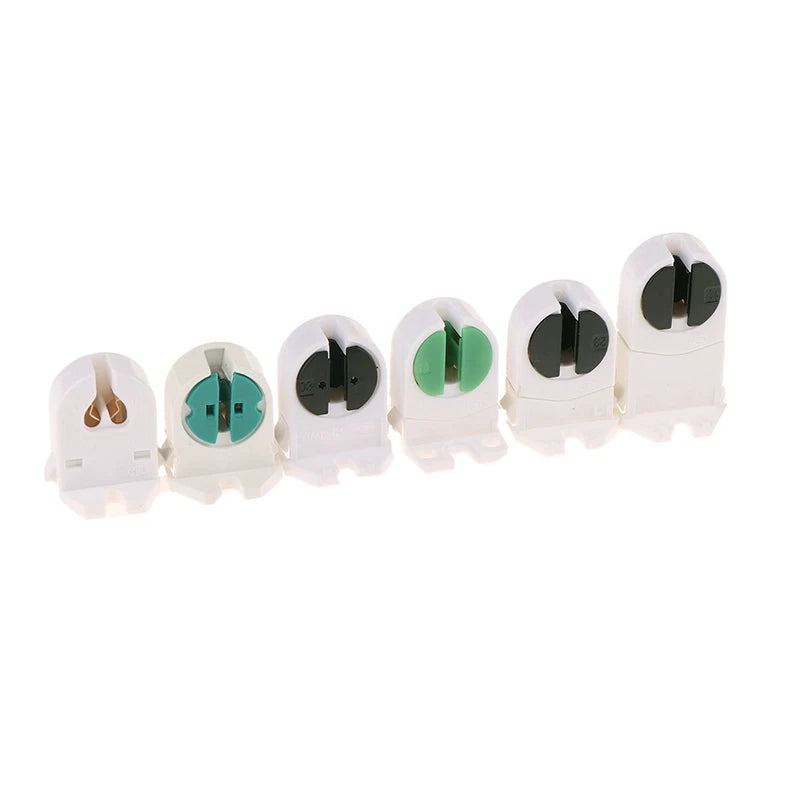

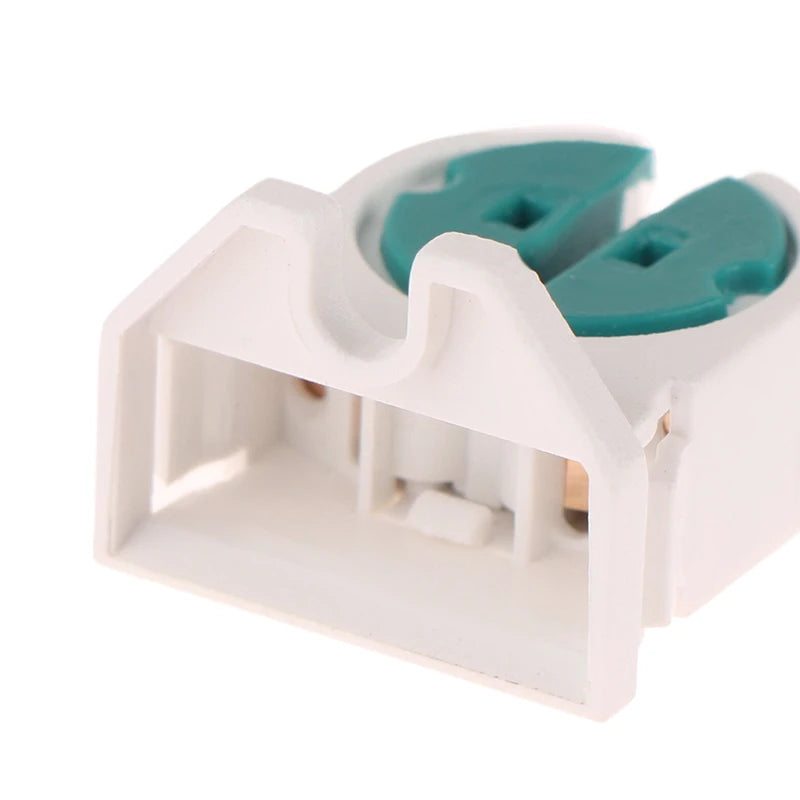

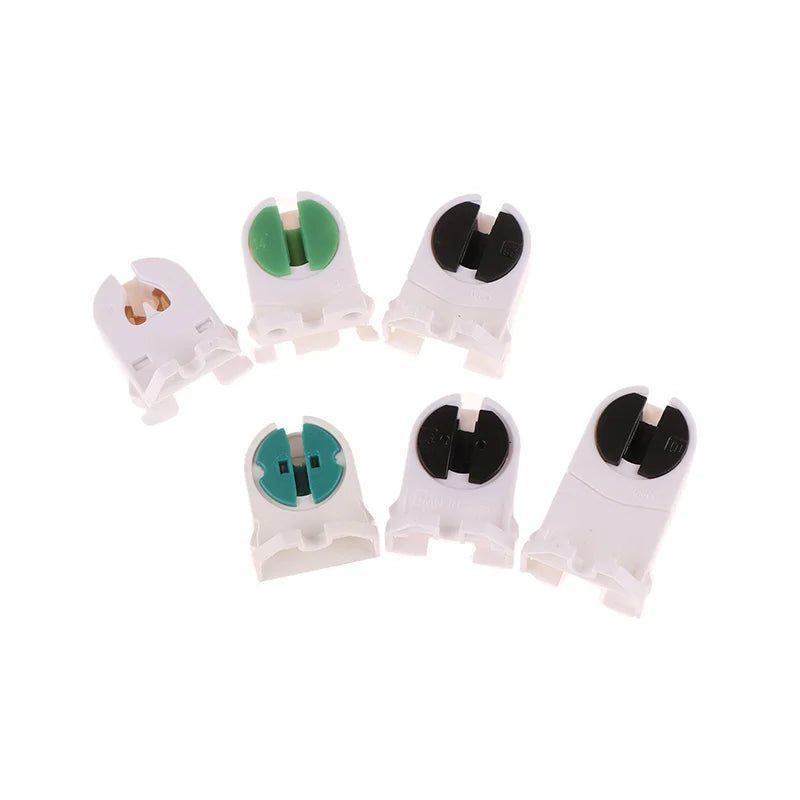

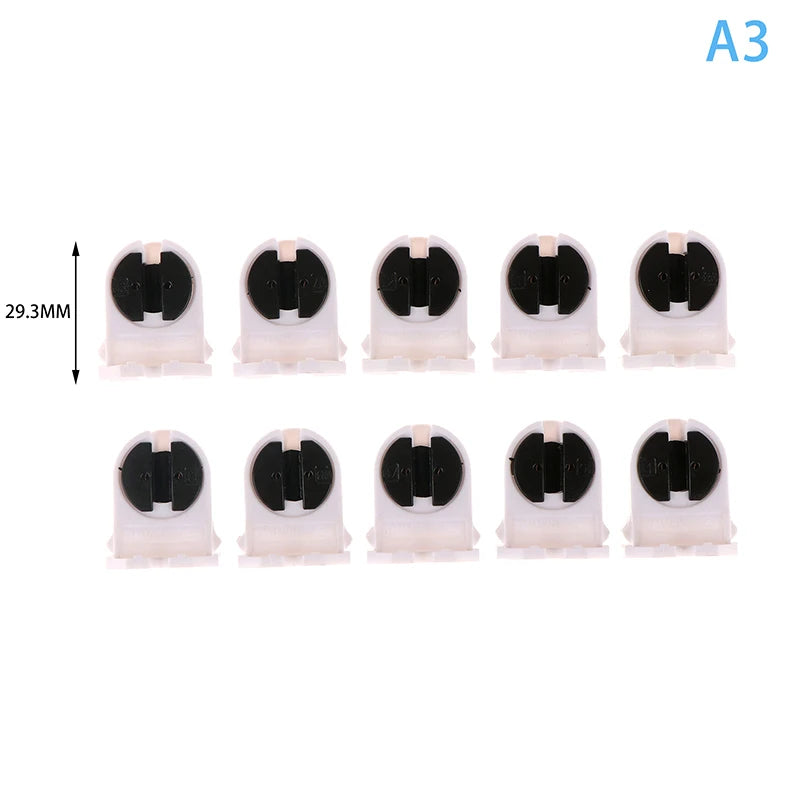

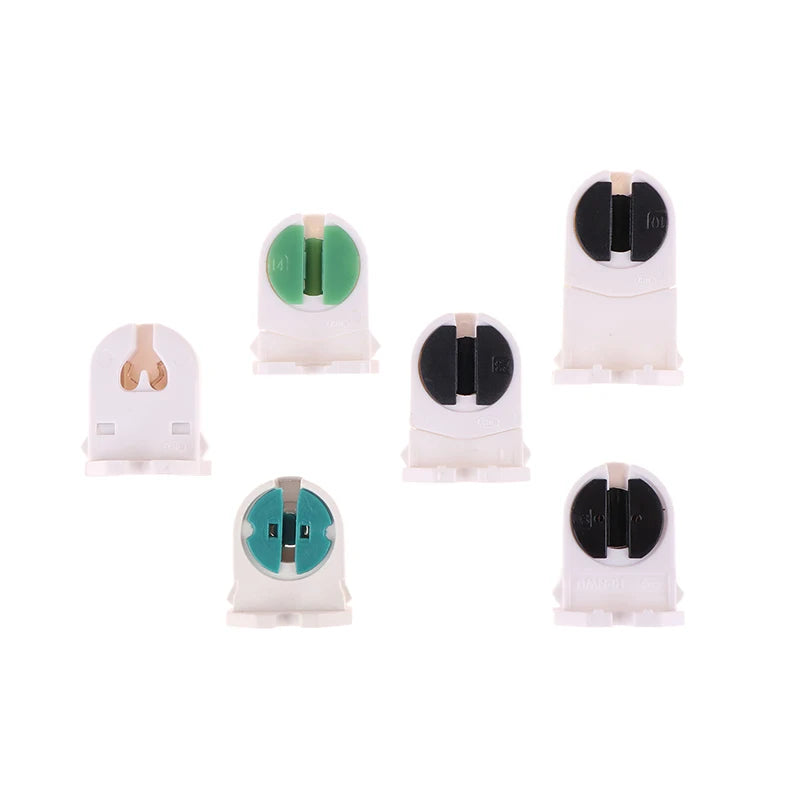

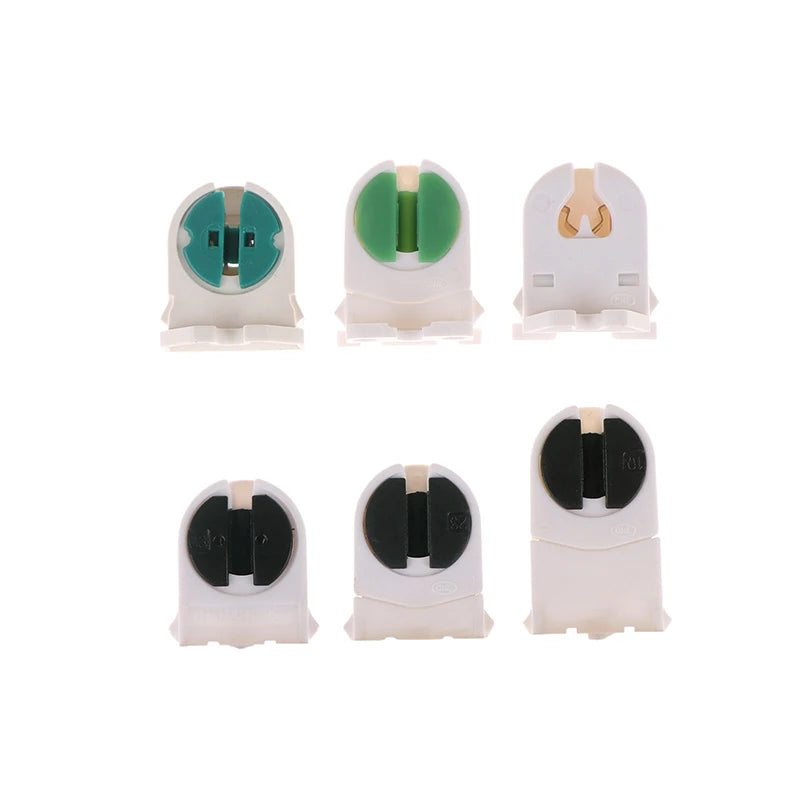

10-Pack T5 G5 Non-Shunted Lamp Socket for LED Fluorescent Tubes
10-Pack T5 G5 Non-Shunted Lamp Socket for LED Fluorescent Tubes
10-Pack T5 G5 Non-Shunted Lamp Sockets – Heat-Resistant Fluorescent Tube Holders
Upgrade or replace worn-out lamp holders with these reliable T5 G5 non-shunted lamp sockets. Rated at AC 500V / 2A, these heat-resistant sockets are built from durable PC + metal construction to handle the demands of everyday lighting installations. Whether you're retrofitting old fixtures or setting up new ones, this 10-piece set gives you everything you need to get the job done right.
Key Features
- Non-Shunted Design: Compatible with LED and fluorescent T5 tube lights that require separate electrical contacts — essential for LED retrofits.
- High Voltage Rating: Supports up to AC 500V / 2A, making these sockets suitable for a wide range of lighting applications.
- Heat-Resistant Materials: Constructed from PC (polycarbonate) and metal components to withstand prolonged heat exposure without warping or degrading.
- Wide Compatibility: Fits grille lamps, bracket/stent lights, clean-room lighting, and standard straight-tube fluorescent fixtures with a G5 bi-pin base.
- Easy Installation: Simple drop-in replacement for damaged or outdated lamp holders — no special tools required.
- Value Pack: Comes with 10 lamp holders per order, so you have extras on hand for future repairs or full fixture replacements.
Specifications
| Base Type | G5 (T5 Bi-Pin) |
| Socket Type | Non-Shunted |
| Rated Voltage | AC 500V |
| Rated Current | 2A |
| Material | PC + Metal |
| Compatible Tubes | T5 LED & Fluorescent Tubes |
| Package Quantity | 10 Lamp Holders |
| Country of Origin | Made in China |
What's in the Box?
- 10 × T5 G5 Non-Shunted Lamp Sockets
Related Products You May Like
- 2PCS White Round Metal Lamp Shade Fix Rings | DIY Chandelier
- G9 Ceramic Lamp Holder Socket – DIY LED Bulb Base Converter
- B22 to E27 360° Adjustable Gooseneck Bulb Socket Adapter
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is a non-shunted T5 lamp socket and why does it matter for LED tubes?
A: A non-shunted lamp socket has two separate, independent electrical contacts for each pin. This is required when installing single-ended or ballast-bypass LED T5 tubes, as power needs to enter and exit from the same end of the fixture. Using a shunted socket with a bypass LED tube can cause the fixture to malfunction or fail to light. These G5 non-shunted sockets are the correct choice for most modern LED T5 retrofits.
Q: Are these lamp holders compatible with both LED and traditional fluorescent T5 tubes?
A: Yes. These T5 G5 lamp holders are compatible with both standard fluorescent T5 tubes and LED T5 retrofit tubes (especially ballast-bypass types). They are suitable for use in grille lamps, bracket lights, clean-room fixtures, and other straight-tube fluorescent lighting systems rated within the AC 500V / 2A specification.
Q: How difficult is it to install these lamp sockets?
A: Installation is straightforward. These sockets are designed as direct replacements for existing T5 G5 holders. Simply remove the old damaged socket from the fixture channel and snap or secure the new holder in its place. No specialist tools are needed, making this an easy DIY repair for home or commercial lighting fixtures.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
