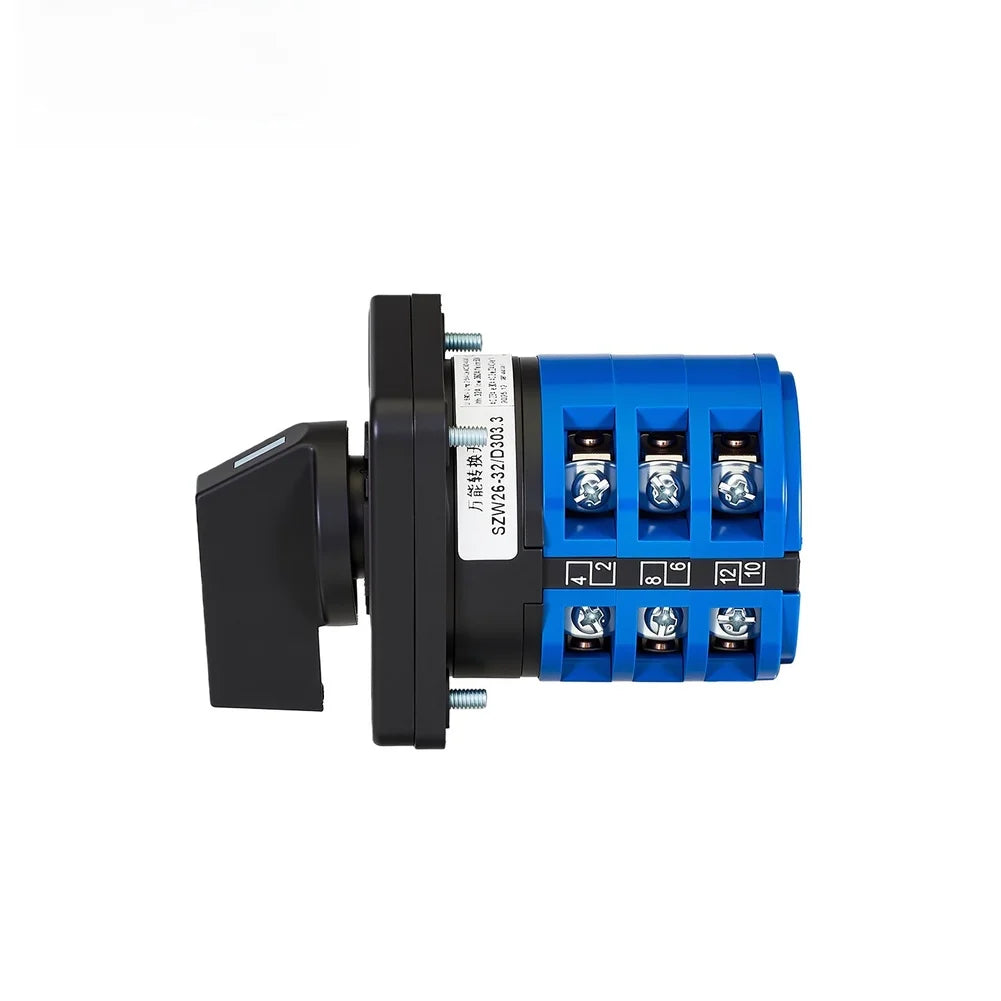

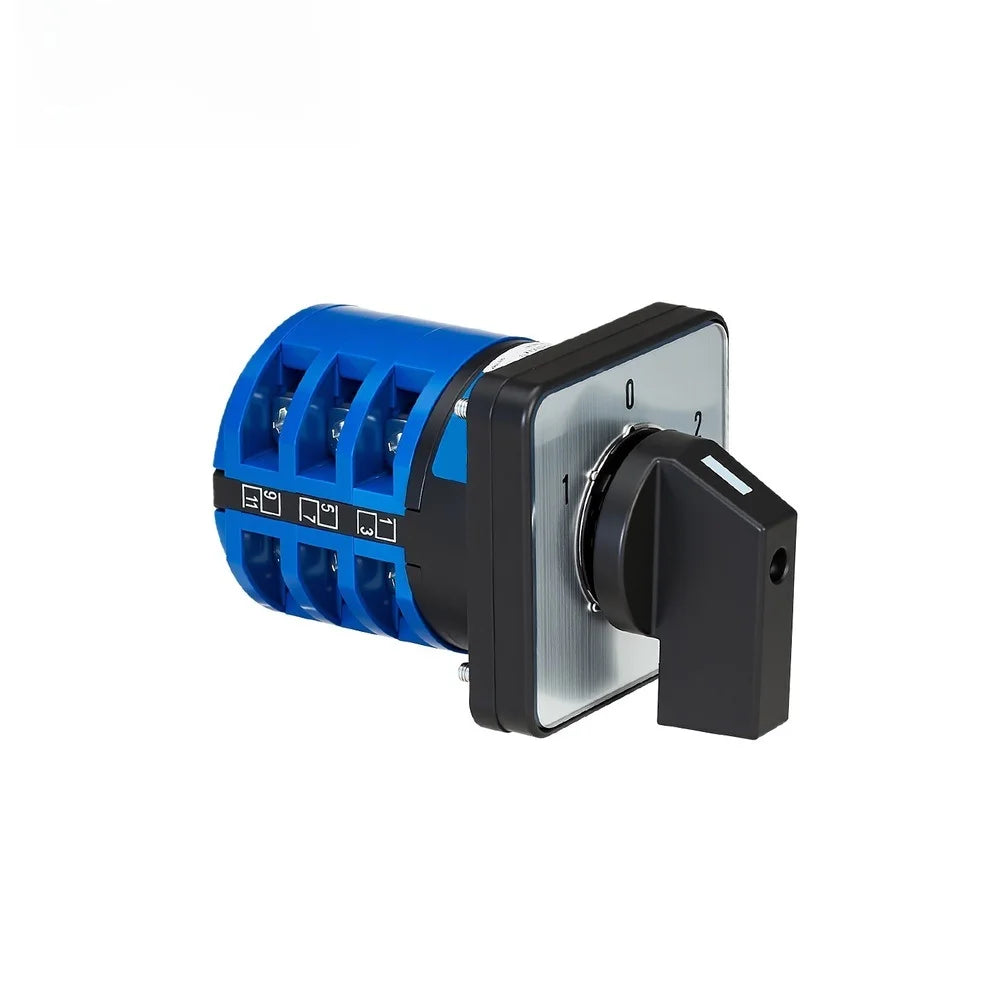

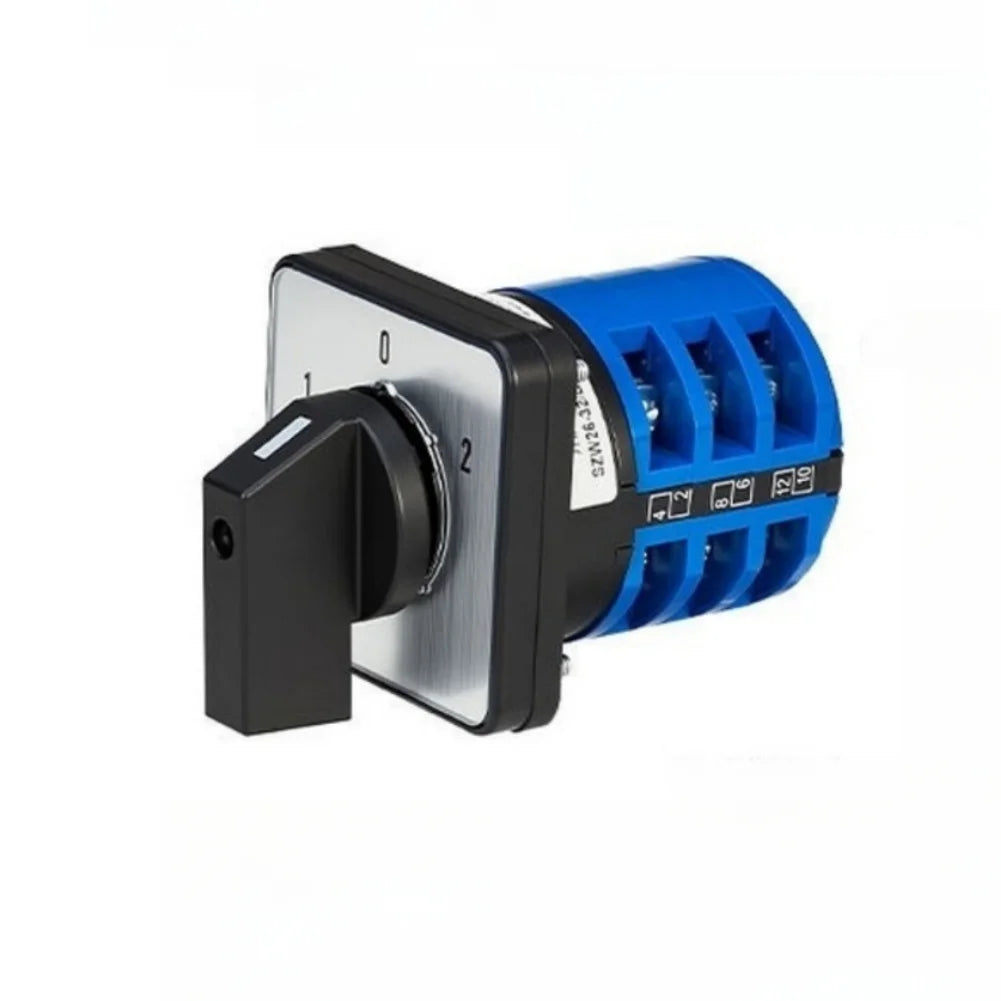

SZW26-32/D303.3 Multi-Purpose 3-Position Changeover Switch
Take precise control of your electrical circuits with the SZW26-32/D303.3 Changeover Switch. Designed for industrial and commercial electrical applications, this robust 3-position, 3-section switch delivers reliable switching performance rated up to 660V insulation voltage and a 32A conventional heating current. Whether you're managing AC or DC circuits, this compact switch offers the versatility and durability professionals demand.
Key Features

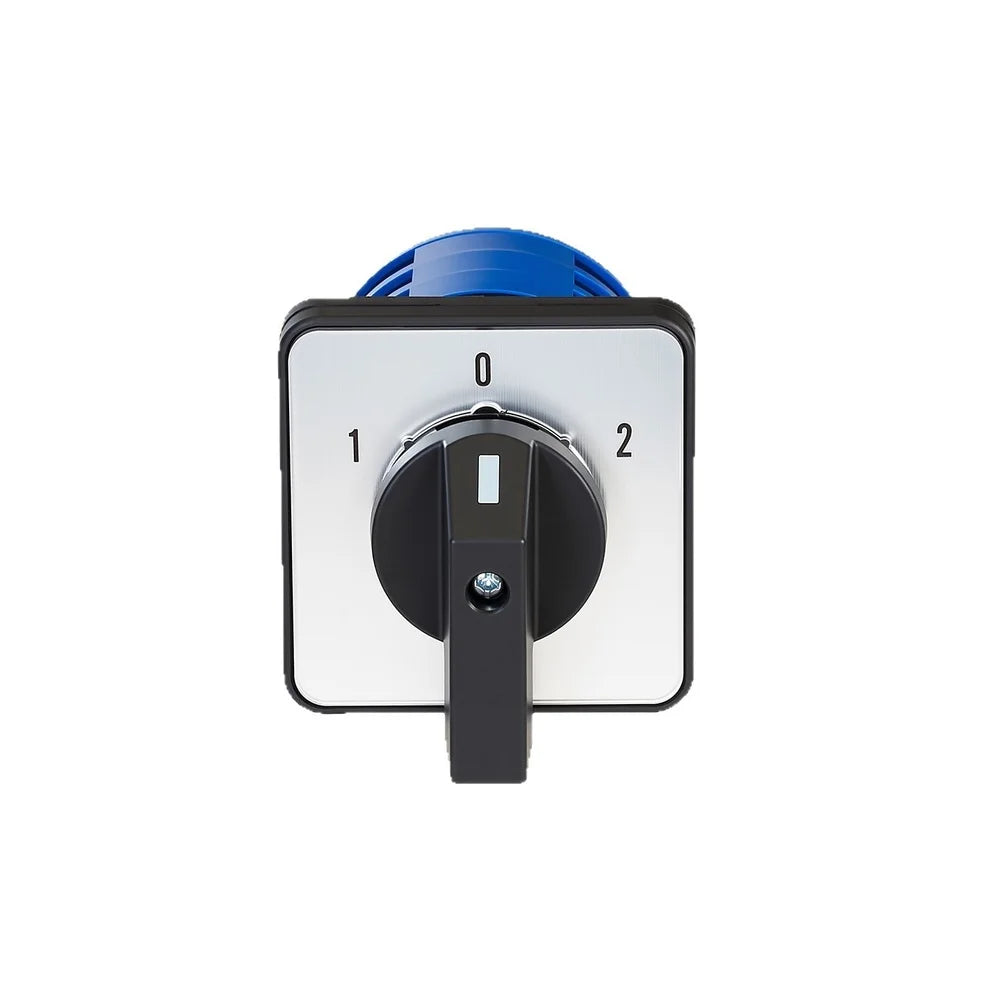

- Three-Position Control (0-1-2): Enables precise and flexible switching across electrical circuits for reliable circuit management.
- High Insulation Voltage: Rated at 660/690V insulation voltage, ensuring safe and stable performance across a wide range of electrical environments.
- Long-Lasting Construction: Built with thickened copper components and silver alloy contacts for extended service life and consistent conductivity.
- Versatile Compatibility: Supports AC 50Hz–60Hz circuits up to 440V and DC circuits up to 240V, covering a broad spectrum of applications.
- Easy Installation: Compact form factor with standard mounting dimensions makes setup straightforward — no special tools required.
- Blue Color: Clearly identifiable in panel and cabinet installations.
Technical Specifications
| Model | SZW26-32/D303.3 |
| Material | Plastic (with copper & silver alloy contacts) |
| Color | Blue |
| Rated Working Voltage | AC 240V / AC 440V |
| Rated Insulation Voltage | 660/690V |
| Impulse Withstand Voltage | 2.5kV |
| Conventional Heating Current | 32A |
| Rated Working Current | AC-23A: 30A | AC-3: 22A | AC-4: 11A |
| Rated Short-Time Withstand Current | 360A / 1s |
| Rated Short-Circuit Making Capacity | 508A |
| Use Category | AC-23A, AC-3, AC-4 |
| Tier Terminals | 3 |
| Positions | 3 (0-1-2) |

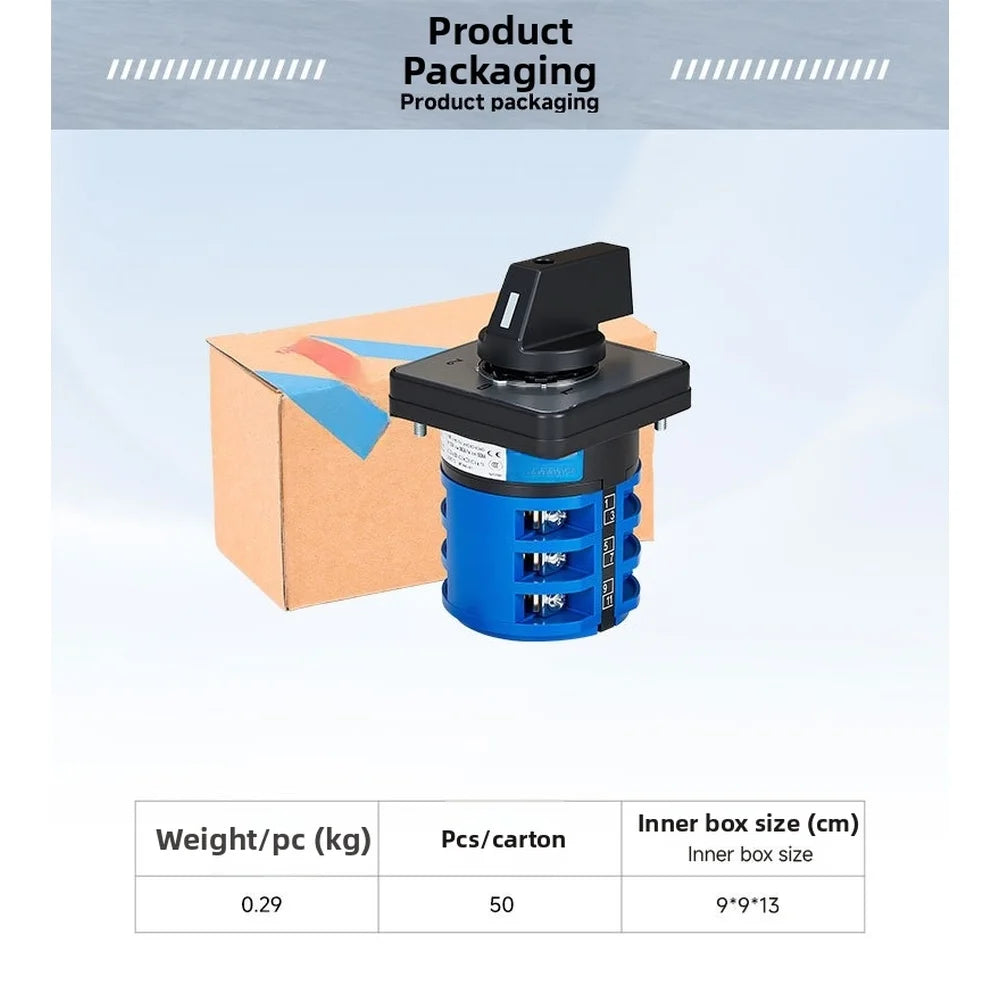

Package Contents
- 1 × SZW26-32/D303.3 Multi-Purpose Changeover Switch
Made in Mainland China.
You May Also Like
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does the 3-position (0-1-2) function mean on this changeover switch?
A: The three positions allow the operator to select between two separate circuit states (positions 1 and 2) or fully disconnect the circuit (position 0). This makes the SZW26-32 ideal for applications requiring manual circuit selection or source changeover, such as switching between two power feeds or controlling motor direction in industrial panels.
Q: Is this changeover switch compatible with both AC and DC circuits?
A: Yes. The SZW26-32/D303.3 is compatible with AC circuits operating at 50Hz–60Hz up to 440V and DC circuits up to 240V, making it a versatile choice for a wide range of residential, commercial, and industrial electrical setups.
Q: What are the mounting requirements for this switch?

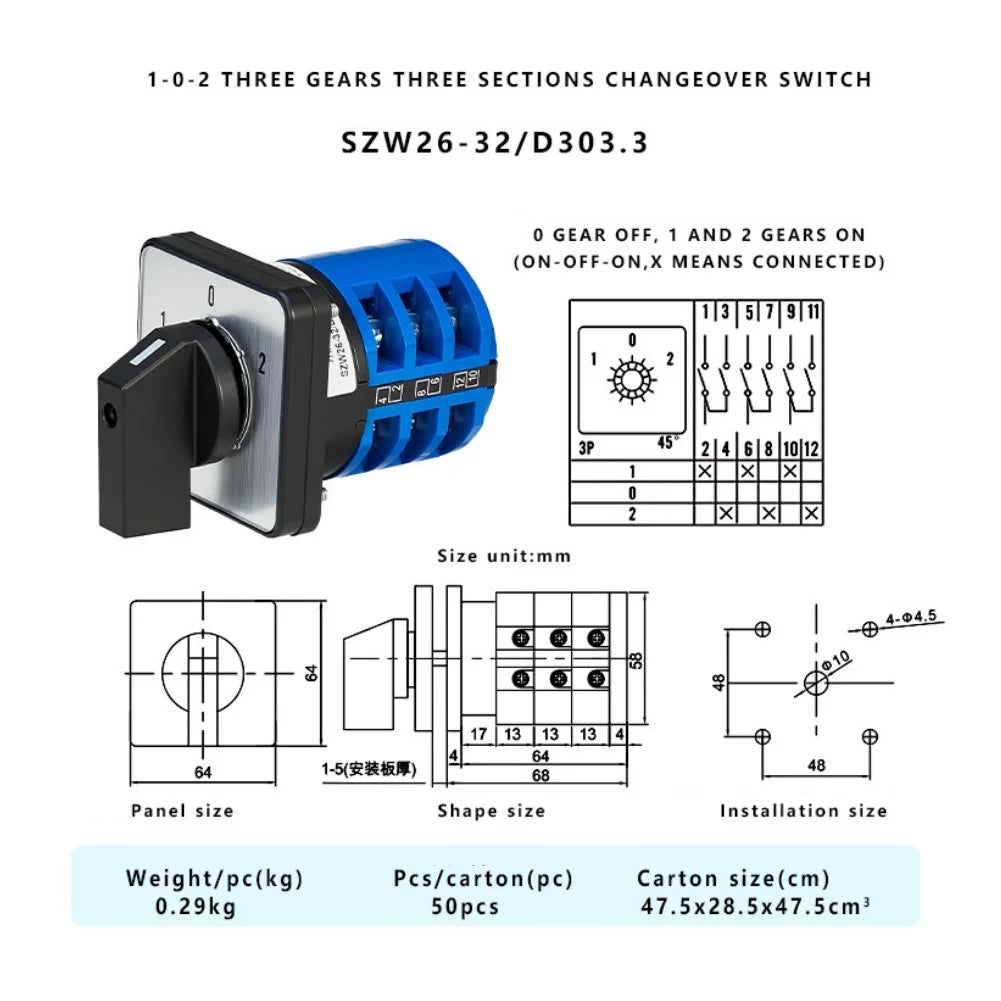

A: The switch features a compact design with standard mounting dimensions, allowing for straightforward panel or cabinet installation without the need for special brackets or tools. Please refer to the product dimensions in the listing images for exact cutout and mounting hole measurements before installation.
