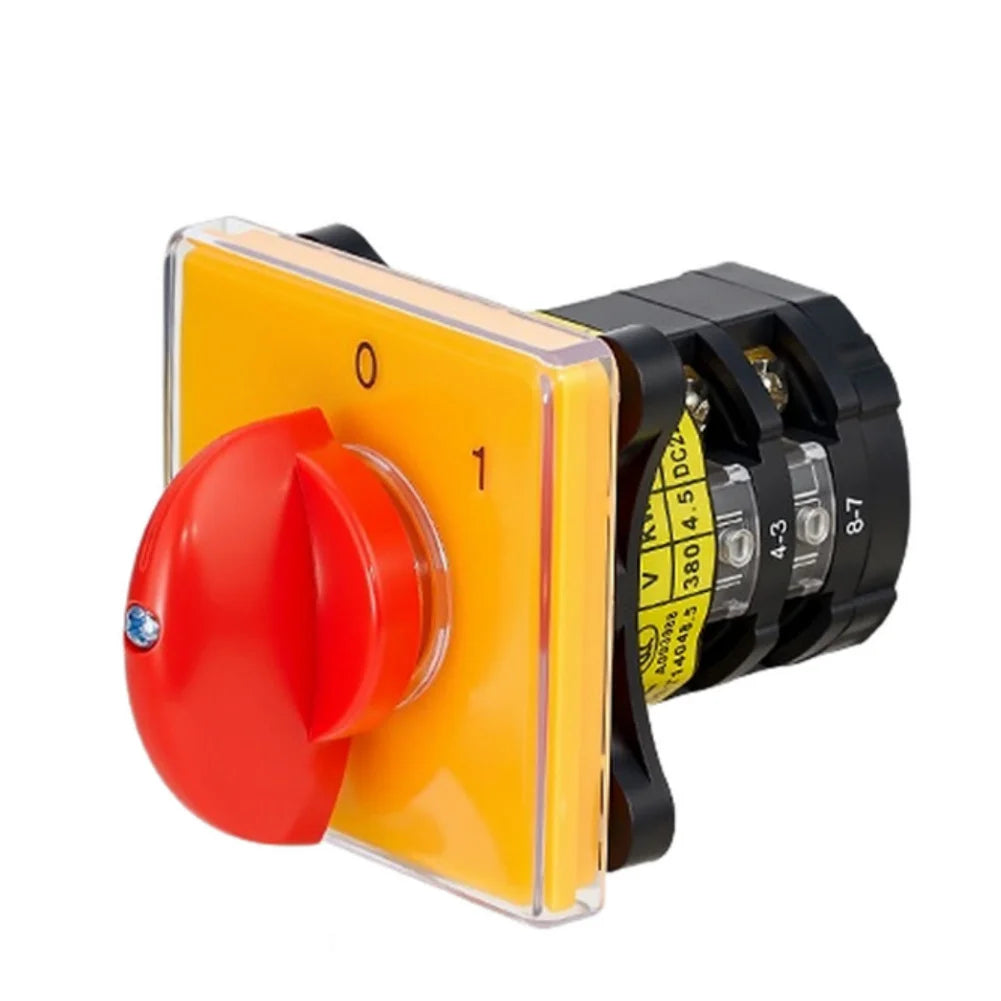

SZW25-64D/C04.2 Milling Machine Rotary Selector Switch – 2-Position Changeover
Take precise control of your milling machines, automation equipment, and industrial power systems with the SZW25-64D/C04.2 Rotary Changeover Switch. Engineered for demanding industrial environments, this two-position selector switch delivers reliable, repeatable switching performance with a smooth rotary action. Built with thickened copper components and silver alloy contacts, it's designed for long service life even under continuous use.
Key Features
- 2-Position Rotary Design: Two distinct switch positions allow precise, confident control for milling machines and automation systems.

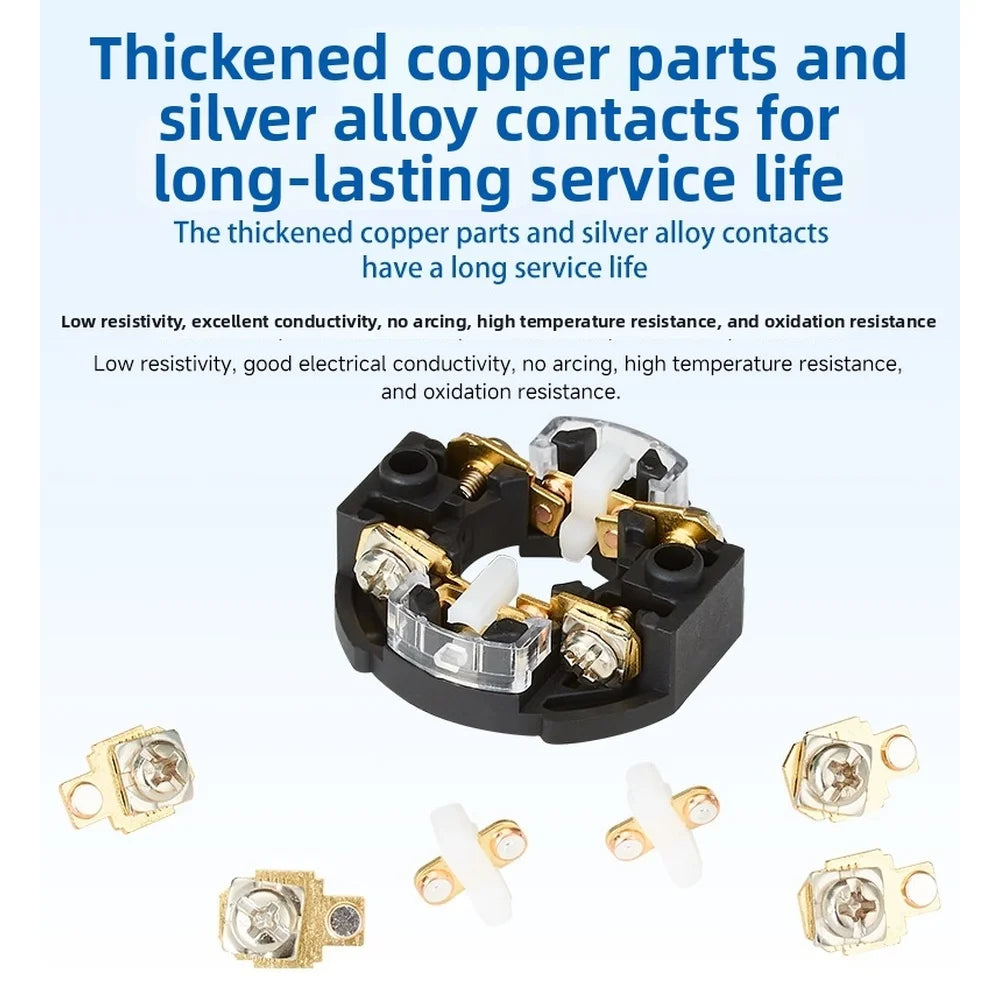

- Heavy-Duty Construction: Thickened copper parts and silver alloy contacts ensure excellent conductivity and extended durability.
- Flame-Retardant Housing: Made from high-temperature-resistant, flame-retardant plastic with superior insulation properties for safe industrial operation.
- Ergonomic Rotary Handle: Simple, one-motion switching between positions for efficient, operator-friendly use.
- Wide Industrial Compatibility: Suitable for power distribution systems, CNC machinery, factory automation, and general industrial equipment.

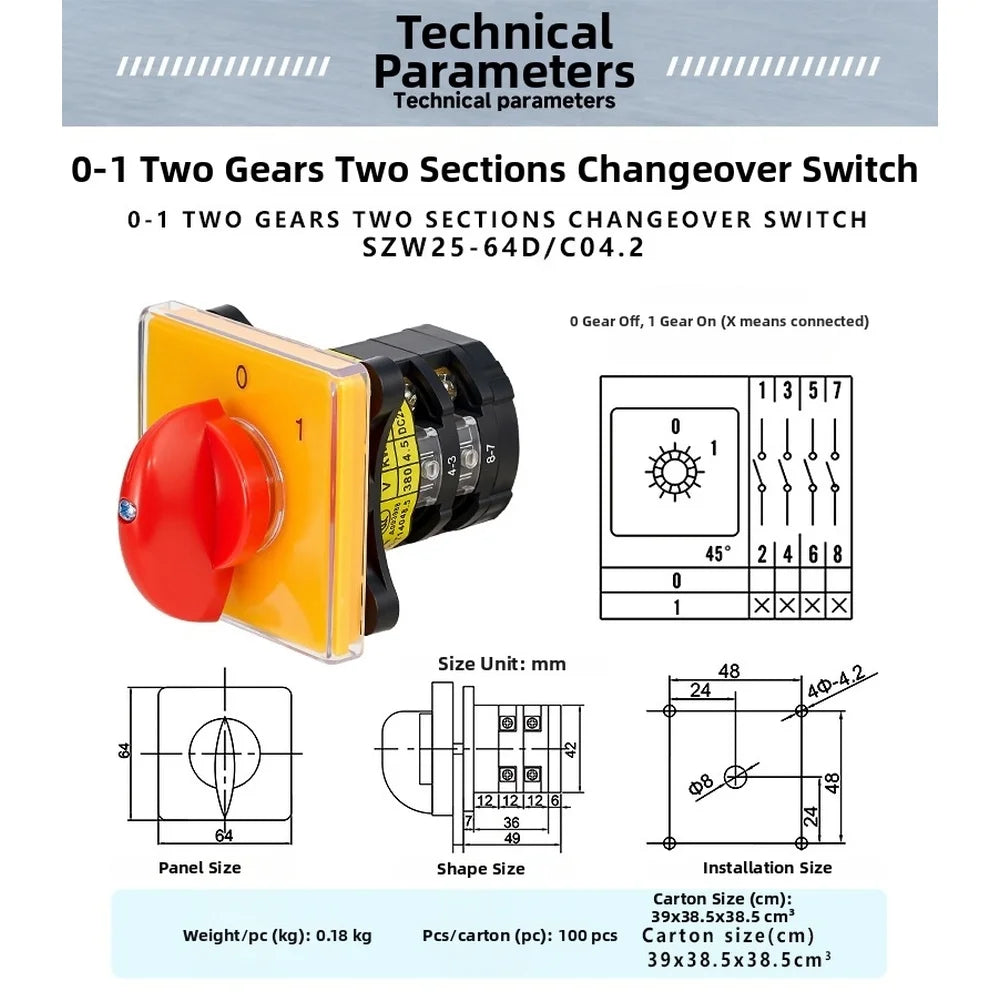

Technical Specifications
| Model | SZW25-64D/C04.2 |

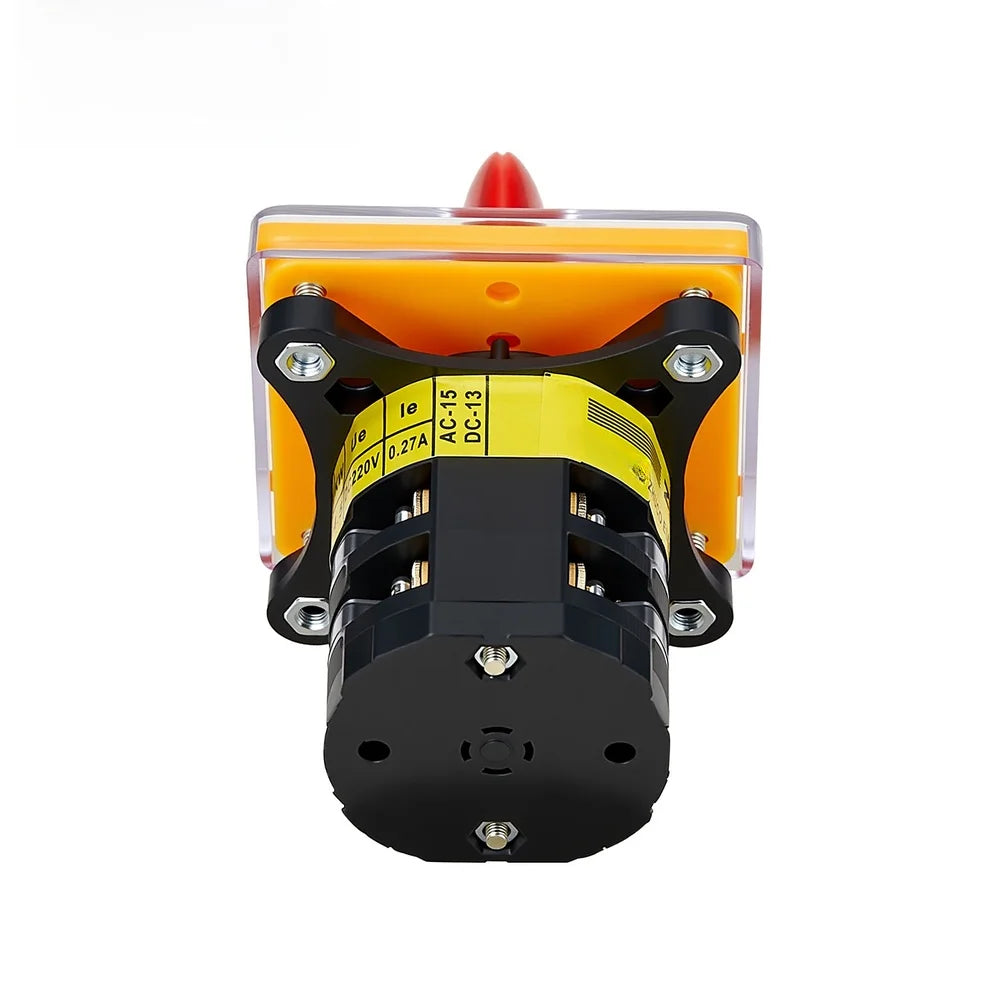

| Rated Working Voltage | AC-15: Ue AC380V / DC-13: Ue DC220V |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 2.5KV |
| Conventional Heating Current | 25A |
| Rated Working Current | AC-15: Ie 12A / DC-13: Ie 0.27A |
| Use Category | AC-15, DC-13 |
| Number of Sections | 2 |
| Tier Terminals | 2 |
| Material | Flame-retardant plastic |
| EU LVD Voltage | Below 50V AC or 75V DC |
Package Contents

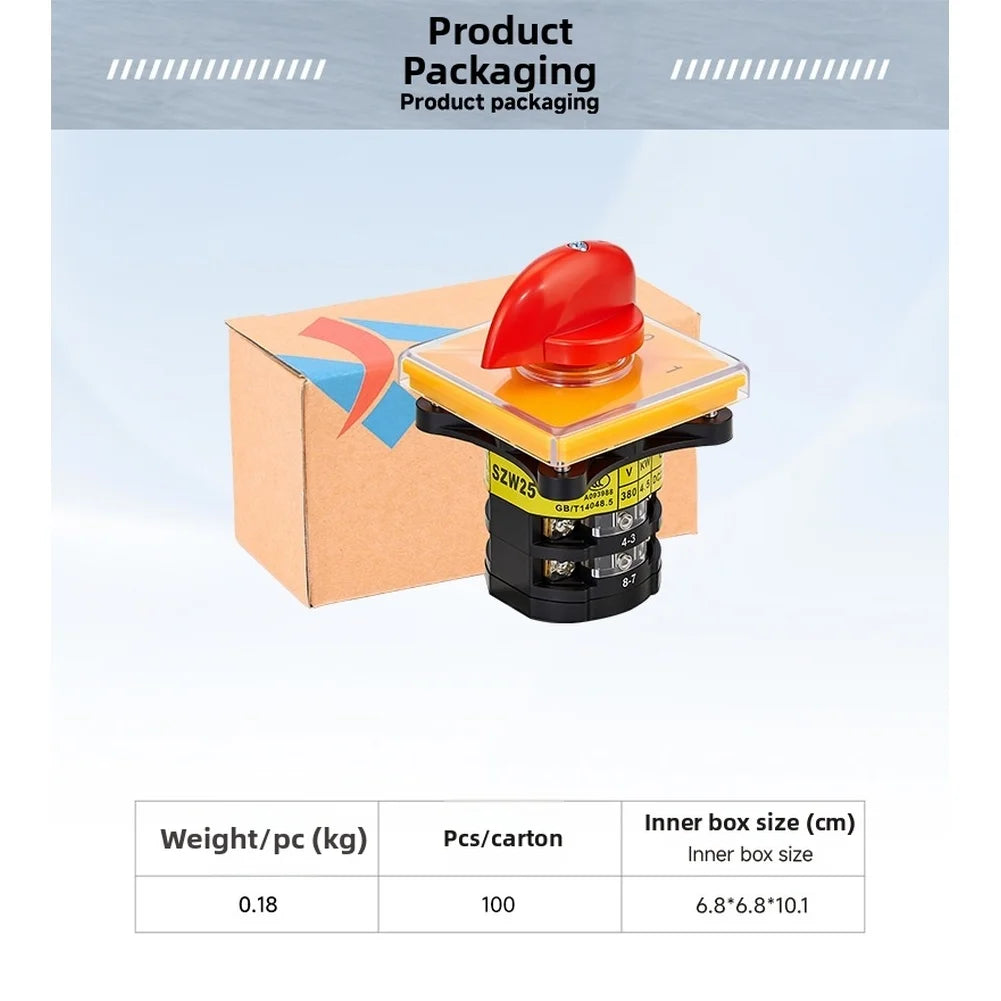

- 1 × SZW25-64D/C04.2 Milling Machine Rotary Changeover Switch
Made in Mainland China.
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor measurement deviations.
Related Products You May Need
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What equipment is the SZW25-64D/C04.2 rotary changeover switch compatible with?
A: The SZW25-64D/C04.2 rotary selector switch is designed primarily for milling machines but is also widely compatible with CNC equipment, factory automation systems, industrial power distribution panels, and general-purpose machinery requiring a reliable two-position changeover function.
Q: What is the maximum rated voltage and current for this switch?
A: This switch supports a rated working voltage of AC380V (AC-15 category) and DC220V (DC-13 category), with a conventional heating current of 25A and a rated working current of 12A (AC-15) or 0.27A (DC-13). The rated insulation voltage is 500V and the impulse withstand voltage is 2.5KV.
Q: Is this switch safe for continuous industrial use?
A: Yes. The SZW25-64D/C04.2 is constructed with flame-retardant, high-temperature-resistant plastic and features thickened copper internals with silver alloy contacts. These materials provide excellent insulation, thermal stability, and long-lasting contact performance suitable for continuous industrial operation.
