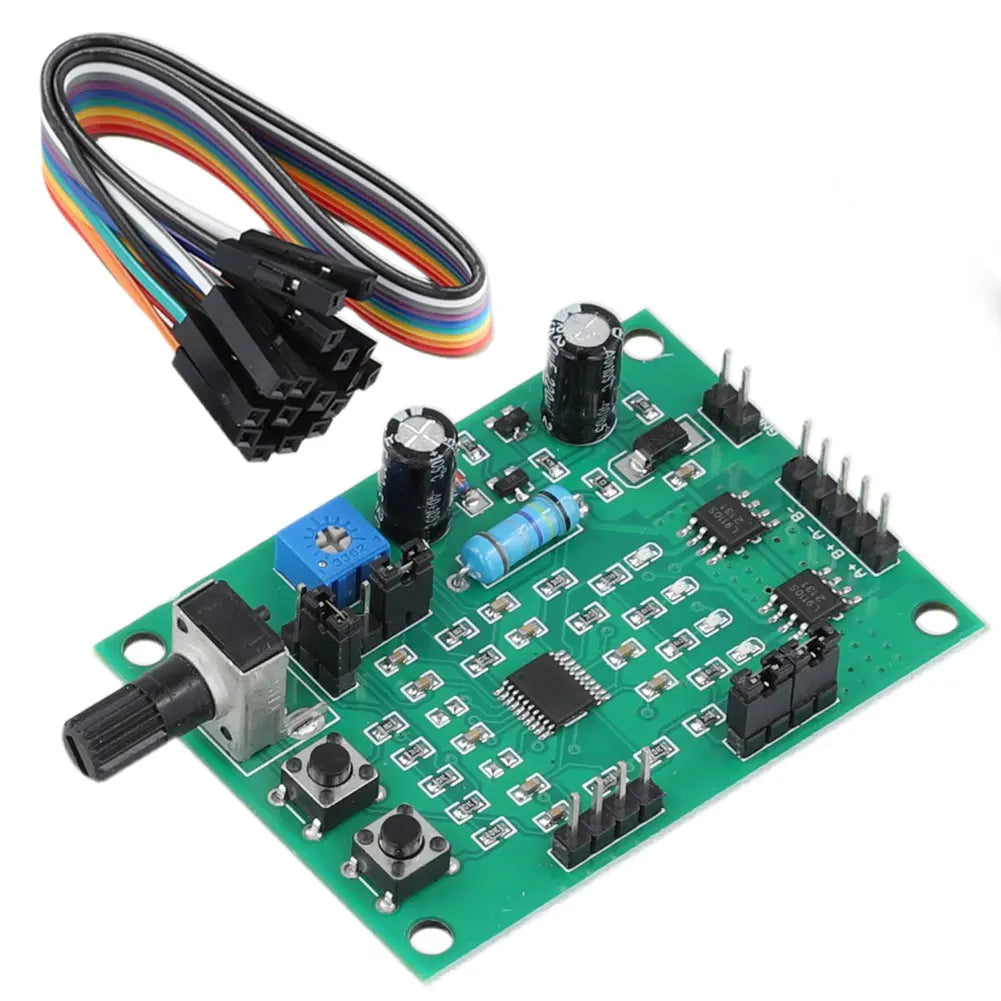

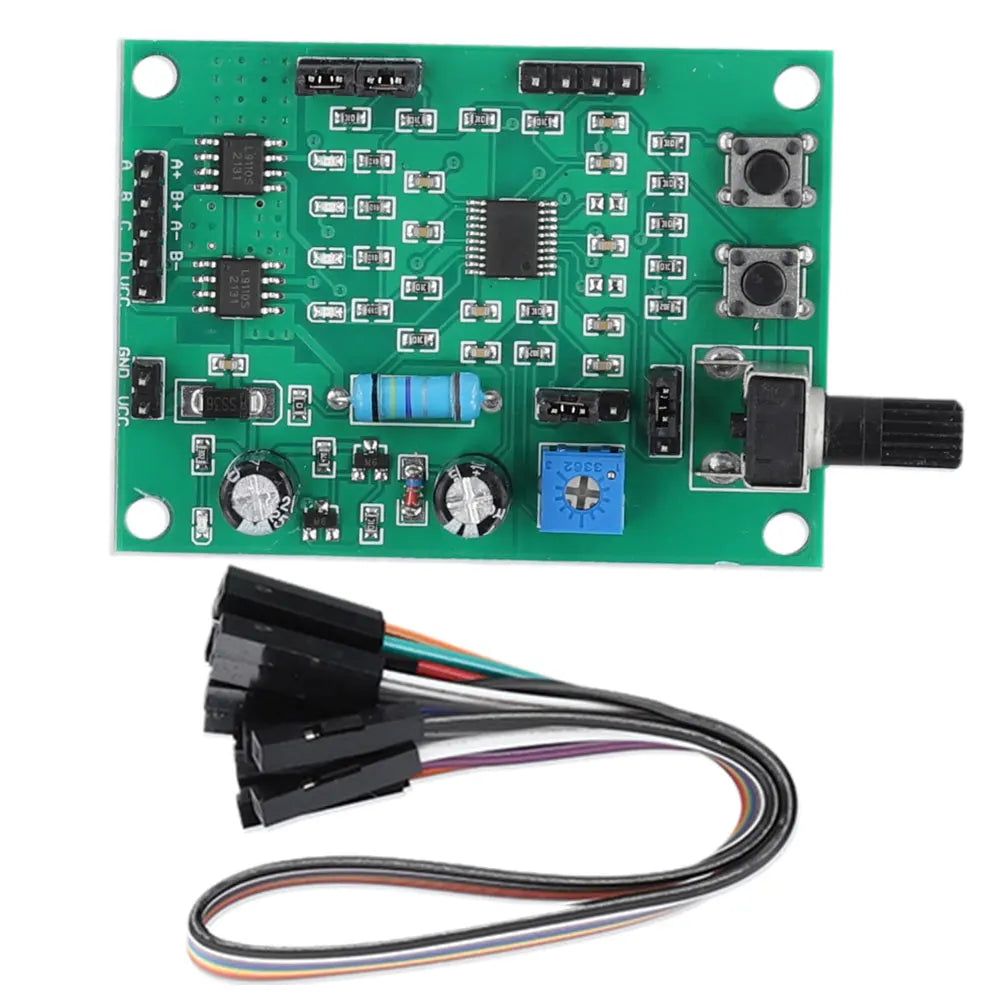

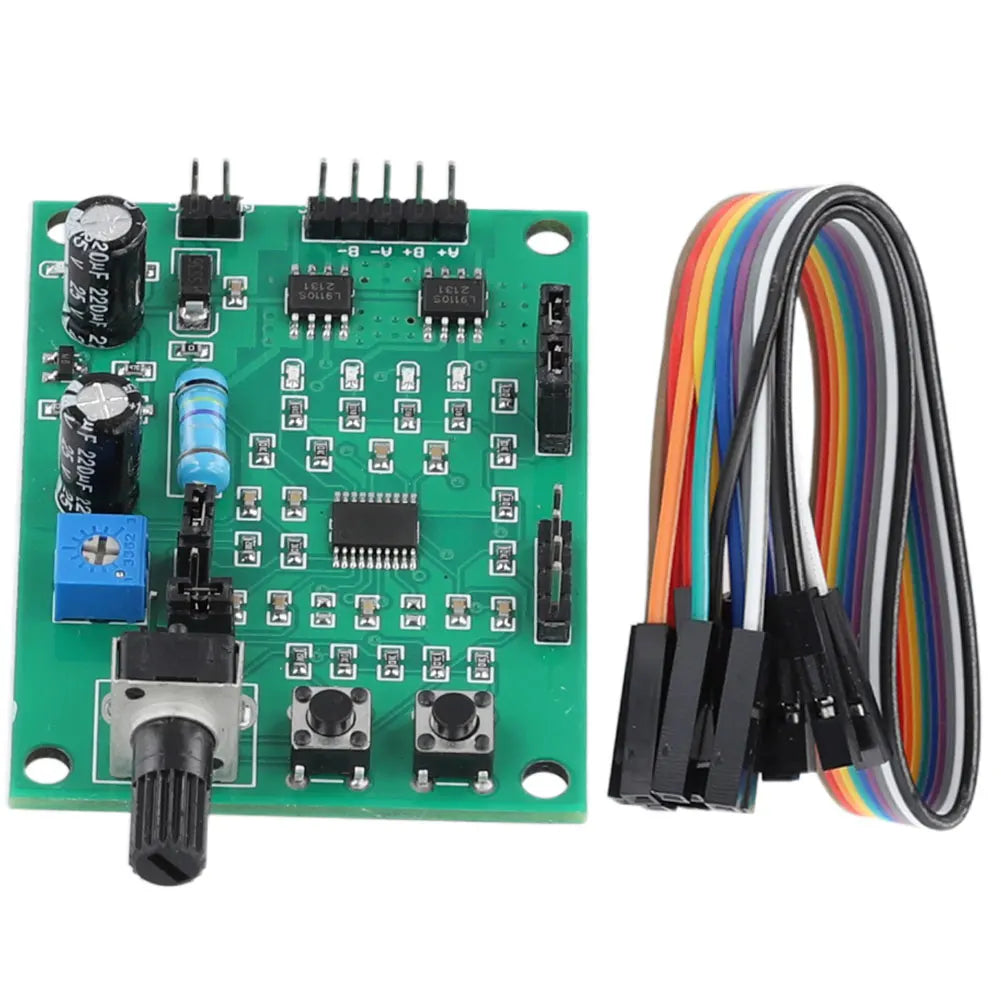

Mini Stepper Motor Speed Controller Driver Board – DC 5V–12V
Take your DIY electronics projects to the next level with this compact Stepper Motor Speed Controller Module. Compatible with both 2-phase 4-wire and 4-phase 5-wire stepper motors, this versatile driver board delivers precise motion control over a wide input voltage range of DC 5V to 12V. Whether you're building a CNC machine, 3D printer, robotic arm, or any custom automation project, this board makes integration straightforward and reliable.
Made in Mainland China.
Key Features
- Precise Control & Positioning: Delivers accurate step and current control for smooth, repeatable motion in your projects.
- Low Power Consumption: Highly efficient circuit design minimises energy use and reduces heat generation — keeping your build cool and efficient.
- Built-In Protection: Equipped with overcurrent protection, overheating protection, short-circuit protection, and reverse polarity connection protection for worry-free operation.
- Easy Integration: Clear on-board markings and indicator lights make wiring, connectivity, and debugging quick and intuitive — even for beginners.
- Compact Form Factor: At just 60 × 44 × 13 mm, this board fits neatly into tight enclosures and space-constrained builds without sacrificing performance.
Specifications
| Compatible Motor Types | 2-Phase 4-Wire & 4-Phase 5-Wire Stepper Motors |
| Input Voltage Range | DC 5V – 12V |
| Rated Current | ≤ 800mA |

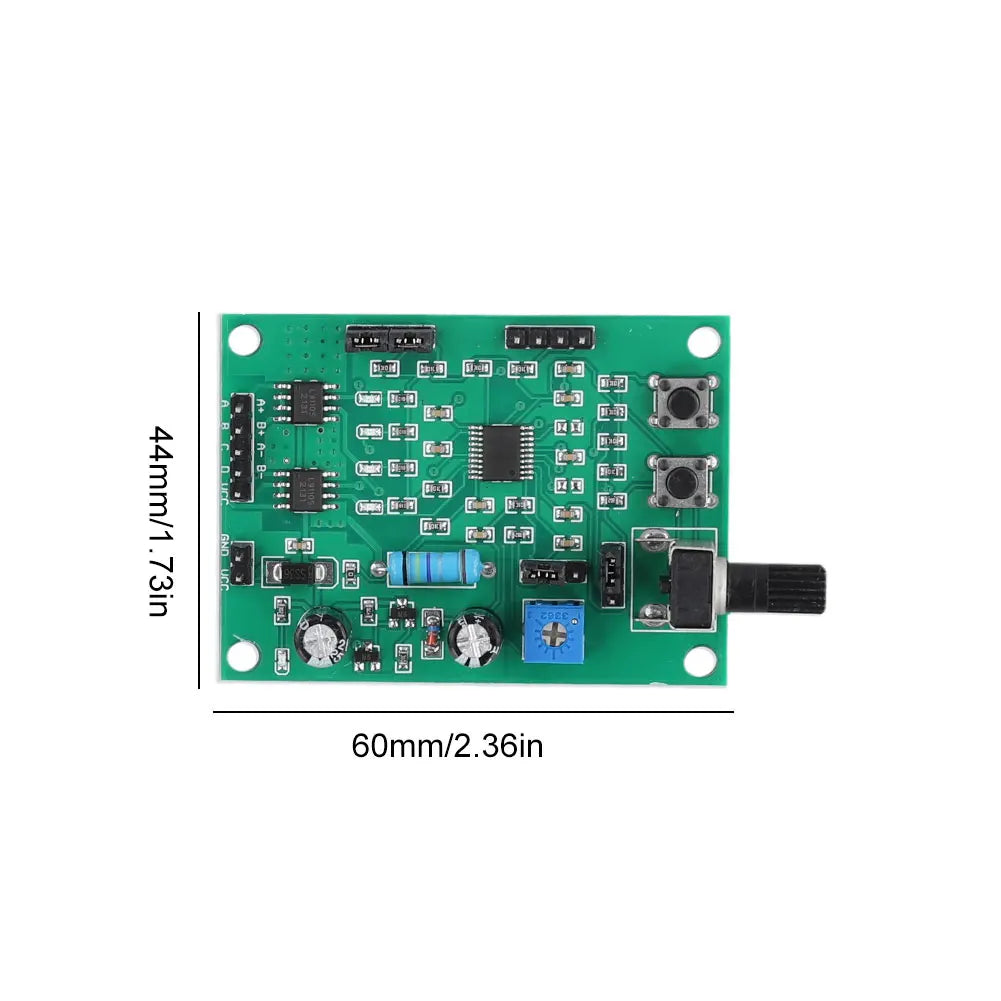

| Driver Board Dimensions | 60 × 44 × 13 mm (2.34 × 1.72 × 0.51 in) |
| Color | Green PCB |
| Wireless | No |
| Battery Included | No |
| Reverse Connection Protection | Yes |
| Overcurrent Protection | Yes |
| Overheating Protection | Yes |
| Origin | Mainland China |
What's in the Box
- 1 × Mini Stepper Motor Speed Controller Driver Board
Related Products You May Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Note: Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the images shown. Please allow a 1–2 cm deviation due to manual measurement.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of stepper motors are compatible with this driver board?
A: This stepper motor speed controller is compatible with both 2-phase 4-wire and 4-phase 5-wire stepper motors, making it suitable for a wide range of DIY and automation projects such as CNC machines, robotic arms, and 3D printers.
Q: What is the operating voltage range of this stepper motor driver board?
A: The driver board operates on a DC input voltage of 5V to 12V, making it compatible with common power supplies used in electronics and DIY projects.
Q: Does this stepper motor controller have any built-in safety protections?
A: Yes — the board includes overcurrent protection, overheating protection, short-circuit protection, and reverse polarity connection protection to safeguard both the module and your connected components during operation.
Q: Is this driver board suitable for beginners?
A: Absolutely. The board features clear on-board markings and indicator lights to simplify wiring and debugging. Its simple interface means it can be integrated into your project quickly, even if you're new to stepper motor control.
