SSR-40DA 40A Solid State Relay Module DC-AC Single Phase

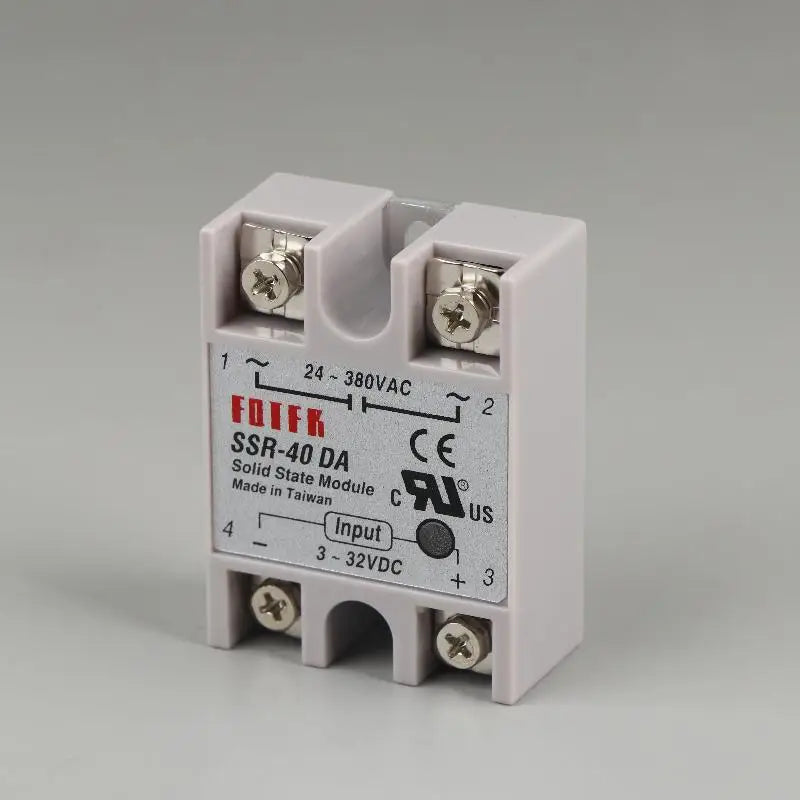

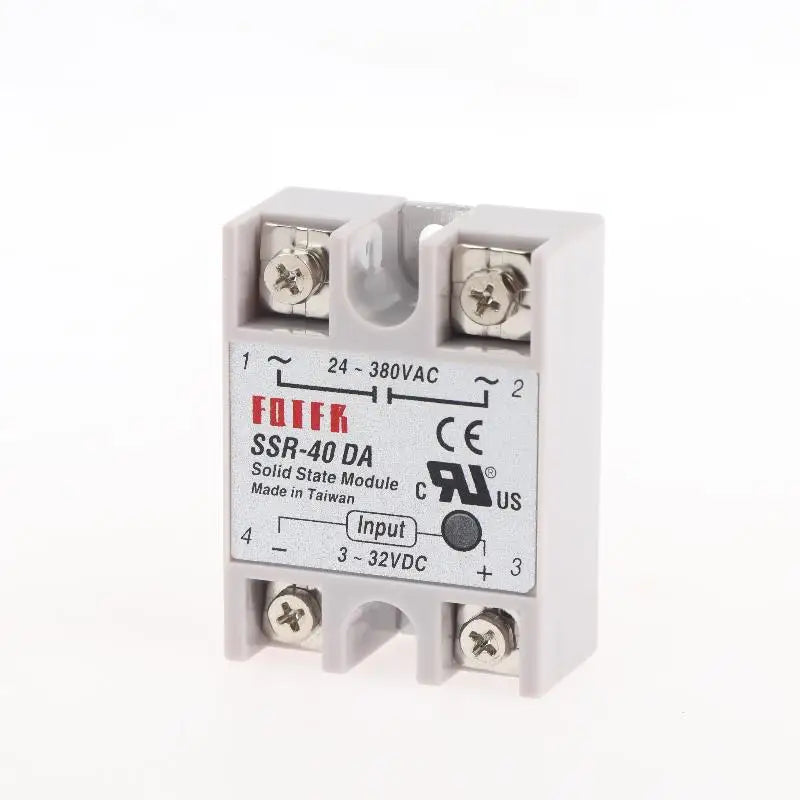

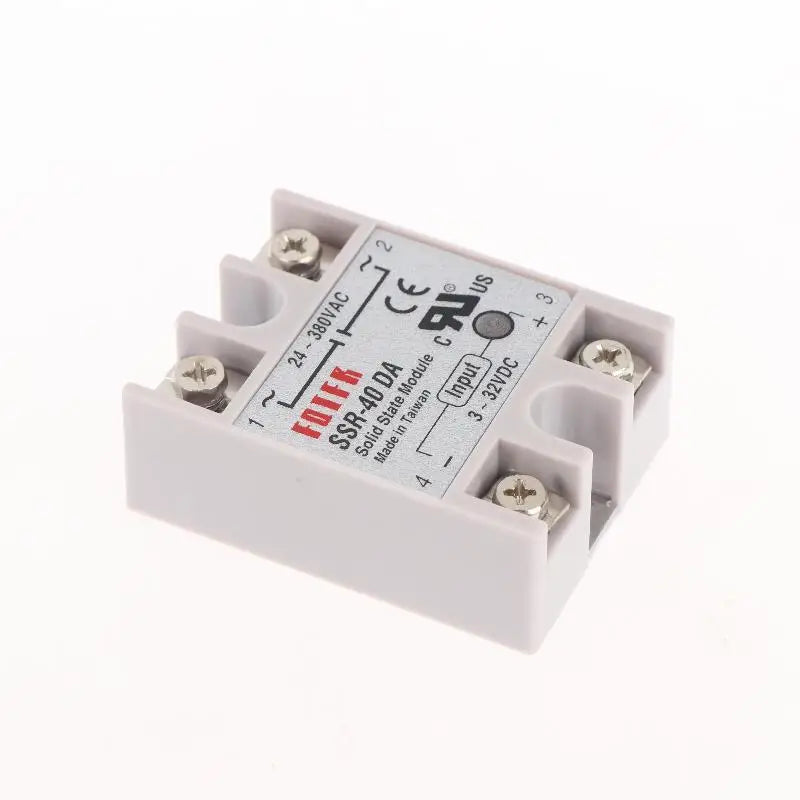

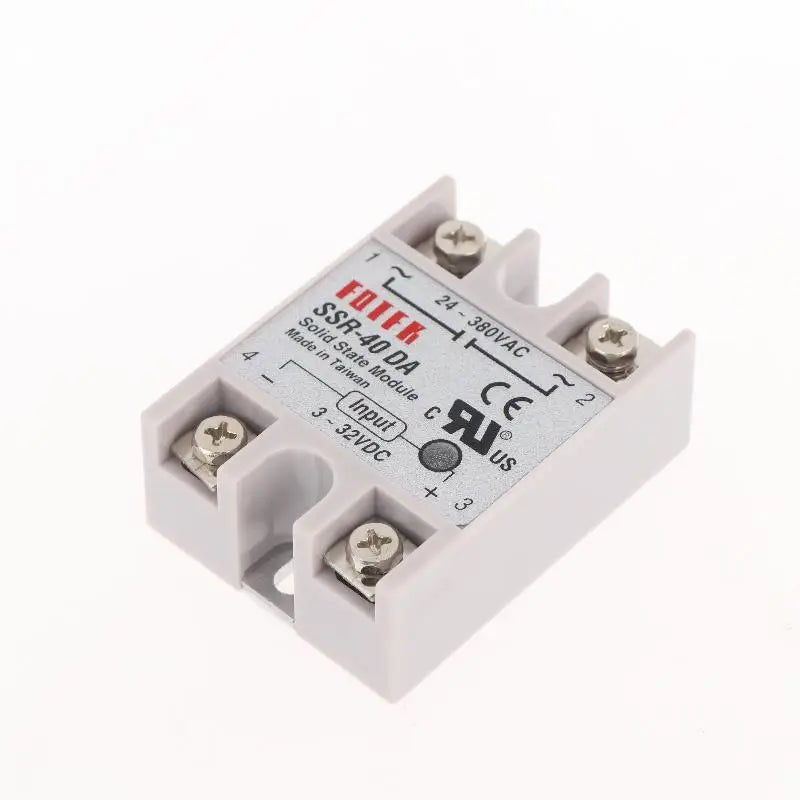

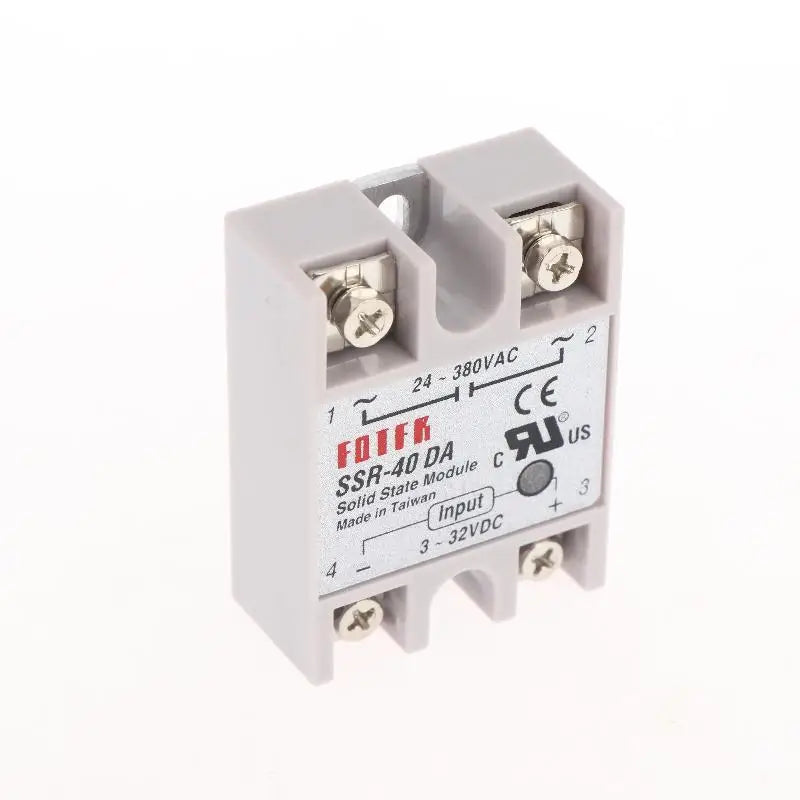

SSR-40DA Solid State Relay – 40A Contactless DC-to-AC Load Control Module

The SSR-40DA is a high-performance single-phase solid state relay (SSR) designed for precise, contactless switching between a low-voltage DC control signal (3–32V DC) and an AC load circuit (24–380V AC). With a 40A current capacity, this module is ideal for industrial automation, DIY electronics, temperature controllers, and commercial electrical systems where reliable, long-lasting switching is essential.

Made in China.

Key Features

• Contactless DC-to-AC Switching: Controls 24–380V AC output using just a 3–32V DC input signal. The semiconductor switching design eliminates mechanical contact wear, extending service life more than 10× compared to traditional mechanical relays.
• Flame-Retardant ABS Shell: Reinforced, flame-resistant ABS housing formed under high-temperature processing effectively resists combustion under short-circuit or overheating conditions — enhancing safety in demanding, high-load environments.
• High-Conductivity Nickel-Plated Copper Terminals: High-purity nickel-plated copper connection terminals with anti-loosening screw fastening minimize power loss during current transmission and maintain a stable, firm connection under long-term vibration or heavy-load conditions.
• Reliable 40A Load Capacity: Optimized internal circuit design with built-in over-current protection supports 10–40A continuous current loads, making it suitable for a wide range of small and medium-power electrical equipment.
• Compact & DIY-Friendly: Compact 58 × 45 × 26 mm form factor fits neatly into enclosures, control panels, and DIY project builds.

Specifications

What's in the Box

• 1 × SSR-40DA Solid State Relay Module

Common Applications

• PID temperature controllers and heating element control

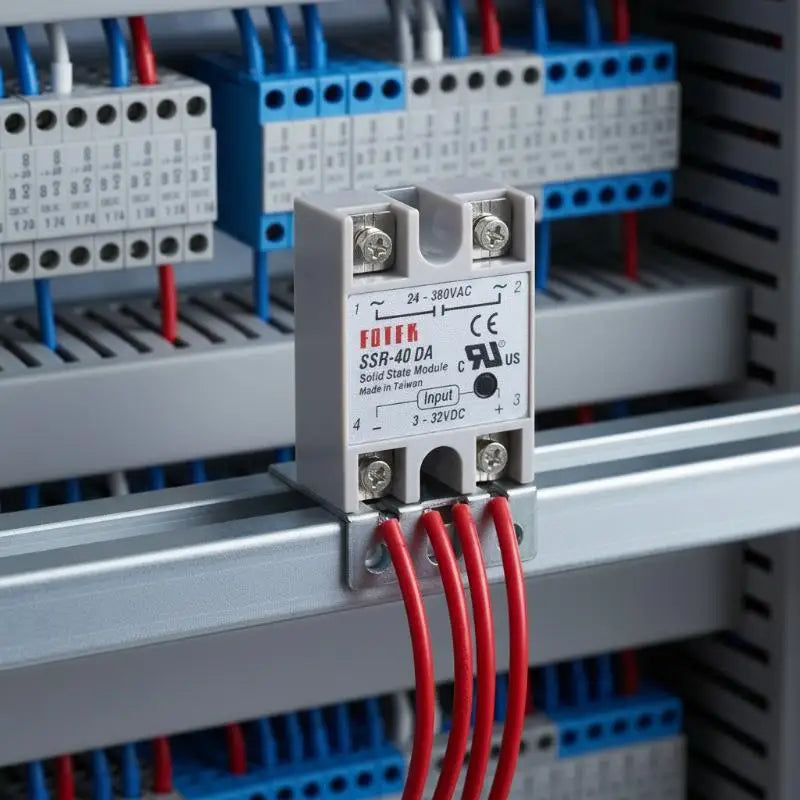

• Industrial automation and process control panels
• Arduino / Raspberry Pi / microcontroller-based DIY projects
• Motor speed controllers and lighting dimmer systems
• HVAC and commercial electrical load switching

You May Also Like

• 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
• Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
• Non-Contact Capacitive Water Level Sensor 3.3V–5V

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the input voltage range for the SSR-40DA solid state relay?

A: The SSR-40DA accepts a DC control input voltage of 3–32V, making it compatible with common microcontrollers (Arduino, Raspberry Pi), PLCs, and standard DC control signals. No additional driver circuit is required for most applications.

Q: What AC load voltage and current can the SSR-40DA handle?

A: This solid state relay module supports an AC load voltage range of 24–380V AC with a continuous current rating of 10–40A. It is suitable for controlling most small to medium-power single-phase AC equipment, including heaters, motors, and lighting systems.

Q: Does the SSR-40DA require a heat sink?

A: For continuous high-current operation (near 40A), attaching an external heat sink to the module's metal base plate is strongly recommended to prevent thermal build-up and ensure long-term reliability. For lower-load or intermittent switching applications, the module can operate without an additional heat sink.

Q: Is the SSR-40DA suitable for DIY and hobbyist electronics projects?

A: Yes. Its compact 58 × 45 × 26 mm footprint, screw-terminal connections, and wide DC input range make it very easy to integrate into DIY control panels, 3D printer heated beds, temperature control builds, and similar projects.
