Smart LiPo Battery Discharger Module – 2-6S with Built-In LED Indicator

Keep your RC model and FPV drone batteries in peak condition with this compact Smart LiPo Battery Discharger Module. Designed for 2S–6S LiPo packs, it automatically discharges your batteries to the ideal storage voltage — protecting cell health and extending overall battery life. Whether you're a seasoned FPV pilot or a DIY RC hobbyist, this module is the smart way to store your packs safely between sessions.

Key Features

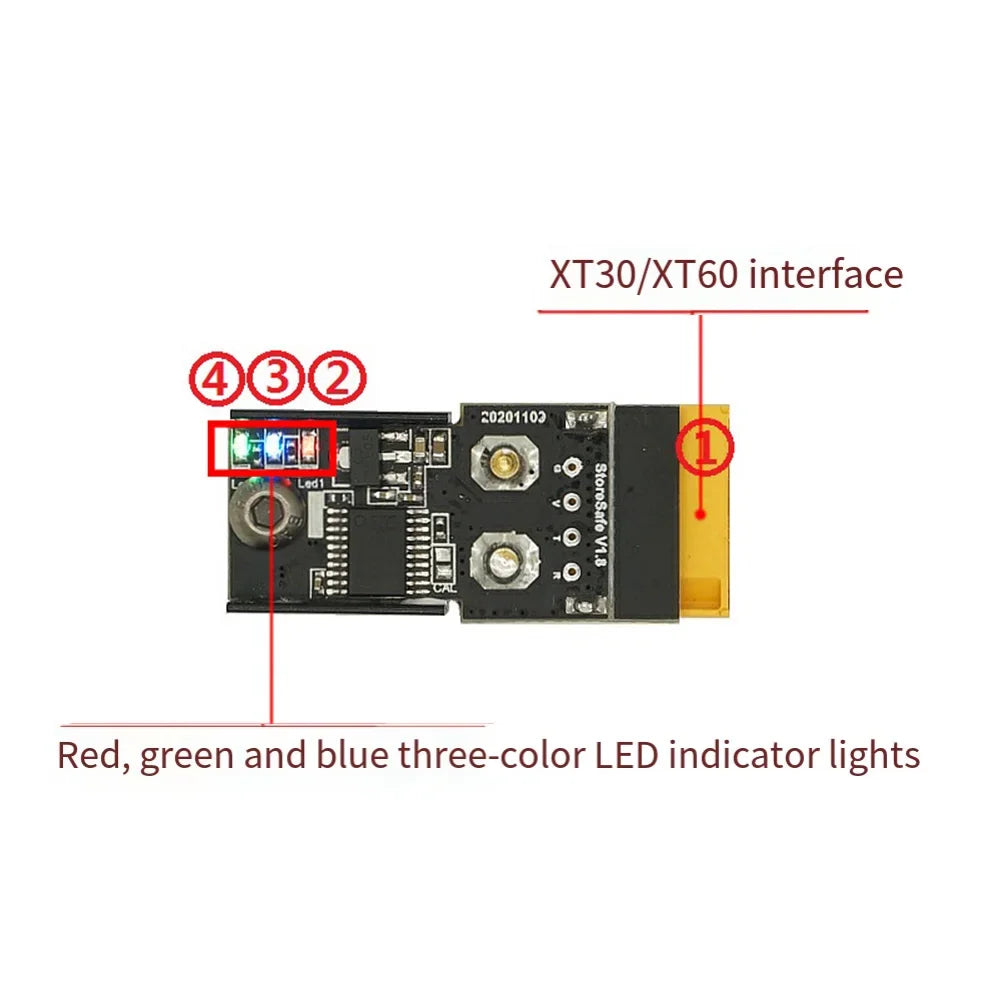

• Auto Battery Type Detection: Automatically identifies the connected battery type and displays status via three color-coded LED indicators for instant, easy confirmation.
• Temperature-Controlled Discharge: Built-in temperature sensor dynamically adjusts the discharge rate based on ambient temperature, preventing overheating during the discharge process.
• Aluminum Alloy Heat Sinks: Integrated heat sinks ensure efficient thermal dissipation, safeguarding the onboard chip and maintaining reliable performance even during extended use.
• Automatic Cutoff Protection: Discharges the battery to the optimal storage voltage and then halts automatically, placing the pack in an ultra-low current standby state (<10µA shutdown current) so cells are never over-discharged.

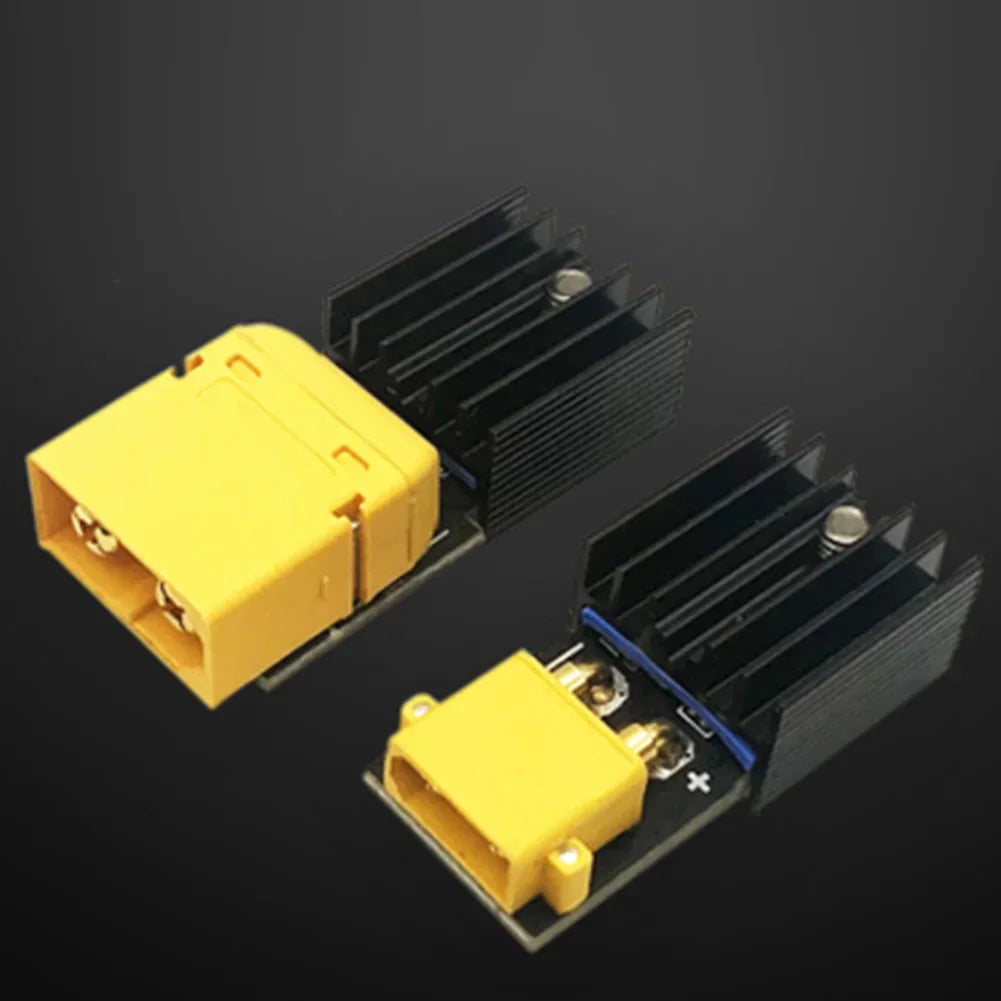

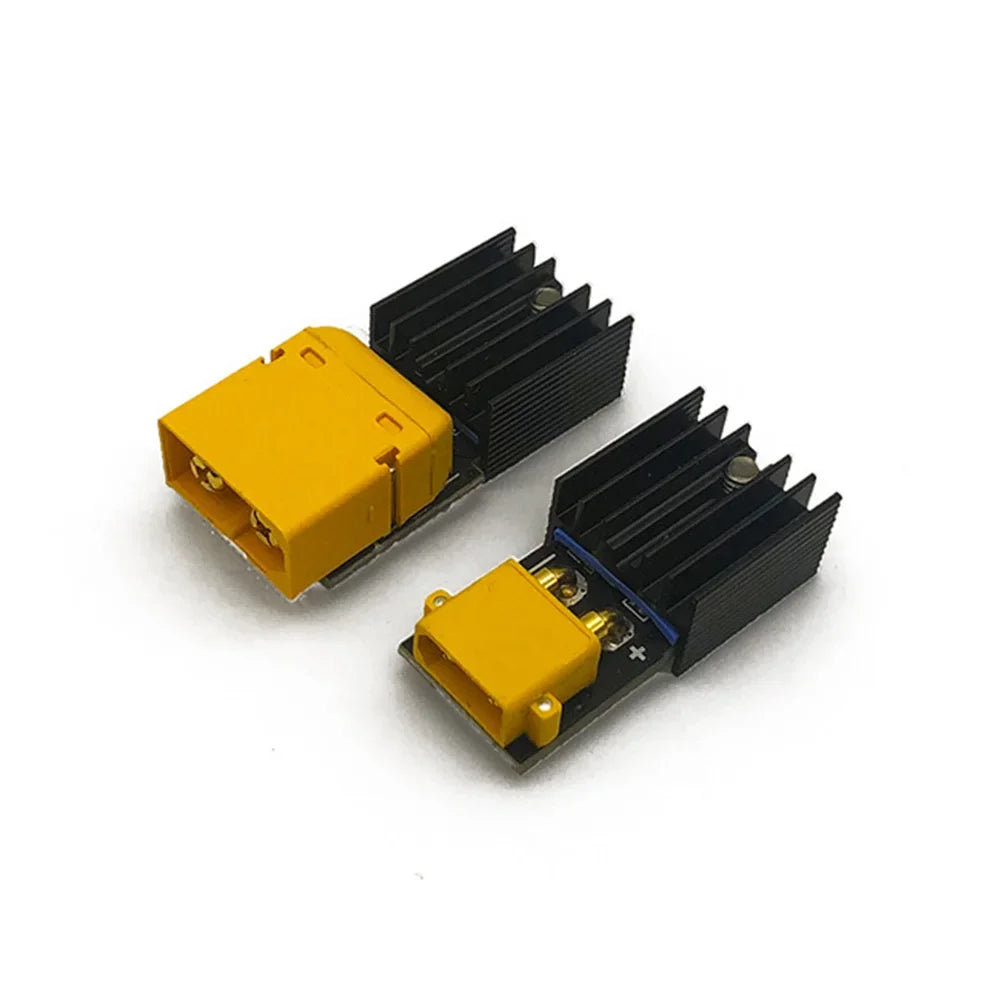

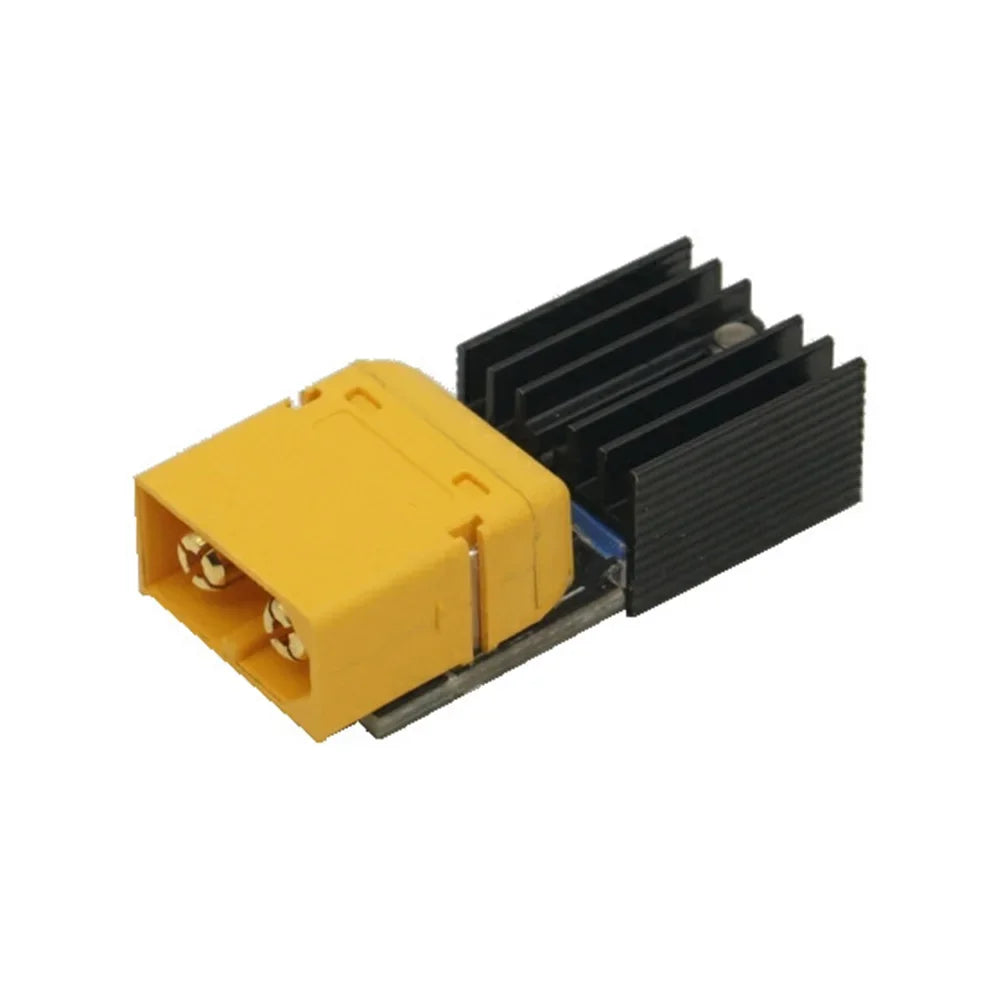

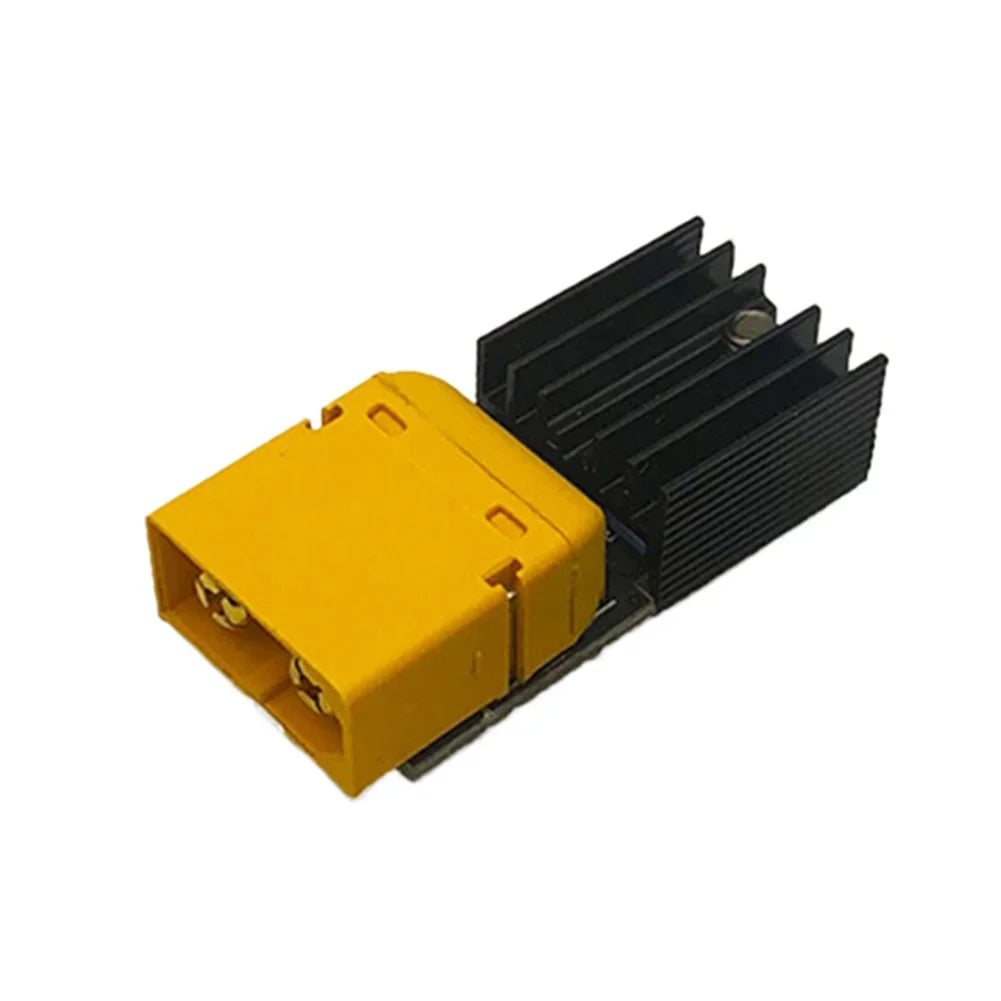

• Dual Connector Options: Available in XT60 and XT30 connector formats to fit a wide range of RC and FPV battery packs.
• Compact & Durable Build: Metal and plastic construction in a pocket-friendly form factor — easy to take to the field or store in your kit bag.

Specifications

Package Contents

• 1 × Smart LiPo Battery Discharger Module

You May Also Like

• 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
• Non-Contact Capacitive Water Level Sensor 3.3V–5V
• Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What battery types is this LiPo discharger module compatible with?

A: This smart discharger module is compatible with 2S to 6S LiPo battery packs operating between 7.9V and 26V. It automatically identifies the connected battery type and adjusts its discharge behavior accordingly, making it ideal for RC cars, FPV drones, and other RC model applications.

Q: Does the discharger stop automatically once the battery reaches storage voltage?

A: Yes. The module is designed to automatically halt discharge once the battery reaches the optimal storage voltage level. It then places the pack in an extremely low current standby state (under 10µA), so there is no risk of over-discharging the cells during long-term storage.

Q: Which connector type should I choose — XT60 or XT30?

A: Choose based on the connector your battery uses. The XT60 version (37 × 16 × 10 mm) is suited for larger-capacity packs commonly used in RC cars and larger FPV drones, while the XT30 version (32 × 15 × 10 mm) is designed for smaller, lighter packs typically found in mini and micro FPV builds.

Q: Is the discharger safe to use for extended periods?

A: Absolutely. The built-in temperature sensor continuously monitors ambient temperature and adjusts the discharge rate to prevent excessive heat buildup. Combined with the aluminum alloy heat sinks that efficiently dissipate thermal energy, the module is engineered for safe and reliable operation even during prolonged discharge cycles.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
