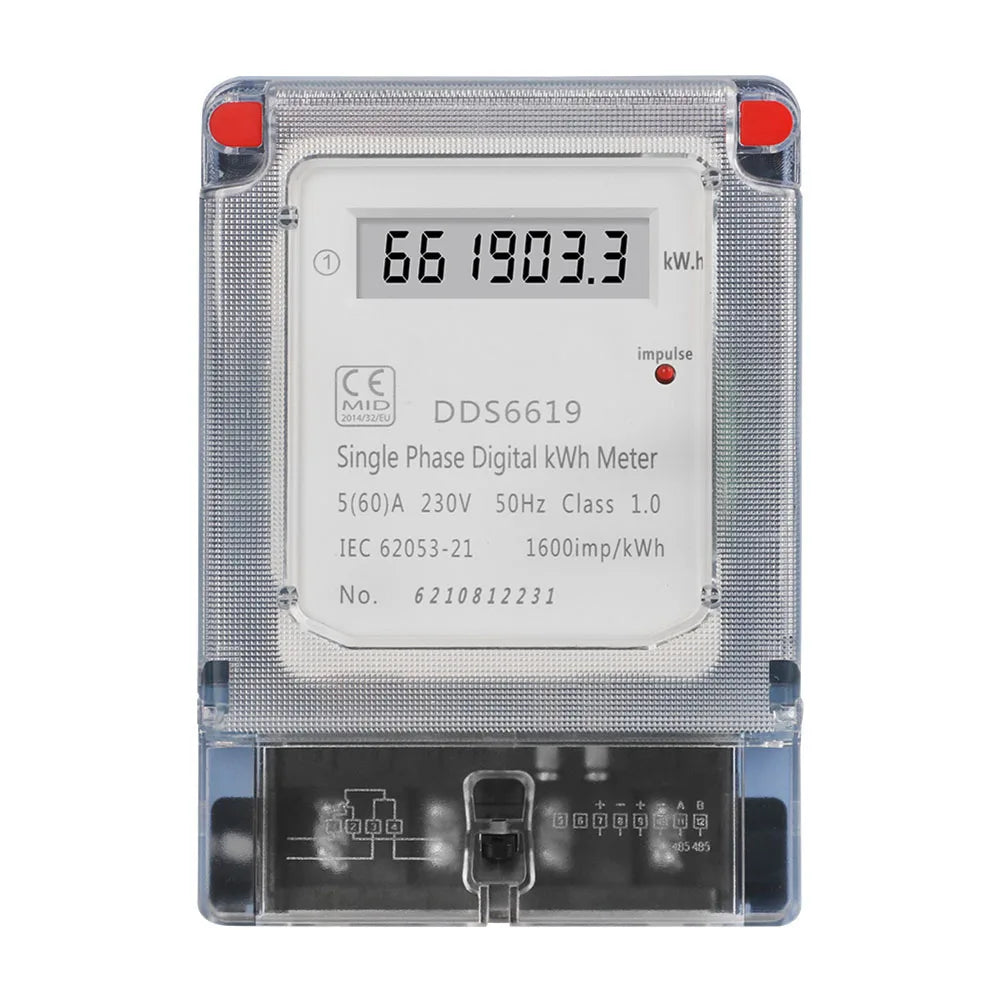

Single Phase DIN Rail Energy Meter AC 220V 60A Pulse Output LED

Single Phase DIN Rail Digital Energy Meter – AC 220V 60A with Pulse Output & LED Indicator

Take full control of your electricity consumption with this Single Phase Digital Energy Meter. Designed for easy DIN rail installation, this compact and reliable meter delivers accurate real-time energy monitoring for both residential and commercial environments. Whether you're managing a home circuit, workshop, or small commercial setup, this meter gives you the data you need to make smart energy decisions.

Key Features

• Accurate Energy Measurement: Provides precise, real-time readings of electricity consumption so you can monitor usage effectively and make informed decisions about energy management.
• High Current Capacity – Up to 60A: Suitable for a wide range of residential and commercial applications, handling high-load circuits without compromising performance.
• Pulse Output with Optical Coupling Isolation: Ensures safe and accurate data transmission, allowing seamless integration with building management systems, data loggers, or automation controllers.
• Visual LED Pulse Indicator: A built-in LED indicator provides a clear, instant visual confirmation that the meter is operating correctly — no guesswork required.
• Standard AC 220V / 50Hz Compatibility: Designed to work with standard single-phase power supplies, making it versatile for various setups and environments across different industries.

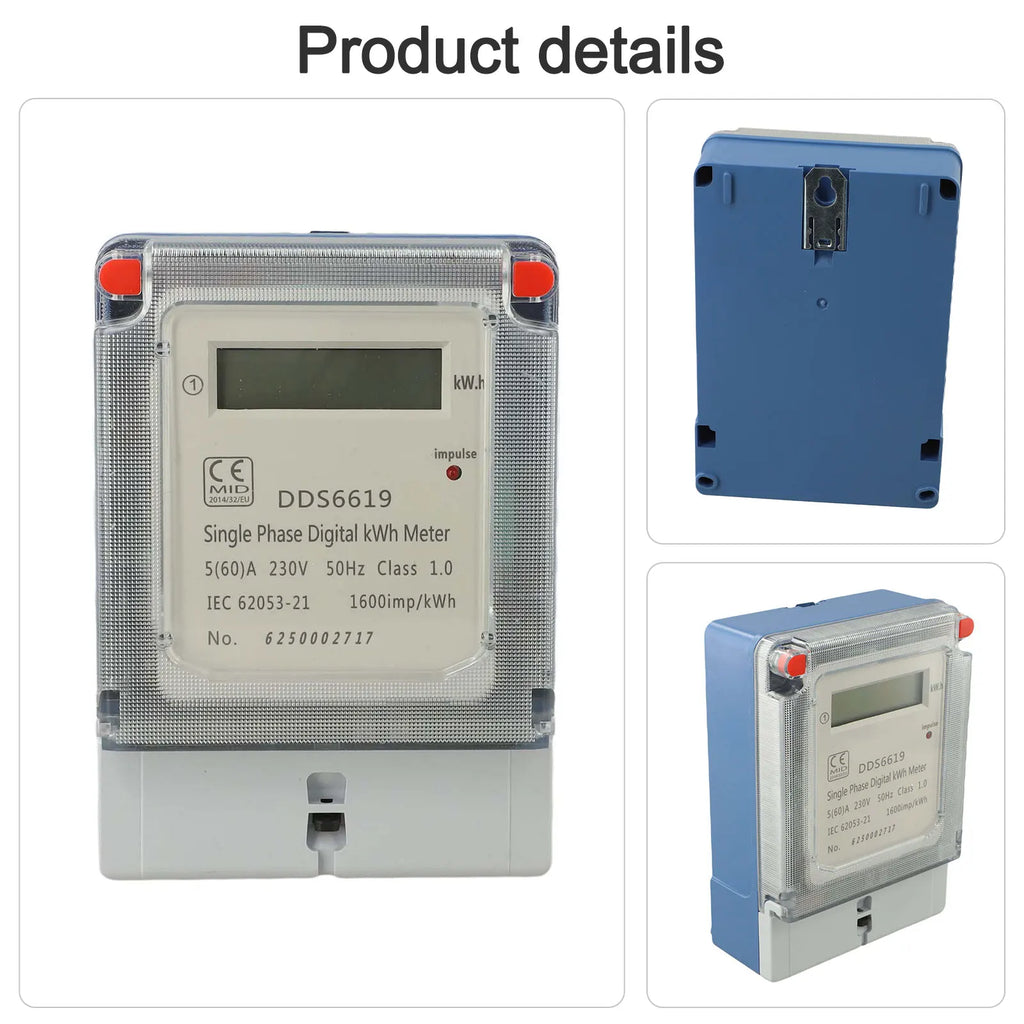

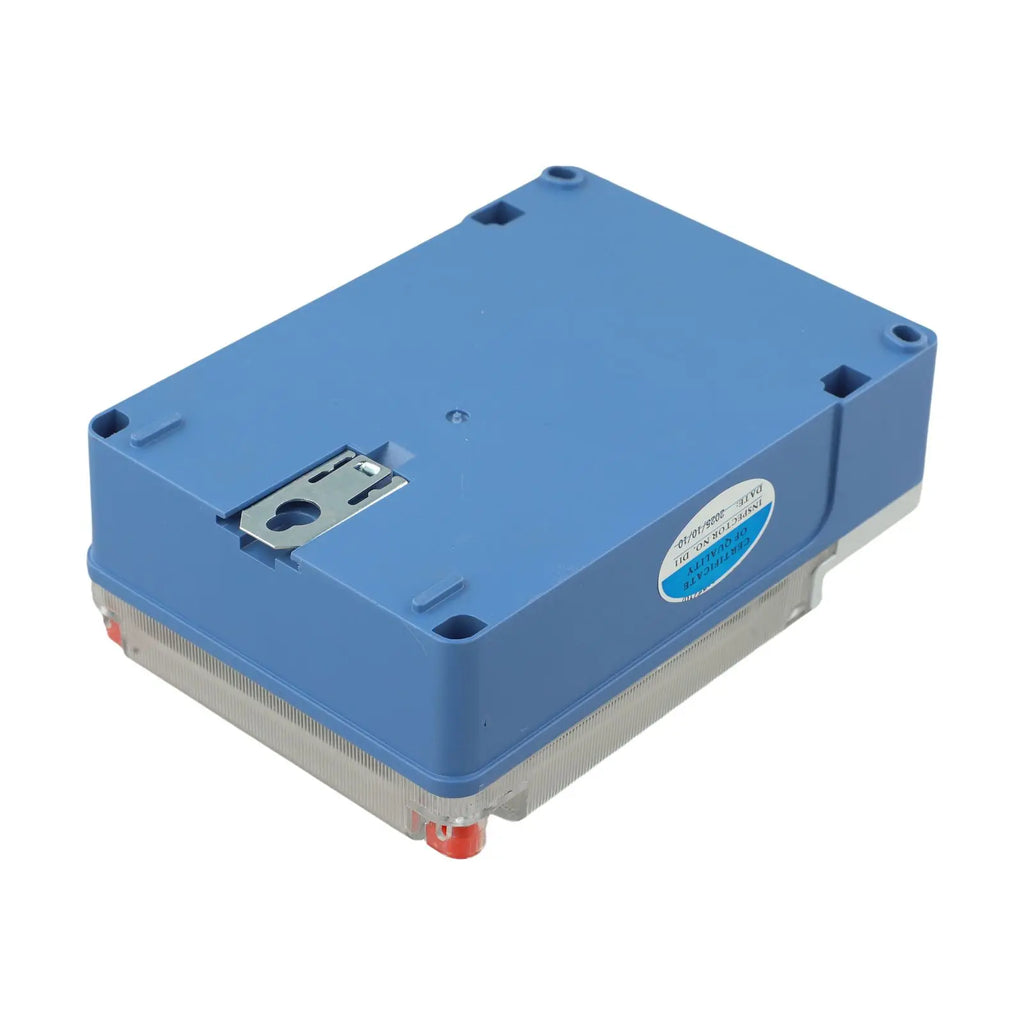

• DIN Rail Mounting: Snaps easily onto a standard DIN rail inside an electrical enclosure for a clean, professional installation.

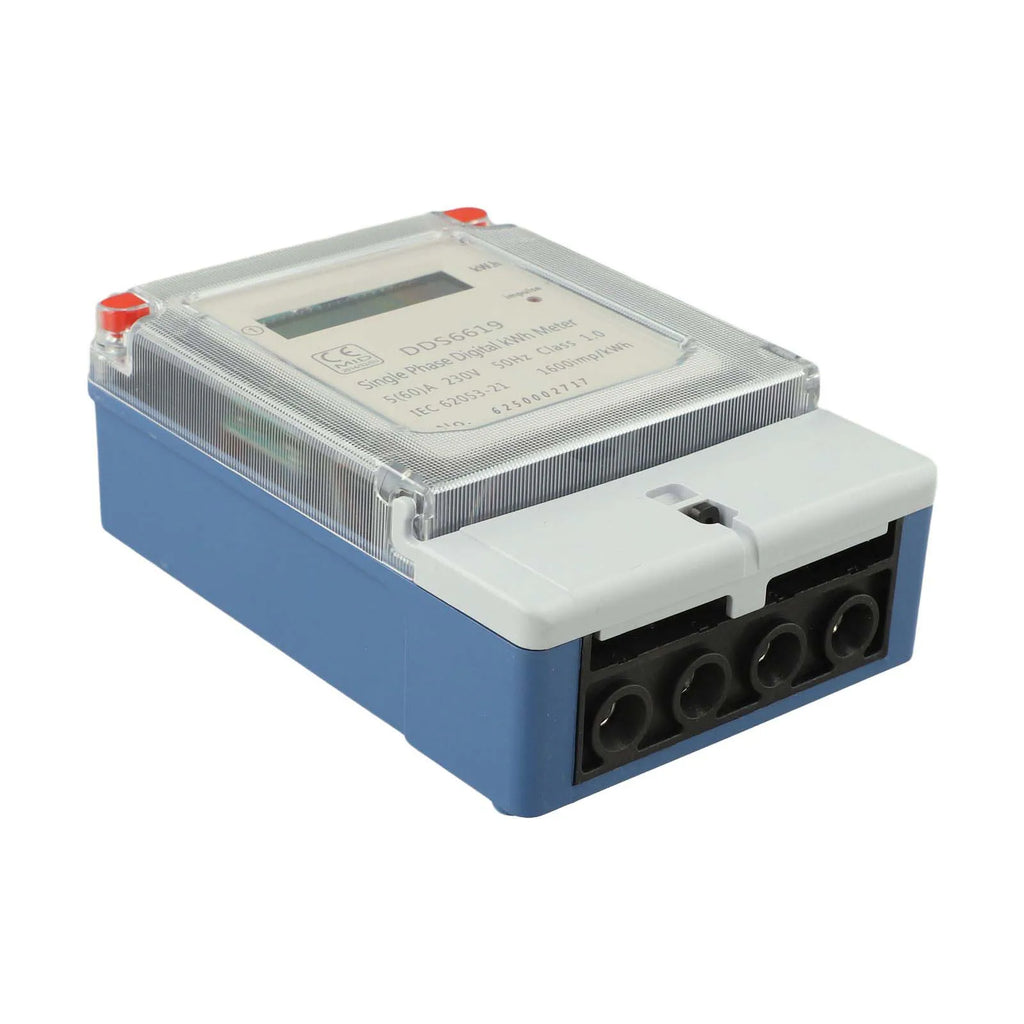

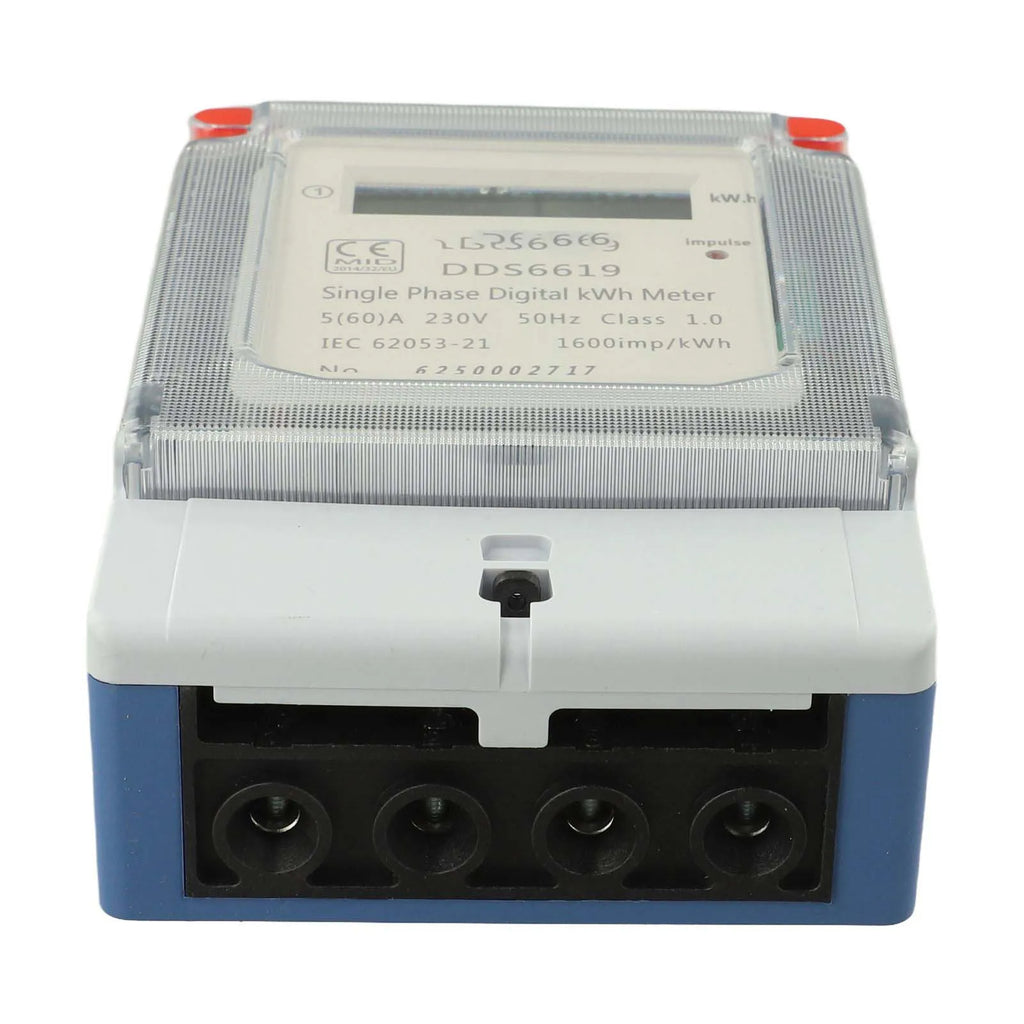

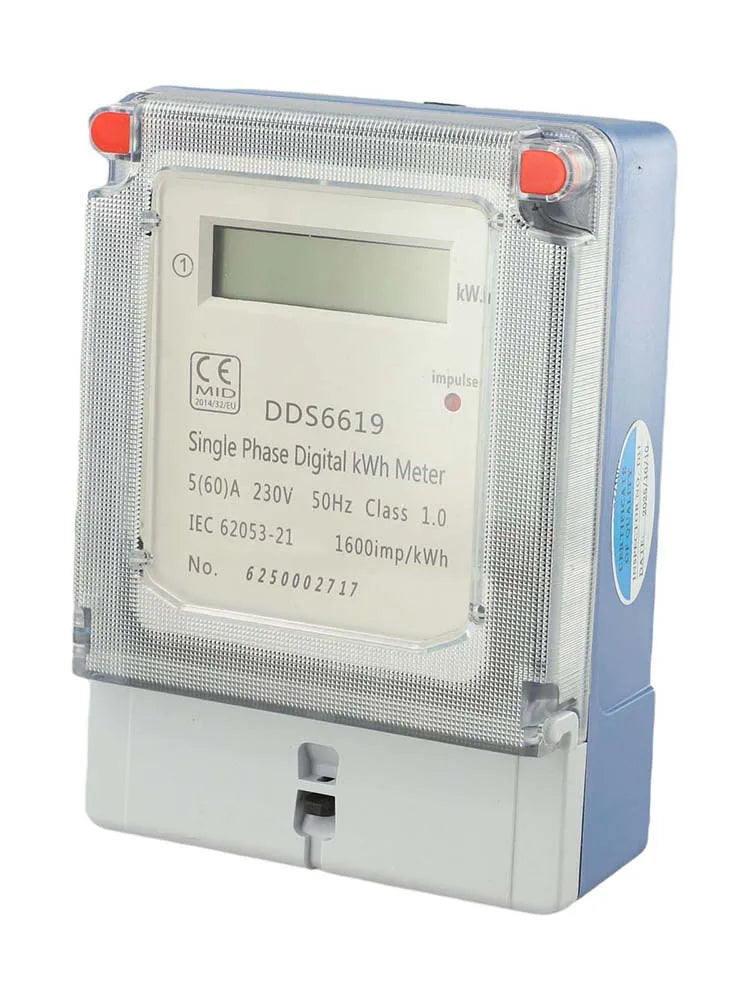

• Compact & Durable Design: Transparent plastic housing at 145×70×21mm keeps the unit lightweight yet sturdy, and allows quick visual inspection of internal components.

Specifications

What's in the Box

• 1 × Single Phase Digital Energy Meter

Related Products You May Like

• 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
• Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
• Non-Contact Capacitive Water Level Sensor 3.3V–5V

Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances (±1–2mm).

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What type of electrical system is this digital energy meter compatible with?

A: This single phase digital energy meter is designed for use with standard AC 220V / 50Hz single-phase electrical systems. It is ideal for residential, light commercial, and industrial panel installations where DIN rail mounting is available.

Q: What is the pulse output used for on this energy meter?

A: The pulse output feature, equipped with optical coupling isolation, allows the meter to transmit energy consumption data to external systems such as building automation controllers, data loggers, or remote monitoring software. This makes it easy to integrate into larger energy management setups.

Q: How is this energy meter installed?

A: This meter is designed for standard DIN rail mounting, making installation quick and straightforward inside an electrical distribution panel or enclosure. Simply snap it onto a 35mm DIN rail and connect the appropriate wiring according to the wiring diagram.

Q: Is 60A sufficient for most home or small commercial applications?

A: Yes. A 60A maximum current rating covers the majority of single-phase residential circuits and many small commercial setups. It is well-suited for monitoring individual circuits, sub-panels, or specific high-consumption appliances.
