The HpLive Schumann Waveform Signal Generator is a compact, versatile PCB-based signal generator designed for electronics enthusiasts, DIYers, researchers, and hobbyists. Defaulting to the well-known 7.83Hz Schumann frequency, it delivers clean, stable waveform outputs across an impressively wide adjustable range of 0.1Hz to 30,000Hz. With a backlit display, multiple waveform modes, and ultra-low power consumption, it's an excellent bench tool for signal testing, frequency experiments, and DIY electronics projects.
Key Features
- Wide Frequency Range: Adjustable from 0.1Hz to 30KHz — suitable for a broad range of signal generation applications.

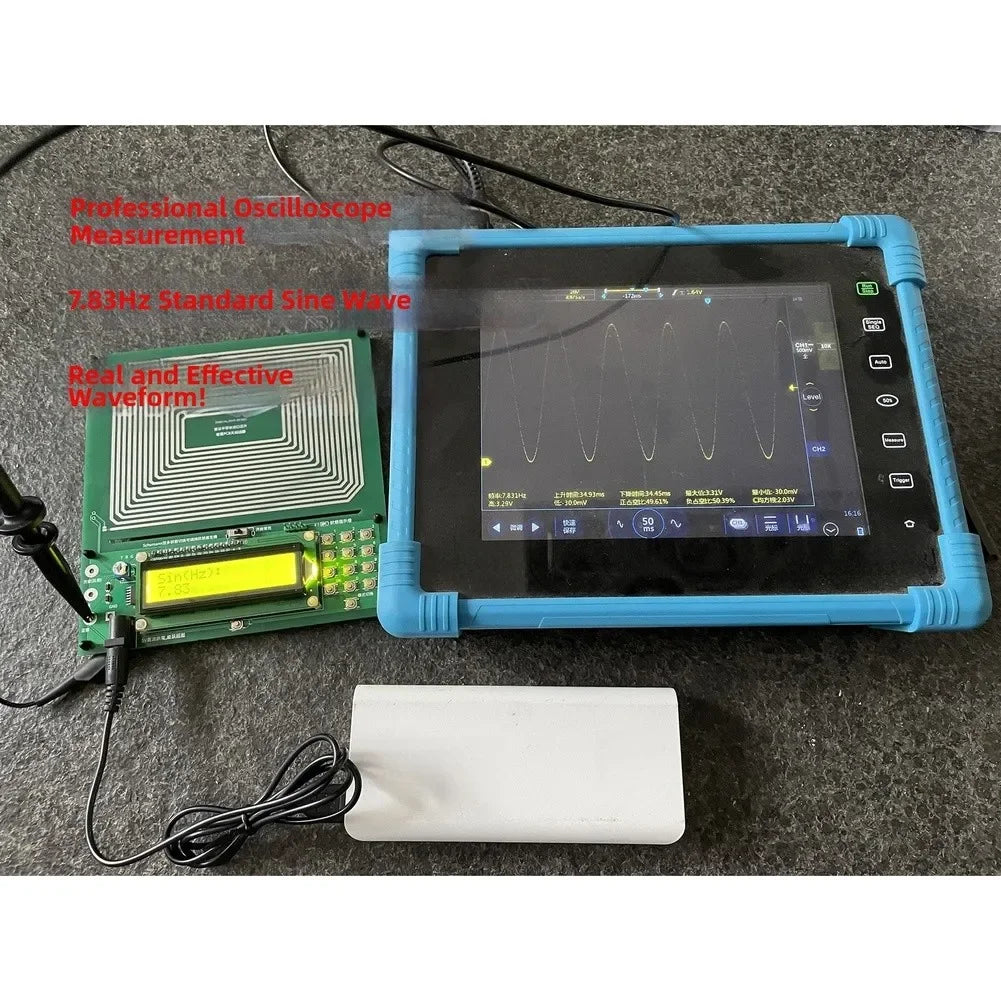

- Pure Sine Wave Output: Delivers a clean and stable 7.83Hz standard sine wave via the antenna output for precise use cases.

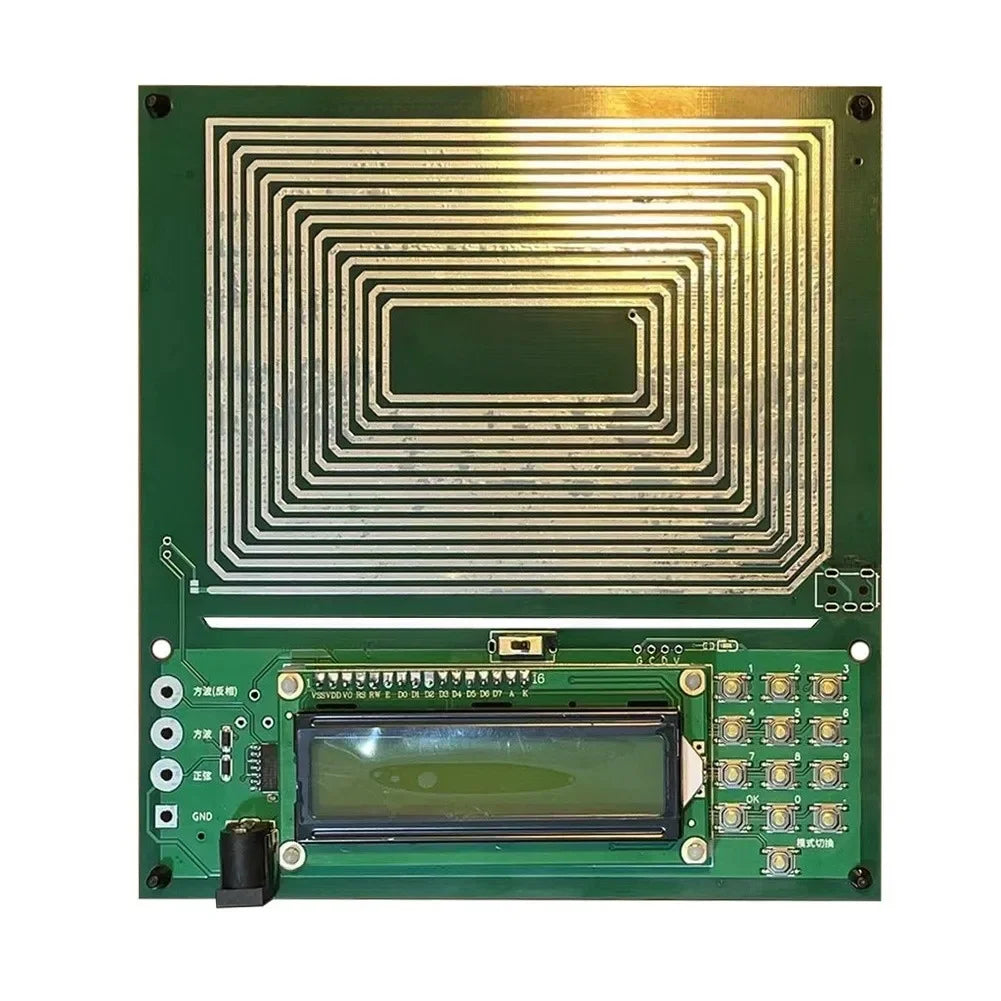

- Multiple Waveform Options: Interface outputs support Sine Wave, Square Wave, and Inverted Square Wave simultaneously from the bottom-left output port.

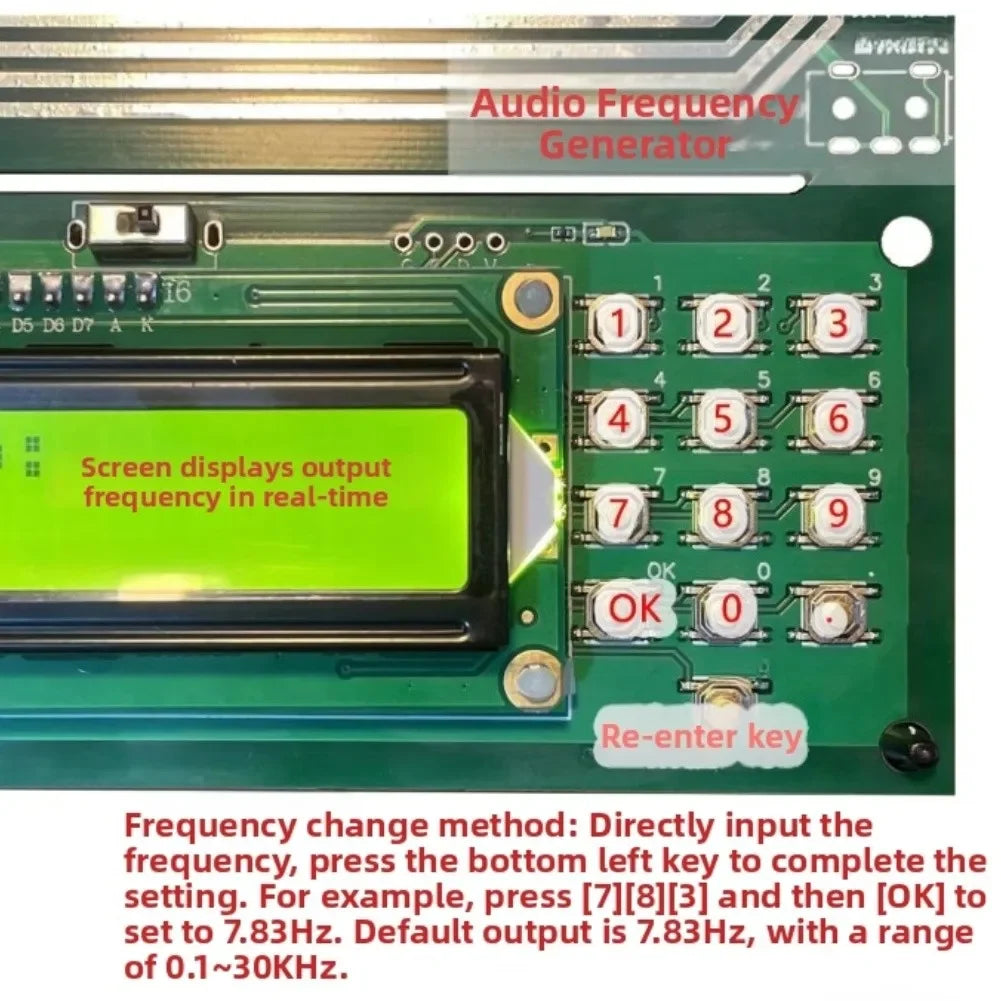

- Real-Time Frequency Display: On-screen backlit display lets you monitor and adjust output frequency instantly.
- Low Power Consumption: Operates at under 1W on a standard 5V DC supply — energy-efficient and easy to power via USB adapters or power banks.

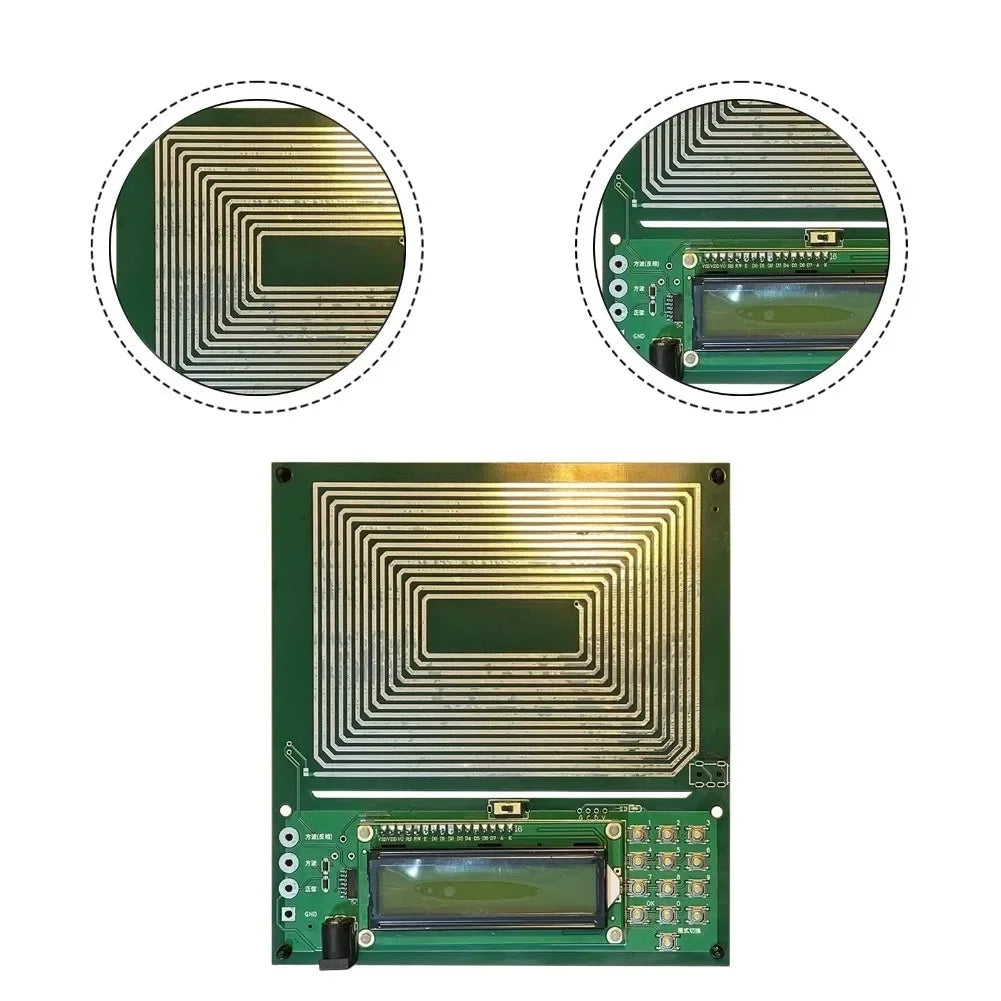

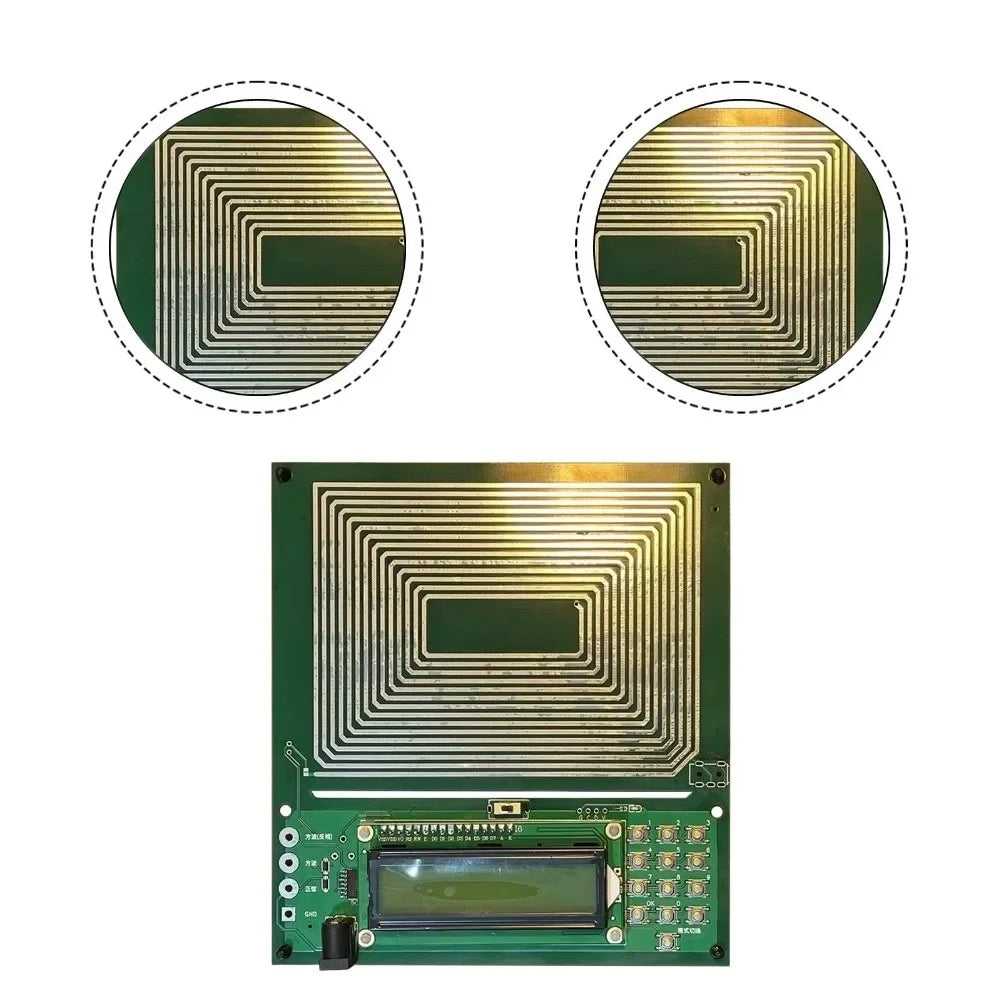

- Compact PCB Design: Green PCB board at 15×15cm — easy to integrate into your existing setup or workbench.
Technical Specifications
| Material | PCB |
| Color | Green |
| Size | 15 × 15 cm |
| Default Frequency | 7.83Hz |
| Adjustable Range | 0.1Hz – 30,000Hz |
| Antenna Waveform | Sine Wave |
| Interface Waveform | Sine Wave + Square Wave + Inverted Square Wave (simultaneous) |
| Sine Wave Voltage Amplitude | 3V |
| Square Wave Voltage Amplitude | 5V |
| Power Supply | 5V DC (DC5.5×2.1 interface) |
| Rated Power Consumption | <1W |
| Battery Included | No |
What's in the Box
- 1 × Signal Generator (PCB Board)
Made in Mainland China.
