SA6 SL10mini Log-Periodic Antenna — Wide-Band 4G, 5G & UWB Coverage

The SA6 SL10mini Log-Periodic Antenna is a high-performance, compact RF antenna engineered for an exceptionally broad frequency range of 50 kHz to 3 GHz. Whether you're building a 4G/5G network node, a UWB communication system, or an RF test bench, this antenna delivers 7 dBi gain, omnidirectional coverage, and reliable signal integrity across every supported band.

Key Features

• Ultra-Wide Frequency Range: Covers 50 kHz to 3 GHz in a single antenna — ideal for 4G LTE, 5G sub-3GHz, UWB, and microwave RF applications.
• High Gain (7 dBi): Maximizes signal strength and extends wireless reach in all directions for robust omnidirectional coverage.
• Low VSWR (≤2): Ensures efficient power transfer with minimal signal reflection, keeping your RF system performing at its best.
• 50Ω Impedance | Max 50W: Matched to the standard RF impedance used in most receivers, transmitters, and test equipment.

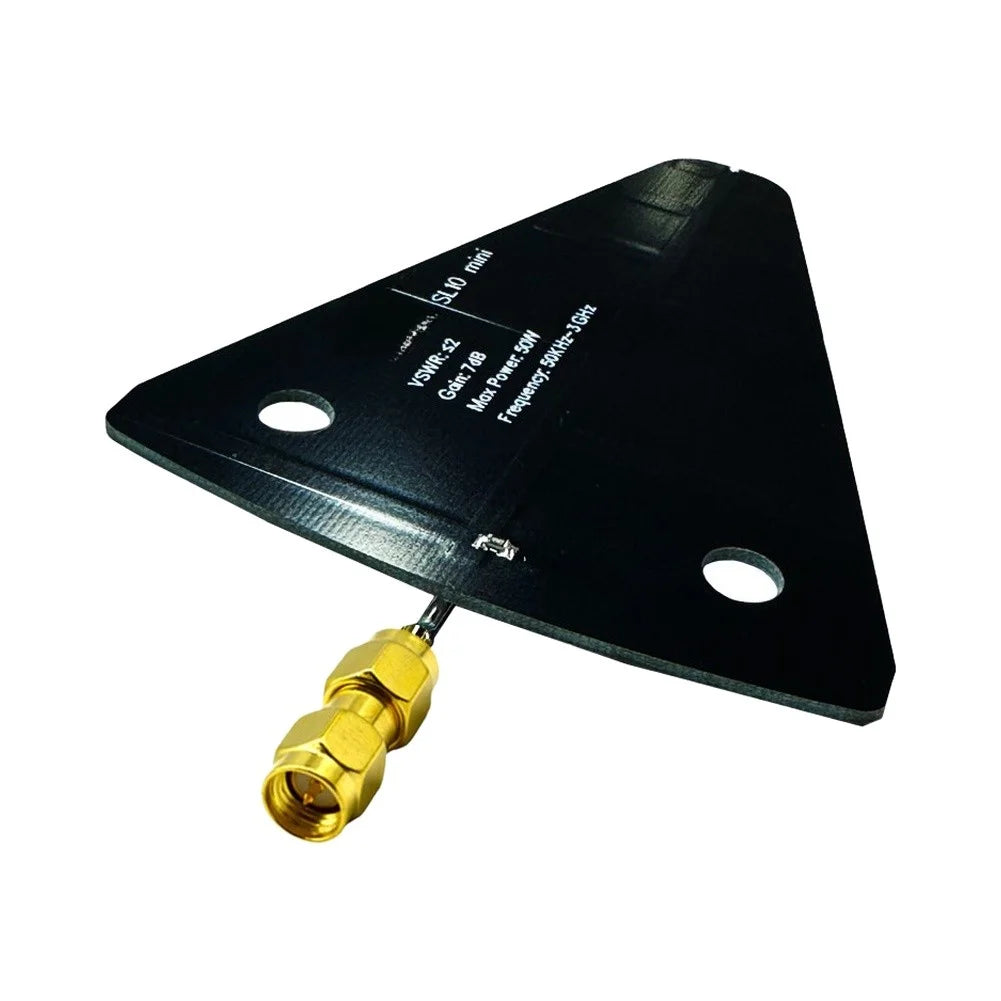

• SMA Male Connector: Features an external-thread, internal-pin SMA male connector for easy, secure integration with compatible RF hardware.

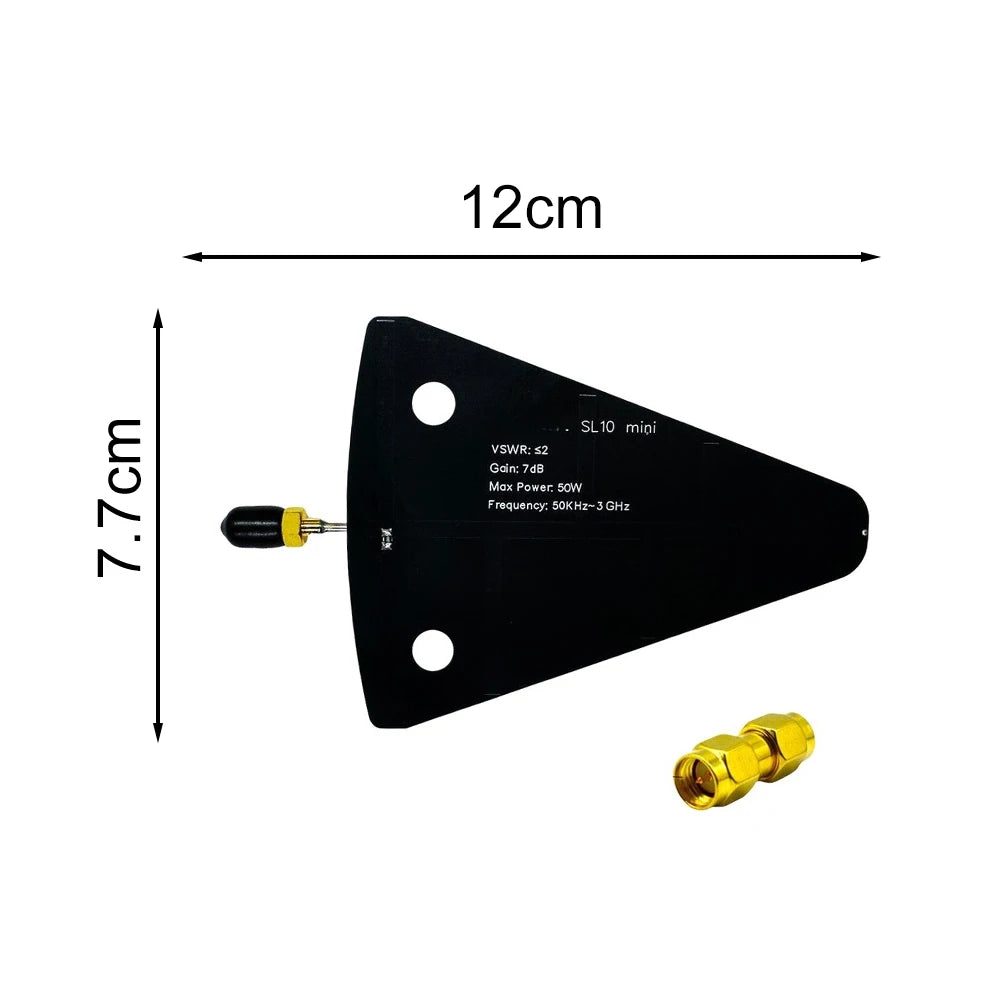

• Compact & Lightweight: Measuring just 12 × 7.7 cm and weighing only 50 g, the SL10mini fits in tight enclosures and space-constrained installations with ease.
• Durable ABS Construction: Built from robust ABS material in a clean black finish for long-lasting, reliable use in lab or field environments.

Specifications

Package Contents

• 1 × SA6 SL10mini Log-Periodic Antenna

Compatible Applications

This antenna is purpose-built for engineers, hobbyists, and developers working with:

• 4G LTE and 5G sub-3GHz wireless networks
• Ultra-Wideband (UWB) communication and positioning systems
• Microwave and RF signal testing & measurement setups
• SDR (Software Defined Radio) platforms
• Custom RF electronics and DIY wireless projects

Related Products You May Need

Looking to expand your electronics toolkit? Check out these useful items from our store:

• Non-Contact Capacitive Water Level Sensor 3.3V–5V — great for IoT sensor projects
• Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing — reliable connectors for RF wiring harnesses
• 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool — essential for DIY battery-powered RF builds

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What frequency range does the SA6 SL10mini log-periodic antenna support?

A: The SA6 SL10mini covers an ultra-wide frequency range of 50 kHz to 3 GHz, making it compatible with 4G LTE, 5G sub-3GHz bands, UWB systems, microwave RF, and SDR applications — all with a single antenna.

Q: What connector type does this antenna use?

A: It uses an SMA Male connector (external thread, internal pin) with 50Ω impedance, which is the standard connector found on most RF receivers, transmitters, SDR dongles, and RF test instruments.

Q: Is the SL10mini suitable for outdoor use?

A: The SL10mini is constructed from durable ABS material. While it is well-suited for indoor lab, desktop, and enclosed installations, for permanent outdoor deployments we recommend verifying weatherproofing requirements for your specific environment and adding appropriate weatherproofing as needed.

Q: What is the maximum power input this antenna can handle?

A: The SA6 SL10mini supports a maximum input power of 50W, which is well above typical transmit power levels used in standard 4G/5G and UWB devices, giving you ample headroom for most RF applications.
