RT809F Serial ISP Programmer – LCD TV Monitor BIOS Flash

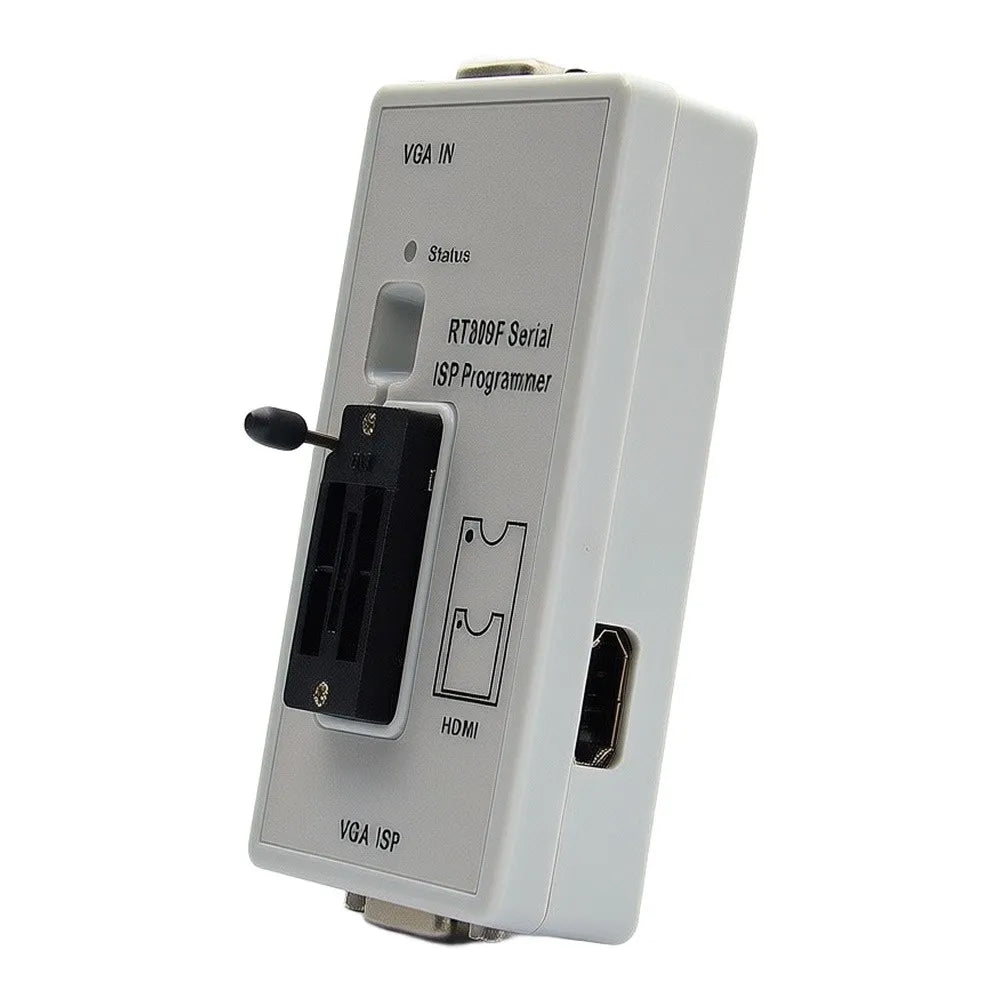

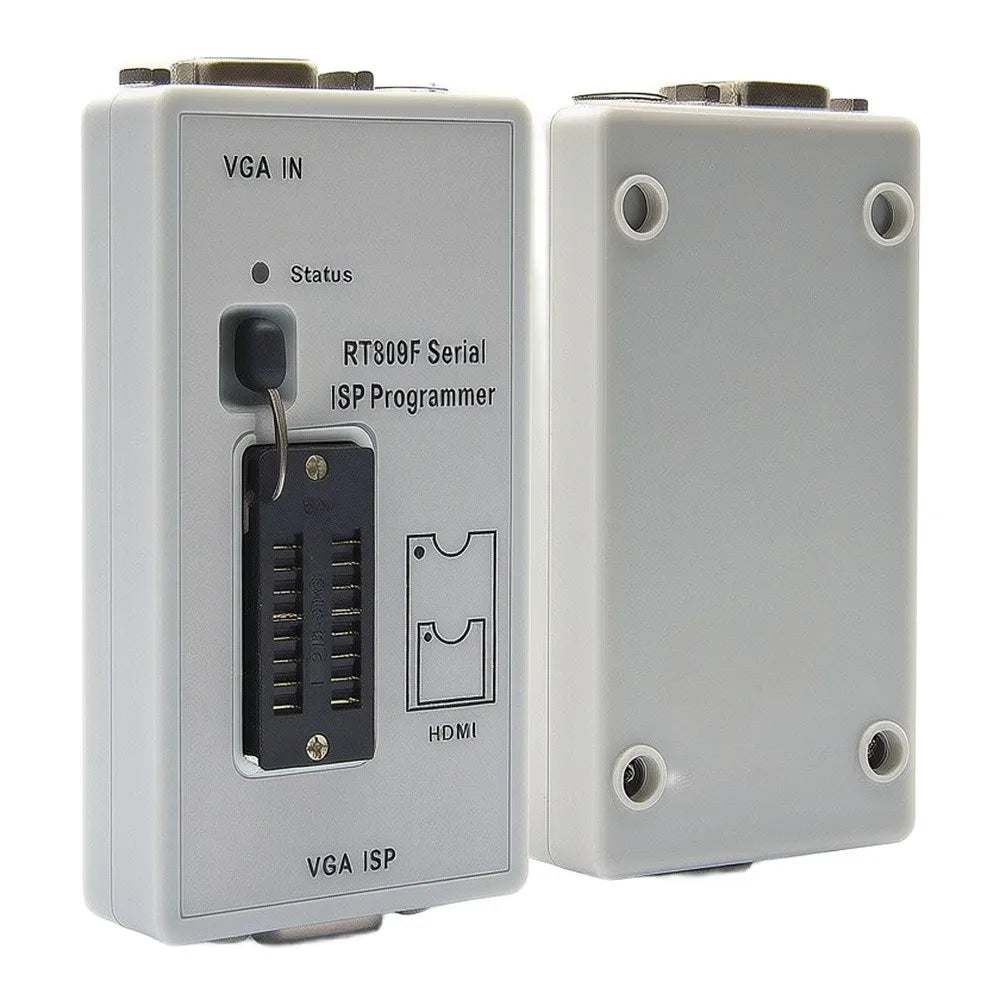

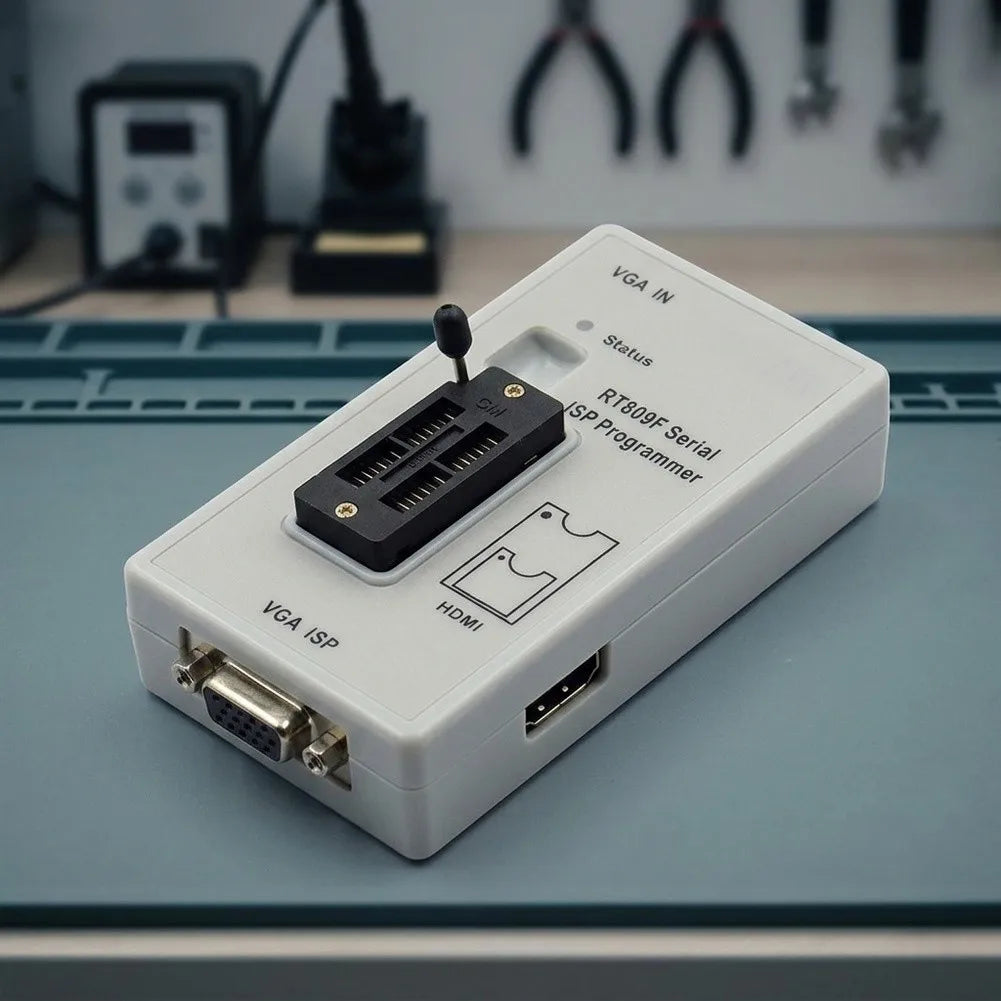

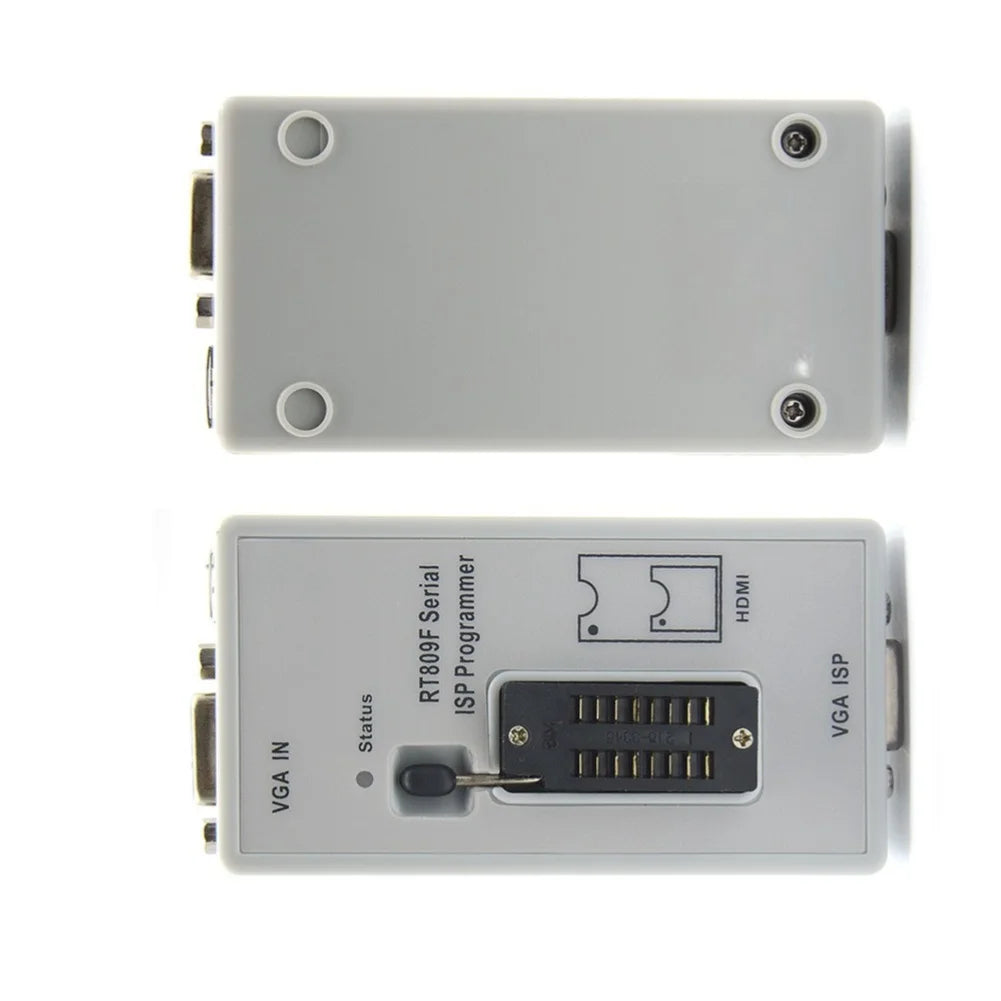

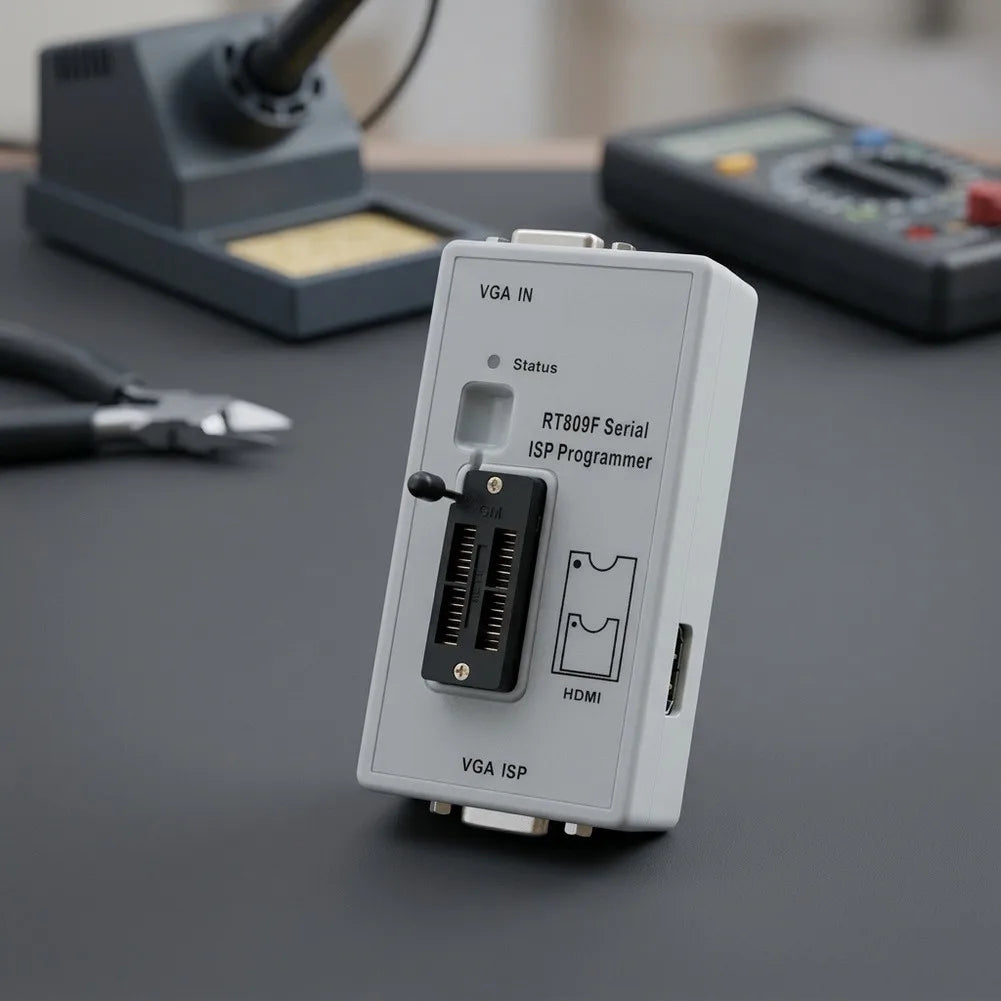

RT809F Serial ISP Programmer for LCD TV & Monitor Repair

The RT809F is a professional-grade Serial ISP programmer engineered for technicians and electronics repair specialists. Whether you're flashing BIOS chips, reprogramming driver boards, or reading/writing EEPROM and SPI Flash memory on LCD TVs, monitors, laptops, and home appliances — the RT809F delivers fast, reliable, in-circuit and offline programming performance. Made in Mainland China.

Key Features

• Universal 8-pin & 16-pin Chip Support: Reads and writes chips commonly found on computer motherboards, laptops, LCD monitors, routers, and home appliances.
• SPD Memory (DDR1/DDR2/DDR3) — No Chip Removal: Supports in-circuit memory access for DDR SPD chips including 34C02 and other special part numbers.
• Laptop Password & Battery Chips: Compatible with 8-pin and 14-pin password chips and battery chips including 24RF08, 6480AR, BR9080, and 9016.
• Full 24-Series IIC EEPROM Support: Auto-identifies chip models from 24C01 to 24C16; detects write-protection levels on Pin 7 of 24-series chips.
• 25- & 26-Series SPI Flash Support: Full compatibility with all 25/26-series SPI Flash memories up to 256 Mbit, with automatic chip identification.
• 93-Series MicroWire Memory Support: Covers all 93-series MicroWire chips including special Japanese variants.
• RTD2120 & RTD2122 Dual/Triple Bank In-Circuit R/W: The only programmer supporting dual-bank in-circuit programming for RTD2120 (BANK0 firmware + BANK1 menu) — reads both banks in just 6 seconds. Also supports RTD2122 three-bank operations.
• DDC-EDID Read/Write: In-circuit EDID data access for LCD monitors and TVs to resolve display compatibility issues quickly.
• Laptop Screen EDID Support: Read and write laptop panel EDID data in-circuit (adapter cables available separately).
• MCU Driver Board Programming via VGA Interface: No need to remove onboard components. Built-in chip repair function helps restore a corrupted driver board to working order.
• LCD Monitor & TV Motherboard Firmware: In-circuit and offline firmware read/write; compatible with both official ISP software and third-party software.
• NT68F63/NT68F632/NT68F633 & WT61P4 MCU Support: Read/write without device disassembly. Special online MCU firmware reading saves firmware from a functional MCU. Also supports SE1059 series to address black-screen issues.
• WINBOND MCU Online Programming: Supports W78E65P-40 and can substitute for M6759, SM5964, SM89516, P89C51RD, and TP2804.
• MTK Series LCD & DVD Support: Compatible with MT2389, MT1379, MT8223, MT8226 and more.
• SUNPLUS Series DVD Support: Works with 8202D, 8202S, 8202L, 8281, 8200, and more.

Specifications

• Product Name: RT809F LCD TV/Monitor Serial ISP Programmer
• Material: ABS
• Color: White
• Brand: HpLive
• Origin: Made in Mainland China

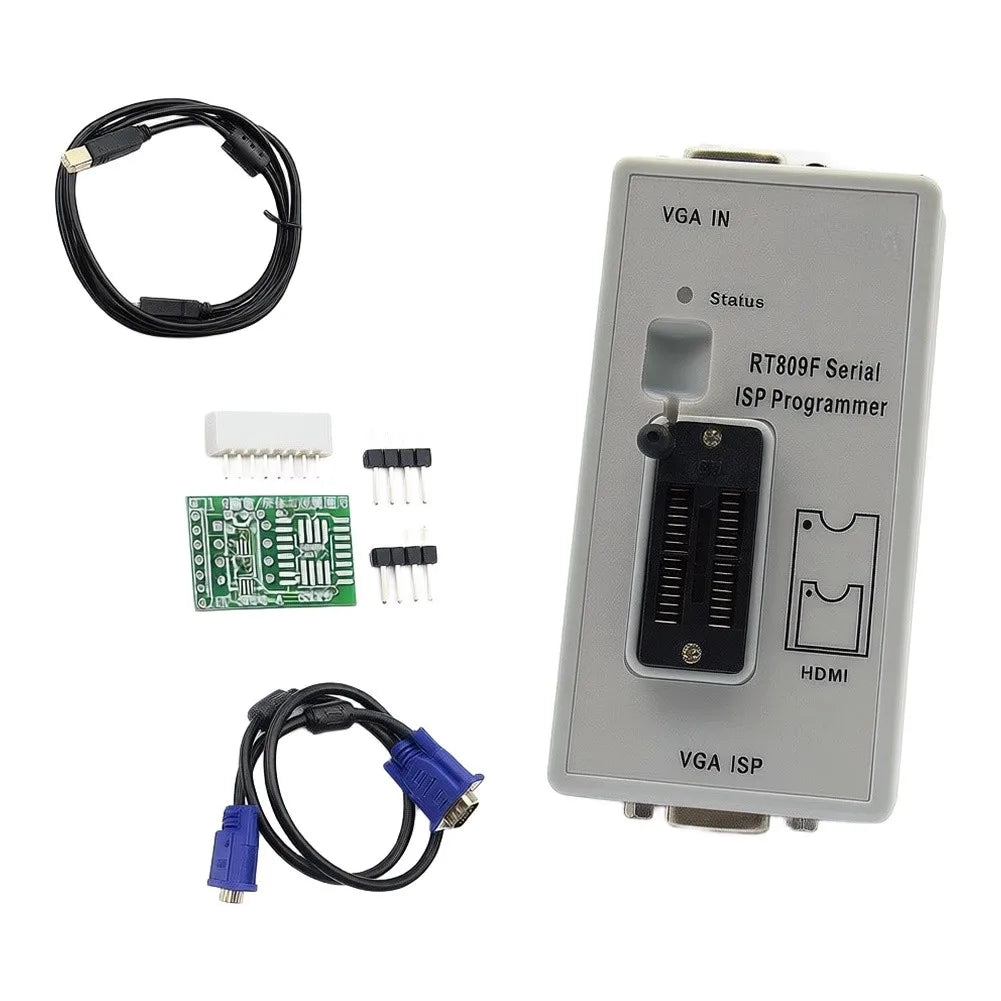

Package Contents

• 1 × RT809F Monitor Programmer
• 1 × Programming Cable
• 1 × Power Cable
• 1 × Board

Related Products You May Need

Looking for more electronics repair and DIY tools? Check out these related items from our store:

• 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
• 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
• Non-Contact Capacitive Water Level Sensor 3.3V–5V

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What types of chips does the RT809F Serial ISP Programmer support?

A: The RT809F supports a wide range of chip types including 8-pin and 16-pin BIOS chips, 24-series IIC EEPROM (24C01–24C16), 25- and 26-series SPI Flash memories up to 256 Mbit, 93-series MicroWire memories, DDR SPD chips, laptop password and battery chips, and MCUs from brands like WINBOND, MTK, and SUNPLUS. It also supports RTD2120 and RTD2122 in-circuit dual/triple-bank programming.

Q: Can the RT809F programmer be used in-circuit without removing chips from the board?

A: Yes. The RT809F is designed for in-circuit Serial ISP programming, meaning you can read and write most supported chips directly on the board without desoldering them. This includes DDC-EDID data on LCD monitors and TVs, DDR SPD memory, laptop screen EDID, and MCU firmware via the VGA interface — saving significant repair time.

Q: Is the RT809F compatible with third-party software?

A: Yes. The RT809F works with both the official ISP software and a variety of third-party programming software, giving technicians the flexibility to choose the toolchain that best suits their repair workflow.

Q: What happens if a driver board gets corrupted during programming?

A: The RT809F includes a built-in chip repair function. If a driver board becomes corrupted during the flashing process, this feature can restore it to a functional state, helping you avoid costly hardware replacement.
