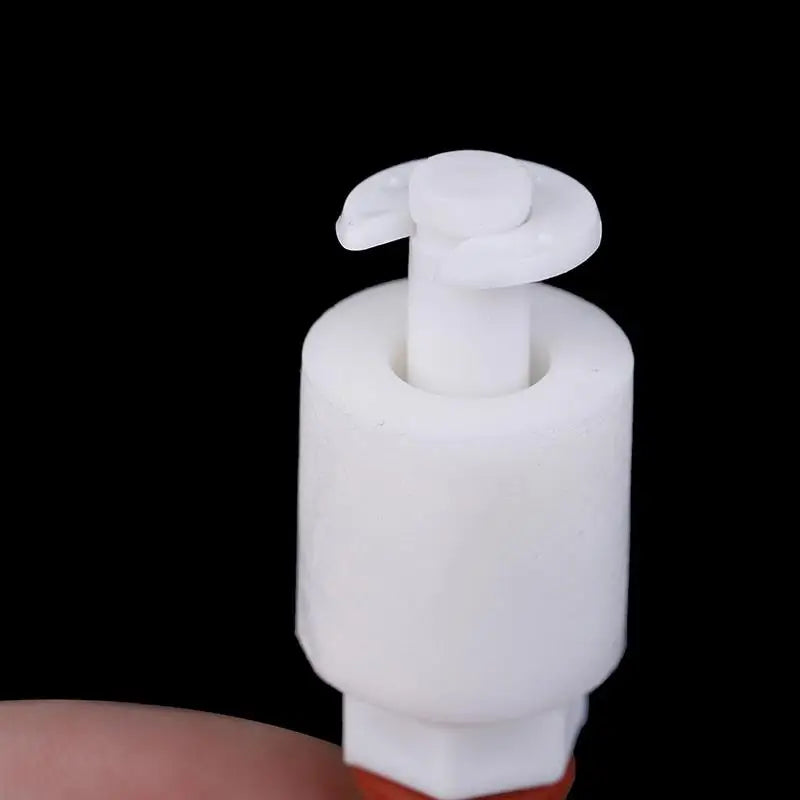

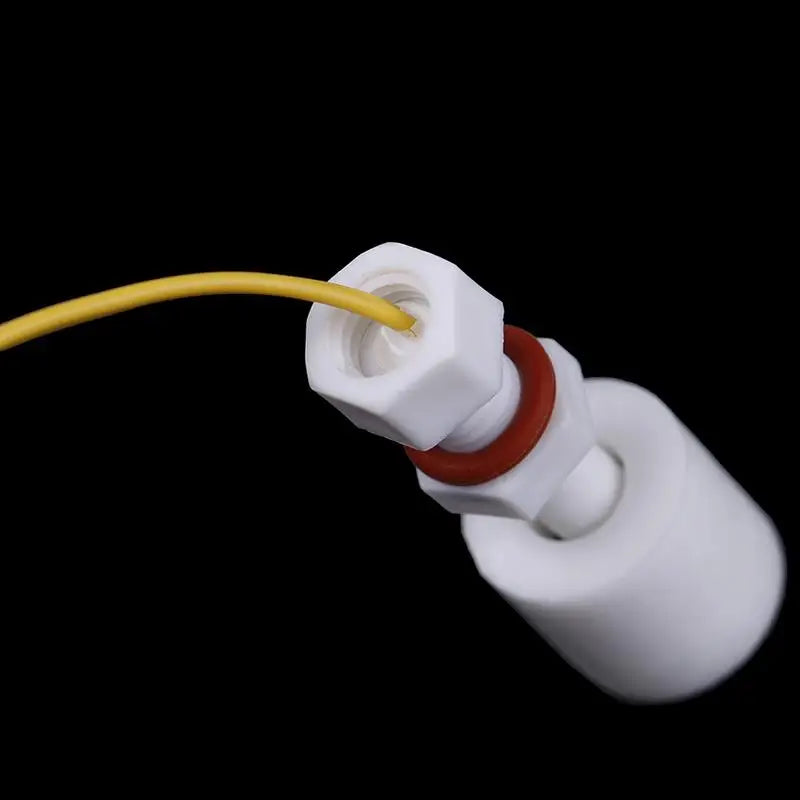

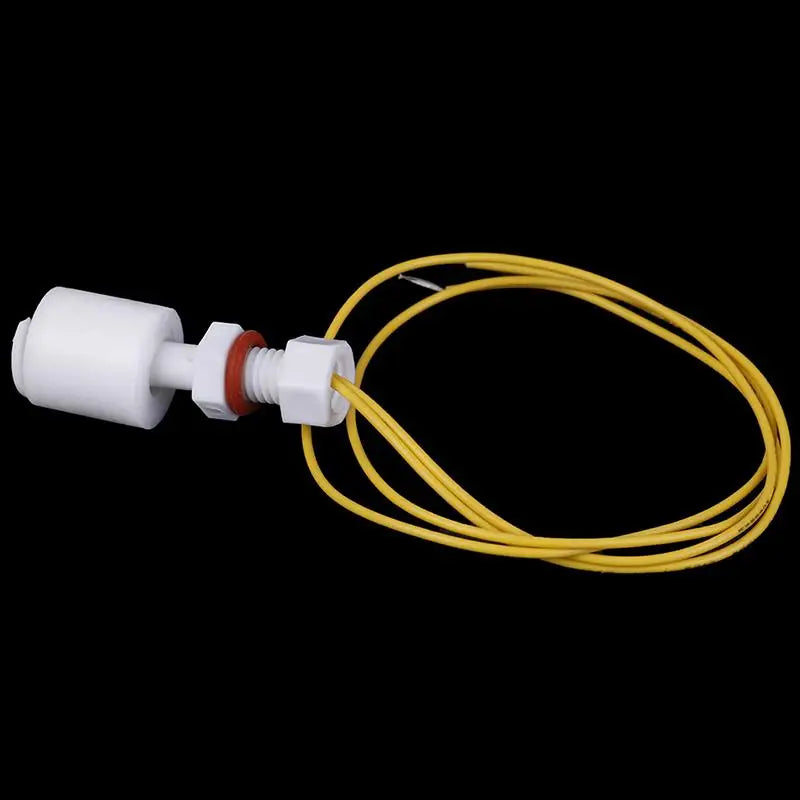

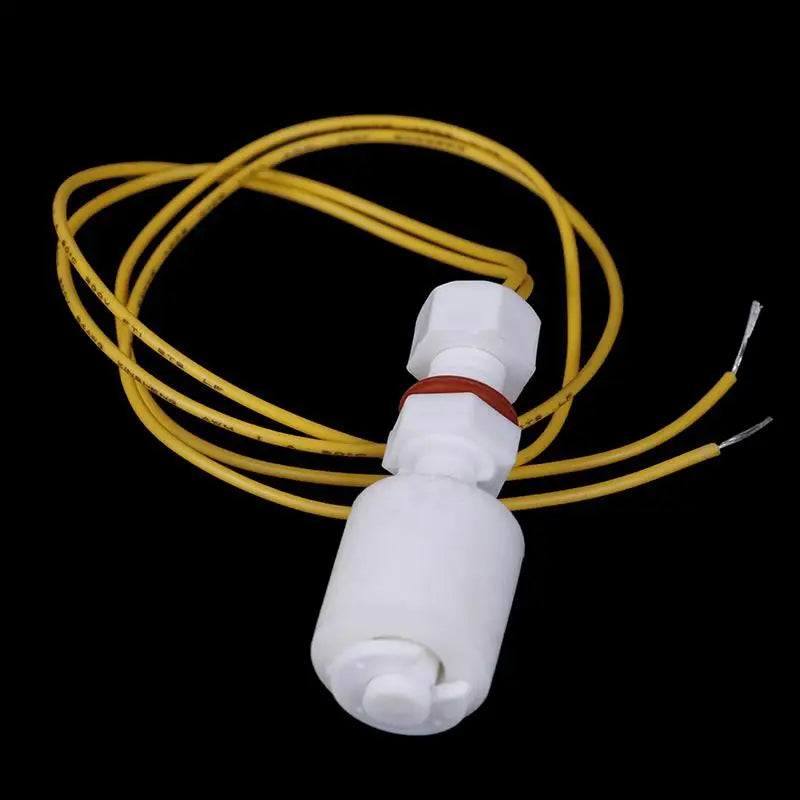

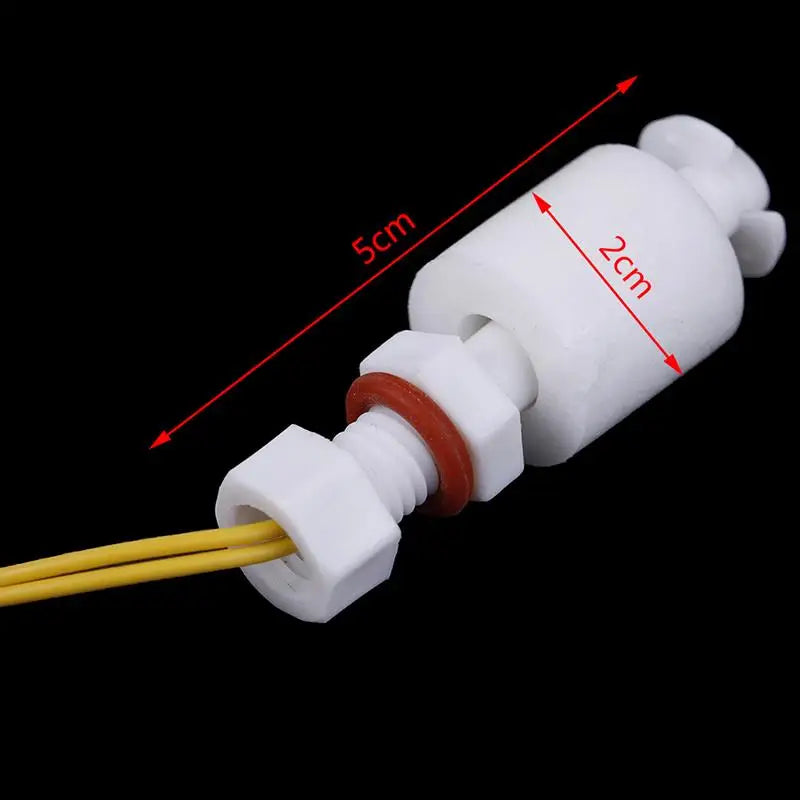

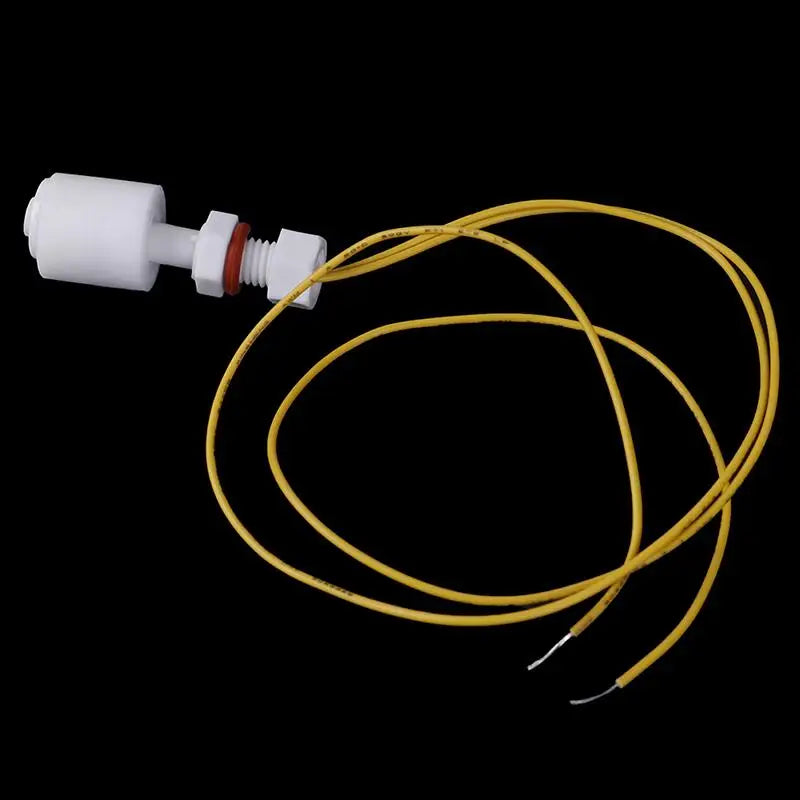

PP Horizontal Float Switch – Liquid Water Level Sensor
PP Horizontal Float Switch – Liquid Water Level Sensor
PP Horizontal Float Switch – Liquid Water Level Sensor
This compact PP Horizontal Float Switch is a simple, reliable, and maintenance-free solution for automatic liquid level control. Built with a polypropylene (PP) float ball and body, it uses a magnetic reed switch mechanism to detect when liquid reaches a set level — triggering an open or closed circuit with no external power source required. Its small footprint, long service life, and compatibility with a wide range of liquids make it ideal for both DIY plumbing projects and industrial applications.
Whether you're monitoring water tanks, sump systems, aquariums, chemical reservoirs, or food-processing equipment, this horizontal float switch delivers dependable on/off switching at the exact level you need.
Made in Mainland China.
How It Works
The float switch houses a sealed magnetic reed switch inside a non-magnetic PP tube. As liquid rises or falls, the buoyant float moves with it. When the float approaches the reed switch, the embedded magnet closes the contacts; as the float moves away, the contacts open. This simple mechanical action allows precise, hands-free level control without complex circuitry.
Key Specifications
- Float Ball Material: Polypropylene (PP)
- Float Body Material: Polypropylene (PP)
- Max Contact Rating: 10W
- Max Switching Voltage: 220V
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1.0A
- Max Contact Resistance: 100 mΩ
- Operating Temperature Range: -10°C to +60°C
- Switch Orientation: Horizontal (Down)
- Quantity: 1 PC
Key Features
- ✅ No external power required — purely mechanical switching action
- ✅ Compact design — smaller than traditional mechanical switches
- ✅ Long service life — sealed reed switch resists wear and corrosion
- ✅ Versatile compatibility — works with water, chemicals, oils, and more
- ✅ Wide temperature range — suitable for -10°C to +60°C environments
- ✅ Simple installation — horizontal mount, no complex wiring or circuitry
Common Applications
- Home water tanks and sump pumps
- Aquariums and fish tank water management — pair with our 5-Pack Aquarium Suction Cup Clips – Tube & Heater Holders
- Food and beverage processing equipment
- Petrochemical and industrial liquid storage
- Dyeing and finishing machinery
- Hydraulic systems and generating equipment
- Water treatment and plumbing DIY projects — explore our Non-Contact Capacitive Water Level Sensor 3.3V–5V for a no-touch alternative
What's in the Box
- 1 × PP Horizontal Float Switch (Liquid Water Level Sensor)
Looking for other electrical components for your project? Check out our 3-Wire 180° Washing Machine Timer Switch for more appliance control solutions.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What liquids is this PP float switch compatible with?
A: The polypropylene (PP) construction makes this float switch compatible with water, mild chemicals, oils, and many food-grade liquids. Always verify chemical compatibility with PP material before use in aggressive chemical environments.
Q: Does the horizontal float switch require an external power supply to operate?
A: No. This float switch uses a purely mechanical magnetic reed switch mechanism — it requires no external power source of its own. It simply opens or closes a circuit in your existing system when the float reaches the trigger level.
Q: What does "horizontal / down" orientation mean for installation?
A: "Horizontal" refers to how the float arm is mounted — parallel to the liquid surface rather than vertically submerged. "Down" indicates the switch activates when the liquid level drops to a set point. This makes it ideal for low-level shutoff or alarm triggers in tanks and reservoirs.
Q: What is the maximum voltage and current this float switch can handle?
A: The switch supports a maximum switching voltage of 220V, a maximum switching current of 0.5A, a maximum carry current of 1.0A, and a maximum contact rating of 10W. Ensure your application stays within these ratings for safe and reliable operation.
