PLC Optically Isolated USB Adapter for Siemens S7-200/300/400
PLC Optically Isolated USB Adapter for Siemens S7-200/300/400

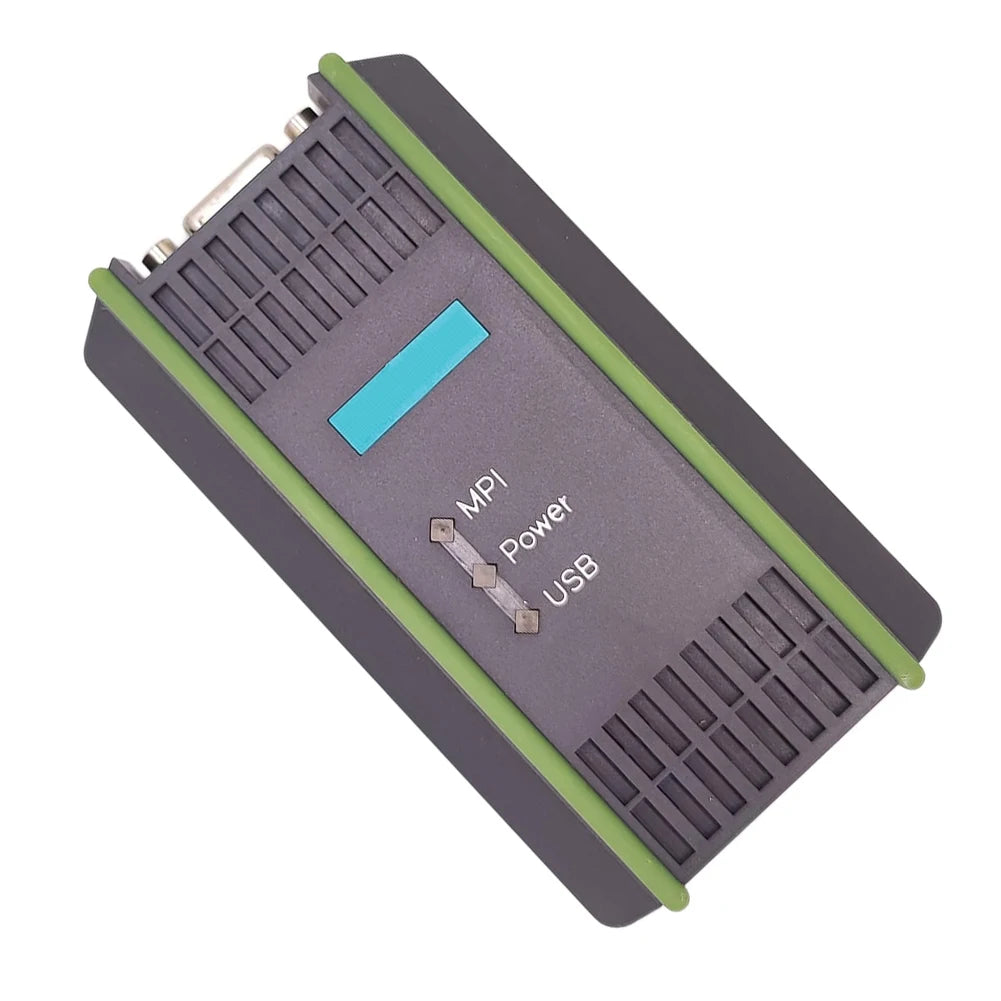

PLC Optically Isolated USB Programming Adapter – Compatible with Siemens S7-200/300/400
Take your industrial PLC programming to the next level with this professional-grade optically isolated USB adapter. Engineered for demanding factory environments, this adapter provides full photoelectric (optocoupler) isolation between your PC and PLC, ensuring stable, interference-free communication even in the presence of variable frequency drives (VFDs), motor starters, and other noise-generating industrial equipment.
Why Optical Isolation Matters in Industrial Settings
Industrial environments are notorious for electrical noise and transient surges. This adapter's optocoupler design uses light — not direct electrical connection — to transfer signals between the USB and RS485 interfaces. The result: unidirectional signal transmission, zero feedback from output to input, strong electromagnetic immunity, and rock-solid system stability. Both USB and RS485 ports are also equipped with dedicated surge protection circuits and support hot-swapping for added convenience.
Key Features
- Full Optical Isolation: Photoelectric signal isolation (optocoupler) across all communication lines for maximum stability
- Wide PLC Compatibility: Works with Siemens S7-200, S7-300, and S7-400 series PLCs, as well as Siemens HMIs and touch panels (TP170/177/270, OP25/35/77, MP177/270/277B, and more)
- Multi-Protocol Support: Supports PPI, MPI, and DP multi-master communication modes
- Hot-Swap Ready: USB and RS485 ports support hot-swapping for flexible field deployment
- Long-Distance Communication: RS485 side supports cable runs up to 1,000 meters at 187.5 Kbps
- Plug-and-Play (S7-300 V5.5+): No virtual COM port or driver installation required — simply select the USB interface directly in STEP7 V5.5
- Rugged Construction: Industrial-grade flame-retardant PC+ABS alloy plastic housing
- Wide Operating Temperature: -20°C to +75°C for reliable performance across environments
Technical Specifications
| Model | Compatible with 6ES7972-0CB20-0XA0 |
| Cable Length | Approx. 5 meters |
| Interface | USB to 9-pin male connector |
| Voltage | ≤80V |
| MPI Baud Rates | 19.2 Kbps, 187.5 Kbps (auto-adapts to 500 Kbps & 1.5 Mbps for DP master) |
| PPI Baud Rates | 9.6 Kbps, 19.2 Kbps, 187.5 Kbps |
| Software Support | STEP7 V5.2 and later; STEP7 Micro/Win 4.0 and later |
| OS Compatibility | Windows XP, Vista, Windows 7 |
| Material | Flame-retardant PC+ABS alloy plastic |
| Operating Temperature | -20°C to +75°C |
| Country of Origin | Made in China |
Compatible Applications
- Siemens S7-200 / S7-300 / S7-400 PLC programming and monitoring
- Siemens HMI/touch panel communication (TP, OP, MP series)
- Industrial automation, SCADA systems, and factory process control
- Online monitoring and data transmission in noisy electrical environments
Package Contents

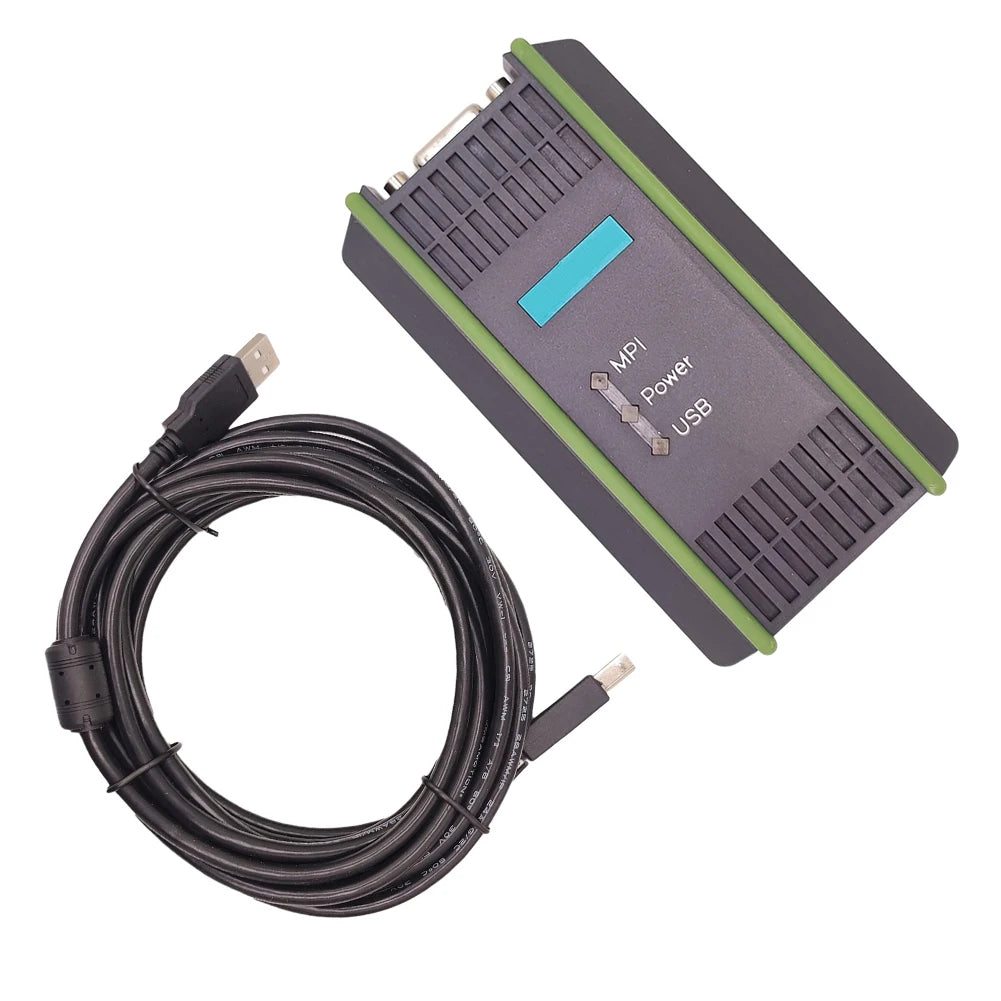

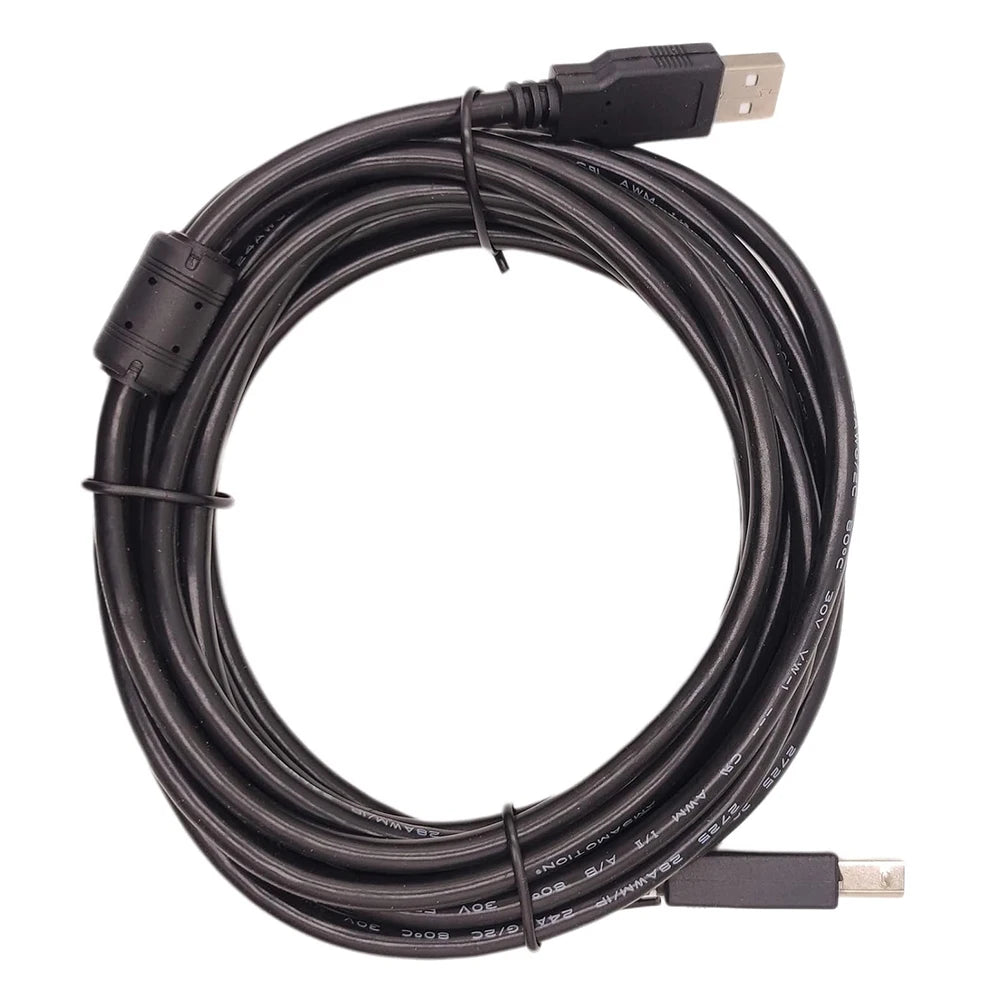

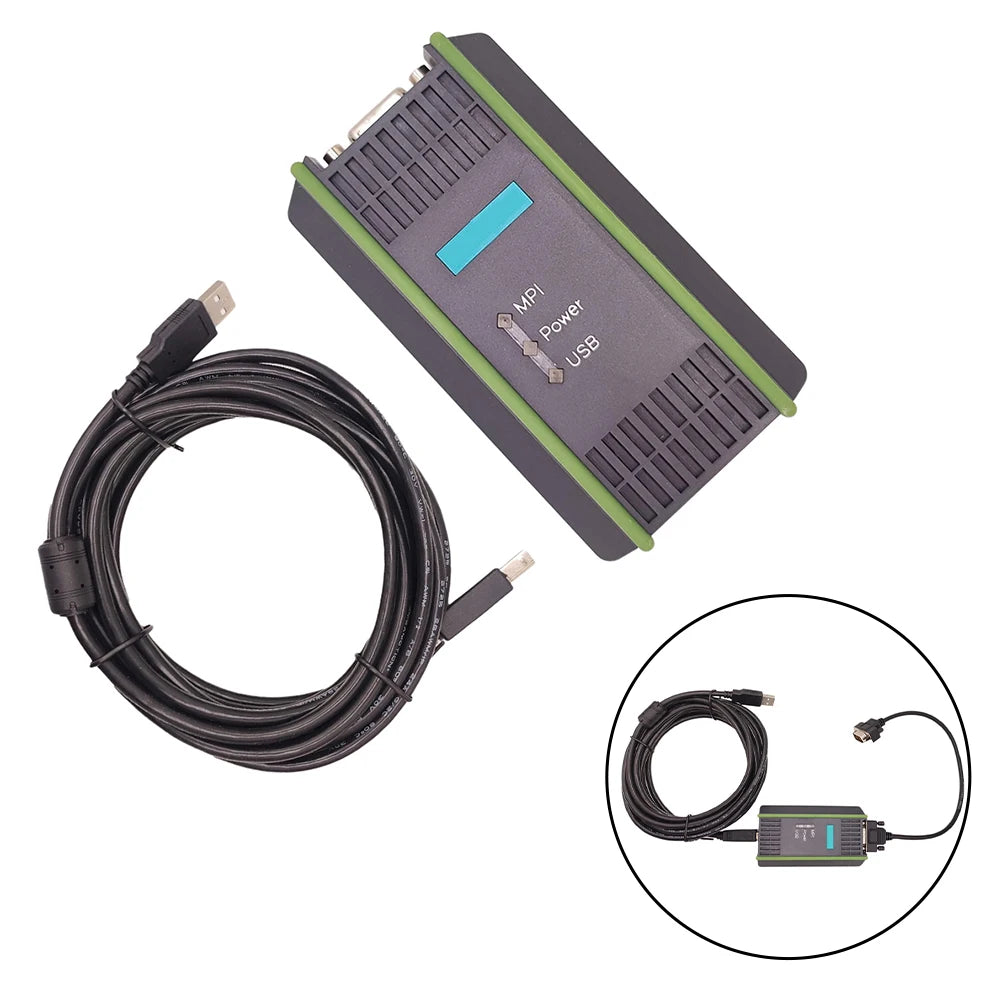

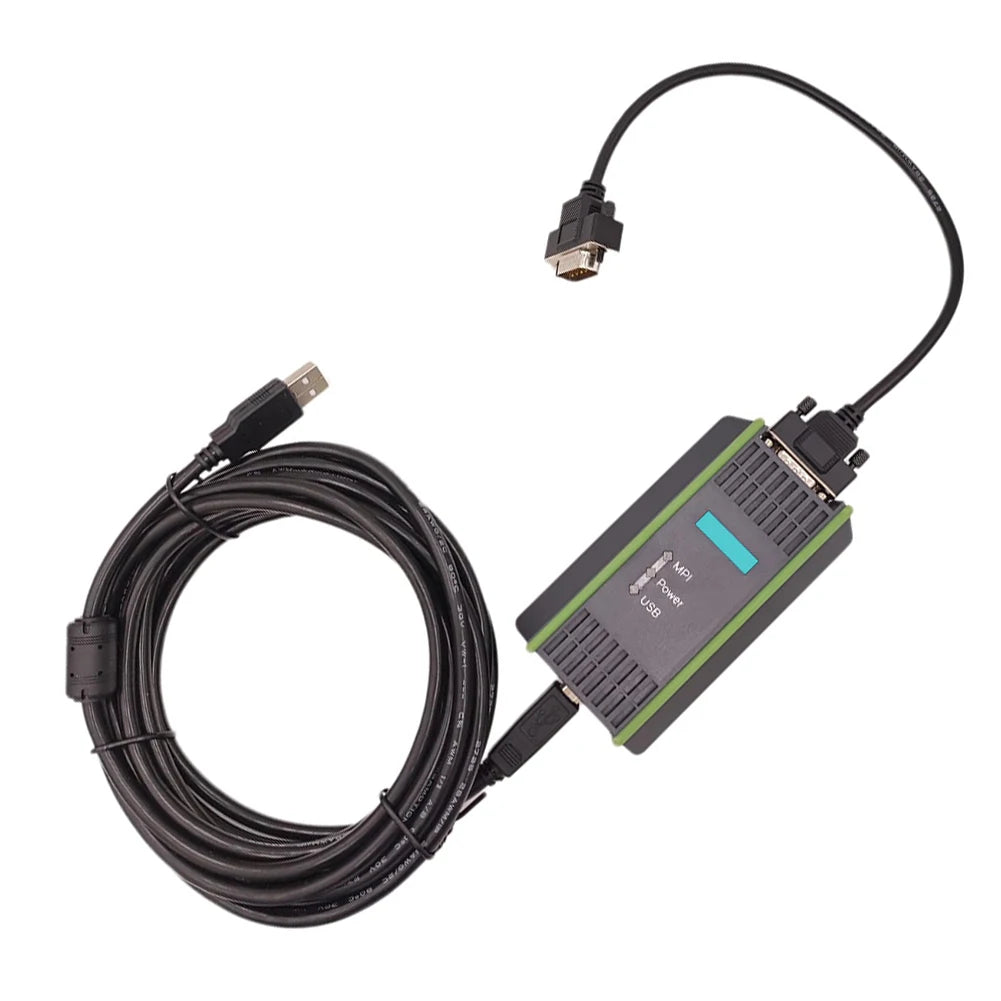

- 1 × Optically Isolated USB Programming Adapter (~5m cable)
