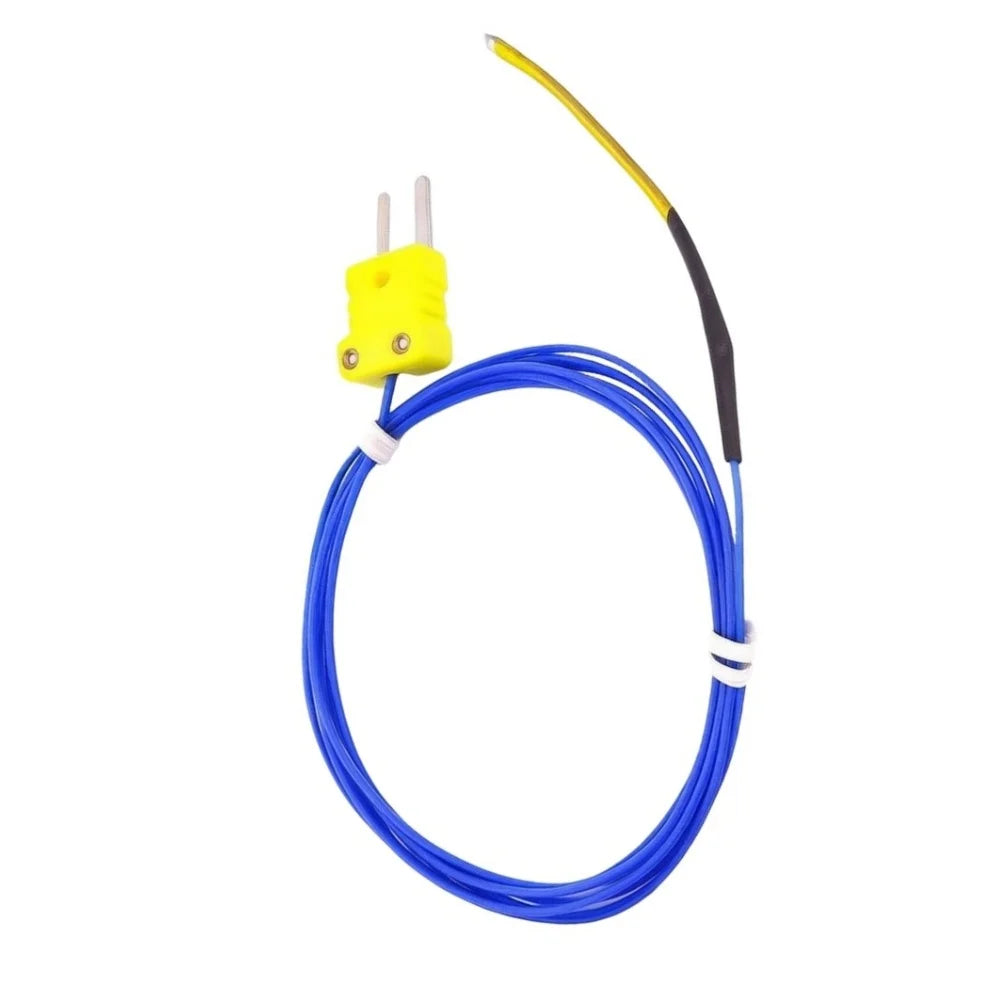

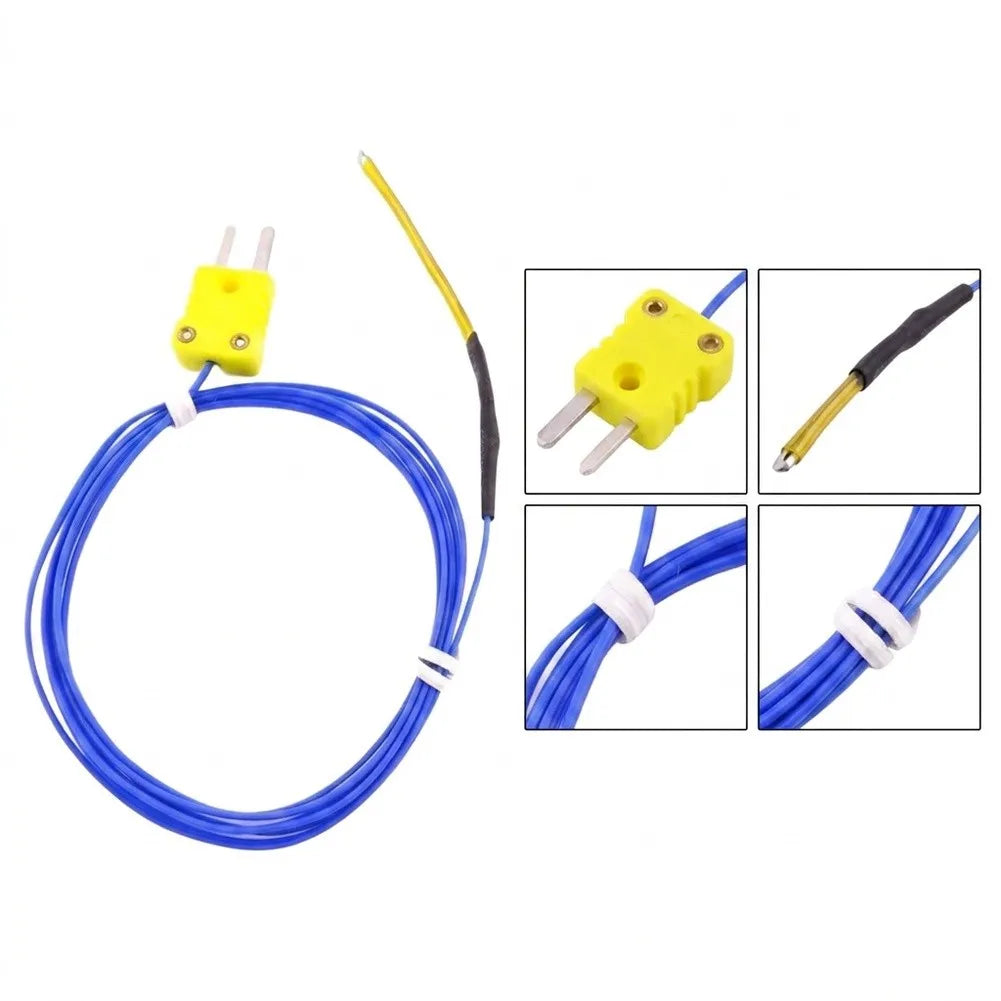

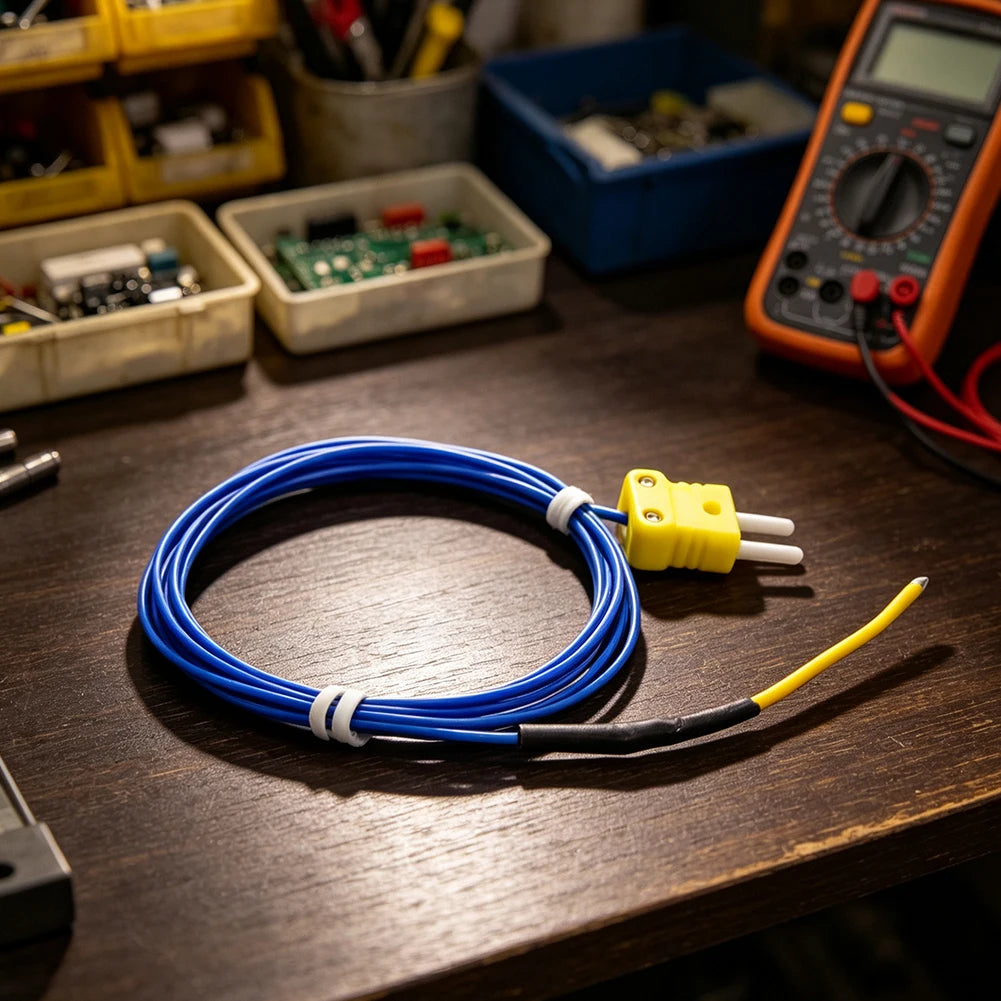

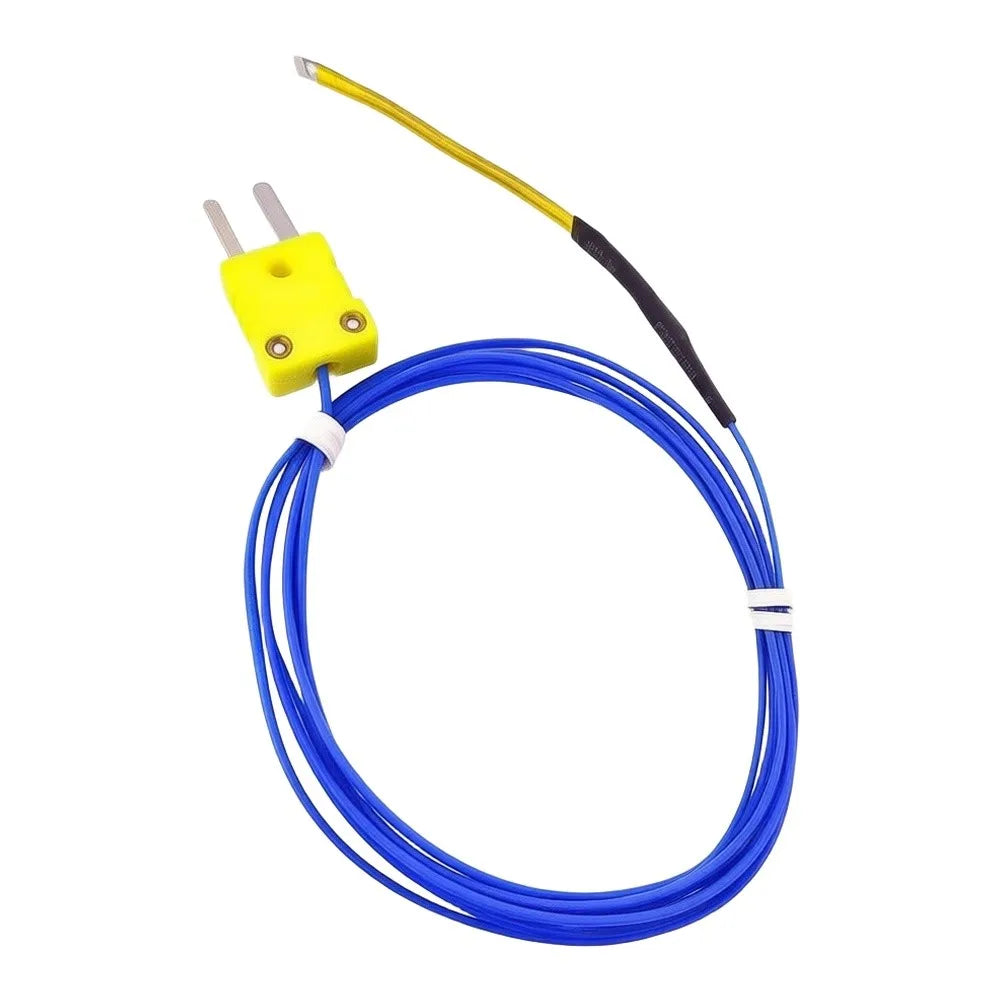

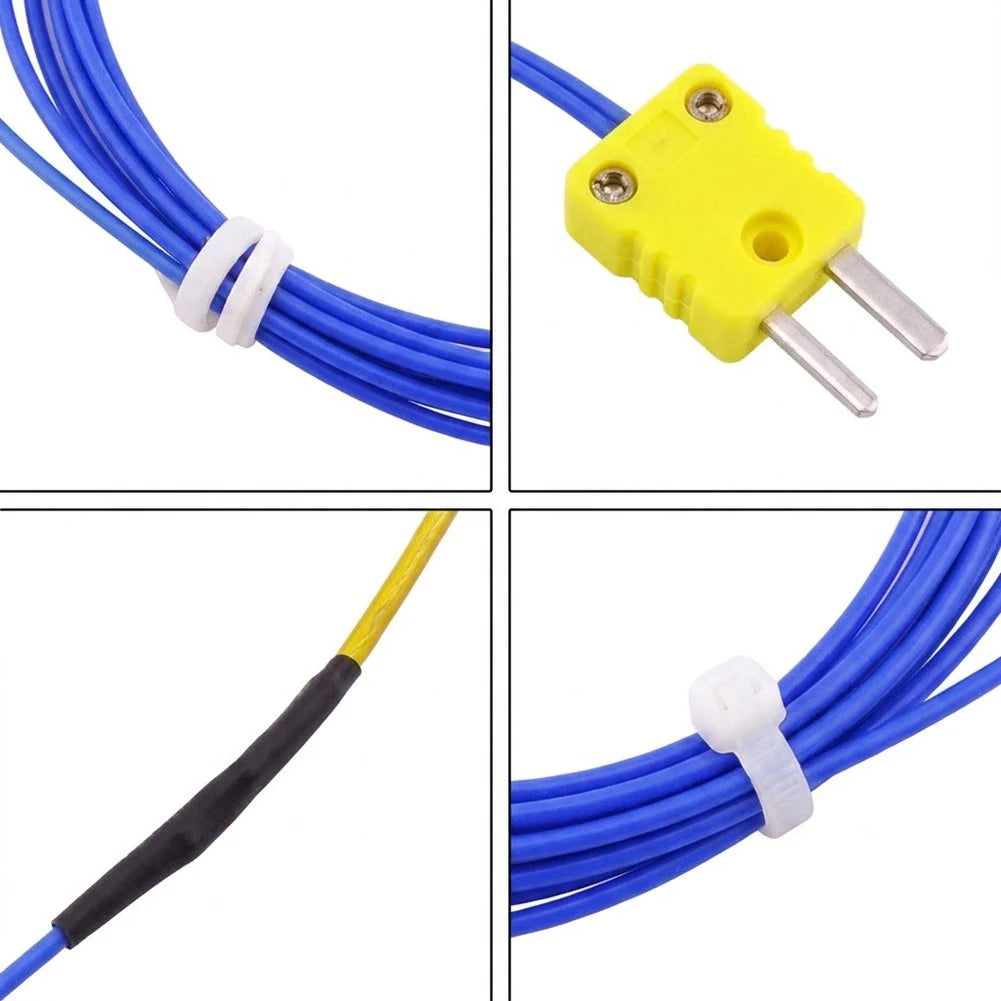

NR81510 K-Type Thermocouple Sensor Probe for Hot Press
NR81510 K-Type Thermocouple Sensor Probe for Hot Press
NR81510 K-Type Double-Sided Thermocouple Temperature Sensor Probe
The NR81510 K-Type Thermocouple Sensor is a precision surface-mount temperature probe engineered for hot press machines, heat transfer equipment, injection molds, and industrial pressing stations. Its double-sided flat design ensures maximum contact with solid surfaces, delivering rapid, accurate temperature readings with minimal lag — making it an essential tool for factory process control and quality assurance.
Made in Mainland China.
Key Features
- Double-Sided Flat Surface Design: The wide, flat sensing area (50 × 5 × 1 mm) maximizes contact with hot press platens, mold surfaces, and aluminum fixtures for highly efficient heat transfer and fast temperature response.
- K-Type Industry Standard: Operates across a broad temperature range of -50°C to 300°C (±2°C accuracy), and is fully compatible with any standard K-type thermometer or controller — no adapters required.
- High-Temperature Resistant Cable: The 1.5 m blue cable features a flexible, heat-resistant insulating sheath that resists cracking and breakage even under repeated industrial use and tight routing conditions.
- No-Drill Surface Mount: Slim and lightweight profile allows for easy attachment using high-temperature tape — no drilling or modification to your workpiece or machine needed. Ideal for confined spaces and continuous-run press stations.
- Wide Industrial Compatibility: Suitable for hot presses, heat transfer presses, injection molds, pressing machines, aluminum mold surfaces, and PCB hot-press processes.
Specifications
| Model | NR81510 |
| Type | K-Type Thermocouple |
| Material | ABS |
| Color | Blue |
| Sensing Area | 50 × 5 × 1 mm |

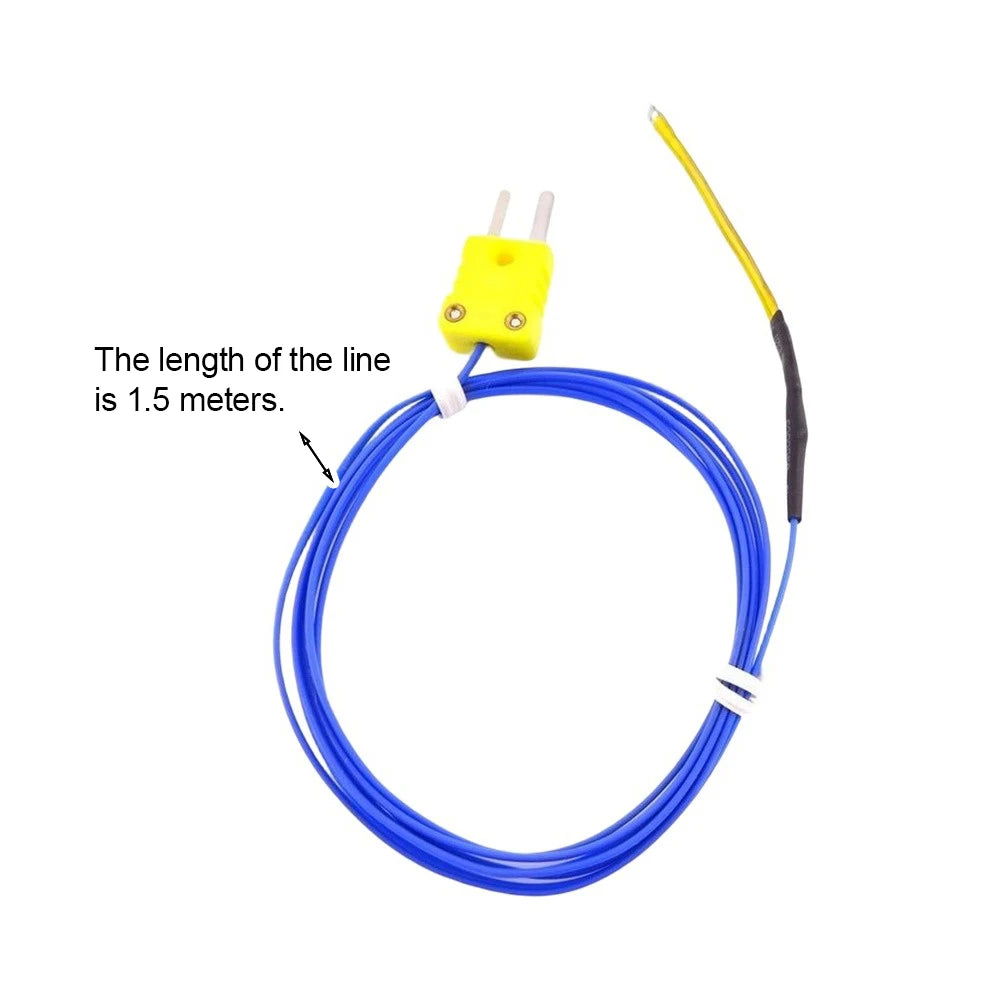

| Cable Length | 1.5 m |
| Temperature Range | -50°C to 300°C |
| Accuracy | ±2°C |
| Application | Double-sided surface temperature sensing |
| Power Source | None required |
Package Contents
- 1 × NR81510 K-Type Thermocouple Temperature Sensor Probe
Related Products You May Need
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Electric Kettle Thermostat Switch 250V 13A Black Replacement Part
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor manual measurement deviation.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the NR81510 K-type thermocouple probe compatible with my existing thermometer or controller?
A: Yes. The NR81510 uses a standard K-type thermocouple connector and is compatible with any K-type thermometer, PID controller, or temperature readout unit — no special adapters or converters are needed. Simply plug it in for instant readings.
Q: How do I mount the NR81510 sensor probe onto my hot press or mold surface?
A: The probe's slim, flat double-sided design allows it to be secured directly onto a flat surface using high-temperature adhesive tape. No drilling or machining of the workpiece is required, making installation quick, clean, and non-destructive — even in confined or hard-to-reach press stations.
Q: What is the maximum temperature this thermocouple sensor can handle?
A: The NR81510 K-type thermocouple sensor is rated for a temperature range of -50°C to 300°C, making it well suited for the majority of hot press, heat transfer, and industrial mold temperature monitoring applications.
