Test Any Cable in Seconds — One Compact Device Does It All

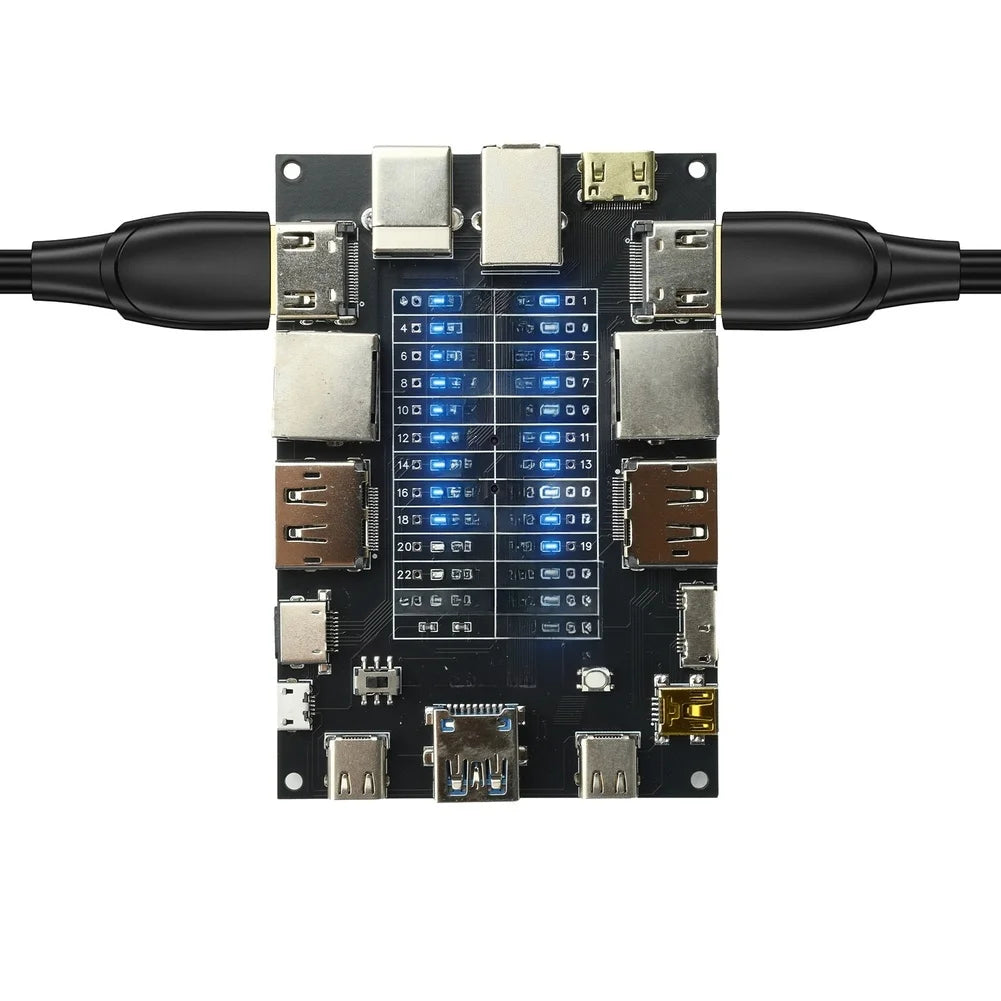

The HpLive Multi-Purpose Cable Tester is the all-in-one diagnostic tool every technician, IT professional, and DIY enthusiast needs. Forget carrying multiple testers — this single compact PCB device checks network (Ethernet), USB, and printer cables quickly and accurately. Whether you're setting up a home office, maintaining a server room, or troubleshooting a wiring issue in the field, this tester delivers fast, reliable results every time.
Made in Mainland China.

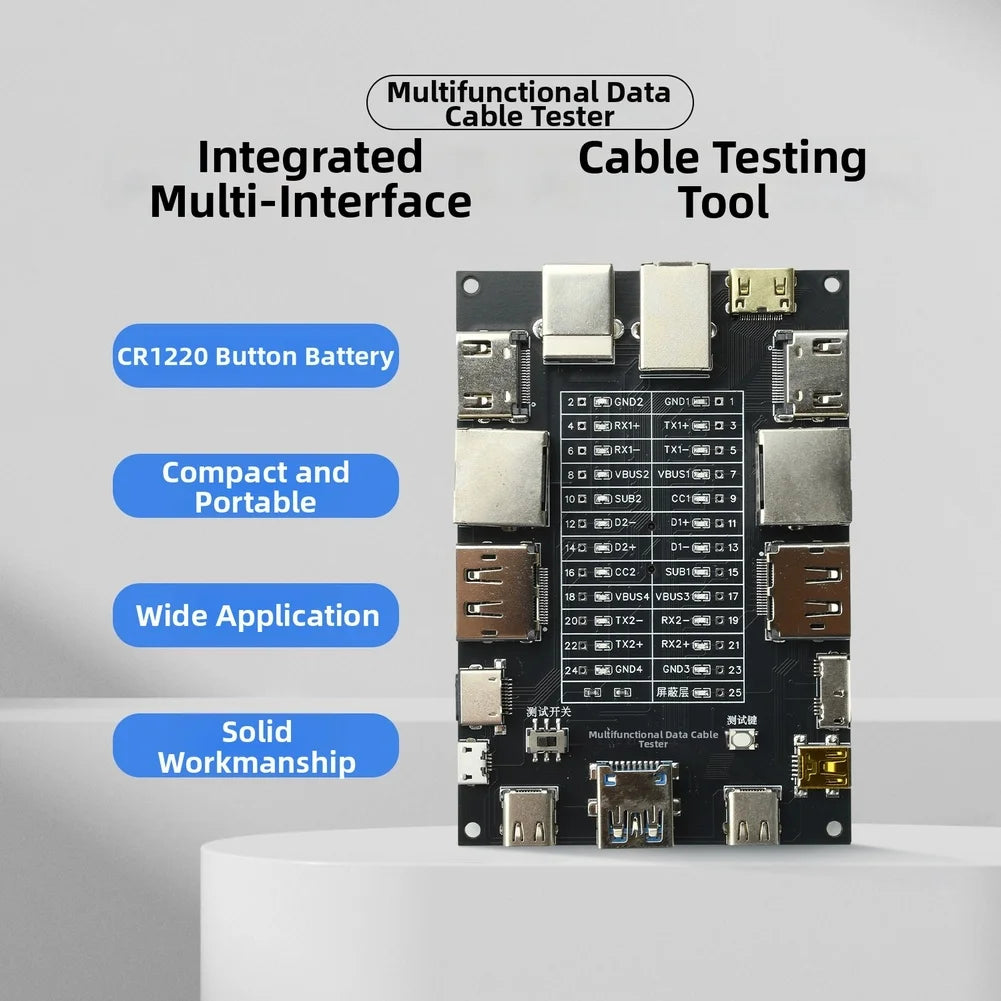

Key Features
- Multi-Interface Integration: Tests network (RJ45), USB, and printer cable types from one device — no need to switch tools.

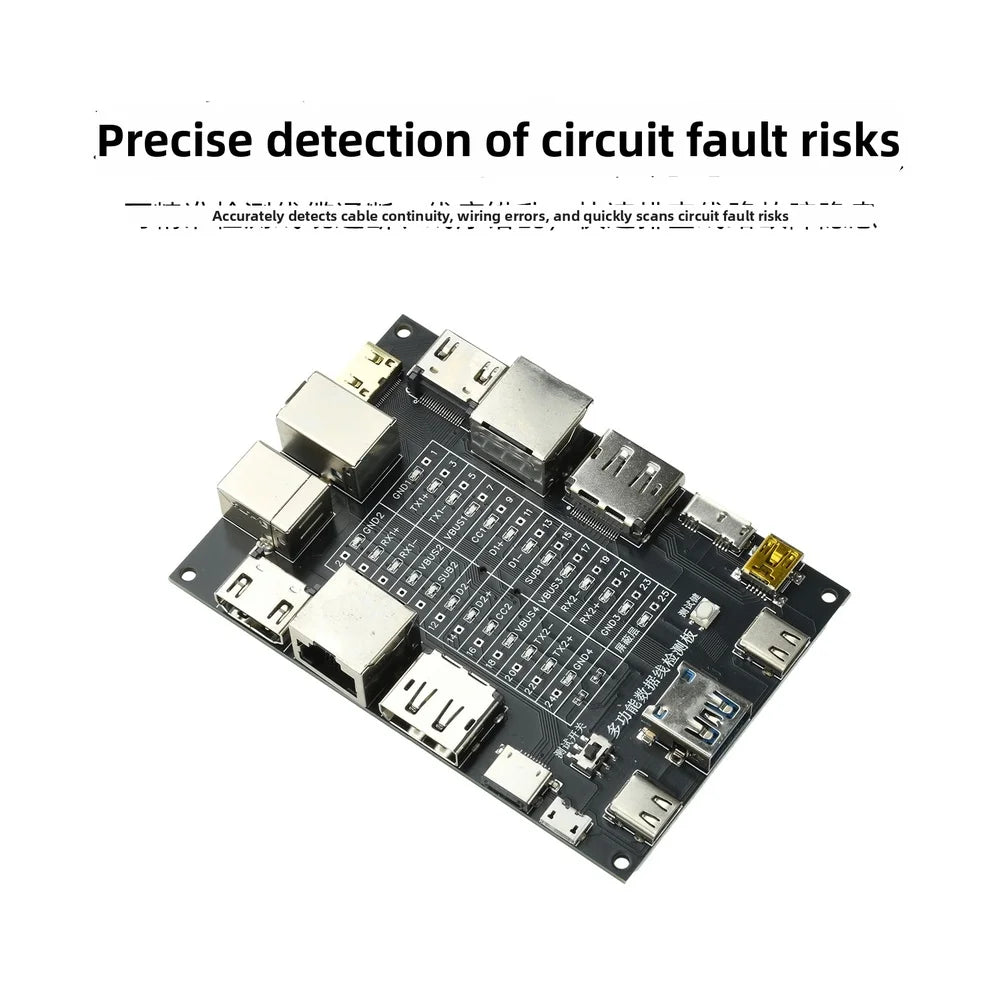

- Accurate Fault Detection: Quickly identifies cable continuity issues and pin misalignment for efficient troubleshooting.
- Portable Battery Operation: Powered by a CR1220 coin cell battery — test cables anywhere without needing an external power source.
- Compact PCB Design: Black PCB construction measuring just 10 × 6.8 cm — easy to slip into a toolkit, repair bag, or desk drawer.

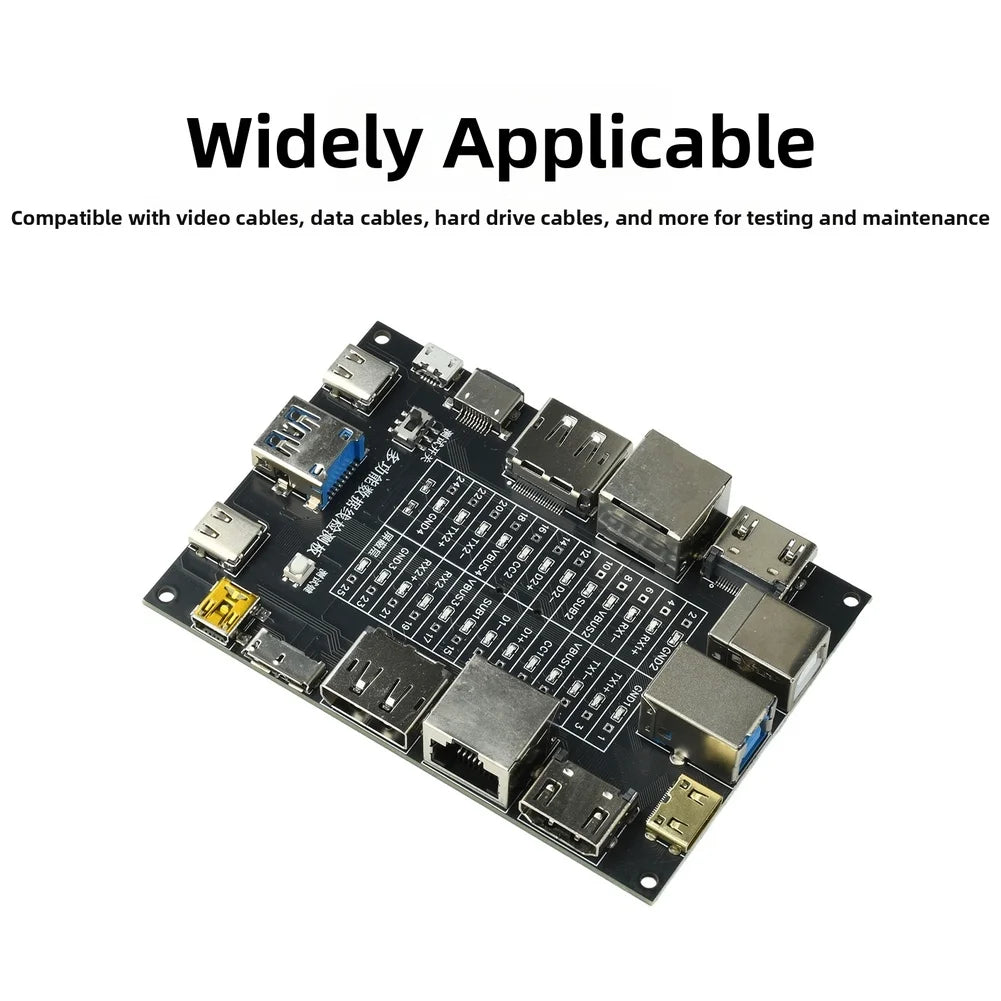

- Wide Compatibility: Works with video cables, data cables, hard drive cables, and more across a wide range of applications.

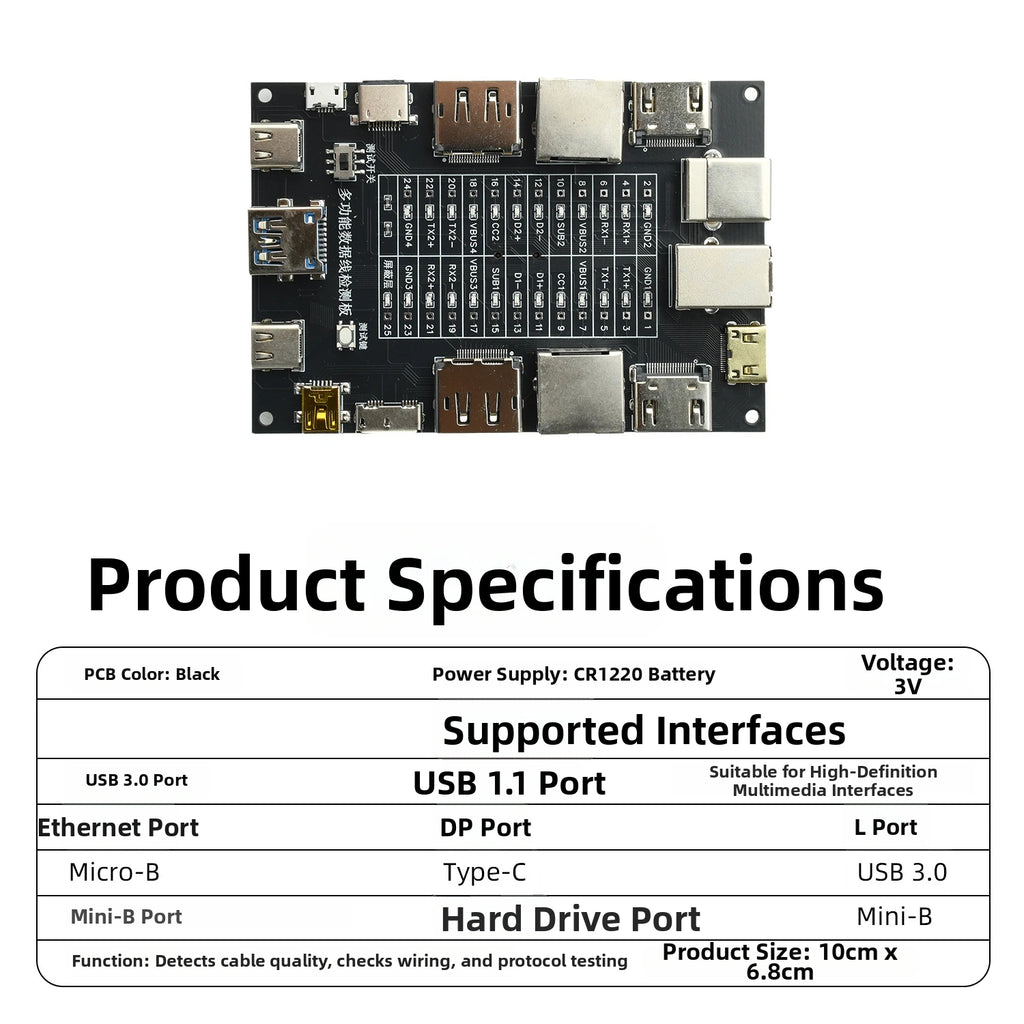

Specifications
| Material | PCB |
| Color | Black |
| Dimensions | 10 × 6.8 cm |
| Power Source | CR1220 Coin Cell Battery |
| Compatible Cables | Network (RJ45), USB, Printer, Video, Data, Hard Drive |
| Origin | Made in Mainland China |
Network Cable Pin Reference
Gigabit Network (1000M) — 8 Active Pins:
| Pin | Name | Function | Color |
|---|---|---|---|
| 1 | BI DA+ | Transmit + / Data A+ | White/Green |
| 2 | BI DA- | Transmit - / Data A- | Green |
| 3 | BI DB+ | Receive + / Data B+ | White/Orange |
| 4 | BI DC+ | Data C+ | Blue |
| 5 | BI DC- | Data C- | White/Blue |
| 6 | BI DB- | Receive - / Data B- | Orange |
| 7 | BI DD+ | Data D+ | White/Brown |
| 8 | BI DD- | Data D- | Brown |
Fast Ethernet (10/100M) — 4 Active Pins:
| Pin | Name | Function | Color |
|---|---|---|---|
| 1 | TX+ | Transmit + | White/Green |
| 2 | TX- | Transmit - | Green |
| 3 | RX+ | Receive + | White/Orange |
| 6 | RX- | Receive - | Orange |
Package Contents
- 1 × Multi-Purpose Cable Tester
Note: Screen color reproduction may vary slightly. Minor dimensional tolerances of ±1–2 mm may apply.
You May Also Like
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of cables can this multi-purpose cable tester check?
A: This cable tester supports network (RJ45/Ethernet), USB, and printer cables, as well as video cables, data cables, and hard drive cables — all from a single compact device.
Q: What battery does the cable tester use, and is it included?
A: The tester is powered by a CR1220 coin cell battery. Please check the package contents at time of purchase; we recommend having a CR1220 on hand to get started right away.
Q: Can this tester detect pin misalignment as well as open/short circuits?
A: Yes. The cable tester accurately identifies both cable continuity faults and pin misalignment issues, making it a comprehensive tool for diagnosing wiring problems quickly and efficiently.
Q: Is this cable tester suitable for Gigabit (1000M) and Fast Ethernet (100M) networks?
A: Absolutely. It supports full 8-pin testing for Gigabit (1000M) Ethernet cables and 4-pin testing for 10/100M Fast Ethernet cables, covering the most common network cable standards.
