mSATA to M.2 NGFF SSD Adapter Card | 2242/2260/2280
mSATA to M.2 NGFF SSD Adapter Card | 2242/2260/2280

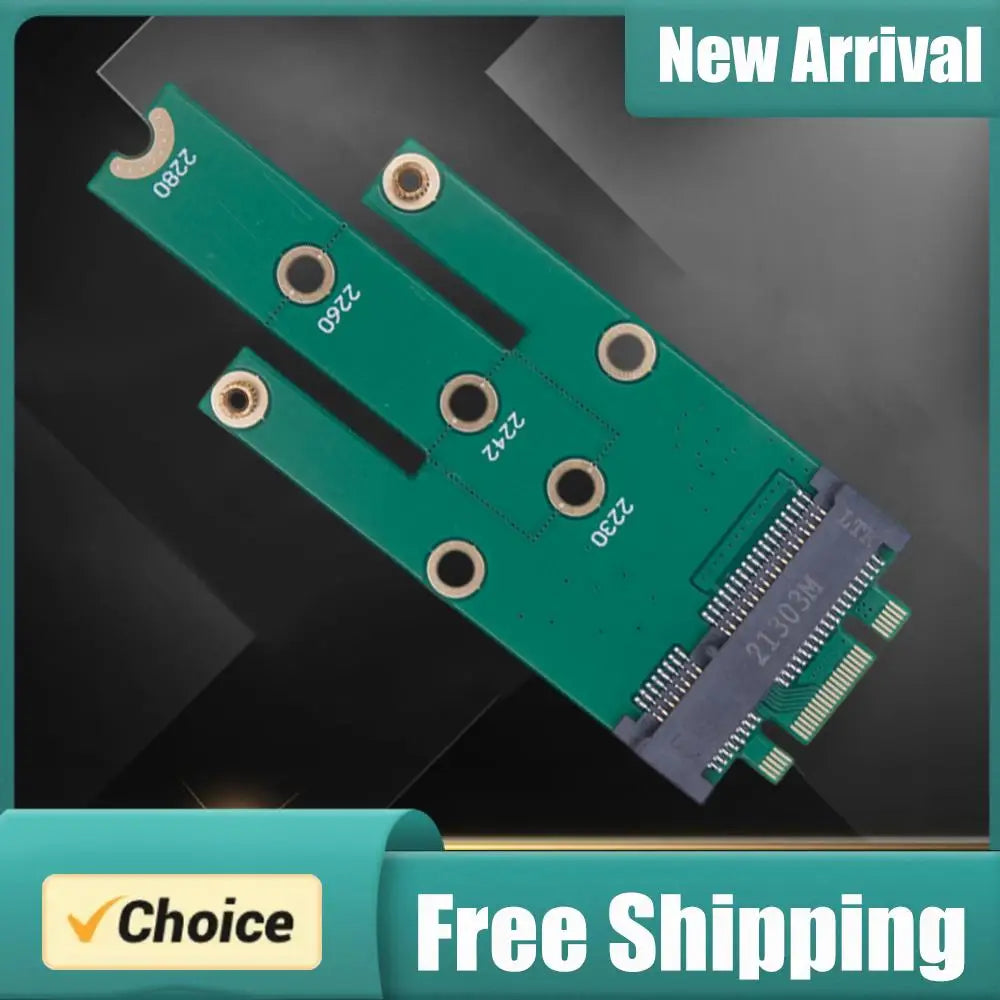

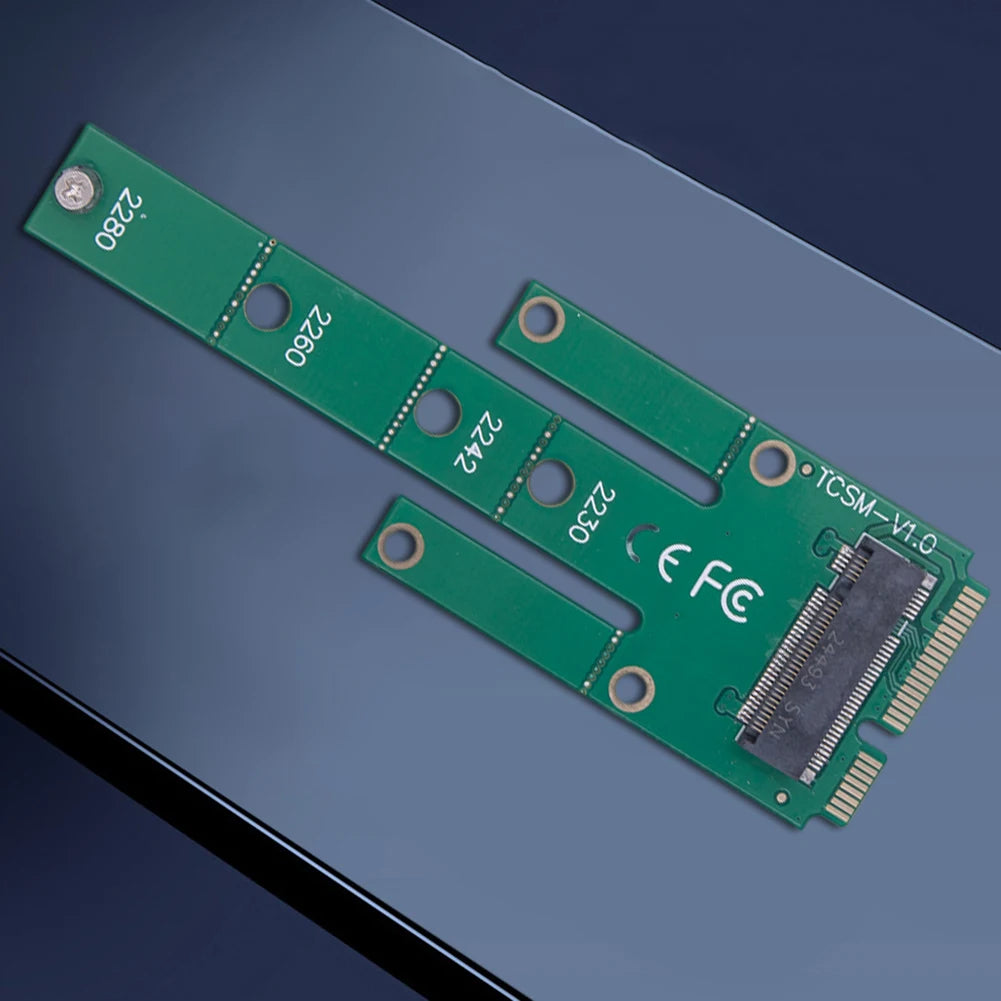

mSATA ↔ M.2 NGFF SSD Adapter Converter Card
Breathe new life into your storage setup with this compact, no-assembly-required mSATA to M.2 NGFF SSD adapter card. Whether you need to plug an mSATA drive into an M.2 NGFF slot, or mount an M.2 NGFF drive in an mSATA slot, this two-way riser card gives you the flexibility to mix and match storage interfaces without replacing hardware. Made in Mainland China.
Key Features
- Bidirectional Conversion: Supports both mSATA → M.2 NGFF (SATA protocol) and M.2 NGFF → mSATA conversions, giving you versatile compatibility options for laptops, mini-PCs, and embedded systems.
- Wide Form-Factor Support: Four onboard mounting holes accommodate M.2 SSDs in 2230, 2242, 2260, and 2280 form factors — the most common sizes on the market today.
-

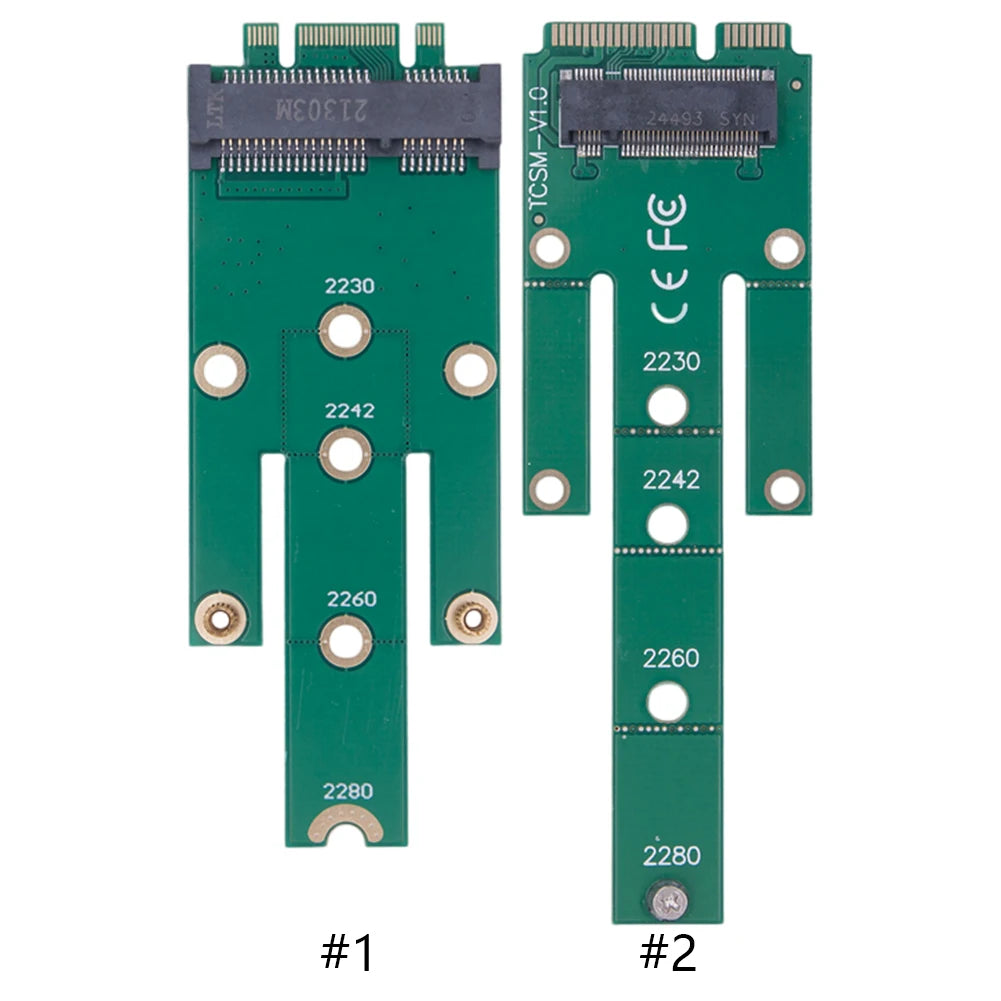

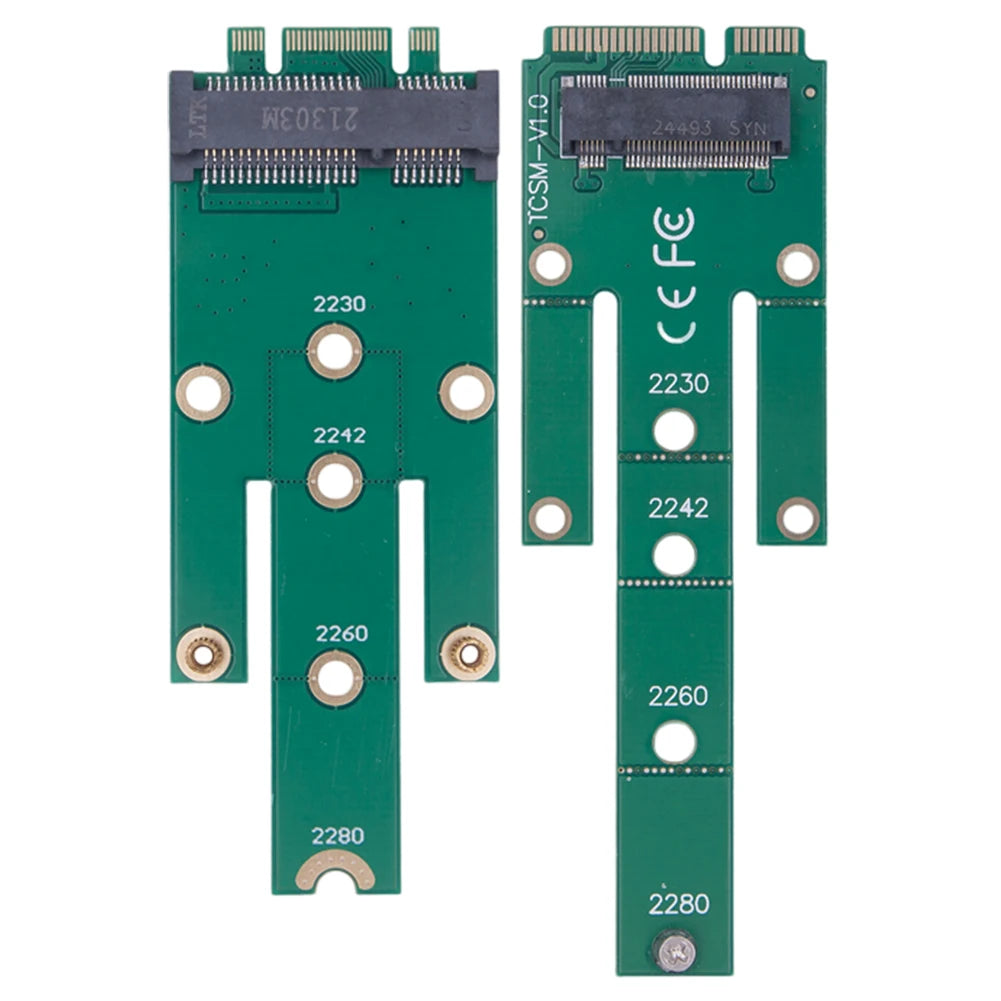

Compact Dimensions:

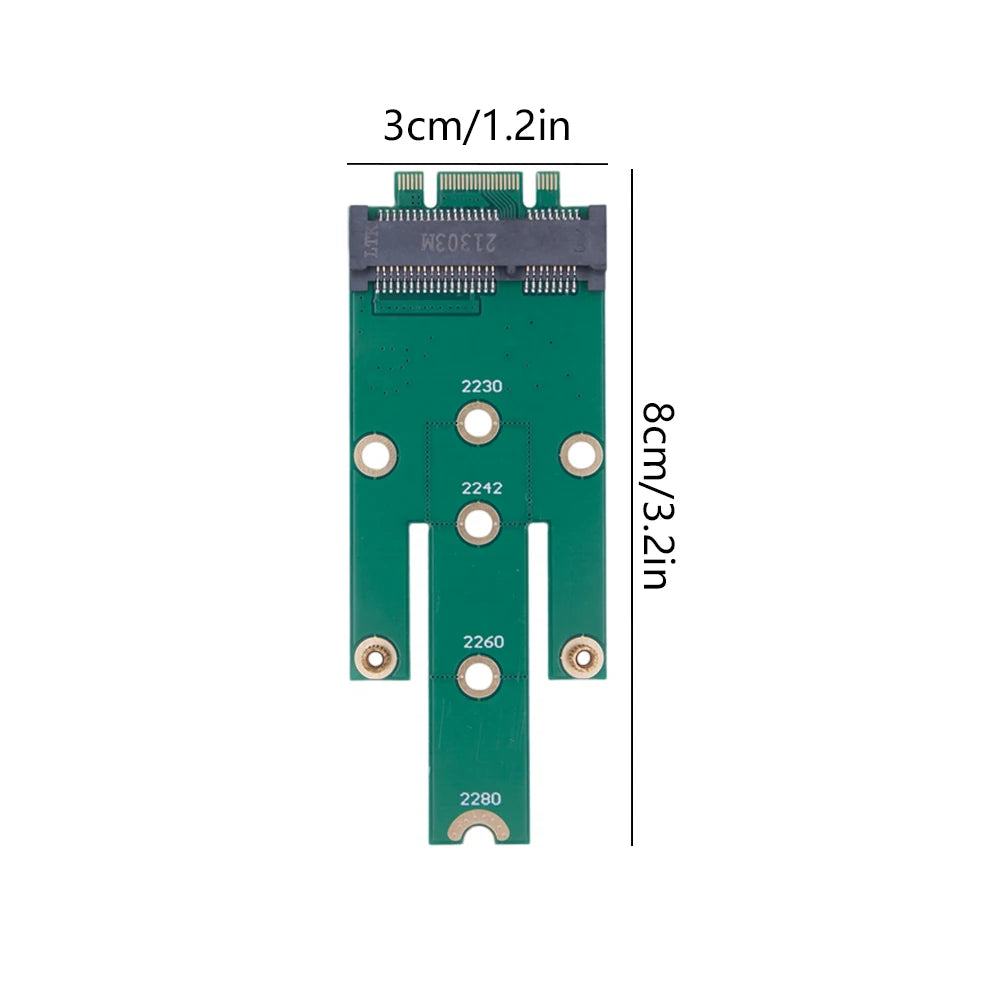

- mSATA to NGFF card: 8 × 3 cm (3.1 × 1.18 in)

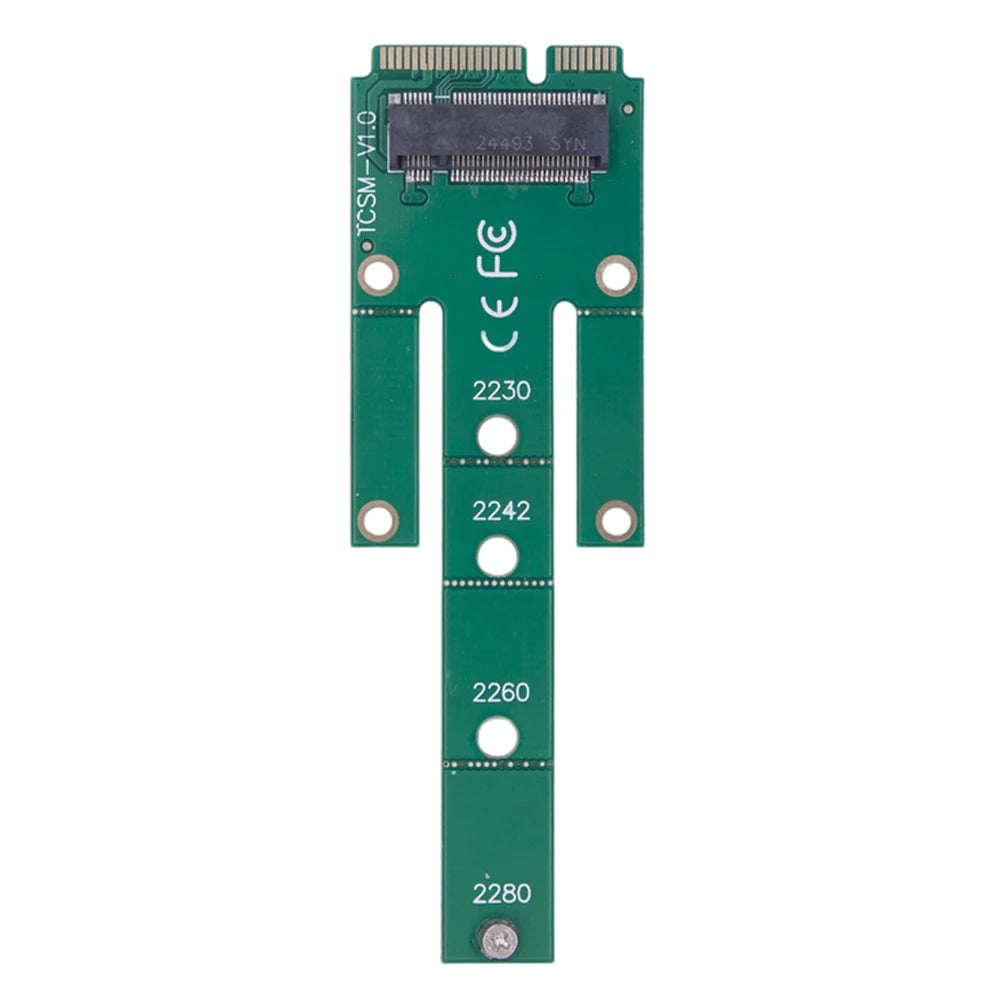

- NGFF to mSATA card: 9.2 × 3 cm (3.6 × 1.18 in)
- SATA Protocol Only: Designed for SATA-based SSDs. NVMe and PCIe protocols are not supported — please verify your drive's protocol before ordering.
- No Assembly Required: Ready to use straight out of the box; simply insert your SSD and secure with the included mounting holes.
- Plug-and-Play Design: No drivers or software needed — the host system recognizes the drive automatically via standard SATA signaling.
Specifications
| Type | Hard Drive Interface Adapter |
| mSATA → NGFF | External: M.2 NGFF | Internal: mSATA (SATA protocol only) |
| NGFF → mSATA | External: mSATA | Internal: M.2 NGFF (SATA protocol only) |
| Compatible Form Factors | 2230 / 2242 / 2260 / 2280 |
| Protocols Supported | SATA only (NVMe / PCIe NOT supported) |
| Card Size (mSATA→NGFF) | 8 × 3 cm |
| Card Size (NGFF→mSATA) | 9.2 × 3 cm |
| Mounting Holes | 4 (22×30 / 22×42 / 22×60 / 22×80 mm) |
| Assembly Required | No |
| Origin | Made in Mainland China |
Package Contents
- 1 × Adapter Card (your selected variant)
Note: Screen color calibration may cause slight color variation from product images. Please allow ±1–2 cm measuring tolerance due to manual measurement.
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does this mSATA to M.2 NGFF adapter support NVMe SSDs?
A: No — this adapter card supports SATA protocol only. NVMe and PCIe-based M.2 SSDs are not compatible. Before purchasing, confirm that your M.2 SSD uses the SATA (B-key or B+M-key) protocol rather than NVMe/PCIe.
Q: Which M.2 SSD sizes fit this adapter card?
A: The board features four mounting holes to accommodate the most popular M.2 form factors: 2230, 2242, 2260, and 2280 mm. This covers the vast majority of consumer SATA M.2 SSDs available today.
Q: Do I need to install any drivers for this mSATA to NGFF adapter?
A: No drivers are needed. The adapter is plug-and-play; once your SATA SSD is seated and secured, your operating system or device will detect it automatically through standard SATA signaling.
Q: Can I use the NGFF to mSATA version in a laptop that only has an mSATA slot?
A: Yes. The NGFF-to-mSATA variant lets you install an M.2 NGFF (SATA) SSD into a device with an mSATA slot, making it ideal for upgrading older ultrabooks and embedded systems that shipped with mSATA storage.
