Mini-ANT 20W QRP Shortwave Antenna – Full Band Adjustable Tuner

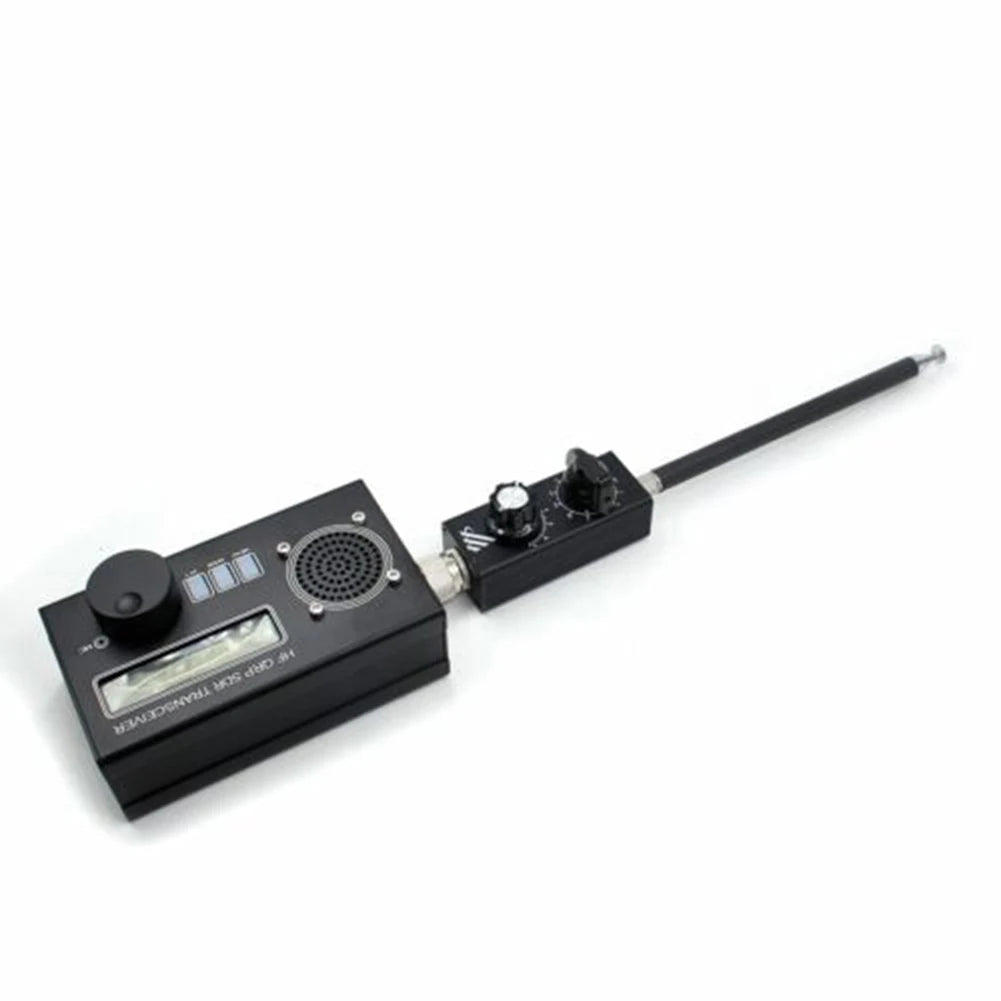

Take your portable HF radio operations to the next level with the Mini-ANT 20W QRP Shortwave Antenna. Covering 5MHz–55MHz for transmit/receive and 76MHz–108MHz FM receive, this compact, telescoping antenna pairs seamlessly with popular QRP transceivers including the Yaesu FT-817, ICOM 703, K1, K2, USDX, and MCHF. Whether you're operating from the field, on a hiking trip, or from a compact home station, this antenna delivers reliable, stable performance in a pocket-friendly package.
Key Features
- Wide Frequency Coverage: Transmit and receive across 5MHz–55MHz shortwave bands; also receives FM 76MHz–108MHz and UHF/VHF frequencies.
- Low VSWR: VSWR < 1.5 on 7MHz, 10MHz, 14MHz, and 21MHz for efficient power transfer and minimal signal loss.
- 20W Power Handling: Suitable for QRP and low-power portable operations up to 20W.
- Transmit Assist Function: Built-in tuner helps optimize your signal across the operating range.
- Easy Band Selection: Rotate the tuning knob for frequency adjustment; BA switch selects between shortwave high and low bands.
- Compact & Telescoping Design: Collapses to ~30cm (11.8 in) for easy transport; extends to 140cm (55.1 in) including the tuner for maximum performance.
- Durable Stainless Steel Construction: Built to withstand regular portable use with strict quality control standards.

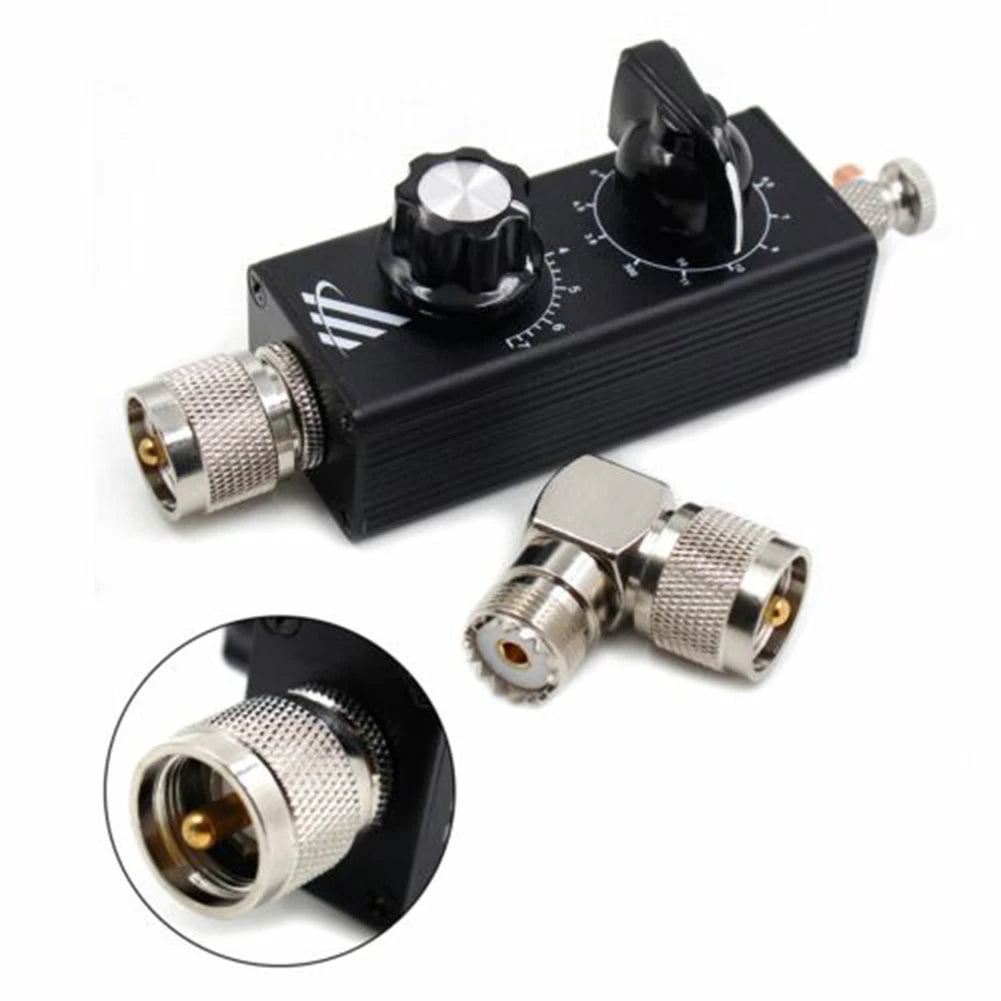

- Versatile Connectors: Top male connector; output available as M male or BNC male connector for broad radio compatibility.

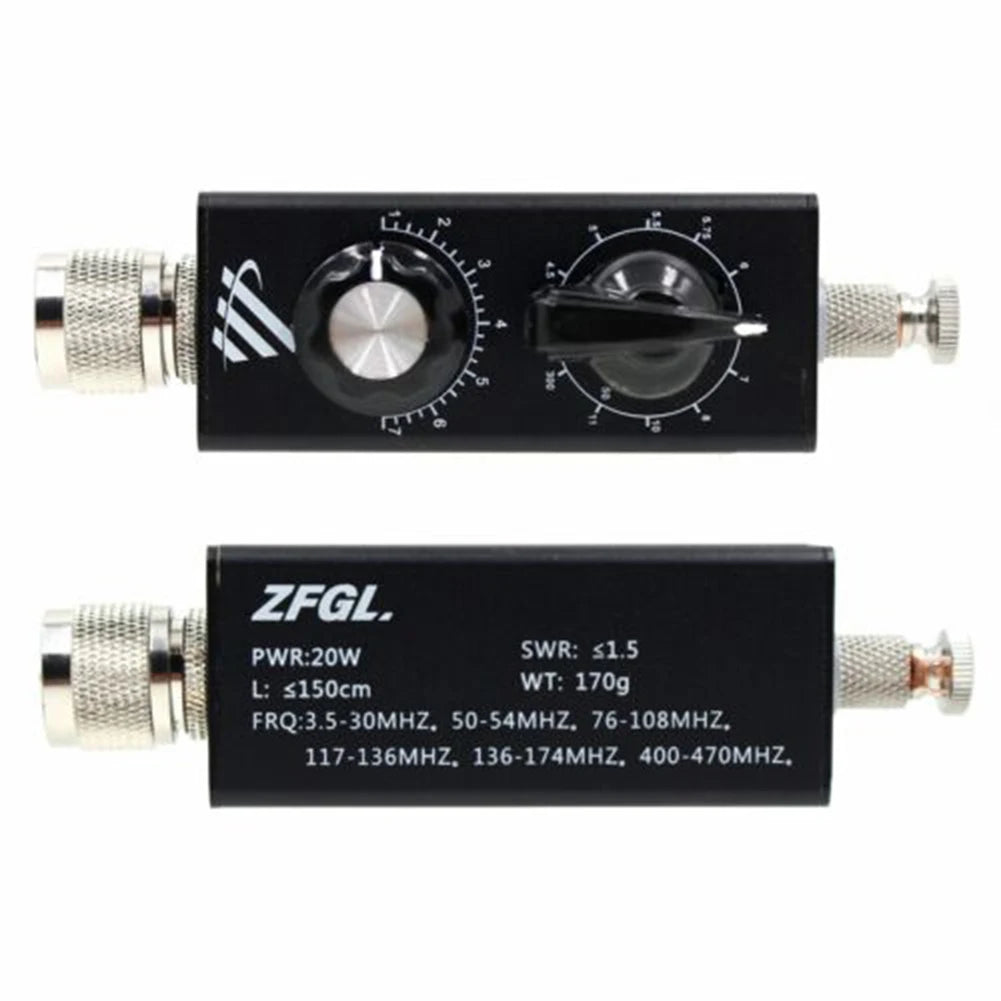

Specifications
| Frequency (TX/RX) | 5MHz – 55MHz |
| FM Receive | 76MHz – 108MHz |
| Max Power | 20W |
| VSWR | < 1.5 @ 7/10/14/21 MHz |
| Material | Stainless Steel |
| Stretched Length | ~140cm / 55.1 in (incl. tuner) |
| Collapsed Length | ~30cm / 11.8 in (incl. tuner) |
| Tuner Dimensions | 10 × 3 × 3 cm / 3.9 × 1.2 × 1.2 in (L×W×D) |
| Connector | M Male or BNC Male output |
| Compatible Radios | Yaesu FT-817, ICOM 703, K1, K2, USDX, MCHF |
| Country of Origin | Made in Mainland China |

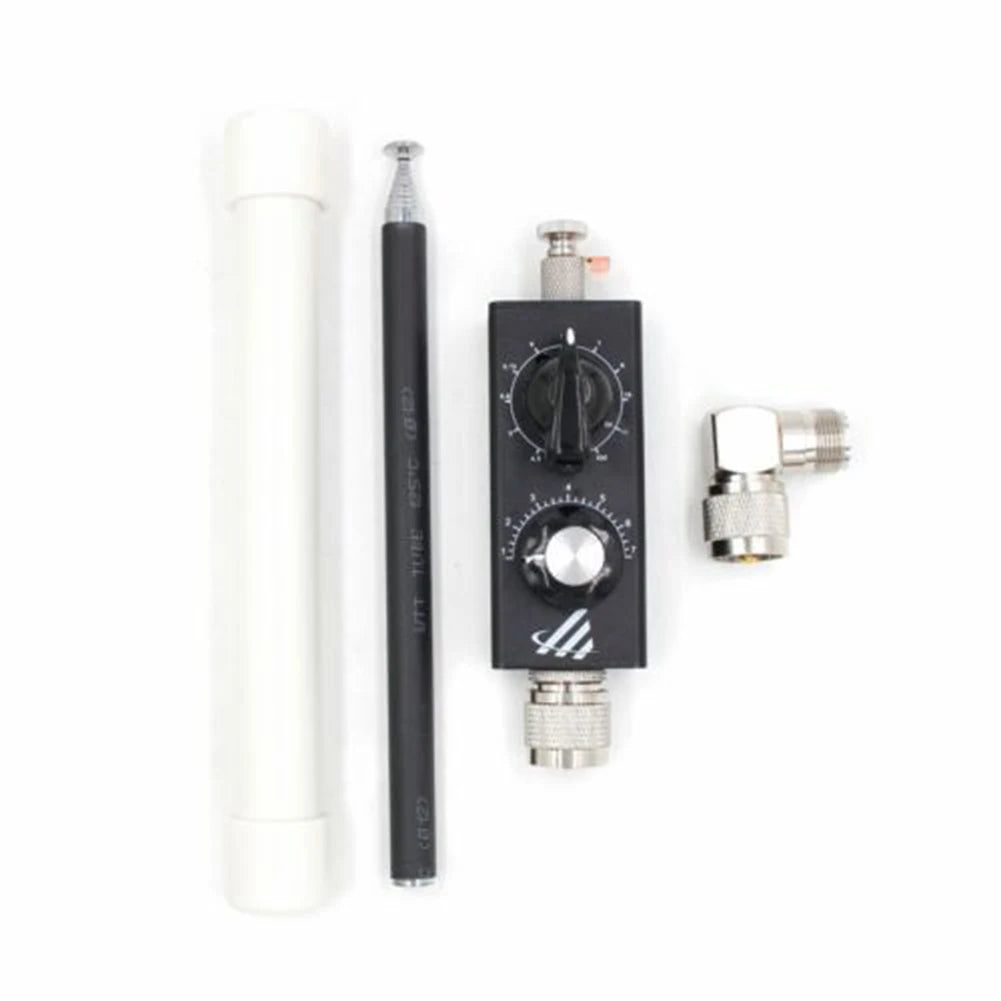

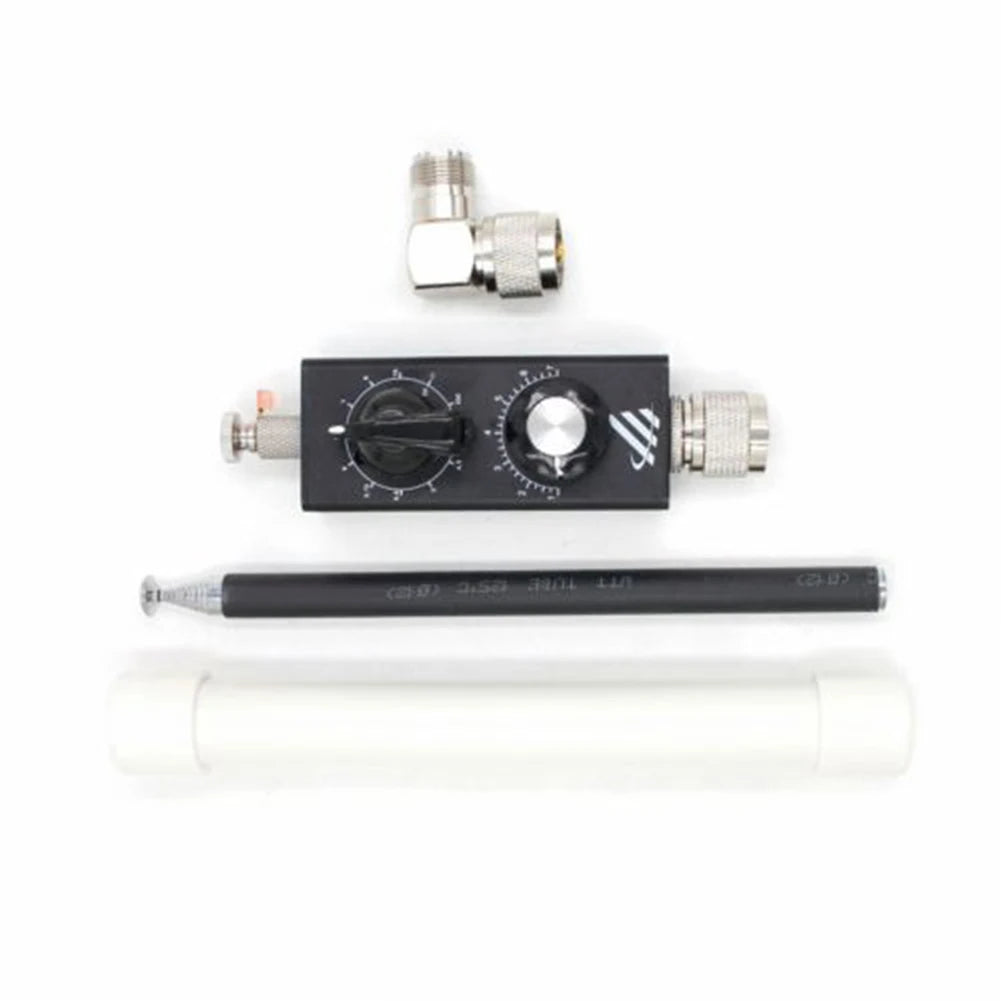

What's in the Box
- 1 × Tuner
- 1 × Antenna
- 1 × Adapter
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which transceivers is the Mini-ANT 20W QRP Shortwave Antenna compatible with?
A: This antenna is designed for use with popular QRP portable transceivers including the Yaesu FT-817, ICOM 703, K1, K2, USDX, and MCHF. Its M male or BNC male output connectors provide broad compatibility with most amateur HF radios.
Q: What frequency range does this shortwave antenna cover?
A: The antenna covers 5MHz–55MHz for both transmit and receive on HF shortwave bands, 76MHz–108MHz for FM broadcast reception, and can also receive UHF and VHF frequencies. This makes it a versatile full-band solution for portable amateur radio operations.
Q: How compact is this antenna for portable use?
A: When fully collapsed, the antenna (including the tuner) measures approximately 30cm (11.8 in), making it easy to stow in a backpack or field kit. It extends to 140cm (55.1 in) for full operational use. The tuner unit itself is just 10 × 3 × 3 cm.
Q: What does the BA switch do?
A: The BA switch allows you to select between the shortwave high and low frequency bands, giving you more precise control over which portion of the 5MHz–55MHz spectrum you are working in. Combined with the tuning knob, it makes frequency adjustment quick and intuitive.
