Mini-ANT 20W QRP Shortwave Antenna – Full Band Adjustable 5MHz–55MHz
Take your portable HF radio operation to the next level with the Mini-ANT 20W QRP Shortwave Antenna. Engineered for compact transceivers like the Yaesu FT-817, ICOM 703, K1, K2, USDX, and MCHF, this lightweight whip antenna delivers impressive coverage across shortwave, VHF, and UHF bands in a collapsible, travel-ready form factor.
Made in Mainland China.
Key Features
- Wide Frequency Coverage: Transmit and receive across 5MHz–55MHz shortwave bands; also receives FM (76–108MHz) and UHF/VHF frequencies.
- Low VSWR: VSWR under 1.5 at 7MHz, 10MHz, 14MHz, and 21MHz for efficient signal transfer.
- 20W Power Handling: Suitable for QRP and light portable HF operations.
- Transmit Assist Function: Built-in tuner helps maximize performance across bands.
- Easy Band Selection: Rotary knob tunes frequency; BA switch toggles between shortwave high and low bands.
- Durable Stainless Steel Construction: Extends to 140cm (55.1 in) fully stretched; collapses to just 30cm (11.8 in) for easy portability.
- Versatile Connectors: Top-mounted male connector; output via M male or BNC male connector.
- Built to Last: Manufactured under strict quality control standards for stable, reliable performance.
Specifications
| Adjustable Frequency | 5MHz – 55MHz (TX/RX); FM 76–108MHz (RX); UHF/VHF (RX) |
| Power | 20W |
| VSWR | < 1.5 @ 7/10/14/21MHz |
| Material | Stainless Steel |
| Extended Length | 140cm / 55.1 in (including tuner) |
| Collapsed Length | ~30cm / 11.8 in (including tuner) |

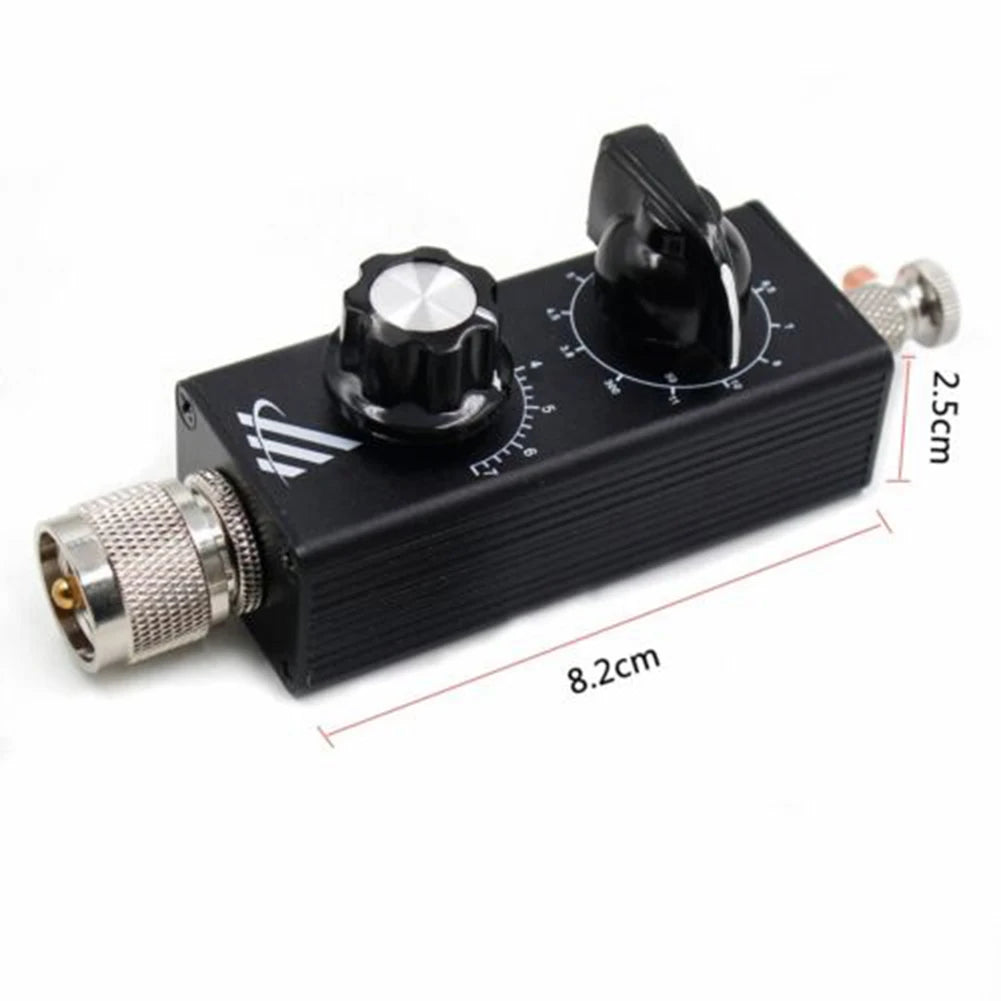

| Tuner Dimensions | 10 × 3 × 3 cm / 3.9 × 1.2 × 1.2 in (L × W × D) |
| Connector | M Male or BNC Male output |
| Compatible Radios | Yaesu FT-817, ICOM 703, K1, K2, USDX, MCHF |
| Country of Origin | Mainland China |

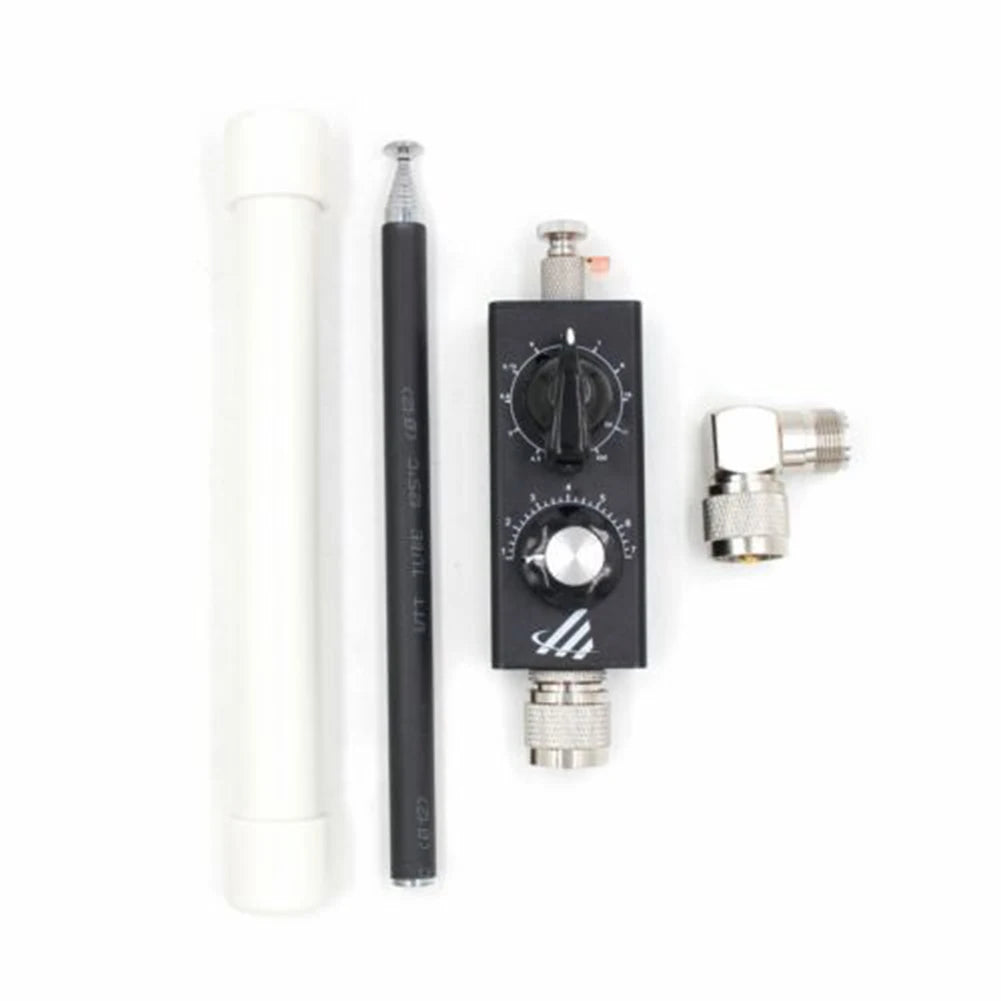

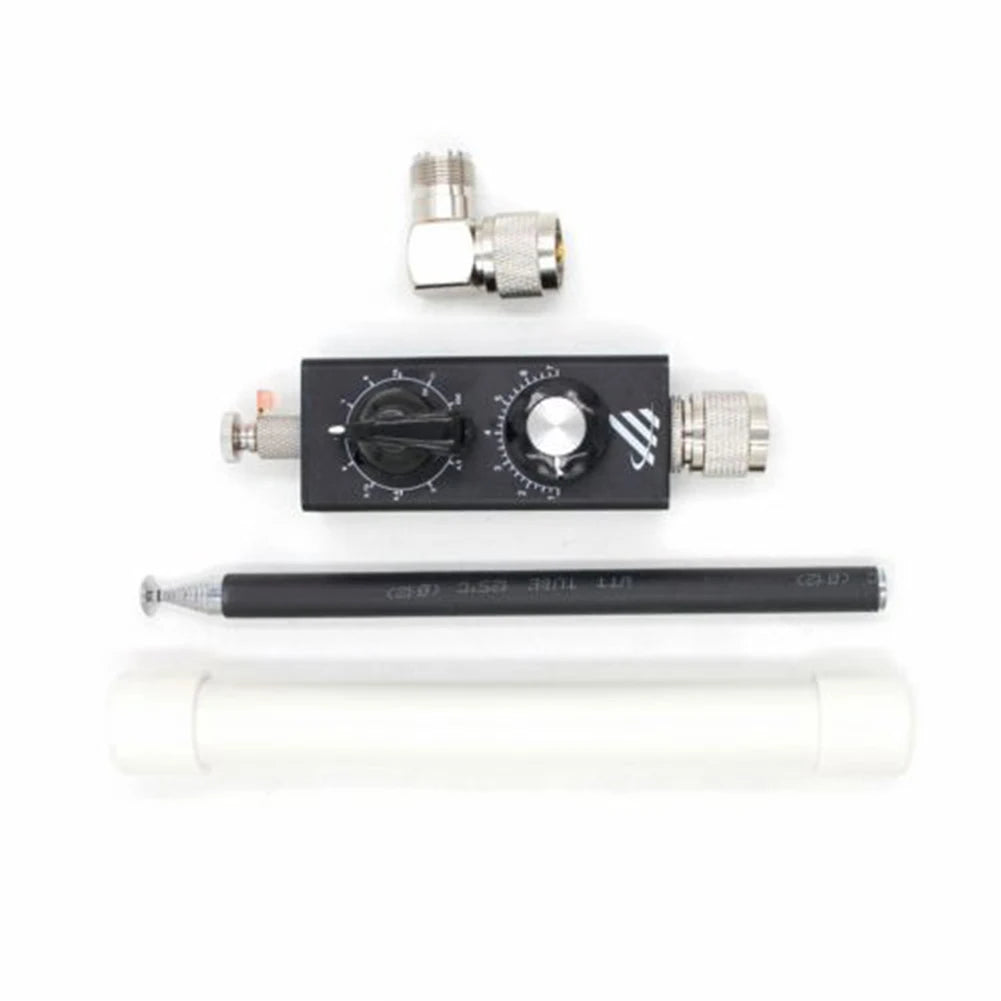

Package Contents
- 1 × Tuner
- 1 × Antenna
- 1 × Adapter
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the Mini-ANT 20W QRP Shortwave Antenna compatible with radios other than the Yaesu FT-817?
A: Yes! The Mini-ANT shortwave antenna is designed for use with a range of compact QRP transceivers, including the Yaesu FT-817, ICOM 703, K1, K2, USDX, and MCHF. Its standard M male and BNC male connector options make it widely compatible with most portable HF radios.
Q: What frequency range does this antenna cover?
A: The antenna covers 5MHz–55MHz for both transmit and receive operations. It can also receive FM signals from 76MHz to 108MHz, and can receive UHF and VHF frequencies as well, making it a versatile choice for portable operators.
Q: How compact is the antenna when collapsed for travel?
A: When fully collapsed, the Mini-ANT measures approximately 30cm (11.8 inches) including the tuner — small enough to fit in a backpack or radio bag. When extended for operation, it reaches 140cm (55.1 inches) for optimal shortwave performance.
Q: What does the BA switch do on the tuner?
A: The BA switch allows you to select between the shortwave high and low band ranges. Combined with the rotary tuning knob, it gives you precise control over your operating frequency across the full 5MHz–55MHz shortwave spectrum.
