Metal Y-16 M6×1 Pneumatic Cylinder Clevis Joint for 16mm Bore

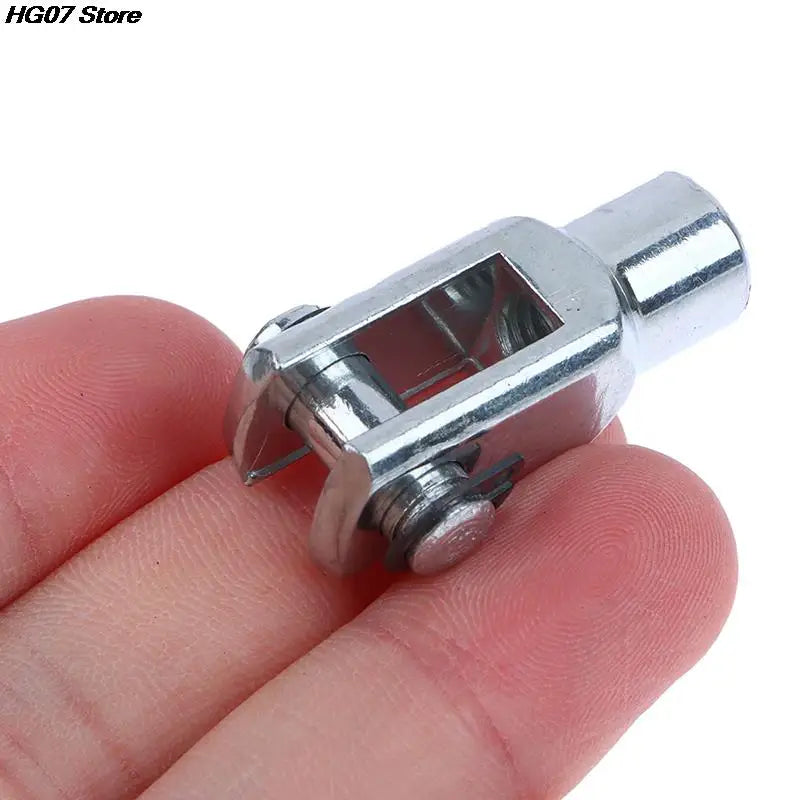

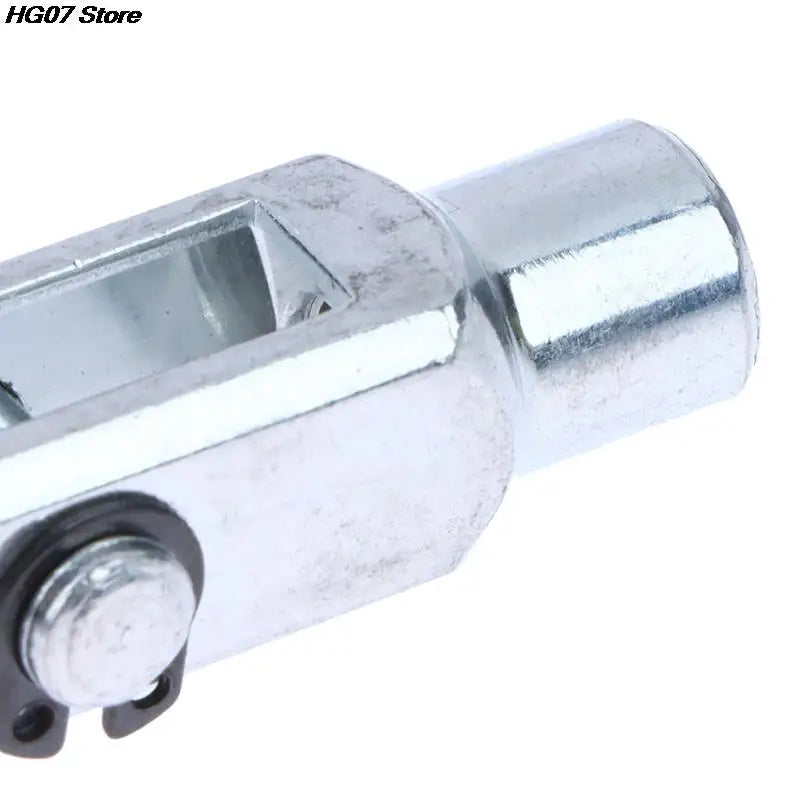

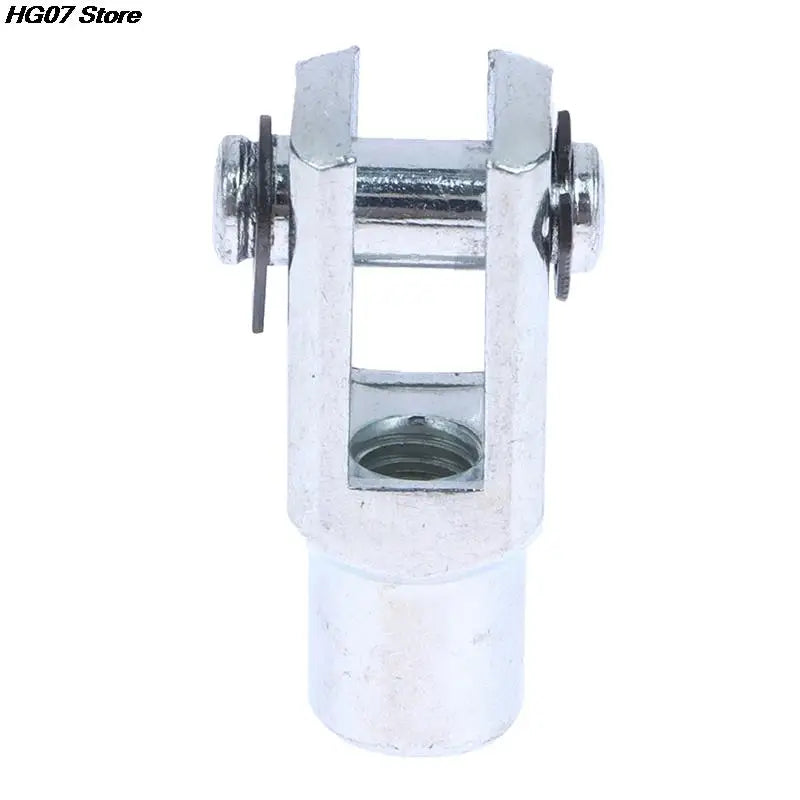

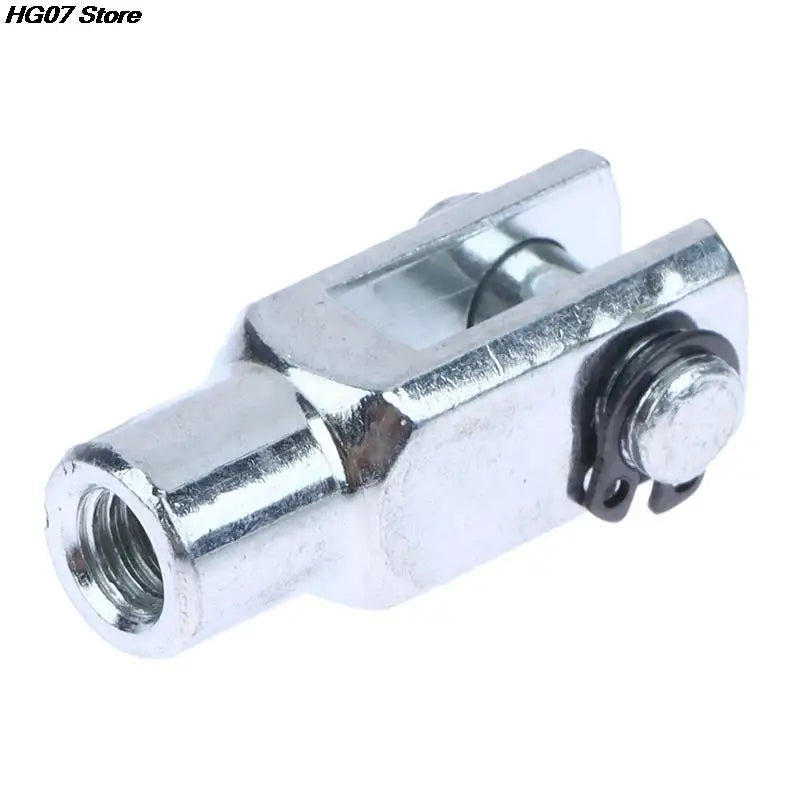

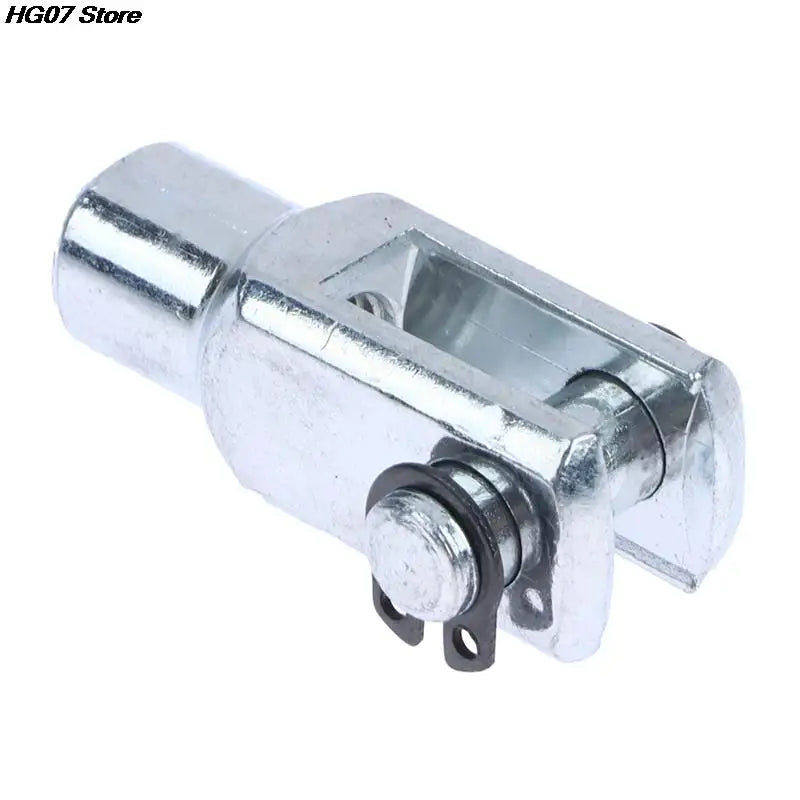

This Metal Y-16 Cylinder Clevis Joint is a precision-machined mechanical linking component designed for seamless integration with pneumatic cylinders and gas springs. Featuring an M6×1 thread pitch and compatibility with 16mm bore cylinders, this clevis serves as a reliable standard connector for piston rod assemblies in a wide variety of industrial and mechanical applications.
Key Features
- Brand New – 100% new, unused component ready for immediate installation
- Universal Linking Unit – Functions as a standard connecting link on pneumatic cylinder rods and gas spring assemblies
- Static Force Transmission – Engineered as a mechanical linking unit suitable for the transmission of static forces in clevis-pin configurations
- M6×1 Thread – Precise metric threading ensures a secure, accurate fit

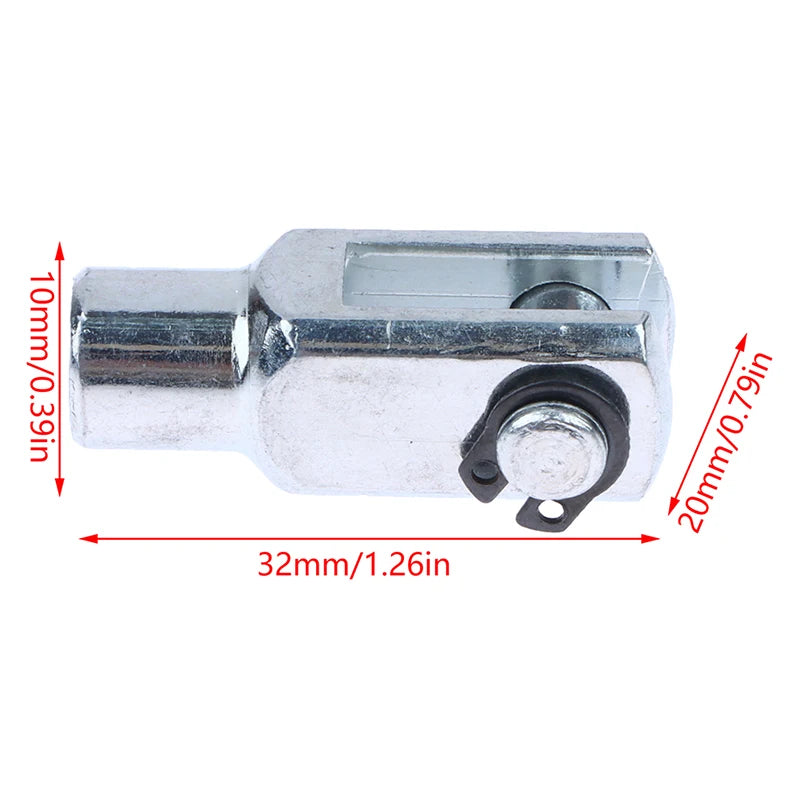

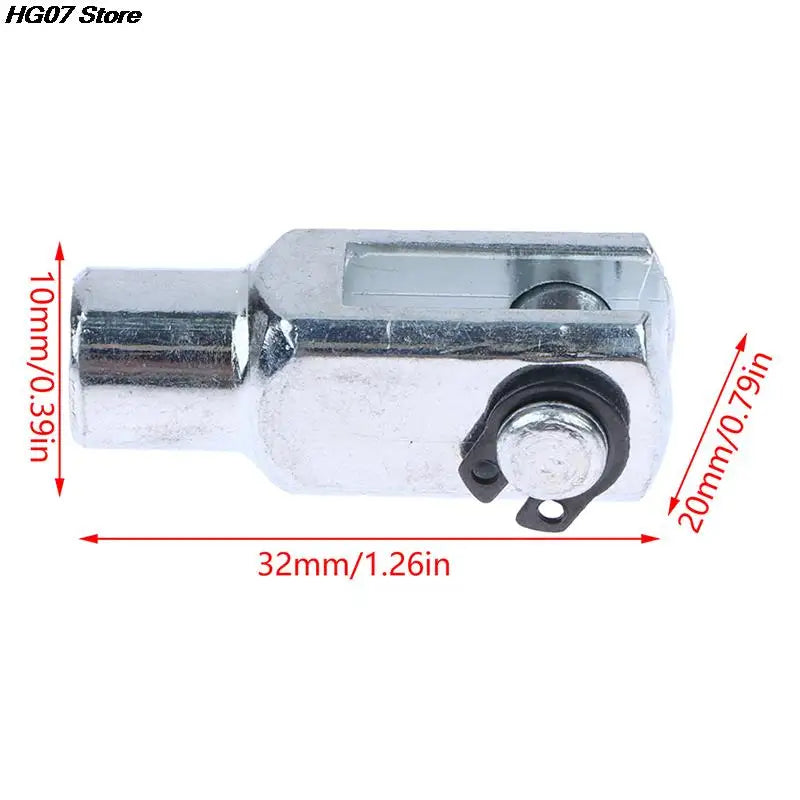

- Compact Form Factor – Overall dimensions approximately 31 × 12 × 12 mm (1.22″ × 0.47″ × 0.47″), ideal where space is limited
- Durable Metal Construction – Built from solid metal for long-lasting mechanical performance under load
- Made in Mainland China
Specifications
| Model | Y-16 |
| Thread | M6×1 |
| Compatible Bore | 16mm |
| Overall Size | 31 × 12 × 12 mm / 1.22″ × 0.47″ × 0.47″ |
| Material | Metal |
| Type | Cylinder Clevis (Y-Joint) |
Package Contents
- 1 × Metal Y-16 M6×1 Cylinder Clevis Joint
Related Products You May Find Useful
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Rotary Hidden Furniture Hinge Folding Door Hardware 1 Pair
- PU Leather Welding Sleeves – Heat Resistant Arm Guards 1 Pair
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What pneumatic cylinder bore size is this Y-16 clevis joint compatible with?
A: This Metal Y-16 clevis joint is specifically designed for use with 16mm bore pneumatic cylinders. Its M6×1 thread ensures a precise fit on standard piston rods sized for 16mm bore applications.
Q: Can this cylinder clevis joint be used with gas springs as well as pneumatic cylinders?
A: Yes. The Y-16 clevis is suitable as a standard connecting link on both pneumatic cylinder rods and gas springs, making it a versatile mechanical linking unit for static force transmission in various mechanical assemblies.
Q: What is the thread specification of this clevis joint?
A: The clevis features an M6×1 metric thread (6mm diameter, 1mm pitch), which is a widely used standard in pneumatic and mechanical hardware, ensuring broad compatibility with M6-threaded cylinder rods and accessories.
