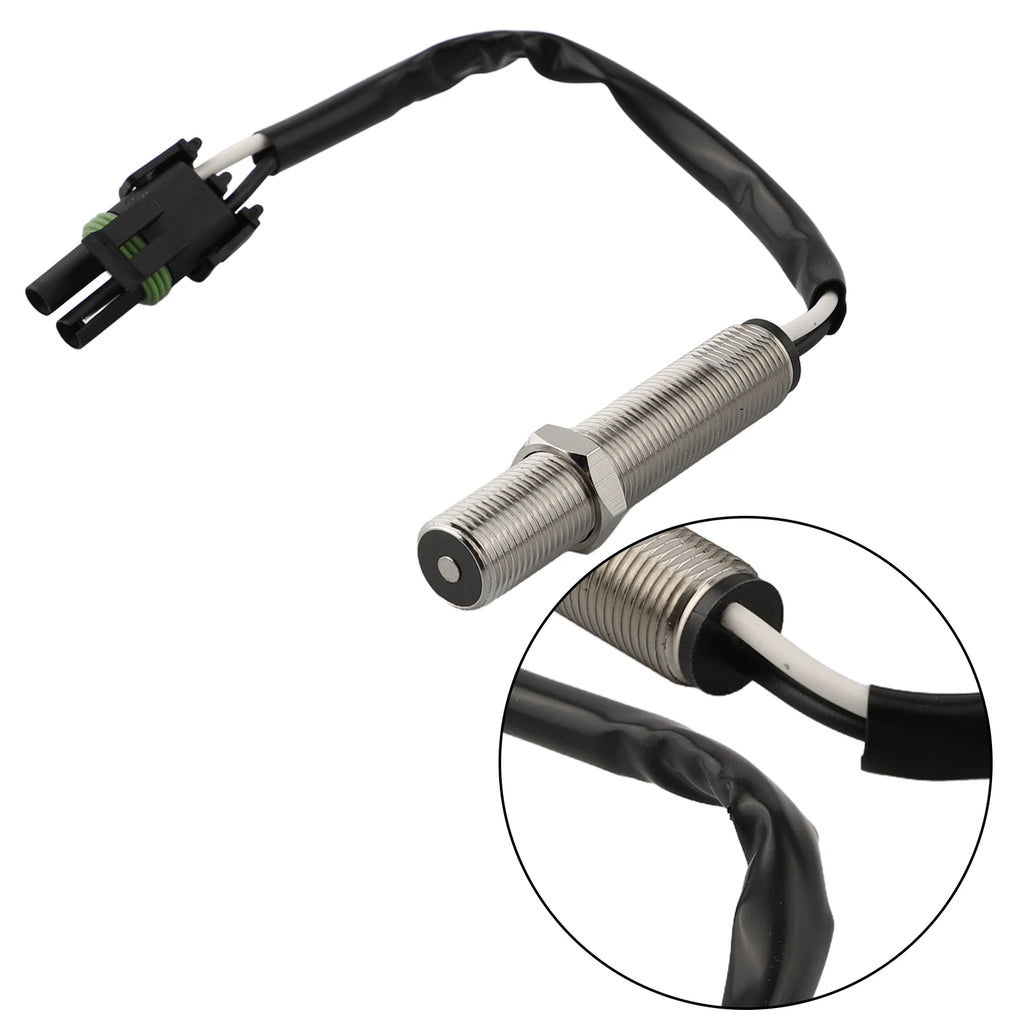

HpLive Magnetic Pickup Sensor – Cummins K38 / QSK38 Compatible
Engineered to meet strict quality control standards, this metal magnetic pickup sensor (Part No. 3034572) is a direct replacement for Cummins K38, QSK38, and related engine families. With a wide measuring range of 50–5,000 Hz and a broad operating temperature span of –55 °C to 105 °C, it delivers stable, reliable signal output to keep your engine management system performing at its best — improving fuel efficiency and optimizing engine performance.
Made in Mainland China.
Key Features
- Strict quality control build and test process for consistent, long-term reliability
- Stable electromagnetic signal output — 1.5 V AC min at start, 30 V AC maximum
- Wide frequency range: 50–5,000 Hz for accurate engine speed detection
- Optimizes fuel efficiency and engine performance monitoring
- Direct OEM-style replacement — no modifications required
- Available in two lengths: 80 mm and 120 mm
- Metal construction for durability in demanding engine bay environments
Specifications
| Part Number | 3034572 |
| Material | Metal |
| Measuring Range | 50–5,000 Hz |
| Inductance | 142 MH ±25% |
| Thread Size | 5/8-18 UNF-2A |
| Tap Size | 37/64 Inch |

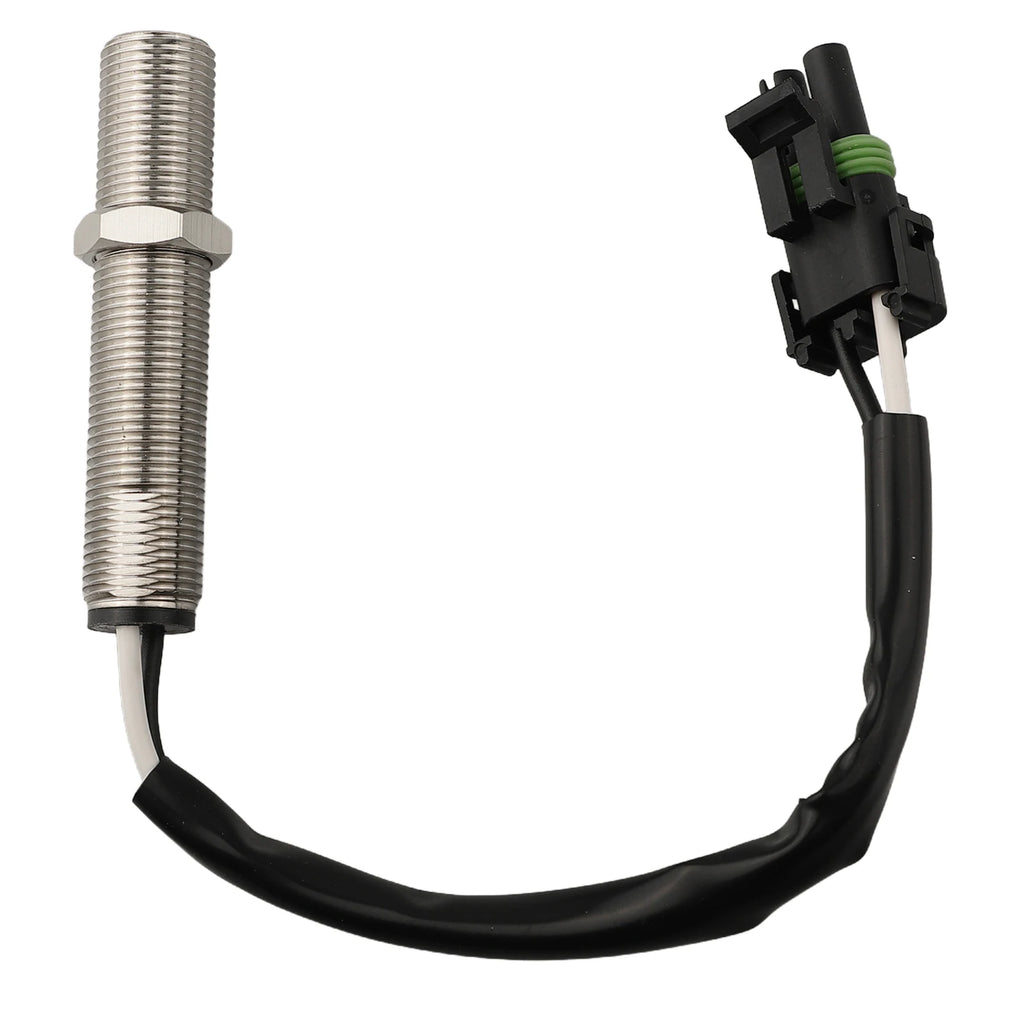

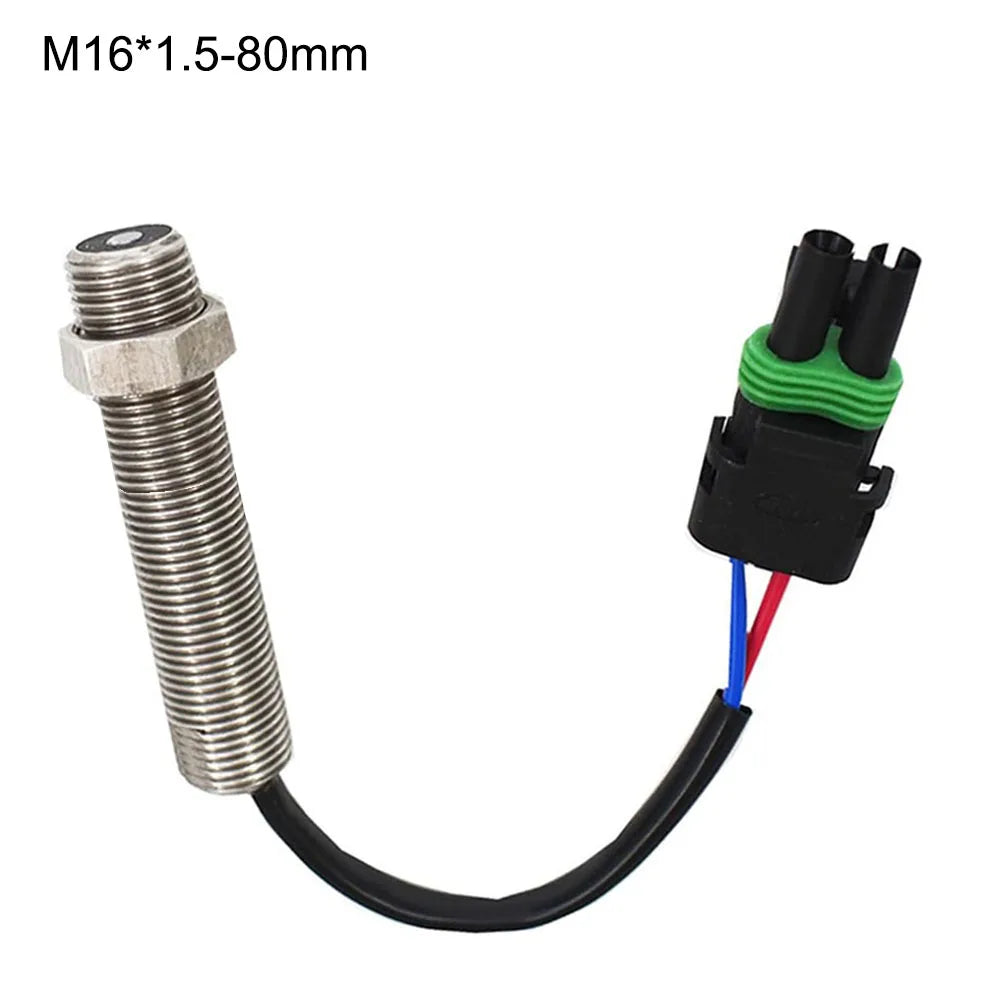

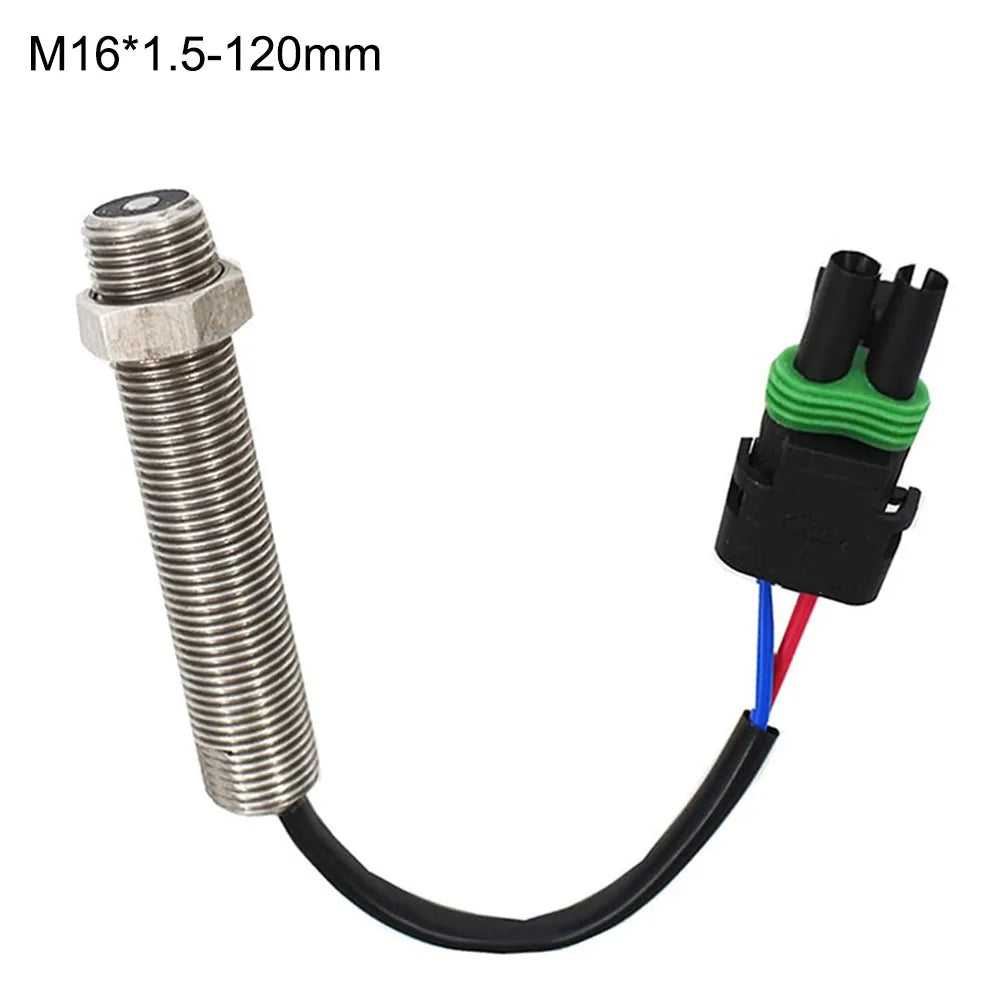

| Length Options | 80 mm / 120 mm |
| Gear Tooth Proximity | 0.028" Min – 0.042" Max (approx. ½ to ¾ turn) |
| Temperature Range | –55 °C to +105 °C |
| Output at Starting | 1.5 V AC Min |
| Maximum Output | 30 V AC |
| Coil Resistance | 300 Ohms Max |
Compatible Cummins Engine Models
This sensor is a direct replacement for the following Cummins engine platforms:
- K38, KTA38GC, G38
- QSK38 CM2150, QSK38 CM850
- QSK38 MCRS, CM558, CM2150
- K106
Package Contents
- 1 × Magnetic Pickup Sensor (Part No. 3034572)
Notes
- Actual color may vary slightly from product images due to monitor and lighting conditions.
- Please allow slight measurement tolerance for all listed dimensions.
You May Also Like
- BMW E65 E66 E60 Steering Column Angle Sensor Contact Brush 2pcs
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: What engines is this magnetic pickup sensor compatible with?
A: This sensor (Part No. 3034572) is a direct replacement designed for Cummins K38, QSK38 CM2150, QSK38 CM850, QSK38 MCRS, G38, KTA38GC, CM558, and K106 engine platforms. Always verify your engine model and part number before ordering.
Q: What are the thread and tap sizes for this magnetic pickup sensor?
A: The thread size is 5/8-18 UNF-2A and the tap size is 37/64 inch, making it a direct OEM-style fit for compatible Cummins engine housings.
Q: What lengths are available for this sensor?
A: The sensor is available in two lengths — 80 mm and 120 mm — to accommodate different engine configurations. Please select the correct length for your specific application.
Q: What is the operating temperature range of this sensor?
A: This magnetic pickup sensor is rated to operate across a wide temperature range of –55 °C to +105 °C, making it suitable for demanding industrial and commercial engine environments.
