M.2 NVMe/NGFF SSD Enclosure USB 3.2 20Gbps Type-C Case
M.2 NVMe/NGFF SSD Enclosure USB 3.2 20Gbps Type-C Case
kebidu M.2 NVMe/NGFF SSD Enclosure — USB 3.2 Gen 2×2 Up to 20Gbps

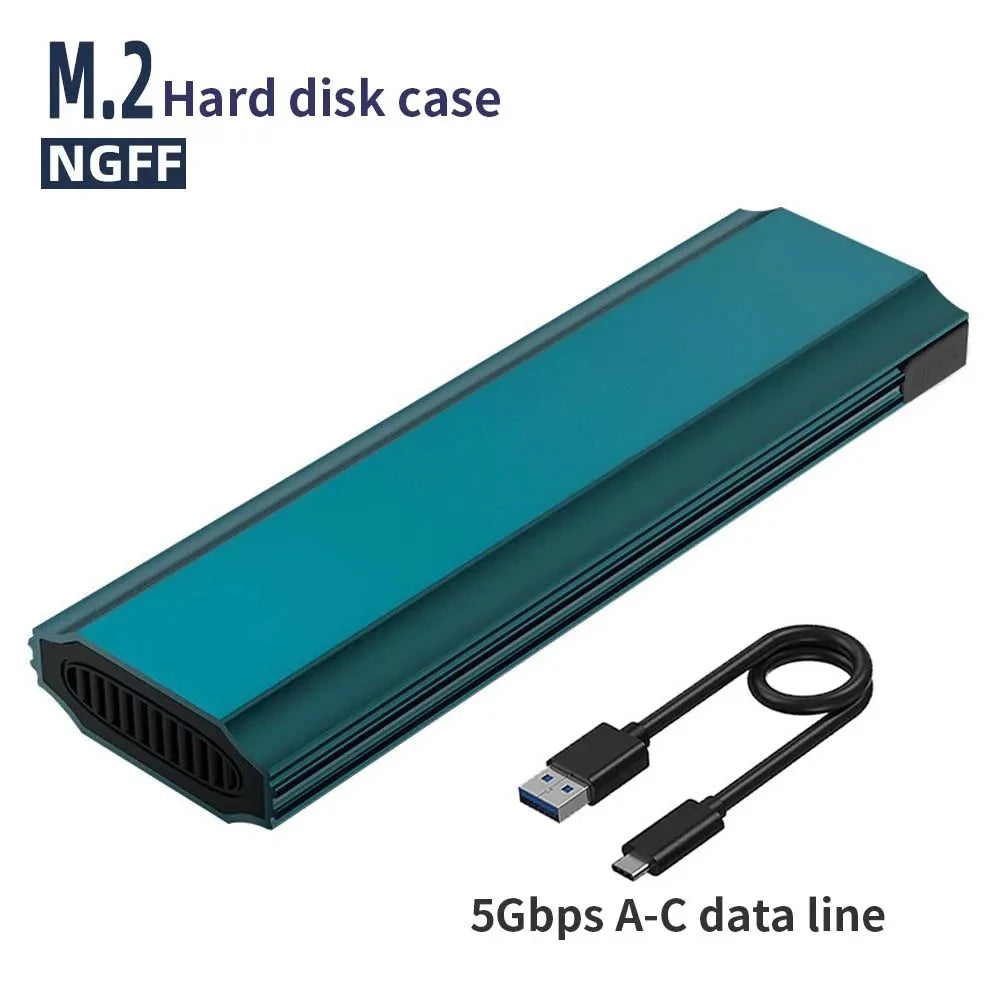

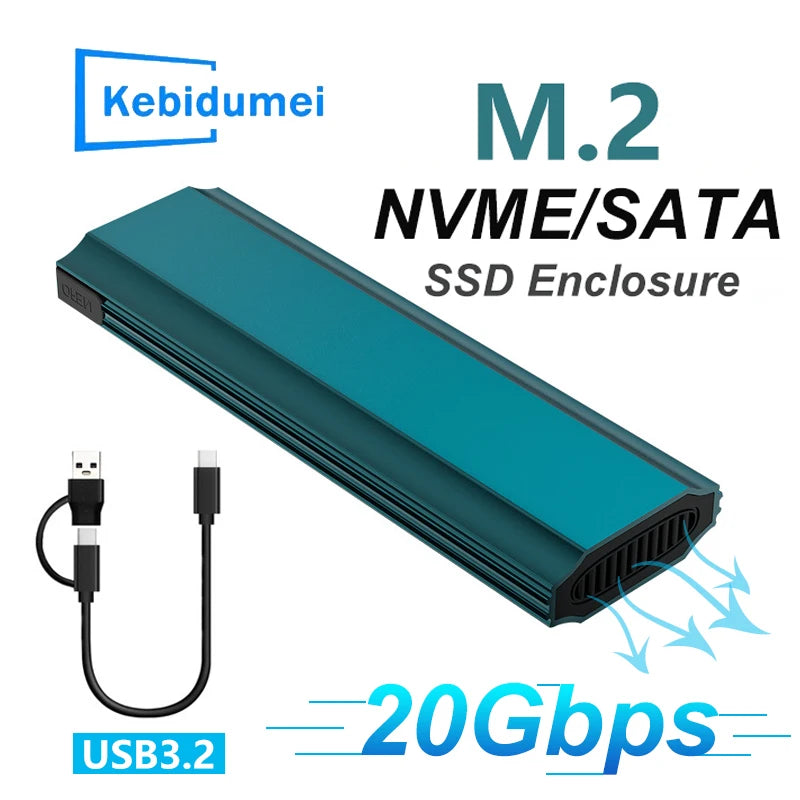

Unlock blazing-fast external storage with the kebidu M.2 SSD Enclosure. Built from premium aluminum alloy with an ABS accent, this compact tool-free enclosure supports both NVMe and NGFF (SATA) M.2 drives in all popular form factors — 2230, 2242, 2260, and 2280 — so you can turn any M.2 SSD into a high-speed portable drive in seconds.
⚠️ Important Note: To achieve the full 20Gbps transfer speed, you must connect via the USB-C port. Using a USB-A connection caps speeds at a maximum of 10Gbps.
Key Features
- Blazing USB 3.2 Gen 2×2 Speeds: Up to 20Gbps for NVMe drives via USB-C; up to 6Gbps for SATA drives — transfer a full HD movie in roughly one second.

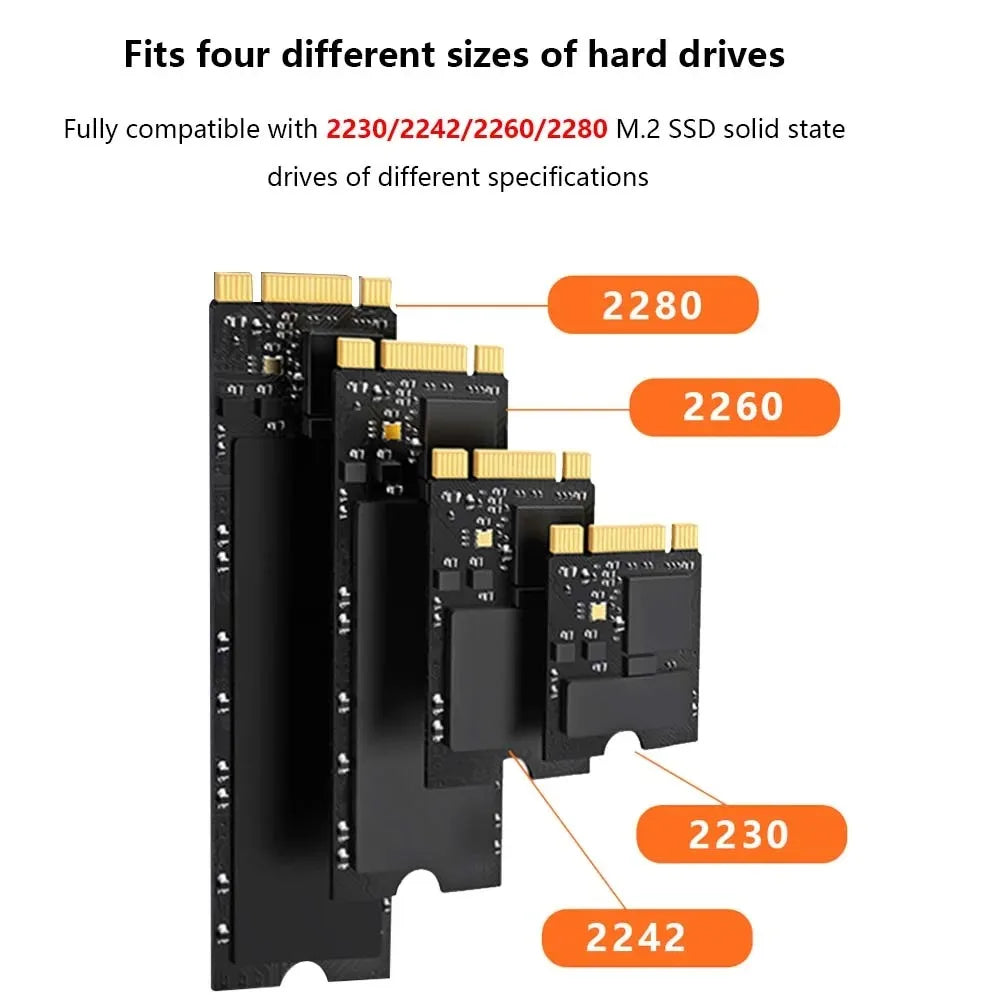

- Universal M.2 Compatibility: Supports M-Key, B-Key, and B&M-Key interfaces, as well as 2230, 2242, 2260, and 2280 drive sizes.
- Dual Protocol Support: Works with both NVMe (PCIe) and NGFF (SATA) M.2 solid-state drives — one enclosure for all your M.2 SSDs.
- Tool-Free Design: Quick, screwdriver-free installation lets you swap drives in moments.
- Efficient Heat Dissipation: Aluminum alloy shell acts as a passive heatsink, helping maintain stable performance during extended use.
- Auto-Sleep Function: Intelligently powers down when idle to conserve energy and extend drive life.
- Wide Device Compatibility: Works with Windows, macOS, Linux, Android, and any host device with a USB-C or USB-A port (via adapter).
- Plug-and-Play: No drivers needed — just connect and start transferring.
Specifications
| Model | M16 |
| Material | Aluminum Alloy + ABS |
| Supported Protocols | NVMe, NGFF (SATA) |
| Supported Key Types | M-Key, B-Key, B&M-Key |
| Supported SSD Sizes | 2230 / 2242 / 2260 / 2280 |
| External Interface | USB Type-C |
| Max Transfer Speed (NVMe) | 20Gbps (USB-C) / 10Gbps (USB-A) |
| Max Transfer Speed (SATA) | 6Gbps |

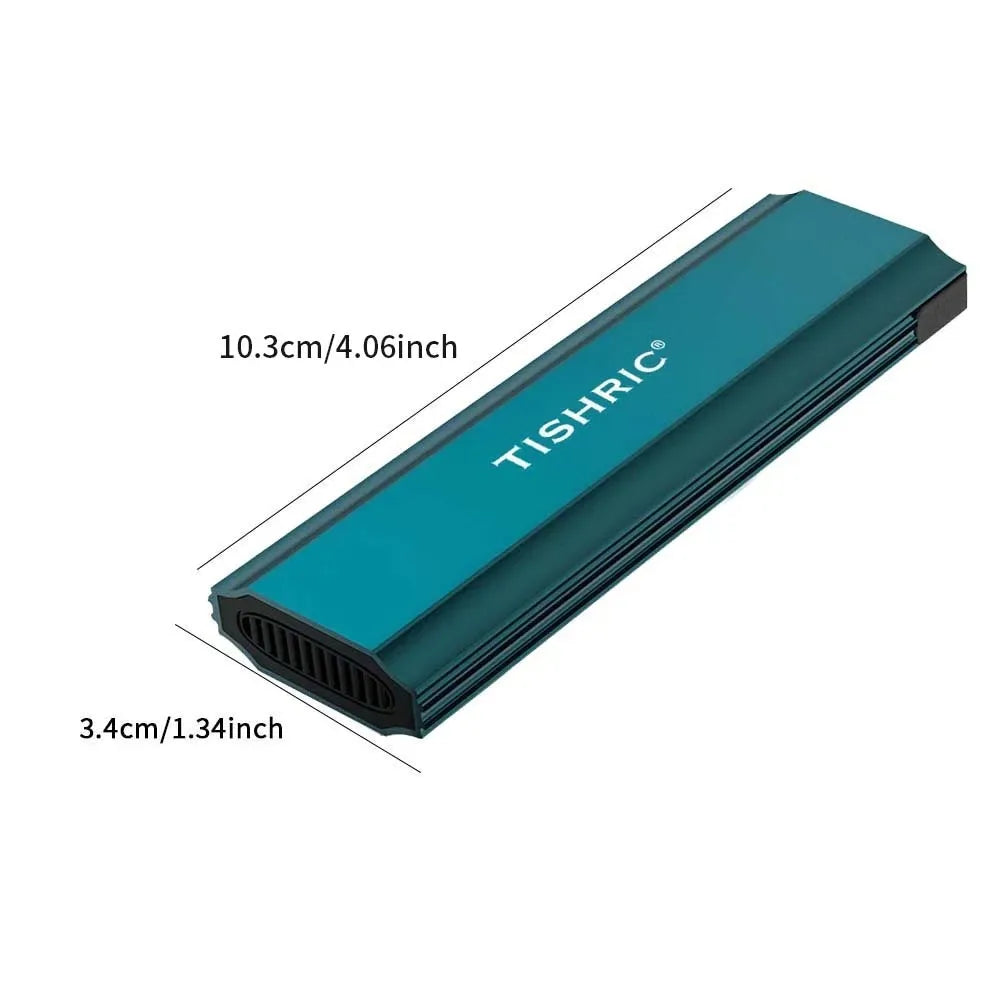

| Dimensions | 10 cm × 3 cm × 1.2 cm |
| Country of Origin | Made in China |
Related Products You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What M.2 SSD sizes does this enclosure support?
A: This M.2 SSD enclosure supports all common form factors: 2230, 2242, 2260, and 2280. It also supports M-Key, B-Key, and B&M-Key interface types, making it compatible with a wide range of NVMe and NGFF SATA drives.
Q: How do I get the full 20Gbps transfer speed from this enclosure?
A: To achieve the maximum 20Gbps transfer speed, you must connect using the USB-C port on a host device that supports USB 3.2 Gen 2×2. Connecting via a USB-A port (or adapter) will limit the maximum speed to 10Gbps. SATA-based M.2 drives are capped at 6Gbps regardless of the connection type.
Q: Does this enclosure require any drivers or tools to install?
A: No tools or drivers are required. The enclosure features a tool-free, plug-and-play design. Simply slide your M.2 SSD into the enclosure, connect it to your device via the included USB-C cable, and it will be recognized automatically on Windows, macOS, Linux, and Android.
Q: Does this enclosure work with both NVMe and SATA M.2 drives?
A: Yes. This enclosure supports both NVMe (PCIe) and NGFF (SATA) M.2 solid-state drives. Be sure to select the correct version (20Gbps for NVMe or 6Gbps for SATA) or check that your specific drive protocol is listed as supported before purchasing.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
