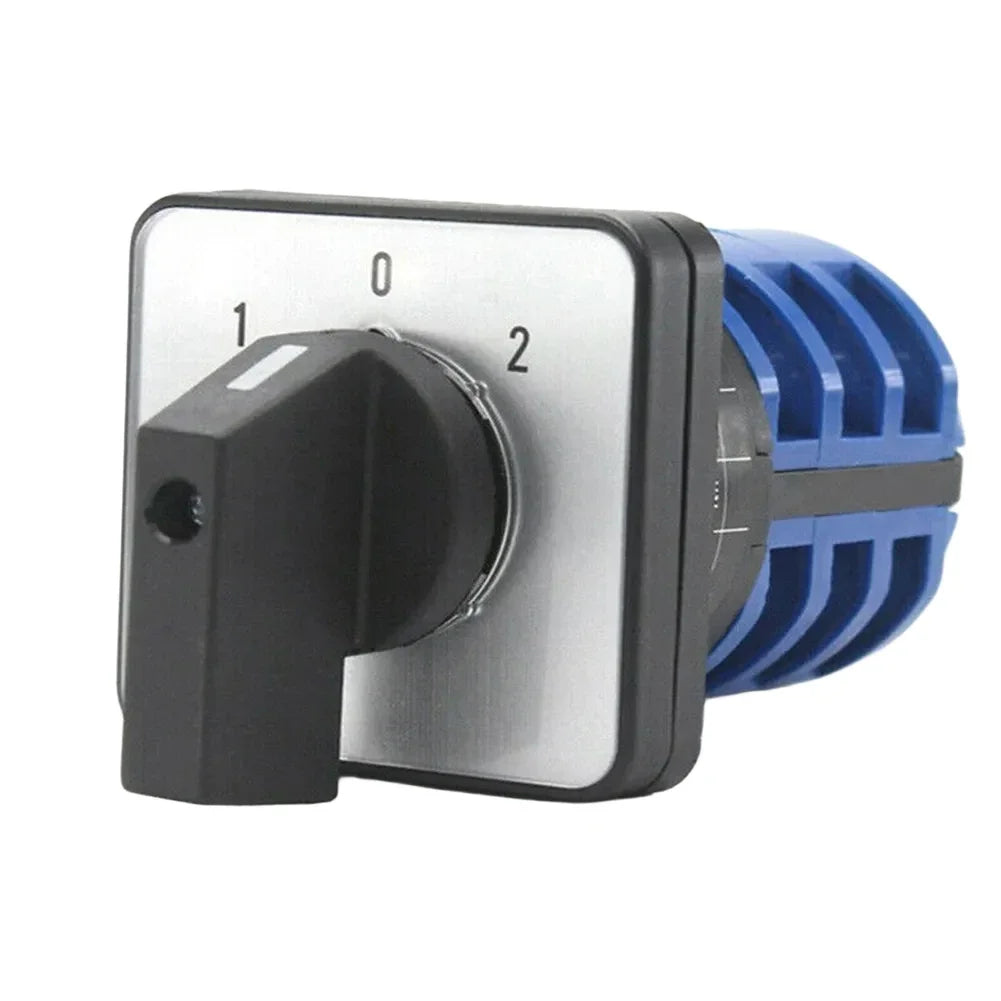

LW26 Rotary Cam Changeover Switch – 20A/32A, 3-Phase, 3-Position (1-0-2)
Take precise control of your electrical circuits with this heavy-duty LW26 Rotary Cam Changeover Switch. Available in 20A and 32A ratings, this 3-phase, 3-position (On-Off-On / 1-0-2) selector switch is built for demanding industrial, commercial, and DIY electrical installations. Its robust cam mechanism delivers smooth, reliable switching action cycle after cycle — making it an ideal choice for motor control panels, power distribution boards, and machinery control applications.
Made in Mainland China.
Key Features
- 3-Position Operation (1-0-2): On-Off-On switching allows you to select between two power sources or circuits, or cut power entirely with a single turn.
- Dual Current Rating: Available in 20A or 32A to suit a wide range of load requirements.

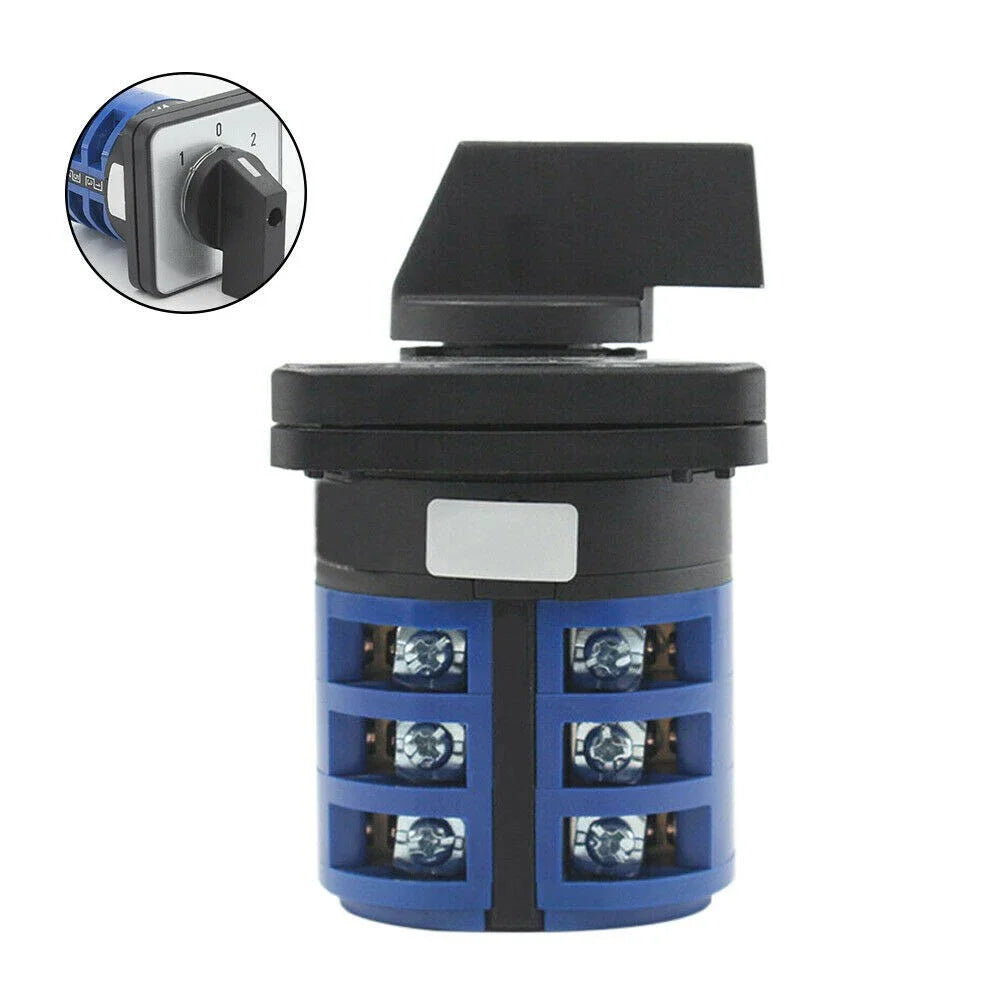

- 3-Phase Design: 6 screw terminals accommodate 3-phase wiring for motors and industrial equipment.
- Wide Voltage Compatibility: Rated AC 380V / DC 220V for versatile use across common electrical systems.
- Compact Panel-Mount Form Factor: 50 × 50mm face plate with a 43mm body diameter fits standard control panel cutouts; 4mm mount hole diameter.
- Durable Construction: Fine workmanship ensures long service life even in high-cycle switching environments.
- Easy Installation: Straightforward screw-terminal wiring and panel-mount design get you up and running quickly.
Specifications
| Model | LW26-20A / LW26-32A |
| Voltage Rating | AC 380V / DC 220V |
| Current Rating | 20A or 32A |
| Positions | 3 (1-0-2, On-Off-On) |
| Pole Numbers | 3 Phase |
| Terminals | 6 Screw Terminals |
| Face Plate Size | Approx. 50 × 50 × 12mm |
| Body Diameter | Approx. 43mm |
| Overall Size | 50 × 50 × 73mm |
| Mount Hole Diameter | 4mm |
| Origin | Mainland China |
Package Contents

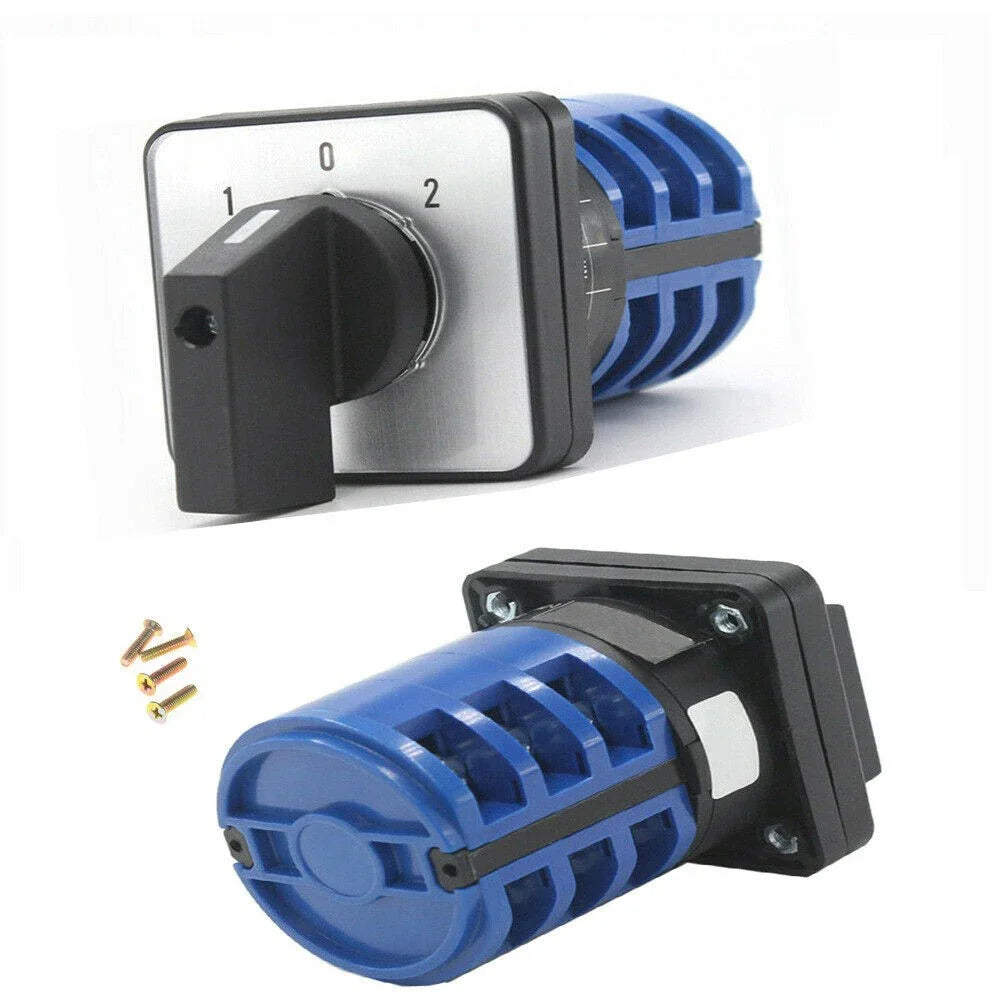

- 1 × LW26 Rotary Cam Changeover Switch
Important Notes
- Screen color calibration may cause slight variation in the appearance of the product compared to images shown.
- Please allow a small tolerance (±1–2mm) for manual measurements.
