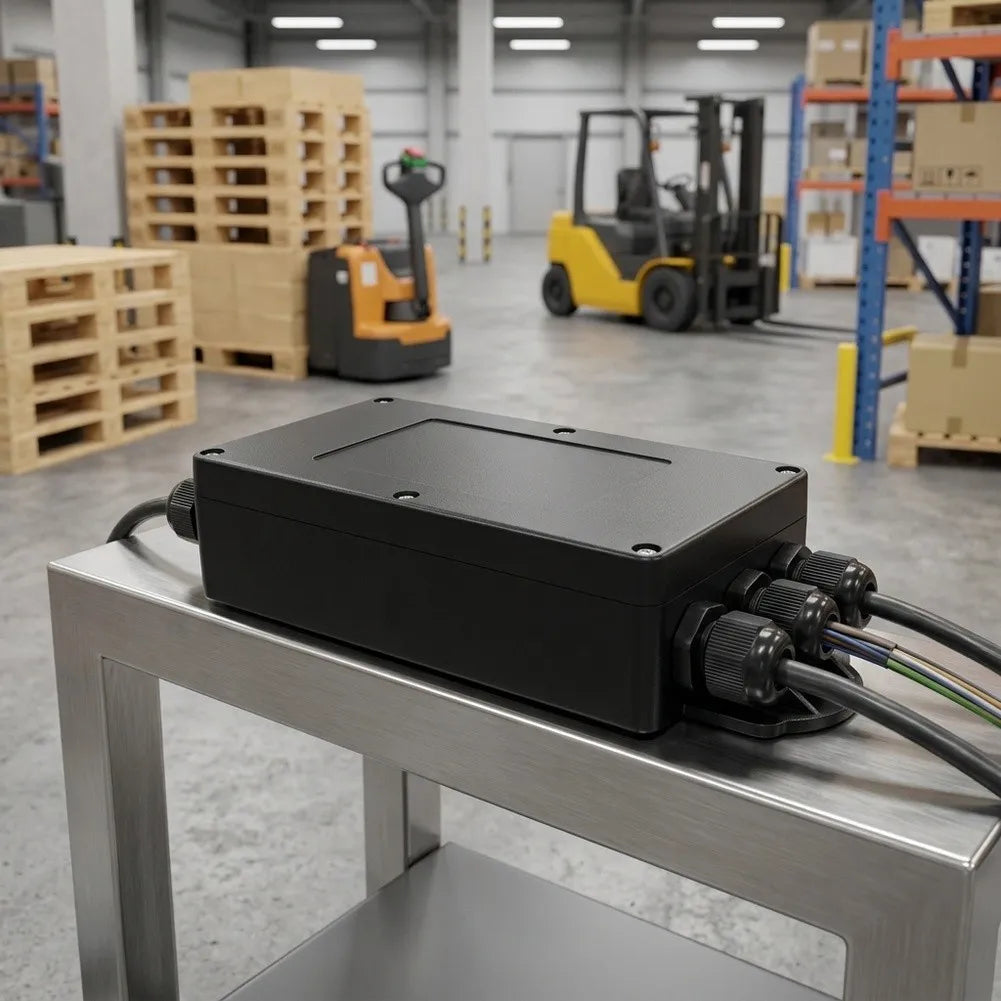

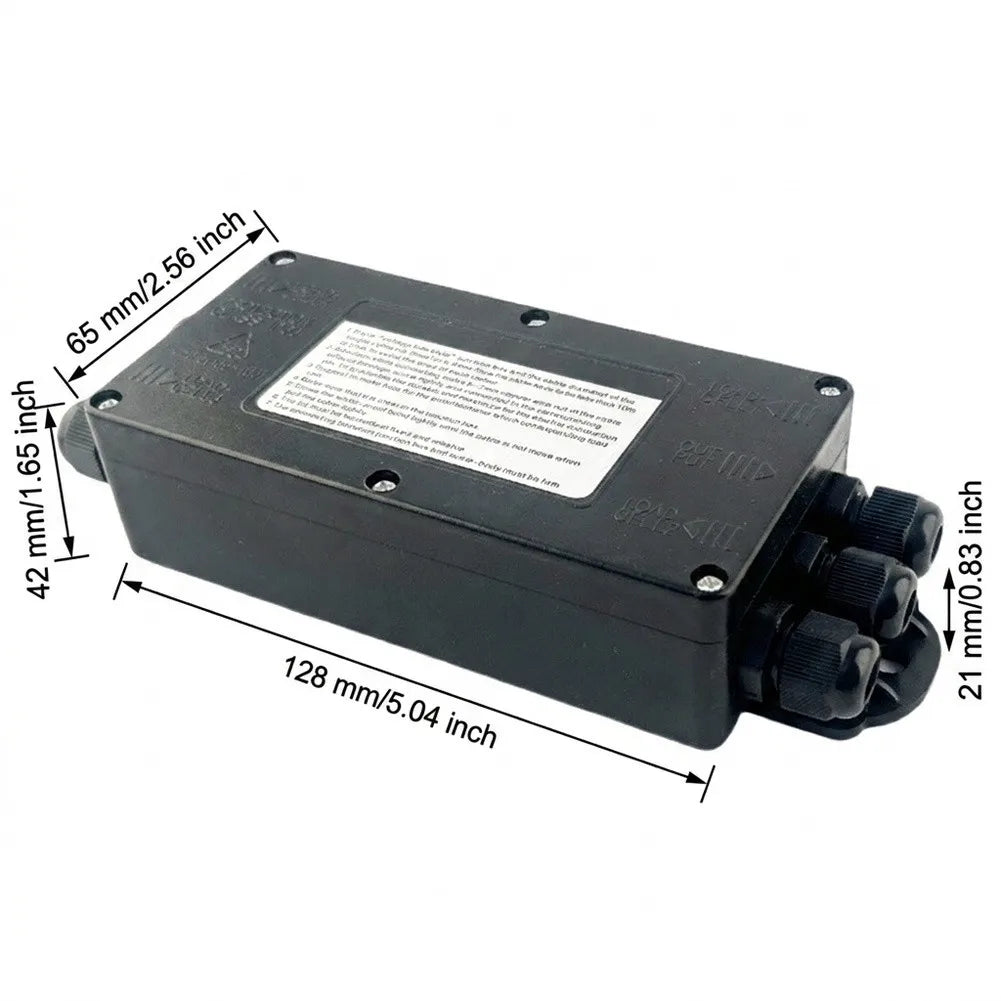

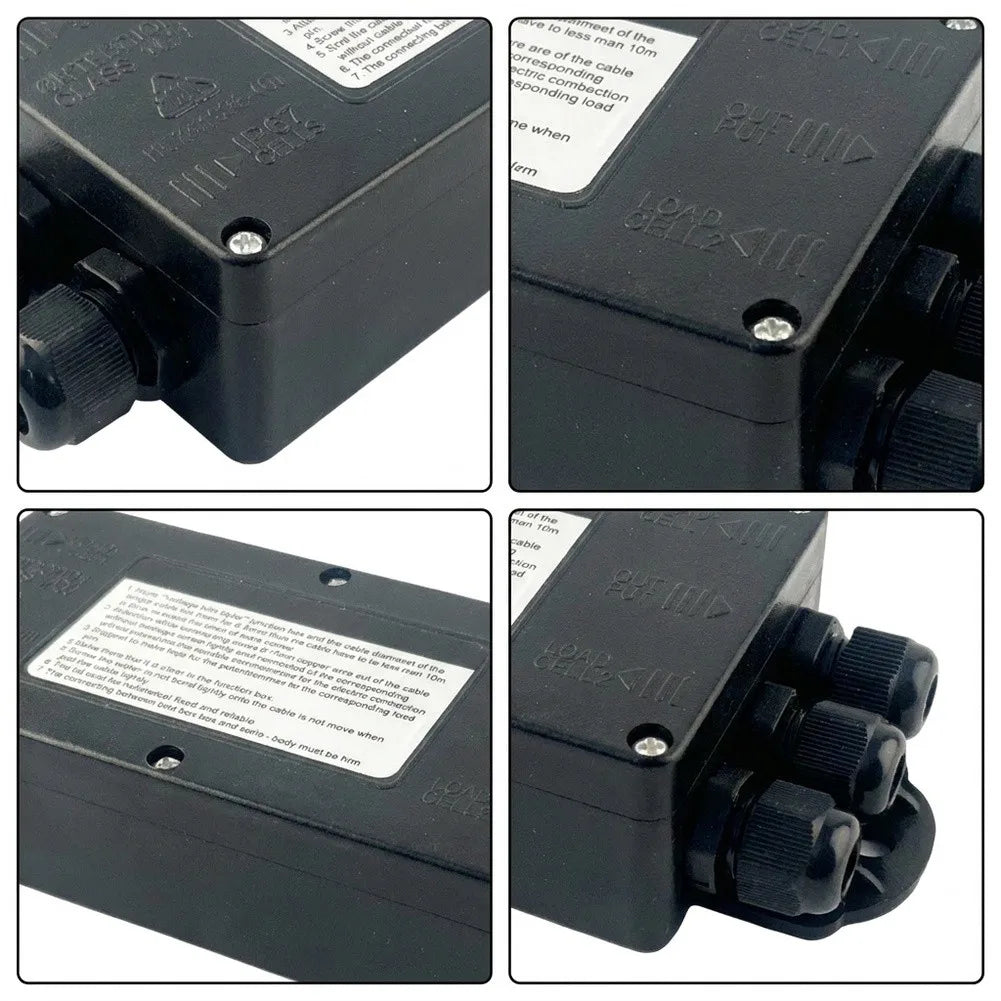

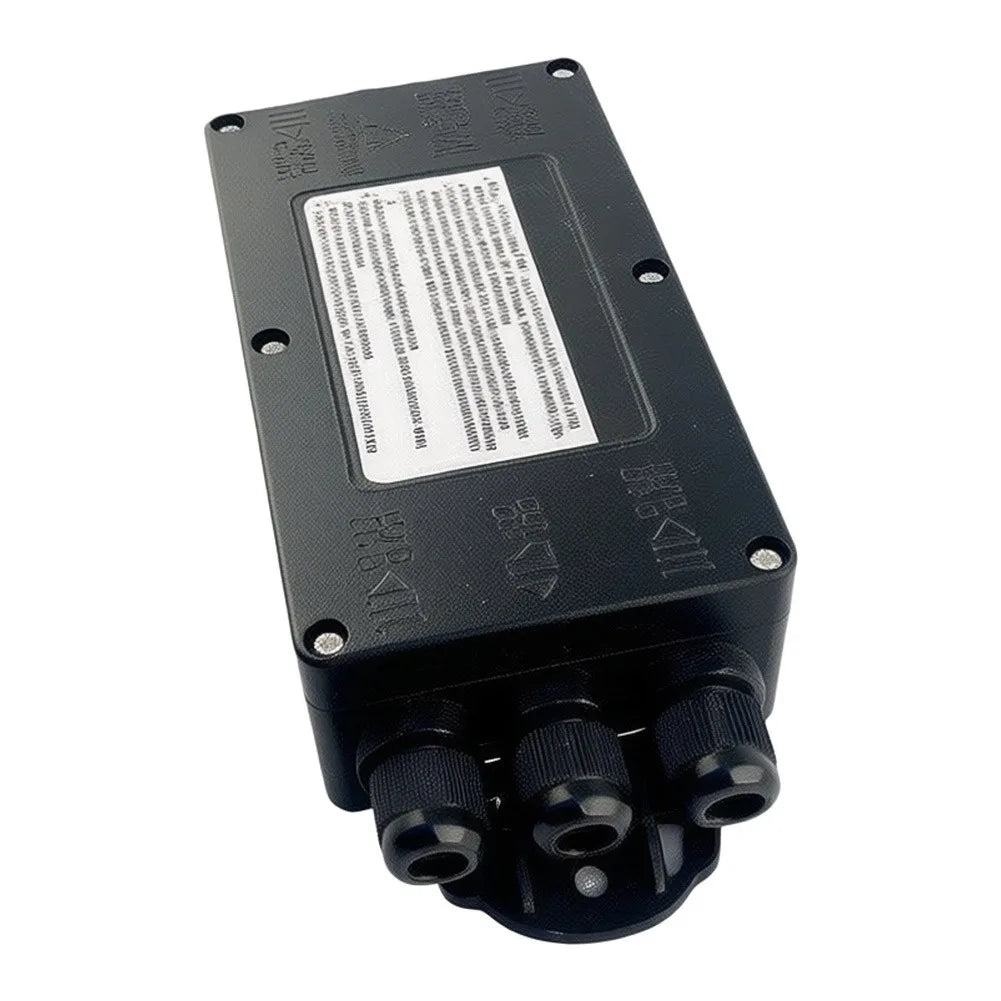

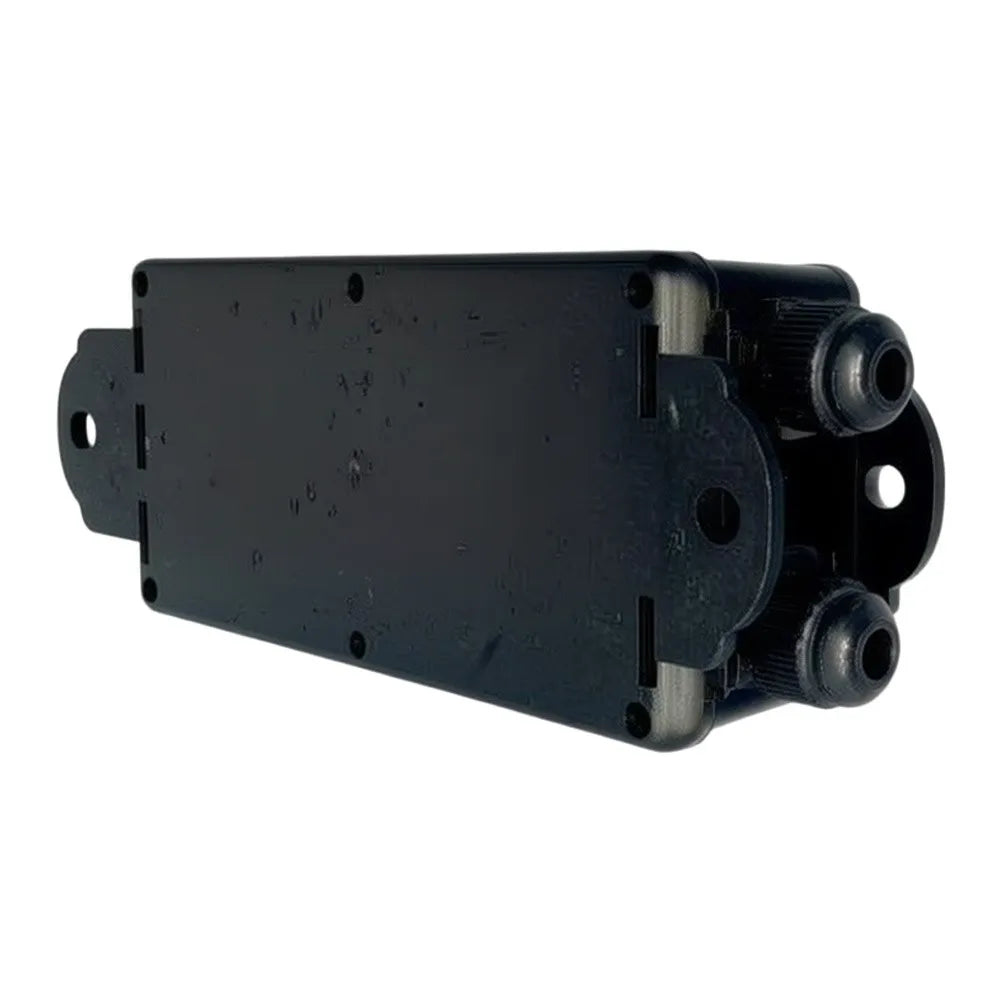

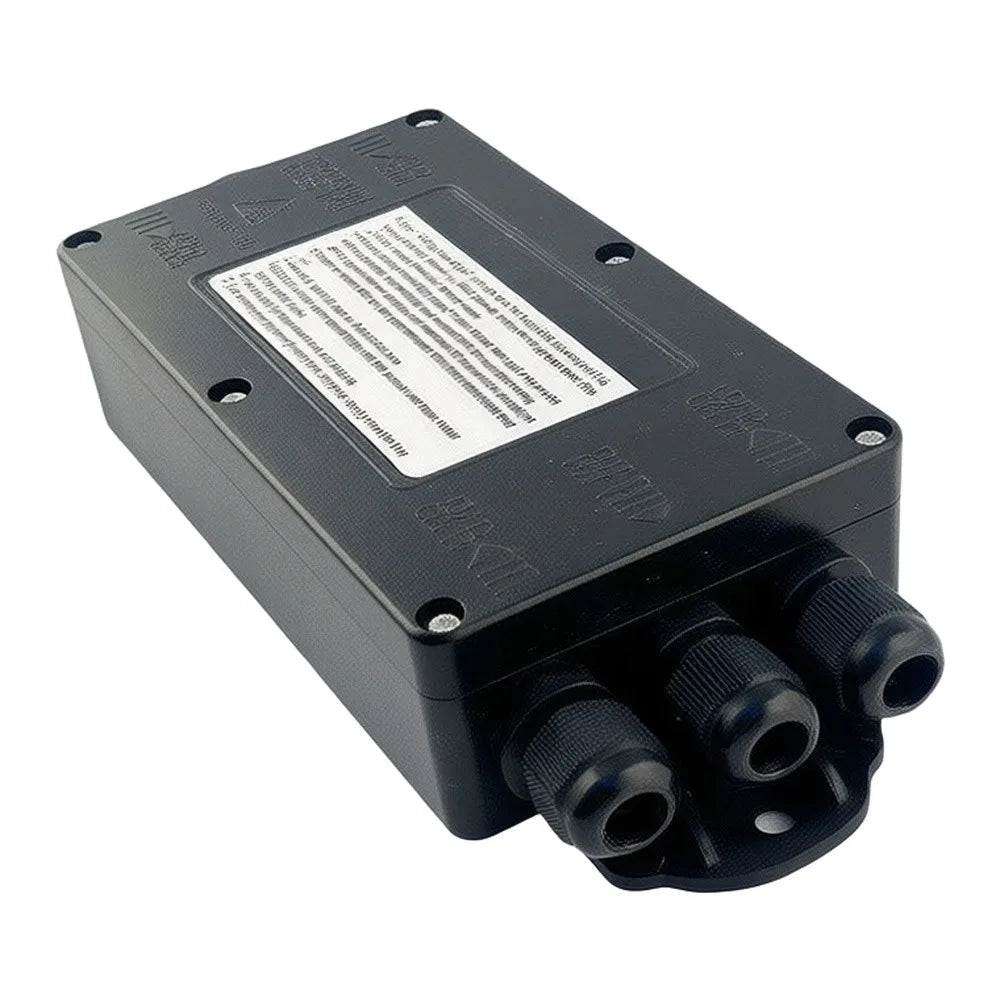

Load Cell Junction Box – 4-Input / 1-Output Waterproof Weighing Sensor
Upgrade your weighing system with this precision-engineered Load Cell Junction Box. Designed for industrial, commercial, and DIY weighing applications, this compact PVC housing unit consolidates up to 4 load cell inputs into a single clean output signal — simplifying installation and maximizing measurement accuracy. Built to handle demanding environments with an IP65-rated waterproof and dustproof construction, it keeps your electronics protected and your readings reliable.
Key Features
- High-Precision Output: Delivers accurate, stable digital signals ideal for industrial scales, platform balances, and commercial weighing equipment.
- IP65 Protection Rating: Robust PVC plastic housing effectively shields internal components from moisture, dust, and debris — built to last in tough environments.
- 4-Input / 1-Output Design: Combines signals from up to four load cells into a single unified output, streamlining wiring and reducing installation complexity.
- Advanced Optoelectronic Resistance Technology: Utilizes high-sensitivity sensing principles for stable, consistent signal output with minimal interference.
- Compact & Lightweight: Small form factor fits easily into stationary and mobile weighing setups without adding bulk or weight to the system.
- Easy Integration: Pre-wired 4-pin terminal connections make this junction box a straightforward drop-in addition to new or existing weighing systems.
Specifications
| Part Name | Load Cell Junction Box |
| Material | PVC Plastic |
| Color | Black |
| Inputs / Output | 4 Inputs / 1 Output |
| Protection Rating | IP65 (Waterproof & Dustproof) |
| Country of Origin | Made in China |
Package Contents
- 1 × Load Cell Junction Box
You May Also Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Note: Monitor settings may cause slight color variation. Please allow minor measurement tolerances for dimensional data.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: How many load cells can I connect to this junction box?
A: This load cell junction box supports up to 4 individual load cell inputs, combining them into a single unified output signal. This makes it ideal for multi-point weighing platforms or scale systems that use multiple sensors for balanced measurement.
Q: Is this junction box suitable for outdoor or wet environments?
A: Yes. The junction box carries an IP65 protection rating, meaning it is fully protected against dust ingress and resistant to low-pressure water jets. It is well-suited for use in outdoor, industrial, or humid indoor environments where moisture and particulates may be present.
Q: What type of load cells is this compatible with?
A: This junction box is designed to work with standard 4-wire strain gauge load cells commonly used in platform scales, industrial weighing systems, and DIY weight measurement projects. Always confirm your load cell wiring configuration before installation.
Q: Is any additional hardware required for installation?
A: The junction box comes with pre-wired terminal connections, making integration straightforward. You will need your own load cells and a compatible weight indicator or transmitter. Basic wiring tools are sufficient for installation — no specialized equipment is required.
