GPS-01 Normally Open Magnetic Reed Switch – Multiple Size Options

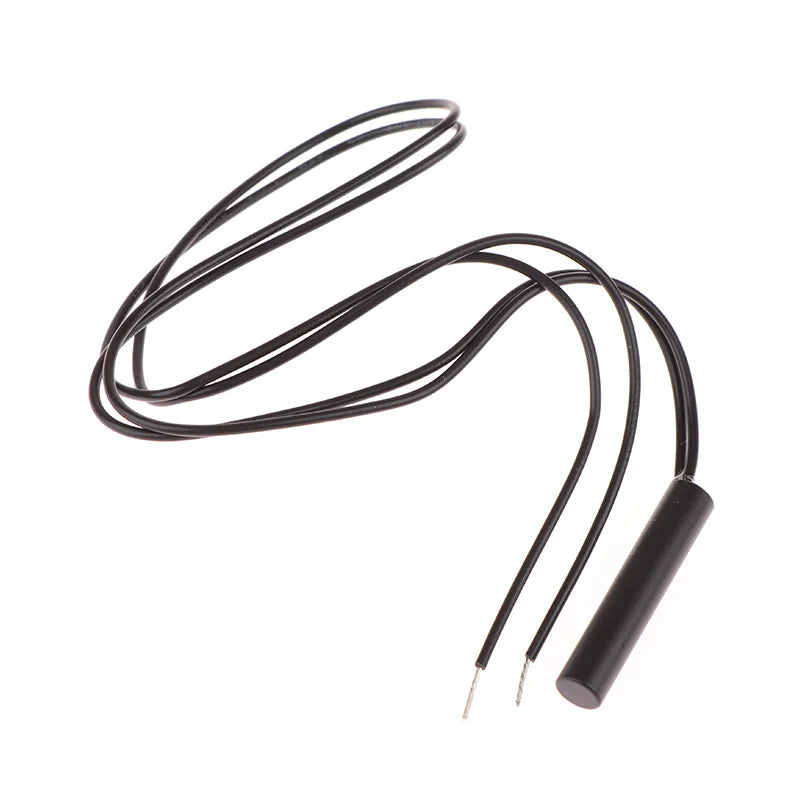

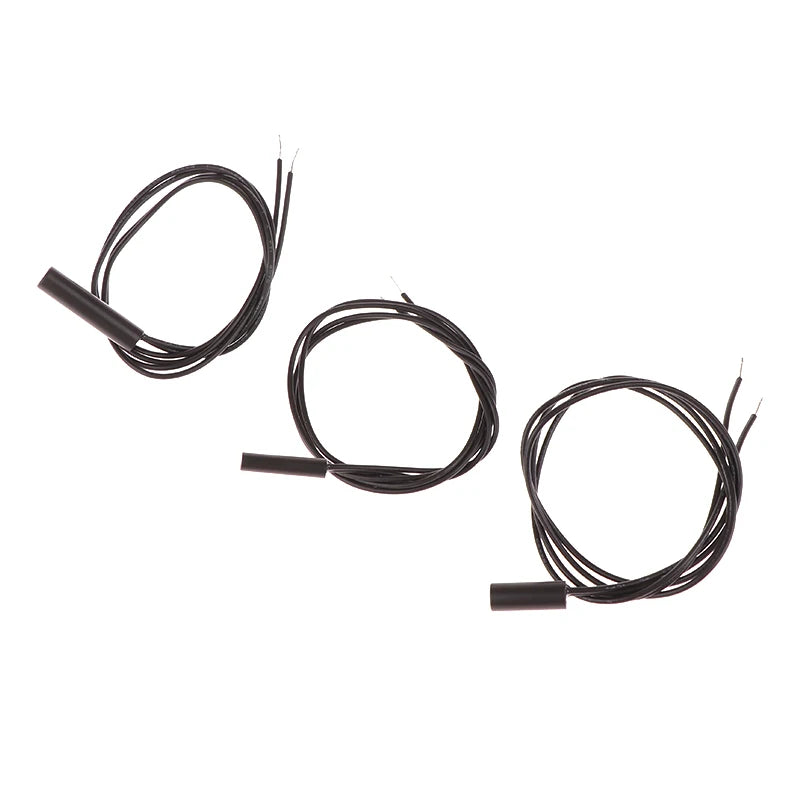

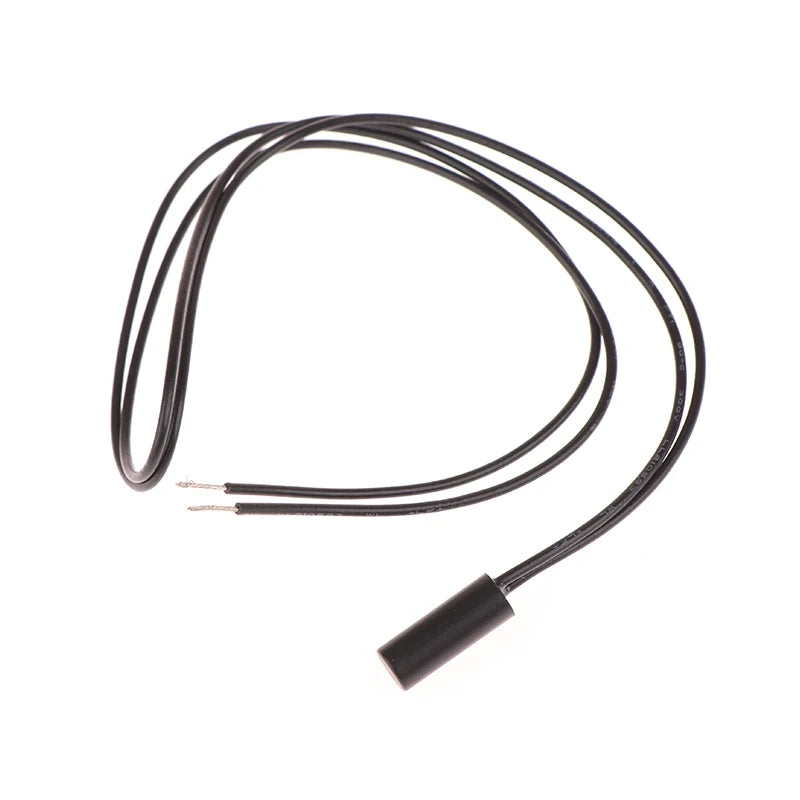

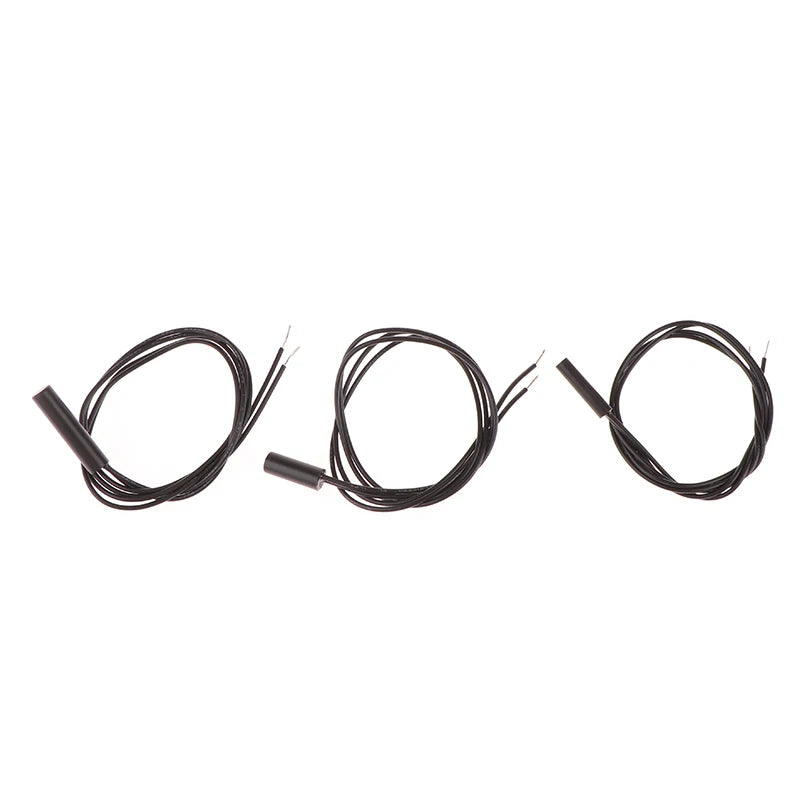

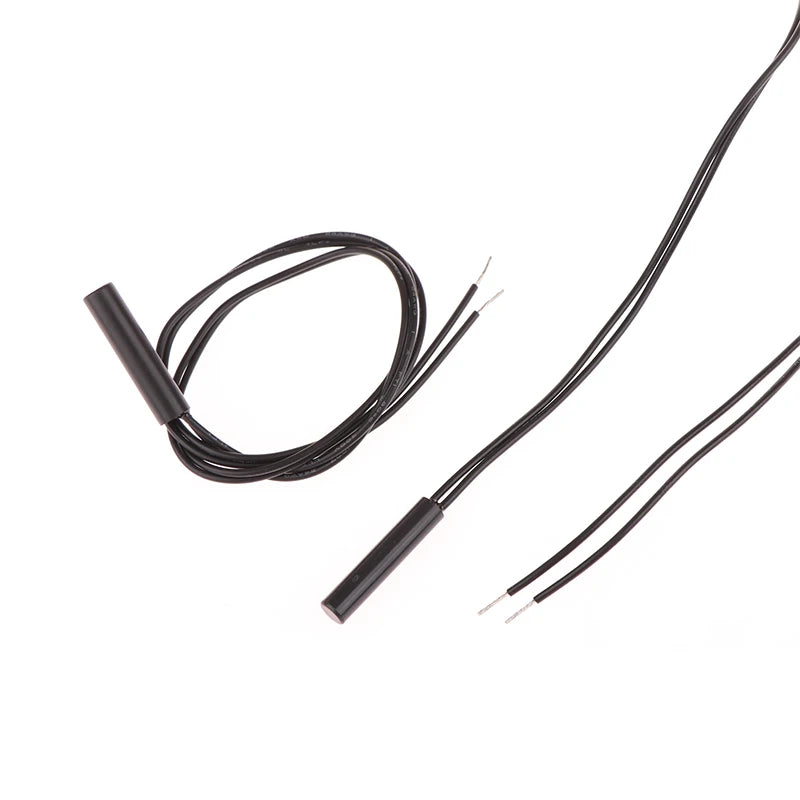

The GPS-01 Black Reed Switch is a compact, high-sensitivity normally open magnetron proximity sensor designed for seamless integration into security systems, automation circuits, door/window sensors, and DIY electronics projects. Available in multiple sizes — 4×18mm, 5×25mm, 6×20mm, 6×25mm, and 6×30mm — this switch delivers fast, accurate magnetic field detection in a slim plastic housing.
Key Features

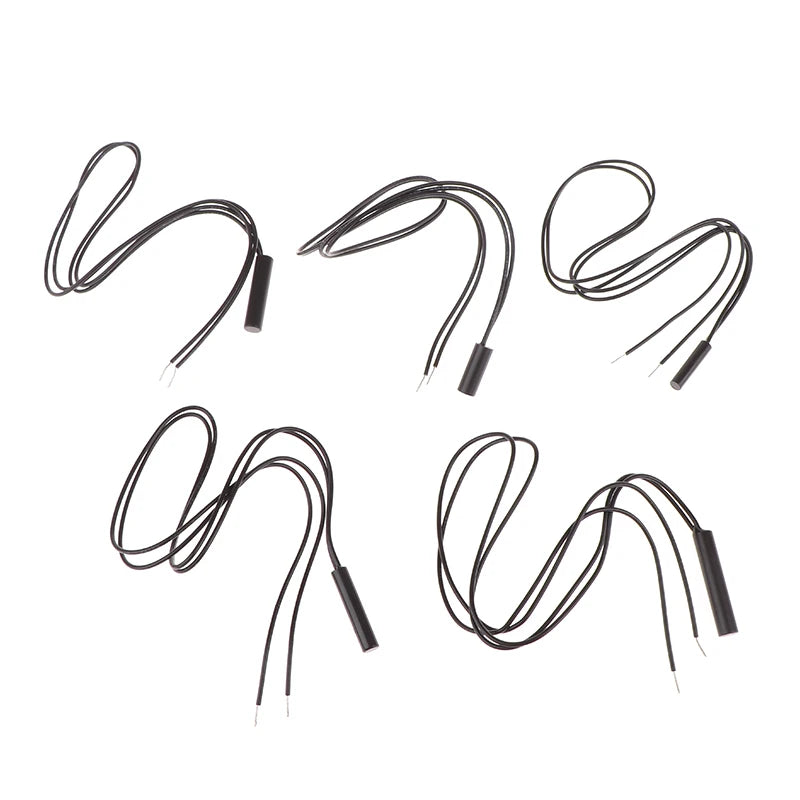

- Multiple Size Options: Choose from 4×18mm, 5×25mm, 6×20mm, 6×25mm, or 6×30mm to perfectly fit your installation requirements.
- High Sensitivity: Quickly and accurately detects magnetic proximity, ensuring a fast and reliable switching response every time.
- Normally Open (NO) Design: The circuit remains open until a magnet is brought close, making it energy-efficient and easy to integrate into low-voltage control systems.
- Low Voltage Compatible: Rated for use below 50Vac or 75Vdc, suitable for a wide range of electronic applications.
- Durable Plastic Housing: Lightweight yet sturdy black plastic body built for long-term, reliable performance.
- Plug-and-Play Installation: Simple two-wire connection for quick setup in new or existing circuits.
Specifications
- Model: GPS-01
- Type: Normally Open (NO) Reed Switch

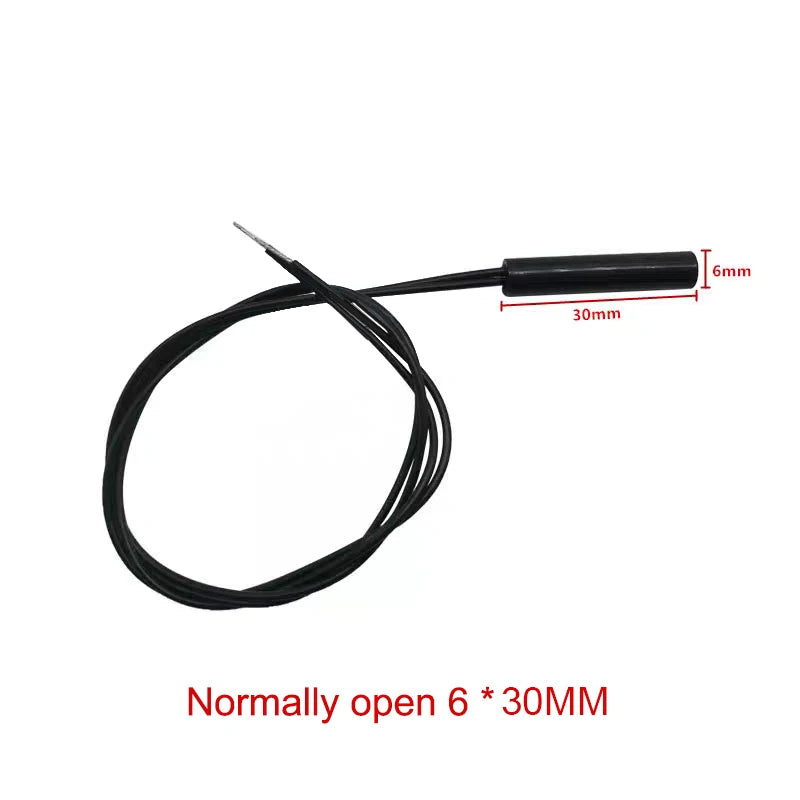

- Available Sizes: 4×18mm / 5×25mm / 6×20mm / 6×25mm / 6×30mm
- Color: Black
- Material: Plastic
- Voltage Rating: Below 50Vac or 75Vdc
- Package Contents: 1 × Reed Switch
- Made in Mainland China
Applications
- Door and window security alarms
- Home automation and smart home systems
- DIY electronics and Arduino/Raspberry Pi projects
- Industrial and commercial proximity detection
- Position sensing and relay triggering circuits
Related Products You May Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 3-Wire 180° Washing Machine Timer Switch | Semi-Automatic
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
Note: Due to manual measurement, please allow a tolerance of 1–3mm. Colors may vary slightly between devices due to different display settings.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does "normally open" mean for a reed switch?
A: A normally open (NO) reed switch means the electrical circuit is open (no current flows) when no magnet is present. When a magnet is brought close enough to the switch, the internal contacts close, completing the circuit. This design is energy-efficient because power is only consumed when the magnet activates the switch.
Q: Which size GPS-01 reed switch should I choose?
A: Choose based on the mounting hole or housing size in your device. The 4×18mm is ideal for very compact spaces, while the 6×25mm and 6×30mm options suit larger enclosures. Always verify the bore diameter and depth of your installation point before selecting a size.
Q: Is the GPS-01 reed switch compatible with Arduino or Raspberry Pi projects?
A: Yes! Since this reed switch operates below 50Vac or 75Vdc, it is fully compatible with low-voltage microcontroller platforms like Arduino and Raspberry Pi. Simply connect it in series with your signal or GPIO circuit for easy magnetic proximity detection.
