E-Bike LCD Display 24-48V Waterproof Scooter Panel Screen

E-Bike LCD Display Panel – 24-48V Universal Waterproof Screen

Upgrade your electric bike or scooter with this compact, waterproof LCD display panel. Compatible with 24V, 36V, and 48V systems, this universal M5 panel screen delivers clear, real-time ride data right at your fingertips — all wrapped in a durable ABS shell built for everyday use in all weather conditions. Made in China.

Key Features

• Durable ABS Shell: Wear-resistant construction handles temperatures from -20°C to 60°C, keeping your display functional year-round in rain, sun, or cold.
• Compact LCD Digital Display: Sleek, lightweight screen with a modern look that complements any electric bike or scooter build.
• Universal Handlebar Fit: Designed to mount on most standard bicycle and scooter handlebars — ideal for a wide range of e-bike and e-scooter models.
• Responsive Button Controls: Anti-slip, sensitive buttons provide comfortable, intuitive operation so you can adjust settings on the go with ease.
• Easy Installation: Straightforward mounting design means you spend less time setting up and more time riding.
• Adjustable Voltage Setting: Default voltage is 36V. To change: press and hold the Up and Down keys to enter the settings menu → short-press "M" to navigate to "P03" → use Up/Down keys to set your desired voltage (displayed at the bottom of the screen).

Specifications

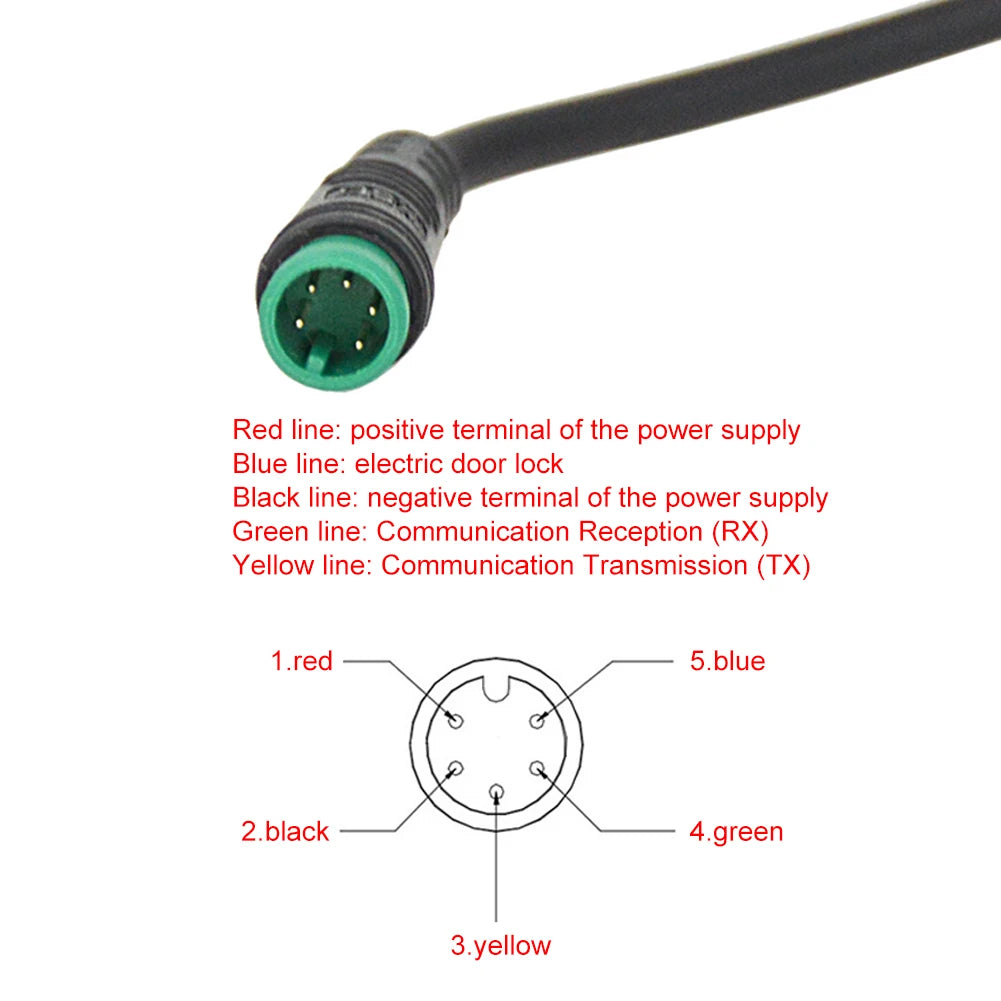

⚠️ Important: The controller must use the second protocol; otherwise, voltage adjustment will not function correctly. Ensure all wire connections are correct — incorrect wiring may damage the device.

What's in the Box

• 1× Electric Scooter / E-Bike LCD Panel Screen

Notes

• Due to differences in monitor settings and lighting, the actual color may vary slightly from images.
• Please allow a 1–2 cm tolerance due to manual measurement.

You May Also Like

• 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
• 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
• Non-Contact Capacitive Water Level Sensor 3.3V–5V

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What voltage systems is this e-bike LCD display compatible with?

A: This display is compatible with 24V, 36V, and 48V electric bike and scooter systems. The default setting is 36V, but you can easily adjust it through the settings menu using the Up, Down, and M buttons on the panel.

Q: Is this e-bike display panel waterproof?

A: Yes, the display is designed to be waterproof and is built with a durable ABS shell that performs reliably across a wide temperature range (-20°C to 60°C), making it suitable for all-weather riding conditions.

Q: Will this LCD display fit my electric scooter or mountain e-bike handlebar?

A: This M5 panel screen is designed as a universal fit for most standard bicycle and scooter handlebars available on the market, making it a versatile choice for a broad range of electric vehicles.

Q: Does this display require any special controller to work?

A: Yes — to fully utilise the voltage adjustment feature, your controller must support the second protocol. Using an incompatible controller may prevent the display from adjusting voltage settings normally. Always verify wiring connections before powering on.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
