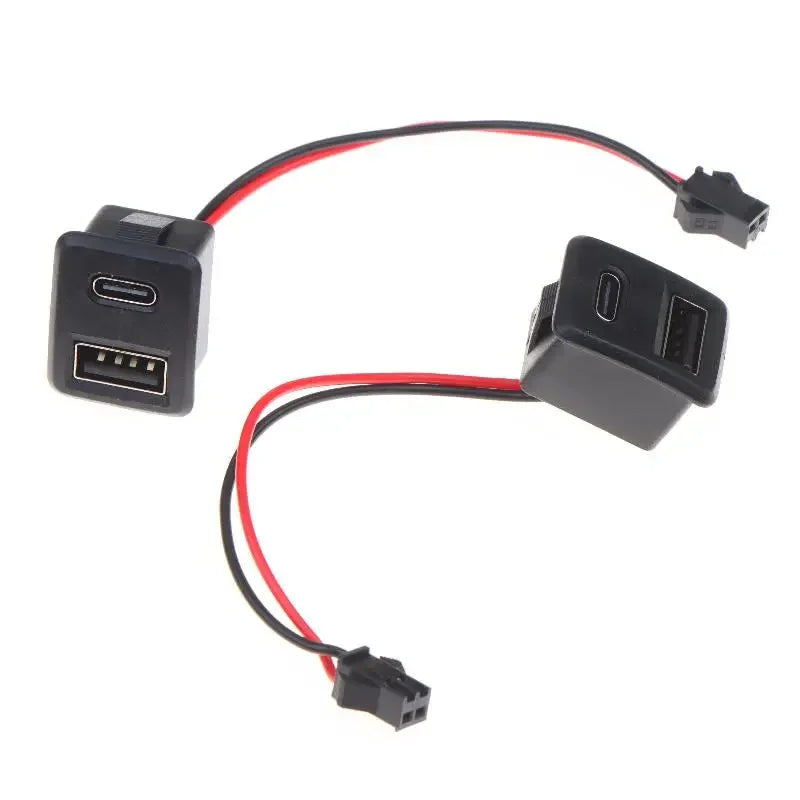

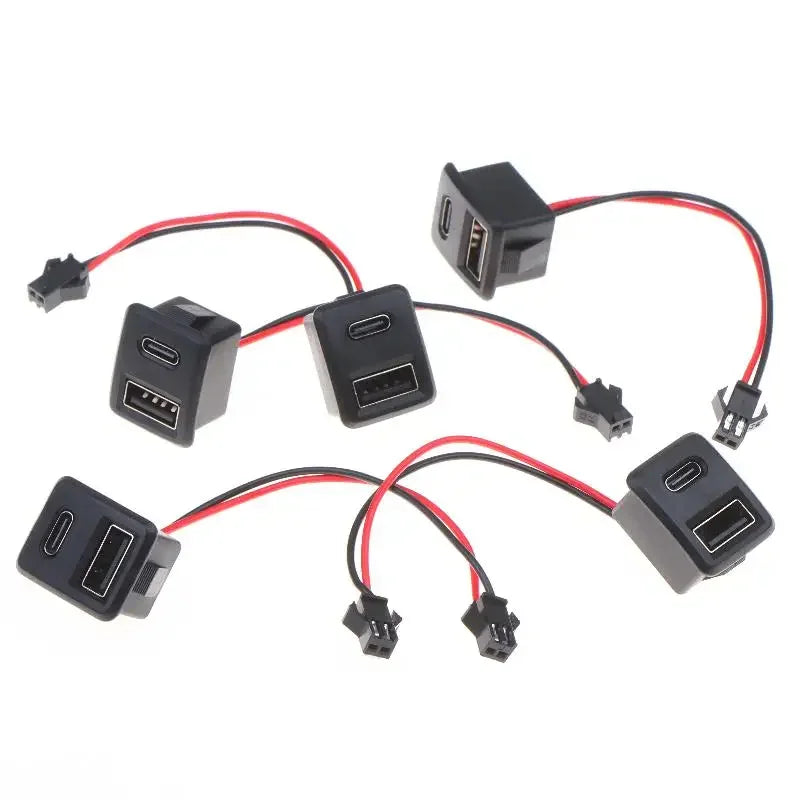

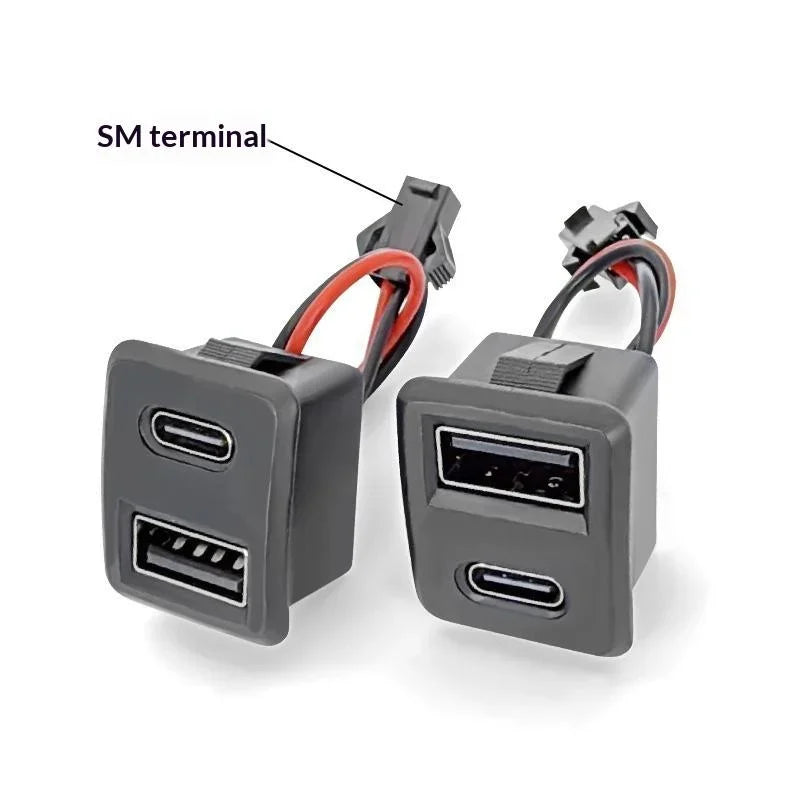

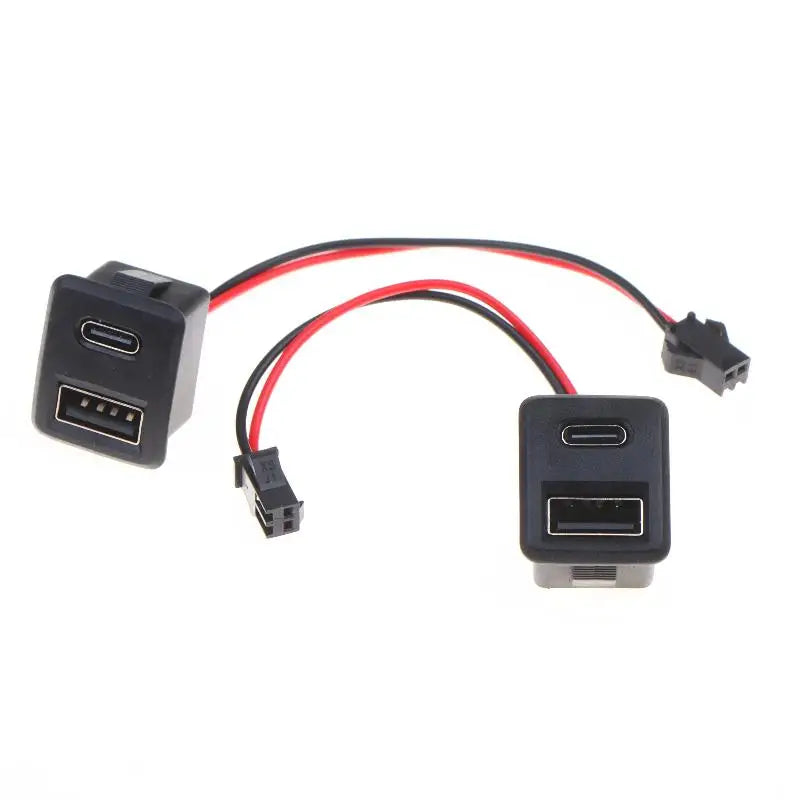

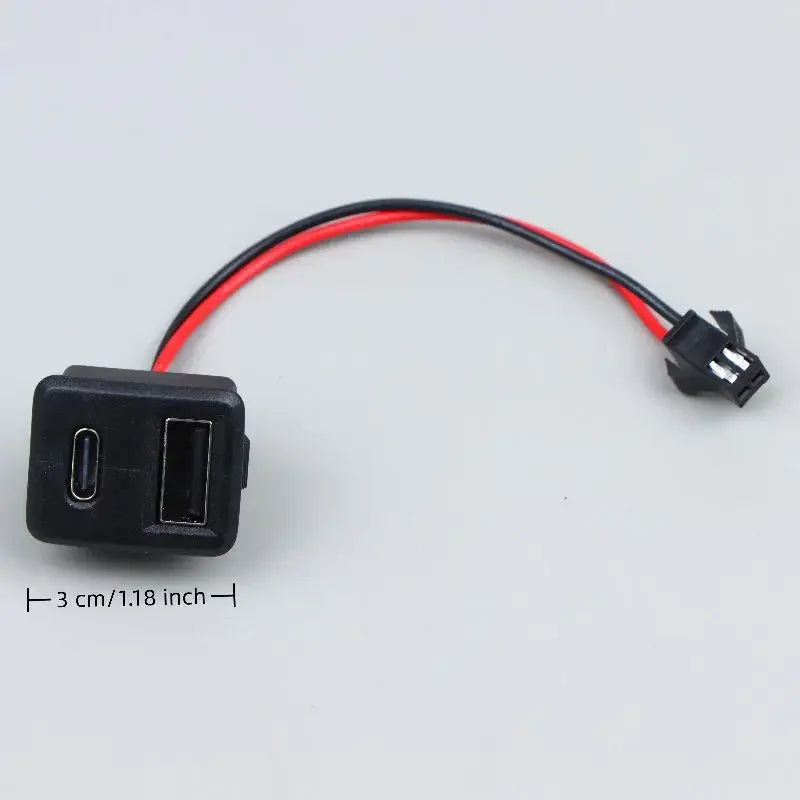

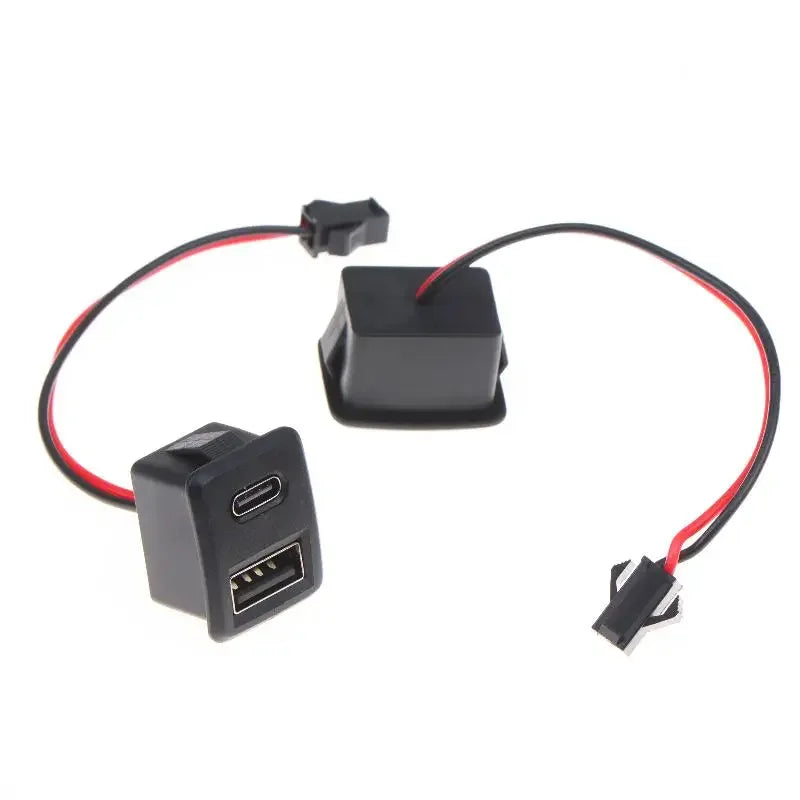

Double Layer USB Type-C Female Socket Connector
Upgrade your DIY electronics projects with this compact, double-layer USB Type-C female socket connector. Designed for hobbyists, engineers, and makers alike, this direct-press wire bonding socket delivers reliable charging and data connections in a space-saving form factor. Available in packs of 1, 2, or 5 to suit any project scale.
Key Features
- Double-Layer Design: Stacks two interface layers in a single footprint, letting you connect more devices or circuits without sacrificing valuable board space.
- Direct-Press Wire Bonding: The solderless direct-press contact method boosts assembly efficiency while maintaining stable, long-lasting electrical connections.
- Compact & Space-Saving: Even with multiple connections, the slim profile keeps your build neat and organized — ideal for tight enclosures and custom PCB layouts.
- Durable Construction: Made from high-quality plastic with robust metal contacts built to withstand extended use, high current demands, and demanding operating conditions.
- Easy Installation: Tool-free, straightforward mounting — simply follow the steps and snap into place, saving you time on every build.
- Low Voltage Rated: EU LVD compliant, rated below 50V AC or 75V DC — suitable for safe, low-voltage electronic applications.
Specifications
| Connector Type | USB Type-C Female Socket |
| Design | Double-Layer Direct-Press Wire Bonding |
| Material | Plastic with metal contacts |
| Voltage Rating | Below 50V AC / 75V DC (EU LVD) |
| Battery Included | No |
| Wireless | No |
| Package Options | 1 pc / 2 pcs / 5 pcs |
| Country of Origin | Made in Mainland China |
What's in the Box
1, 2, or 5 × Double Layer USB Type-C Female Socket Connector (depending on variant selected)
Note: Due to varying monitor settings and lighting conditions, actual color may differ slightly from product images. Please allow 1–3 cm deviation due to manual measurement.
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the double-layer design on this USB Type-C female socket?
A: The double-layer design stacks two rows of interfaces in the same compact footprint as a single-layer socket. This allows you to connect more circuits or devices simultaneously without using additional board space — perfect for dense or miniaturized electronics builds.
Q: Is this USB Type-C female socket suitable for charging applications?
A: Yes. This socket is rated for low-voltage use (below 50V AC / 75V DC) and is well-suited for DIY USB charging circuits, power supply boards, and lamp charging modules within that voltage range.
Q: Does this connector require soldering for installation?
A: The direct-press wire bonding design is intended to simplify installation. No complicated tools or soldering processes are required — connections are secured via direct-press contact, making it beginner-friendly and efficient for prototyping or production builds.
