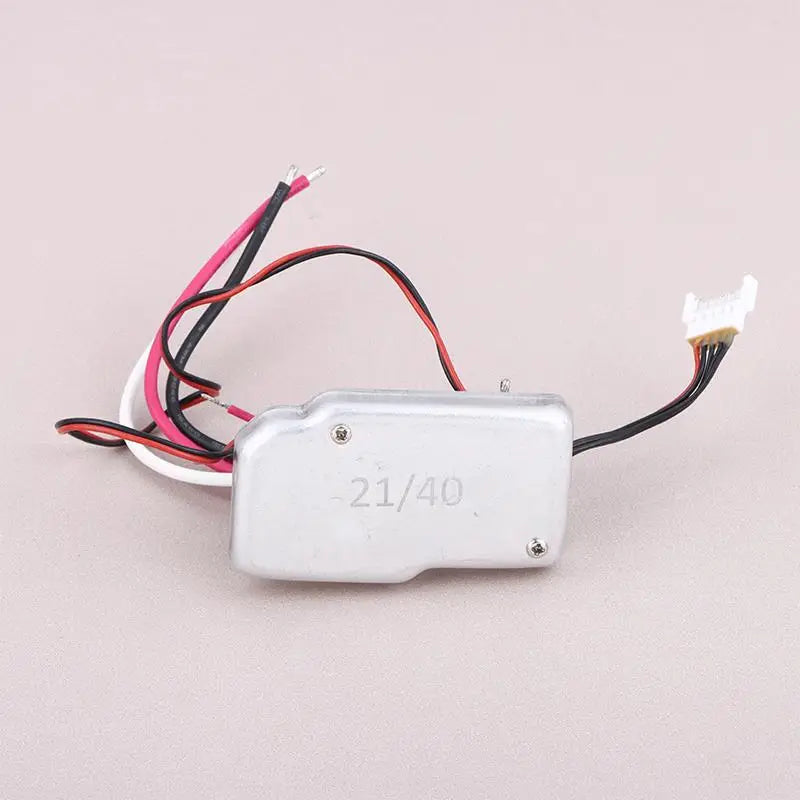

Brushless Motor Drive Board 15–22V 300W with Hall Sensor
Upgrade or repair your cordless power tools with this compact, high-performance brushless motor driver board. Designed for 15V–22V operation (ideal for 18V and 20V tool platforms), this 300W drive board features integrated Hall sensor support for precise motor commutation and smooth forward and reverse direction control — making it a perfect drop-in solution for DIY repairs, custom builds, and electronics projects.
Key Features
- Wide Voltage Range: Compatible with 15V–22V power sources, covering standard 18V and 20V cordless tool batteries
- 300W Power Rating: Handles demanding brushless motor applications in power tools and DIY equipment
- Hall Sensor Support: Ensures accurate rotor position detection for smooth, efficient motor operation

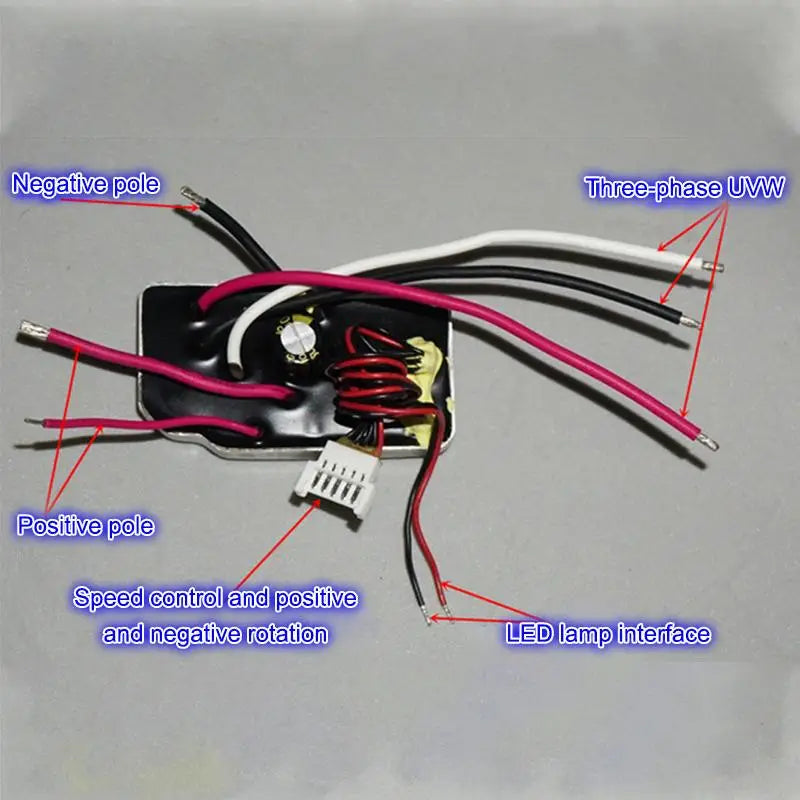

- Forward & Reverse Control: Built-in bidirectional operation for versatile tool functionality

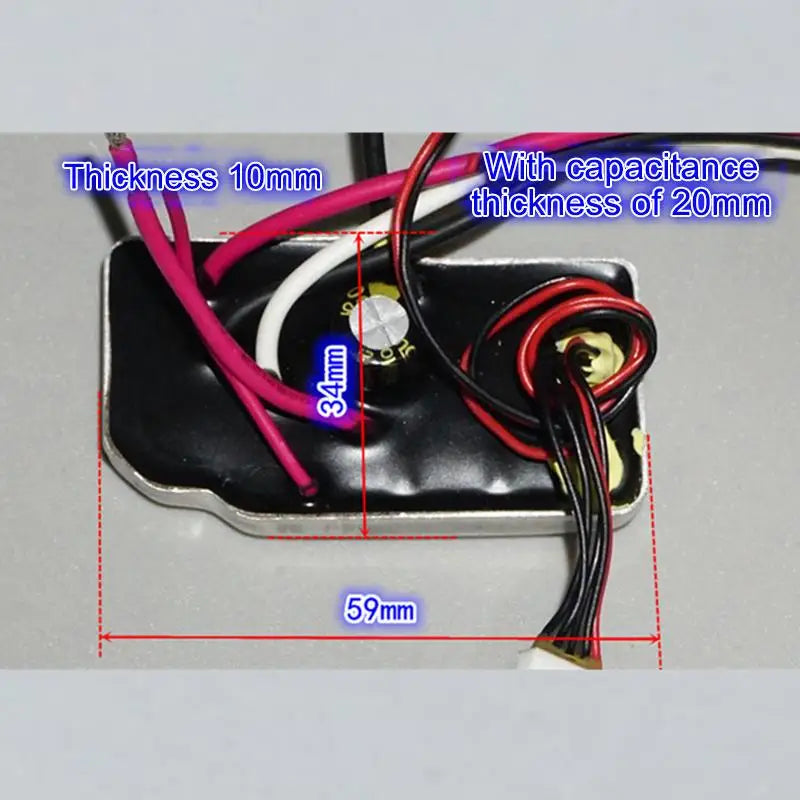

- Compact Form Factor: Measures just 59 × 34 mm (approx. 2.32 × 1.33 in), fitting easily into tight tool housings
- Durable Construction: Made from a combination of plastic and metal components for reliable performance
Specifications
- Operating Voltage: 15V – 22V (18V / 20V compatible)
- Power: 300W
- Sensor Type: Hall sensor
- Dimensions: 59 × 34 mm / 2.32 × 1.33 in
- Material: Plastic + Metal
- Country of Origin: Made in China
Package Contents
- 1 × Brushless Motor Drive Board
Related Products You May Need
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- PU Leather Welding Sleeves – Heat Resistant Arm Guards 1 Pair
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of tools is this brushless motor drive board compatible with?
A: This brushless motor driver board is compatible with most 18V and 20V cordless power tools — including drills, screwdrivers, and grinders — that use Hall sensor-equipped brushless motors. It supports any tool running within the 15V–22V operating range.
Q: Does this drive board support both forward and reverse motor operation?
A: Yes. The board is specifically designed to enable free forward and reverse operation, making it suitable for power tools and custom motor control projects that require bidirectional rotation.
Q: Is this board suitable for DIY electronics and custom builds?
A: Absolutely. With its compact 59 × 34 mm size and standard Hall sensor interface, this drive board is an excellent choice for DIY electronics projects, tool repairs, and custom brushless motor controller builds requiring 300W of output at 15–22V.
