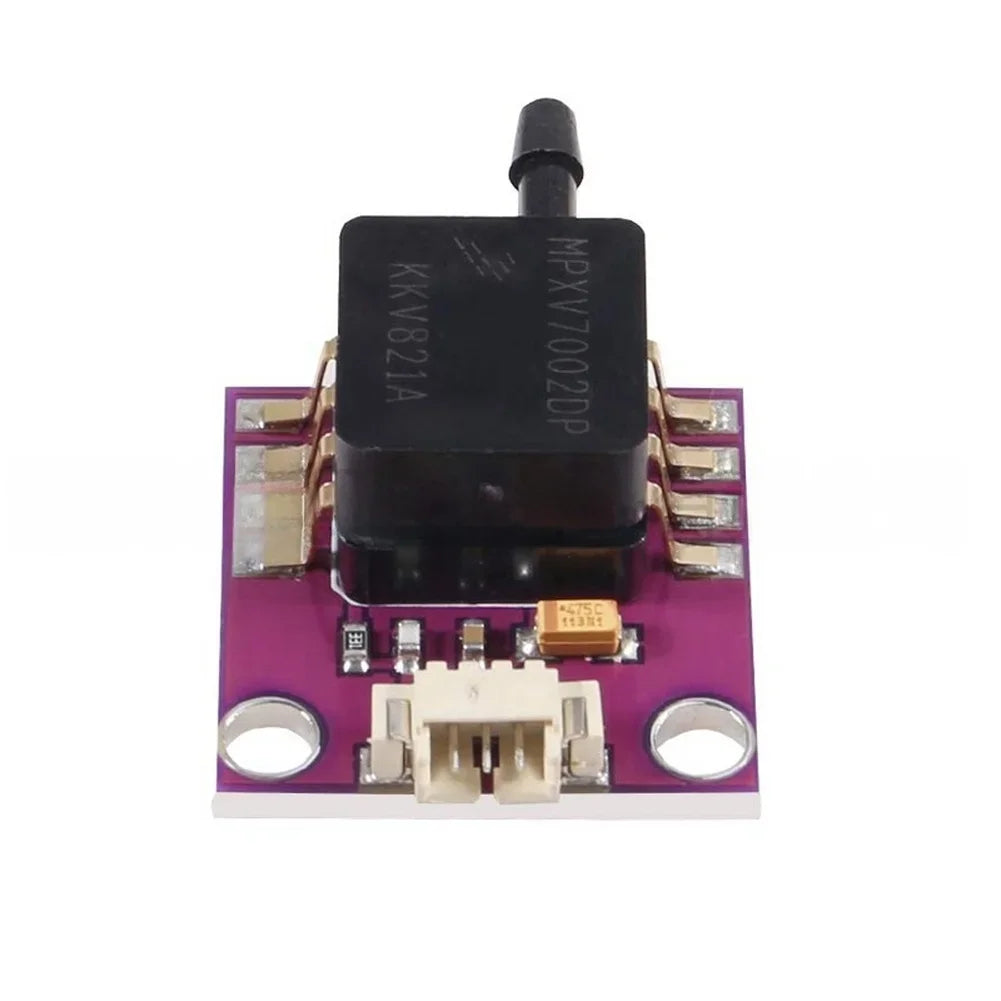

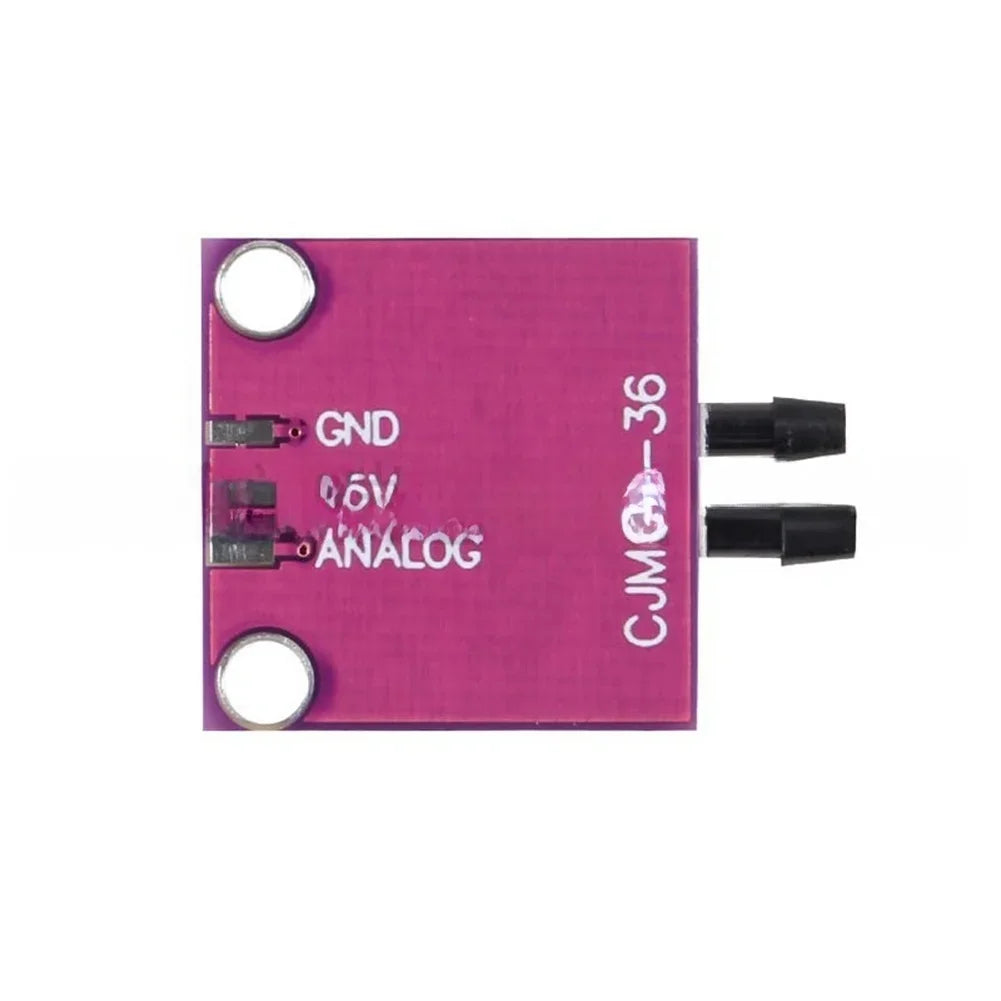

APM2.5 Airspeed Meter MPXV7002DP Differential Pressure Sensor Module
Upgrade your drone, UAV, or embedded electronics project with the APM2.5 MPXV7002DP Differential Pressure Sensor Module. Built around NXP's trusted MPXV7002DP sensor, this compact PCB module delivers precise analog output signals for accurate pressure and vacuum measurement across a ±2 kPa range — ideal for airspeed sensing in flight controllers and a wide range of industrial or hobby electronics applications.
Key Features
- Advanced Microfabrication Technology: Utilizes thin-film metallization and bipolar processing to deliver precise analog output signals directly proportional to applied pressure.
- Wide ±2 kPa Pressure Range: Measures both positive and negative pressures (−2 to +2 kPa / −0.3 to +0.3 psi) for versatile use across multiple environments.
- 2.5V Offset Design: Features a carefully calibrated 2.5V offset voltage (instead of a traditional 0V reference), enabling accurate differential pressure and vacuum sensing through each port.

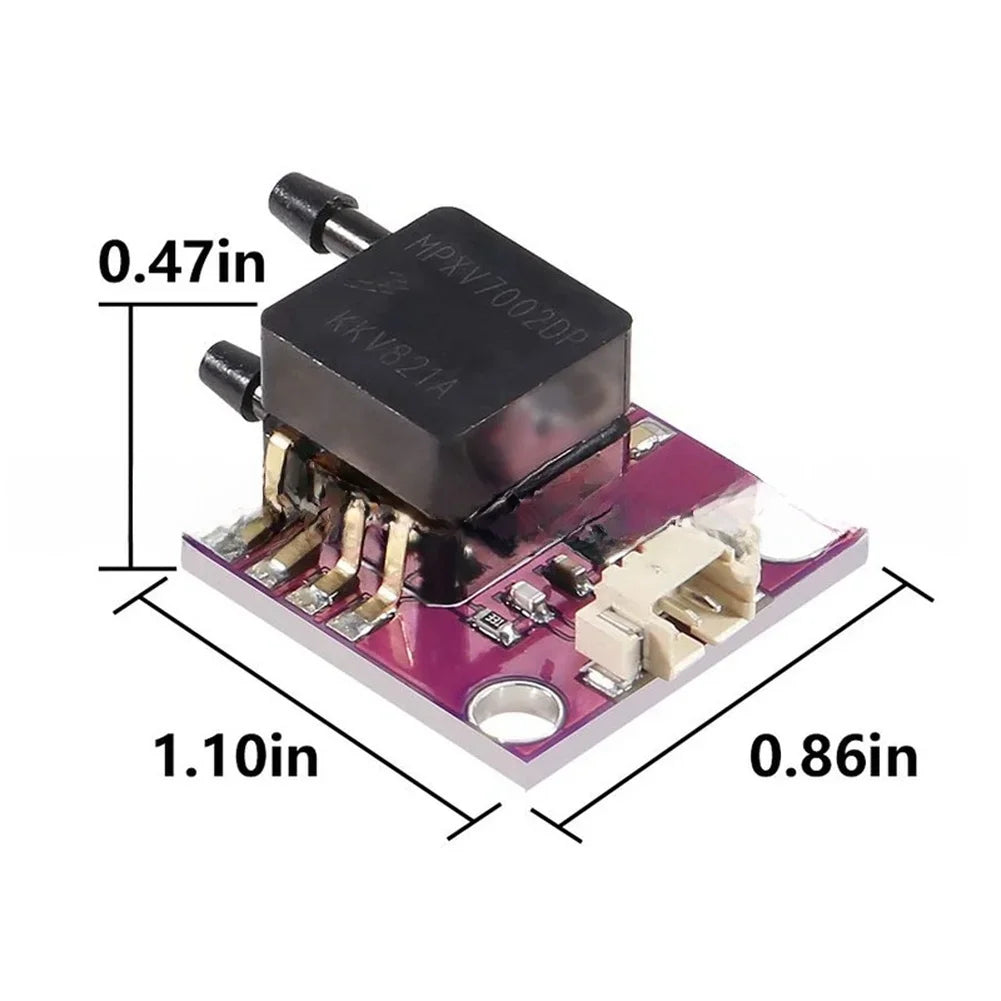

- Compact SOP Package: Small surface-mount form factor integrates easily with microcontrollers and microprocessors without bulky wiring.
- High-Level Analog Output: Provides a clean, reliable 0.5V–4.5V signal output for seamless compatibility with A/D input systems.
Specifications
| Product Name | Differential Pressure Sensor Module |
| Model | MPXV7002DP |
| Compatible With | APM2.5 Flight Controller & similar platforms |
| Material | PCB |
| Color | Purple |
| Pressure Range | −2 to +2 kPa (−0.3 to +0.3 psi) |
| Output Voltage | 0.5V to 4.5V |
| Battery Included | No |
| Country of Origin | Made in Mainland China |
Package Contents

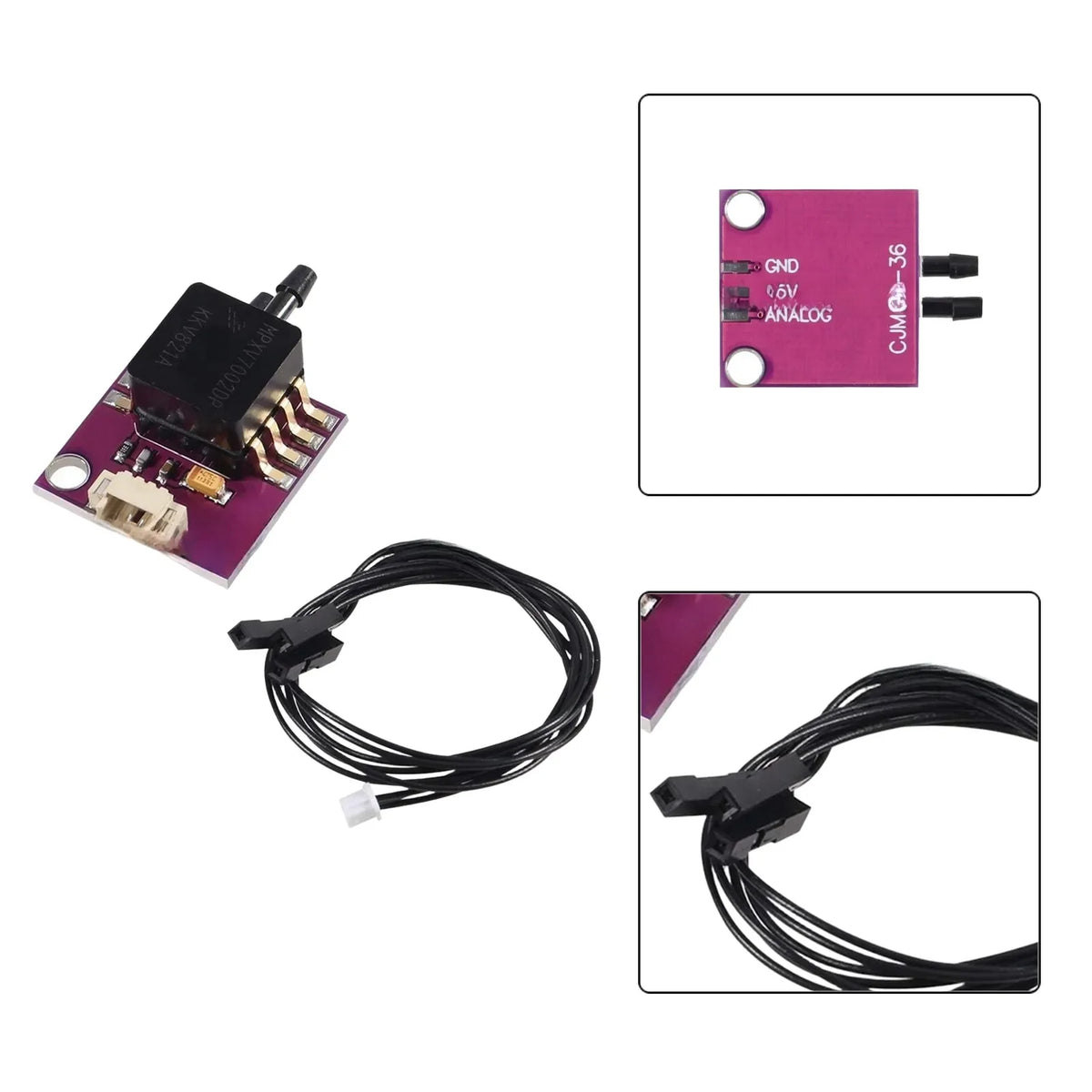

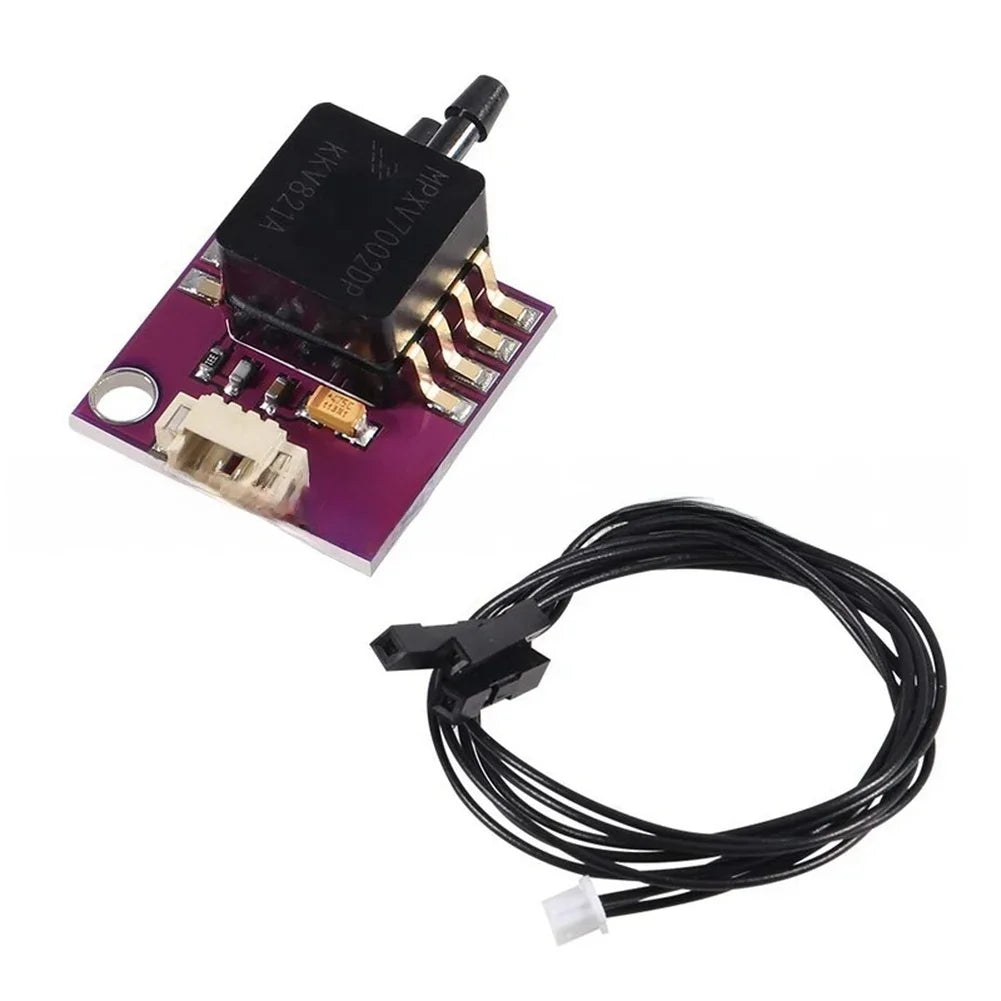

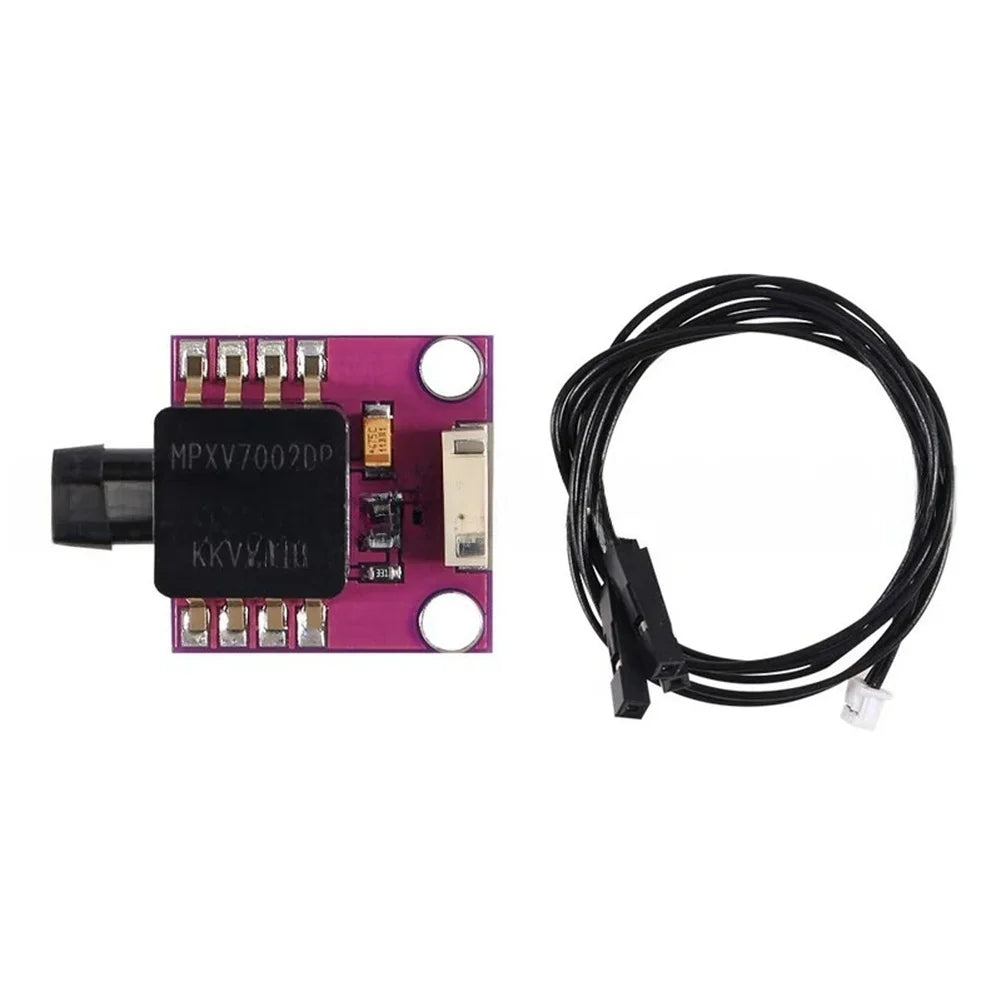

- 1× MPXV7002DP Differential Pressure Sensor Module
Related Products You May Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the MPXV7002DP differential pressure sensor module used for?
A: The MPXV7002DP differential pressure sensor module is primarily used as an airspeed meter in APM2.5 and similar UAV/drone flight controllers. It can also be used in industrial automation, HVAC, robotics, and other embedded electronics projects that require accurate differential pressure or vacuum sensing in the ±2 kPa range.
Q: What output voltage does this pressure sensor module provide?
A: The module provides a high-level analog output voltage ranging from 0.5V to 4.5V, with a 2.5V offset at zero differential pressure. This makes it directly compatible with standard A/D converters on most microcontrollers and microprocessors.
Q: Is this module compatible with the APM2.5 flight controller?
A: Yes, this MPXV7002DP differential pressure sensor module is specifically designed for use with the APM2.5 flight controller platform and is commonly used to measure airspeed in drone and UAV builds.
Q: Does the module require a battery or external power supply?
A: No battery is included or required separately. The module is powered through your microcontroller or flight controller's standard voltage supply.
