PRIMED 1-1/8" Heavy-Duty Aluminum Flange Two-Hole Locating Pin Set
Achieve fast, precise flange alignment with this professional-grade two-hole flange locating pin set from PRIMED. Engineered for pipefitters, welders, and industrial professionals, this 1-1/8" set ensures your pipe flanges line up perfectly — both vertically and horizontally — every single time.
Why Choose This Flange Locating Pin Set?
- Precision Alignment: Designed to align pipes vertically and horizontally to the ground with pinpoint accuracy, eliminating guesswork during installation.
- Premium 6061 Aluminum Construction: Machined from high-quality hardened 6061 aluminum with a black oxide anodized finish for exceptional durability and corrosion resistance.
- Ergonomic Design: Unlike poorly finished competitors, these pins feature smooth, carefully processed edges and an ergonomic profile — quick to insert, easy to remove.
- Individually Inspected: Each pin is quality-checked before packaging, ensuring consistent dimensions and reliable performance job after job.
- Wide Compatibility: Perfect for 150LB ASME flanges ranging from 1/2" to 14" — covering a broad range of industrial and commercial piping applications.
- Lightweight Yet Heavy-Duty: The aluminum build keeps weight low without sacrificing strength, making these pins easy to handle on long shifts.
- Red & Black Color Coding: Large and small pins are color-coded for instant identification on the job site.
Specifications
| Material | 6061 Aluminum, Black Oxide Anodized |
| Color | Red / Black |
| Size – Large Pin | 118 × 40 mm |
| Size – Small Pin | 81 × 28 mm |
| Flange Compatibility | 150LB ASME Flanges, 1/2" – 14" |
| Country of Origin | Made in China |
What's in the Box

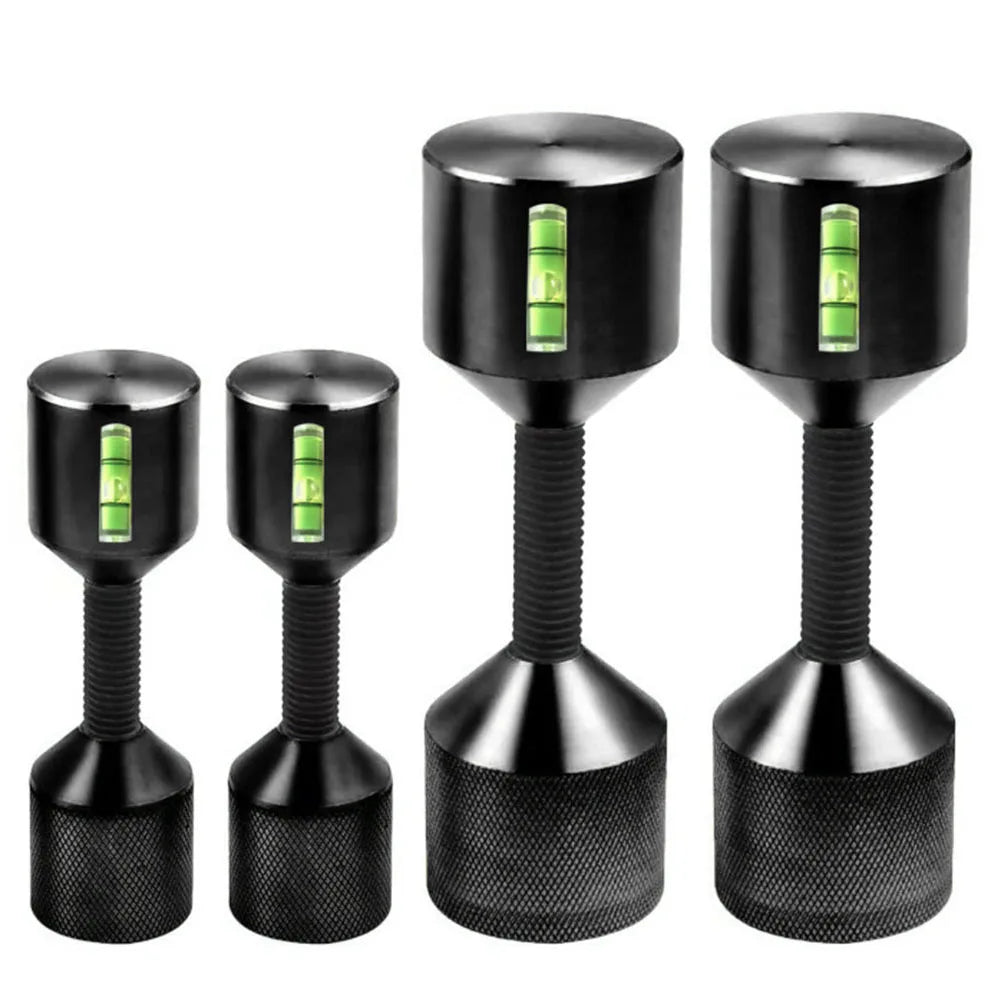

- 2 × Large flange locating pins
- 2 × Small flange locating pins
- Total: 1 complete set of 4 two-hole flange locating pins
