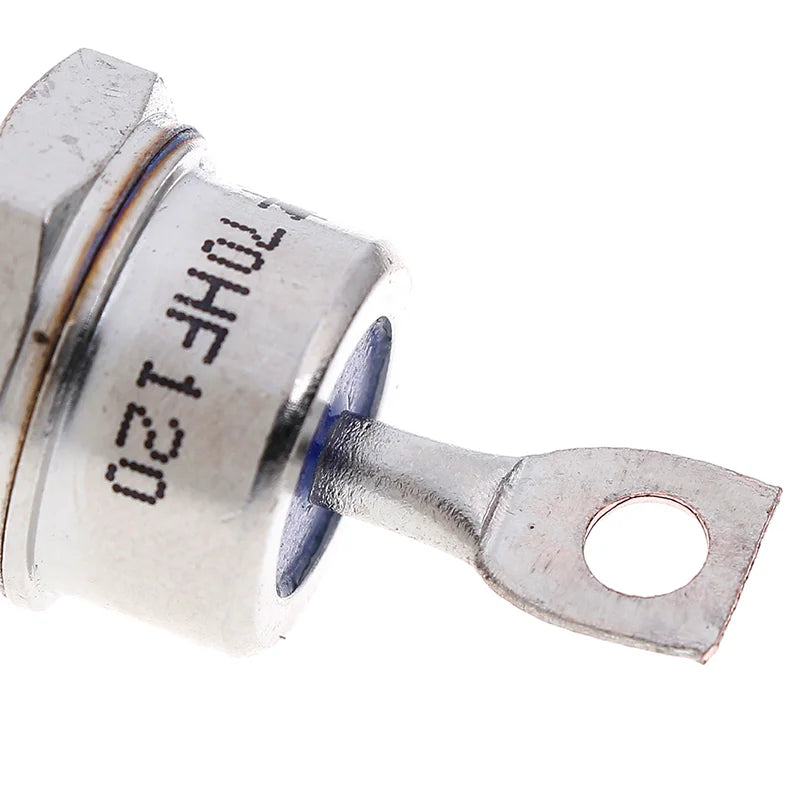

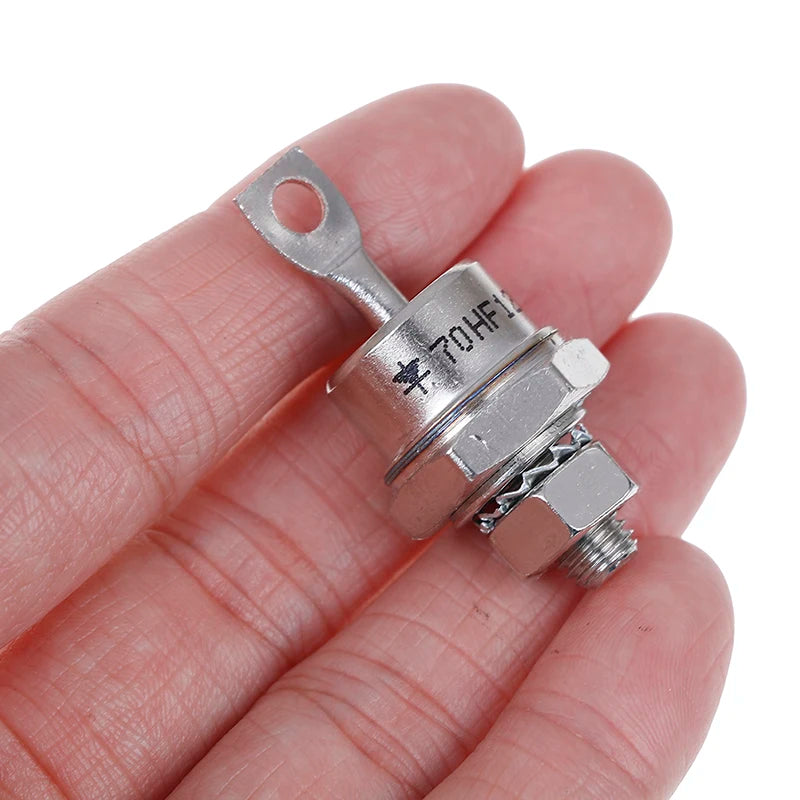

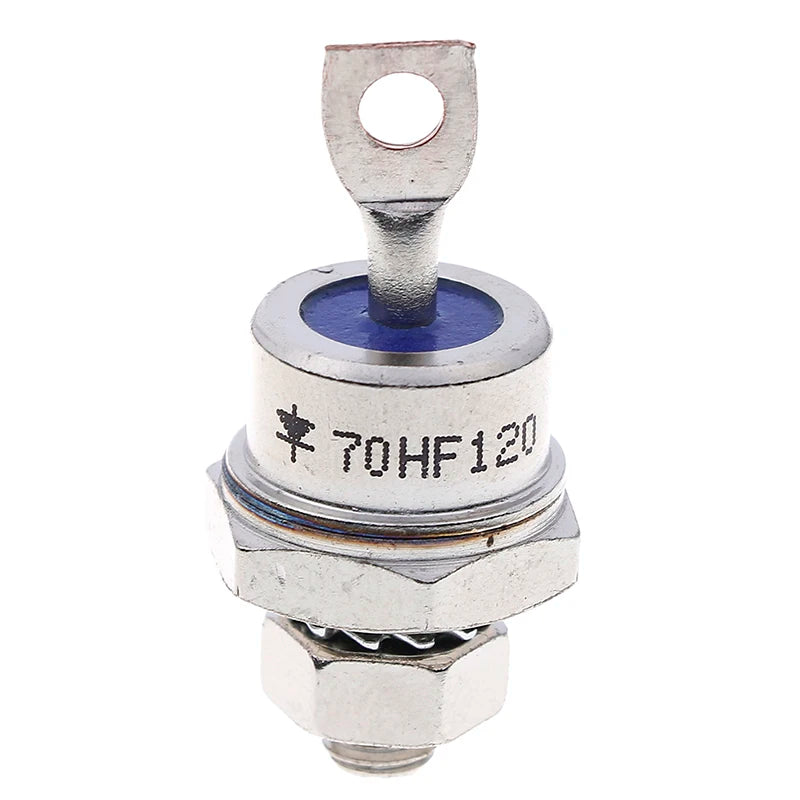

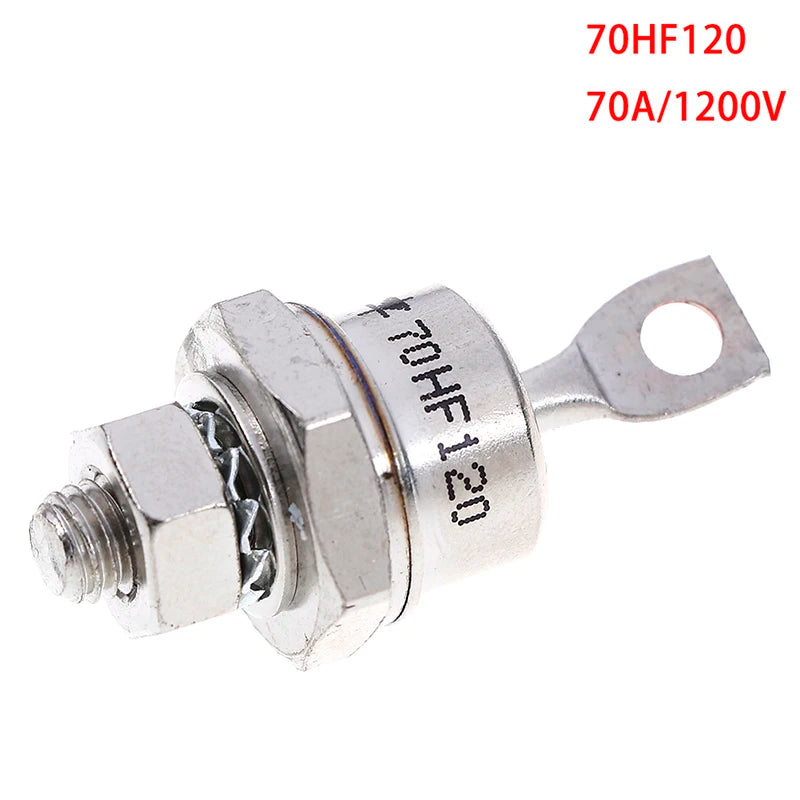

70HF120 High Power Metal Stud Rectifier Diode – 70A / 1200V
The 70HF120 is a heavy-duty, metal stud type rectifier diode engineered for high-power electrical applications. Rated at 70 Amps and 1200 Volts, this component delivers reliable current rectification with high surge capability, making it a go-to choice for power supply units, motor drives, industrial converters, and welding equipment.
100% brand new and manufactured to high quality standards. Whether you're repairing existing equipment or building a new power circuit, this stud-mount diode provides robust, long-lasting performance.
Key Specifications
- Part Number: 70HF120
- Current Rating: 70A (Amperes)
- Voltage Rating: 1200V (Volts)
- Type: Metal Stud Mount Rectifier Diode
- High Surge Capability
- EU LVD: Low Voltage — Below 50Vac or 75Vdc (component-level rating)
- Battery Included: No
- Wireless Functionality: No
What's in the Box

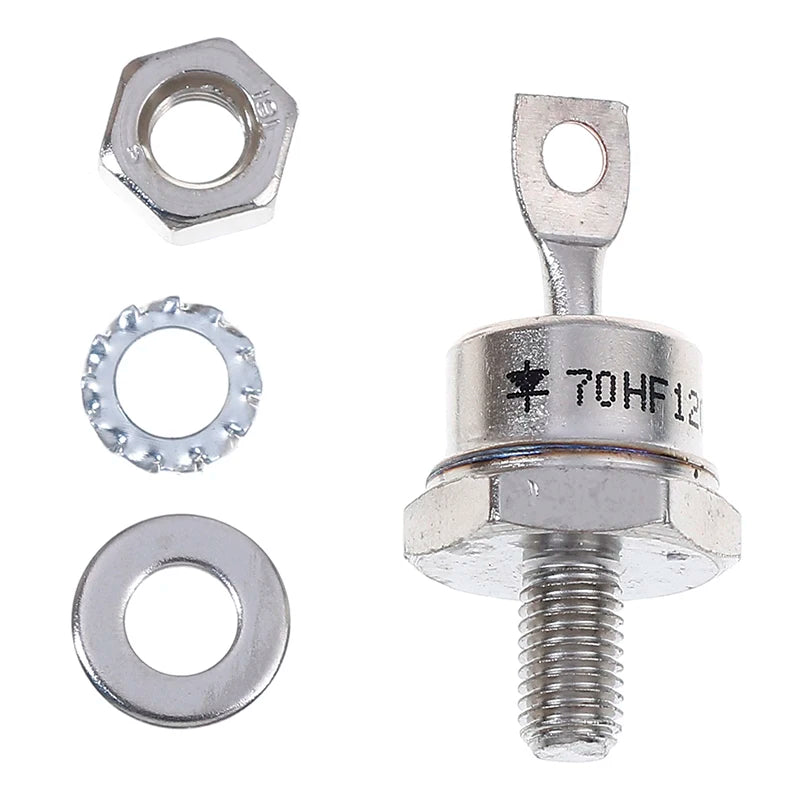

- 1 × 70HF120 70A 1200V High Power Metal Stud Rectifier Diode
Common Applications
- Industrial power supply circuits
- AC-to-DC rectifier bridges
- Motor drive and control systems
- Welding machines and inverters
- Voltage regulator assemblies
- Battery charging systems
Made in Mainland China.
Related Products You May Also Need
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of circuit is the 70HF120 rectifier diode used in?
A: The 70HF120 metal stud rectifier diode is commonly used in high-power AC-to-DC rectification circuits, including industrial power supplies, motor drives, battery chargers, welding inverters, and voltage regulator assemblies. Its 70A / 1200V rating makes it suitable for demanding, high-current applications.
Q: What does the metal stud type design mean for installation?

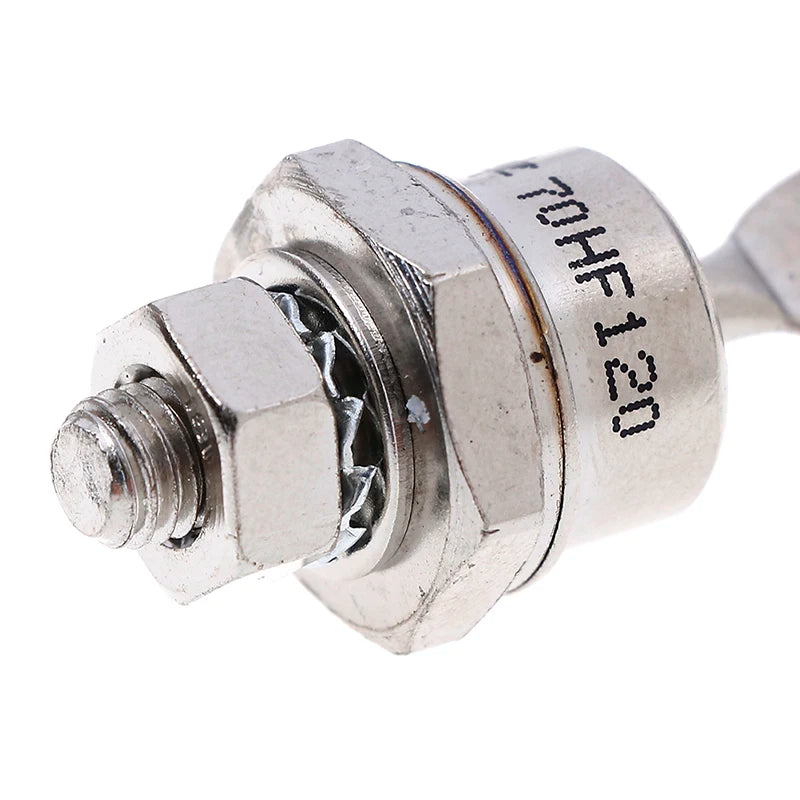

A: The metal stud mount design allows the diode to be bolted directly onto a heatsink or chassis, ensuring efficient thermal dissipation during high-load operation. This mounting style is standard in industrial and high-power electronic assemblies where heat management is critical.
Q: Is this 70HF120 diode brand new or a used/refurbished part?
A: This is a 100% brand new rectifier diode — not used or refurbished. Each unit is manufactured to high quality standards and ships as a fresh component ready for immediate use in your circuit or repair project.
