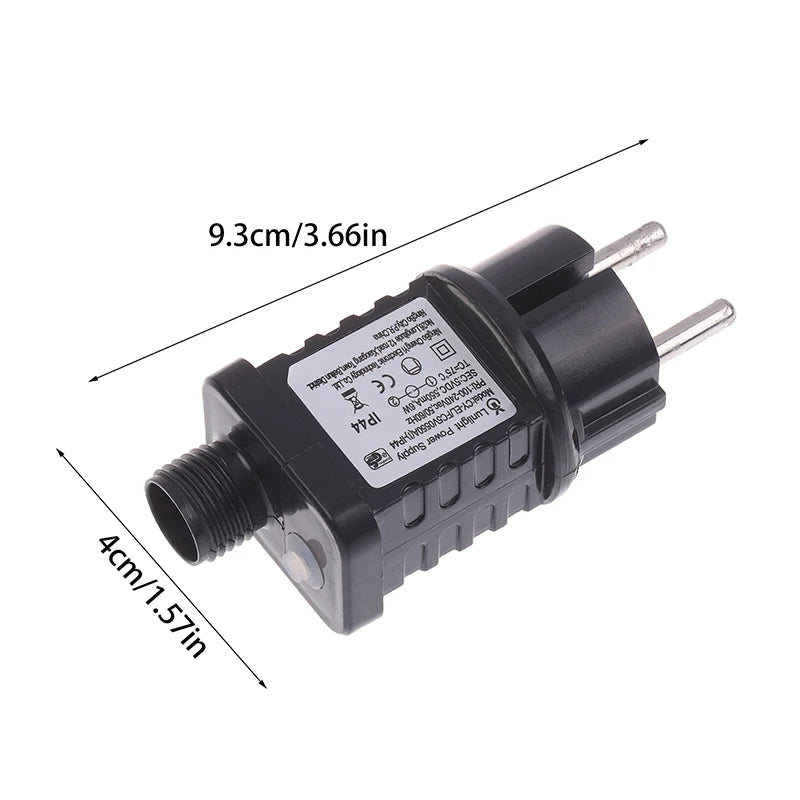

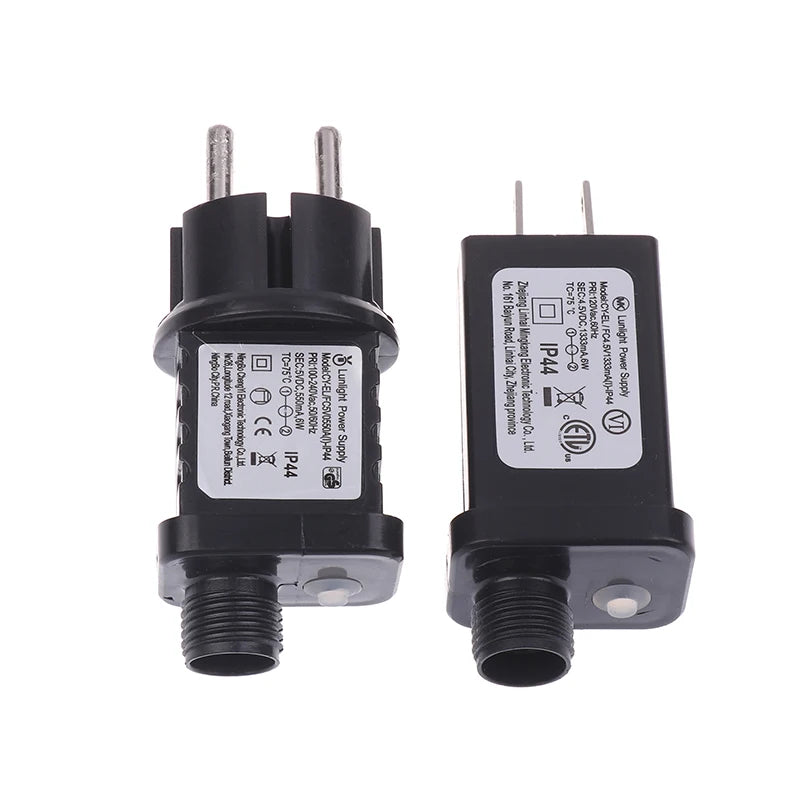

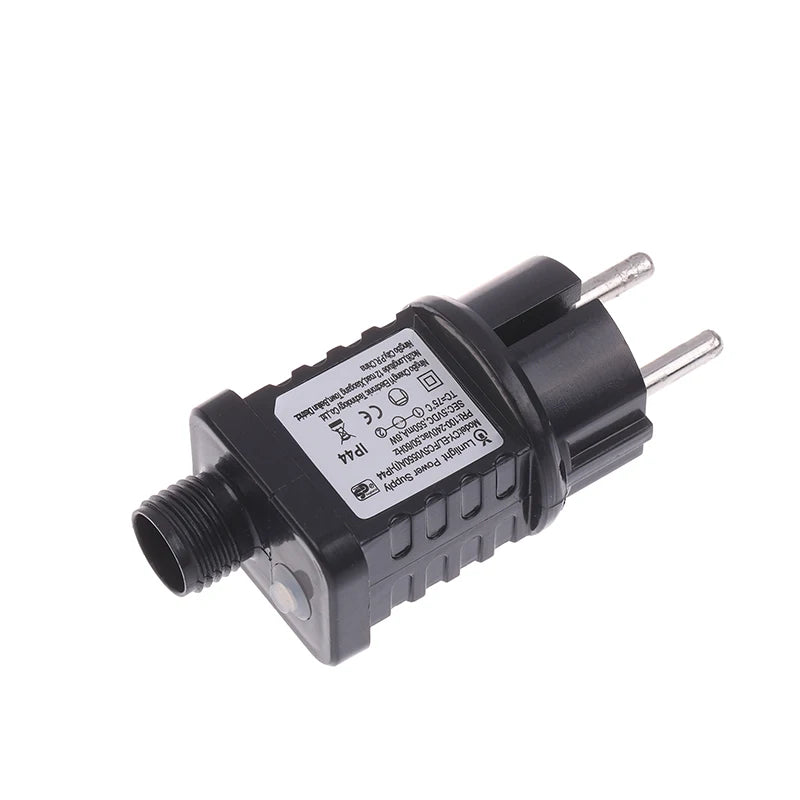

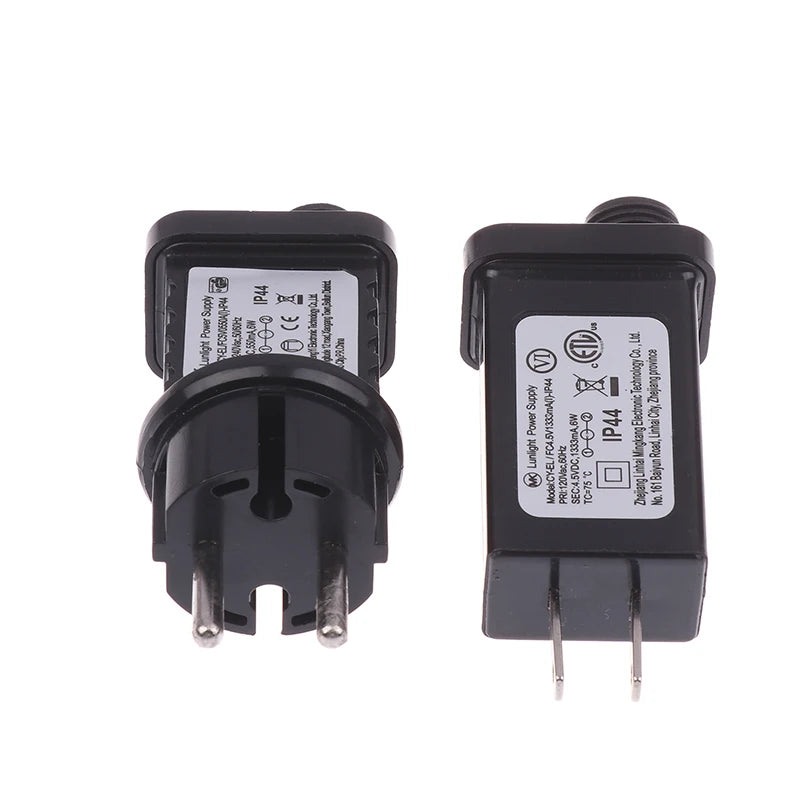

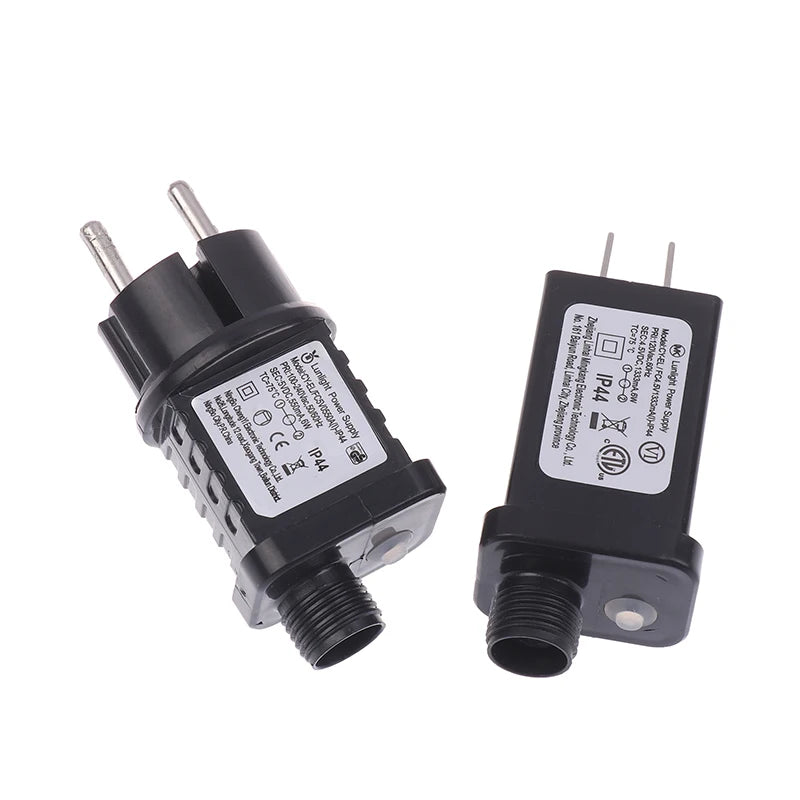

5V DC 6W SELV LED Lamp Driver Switch Adapter – EU/US Plug, IP44 Waterproof
Power your LED light strings with confidence using this compact, 8-function SELV (Safety Extra Low Voltage) LED lamp driver switch adapter. Designed for both EU and US plug types, this Class 2 power supply delivers a stable 5V DC output with a wide AC 100–240V input range — making it compatible with virtually any household outlet worldwide. The IP44 waterproof rating means it can handle indoor and covered outdoor installations with ease.
Key Features
- 8 Lighting Functions: Combination, In Waves, Sequential, SLO-GLO, Chasing Flash, Slow Fade, Twinkle/Flash, and Steady On — giving you full creative control over your light display.
- Wide Voltage Compatibility: AC 100–240V, 50/60Hz input supports use in virtually any country.
- Safe SELV Output: Class 2 power (no GND pin), 5V DC @ 0.193A, 6W — safe and reliable for LED lighting systems.
- IP44 Waterproof Rating: Suitable for covered outdoor environments and splash-resistant installations.
- Energy Efficiency Level VI: Ultra-low no-load power consumption of <0.1W for energy-conscious use.
- Built-In Protections: Short circuit, overload, and overvoltage protection for long-lasting, safe operation.
- 16mm C-Type Female Socket Output: Standard interface compatible with most LED light string connectors.
- Metal Construction: Durable metal base material built to last.
Technical Specifications
| Input Voltage | AC 100–240V, 50/60Hz |
| Output Voltage | DC 5V @ 0.193A, 6W |
| Output Interface | 16mm C-Type Female Socket |
| Waterproof Rating | IP44 |
| Energy Efficiency | Level VI |
| No-Load Consumption | <0.1W |
| Operating Temperature | -20°C to 40°C |
| Ta / Tc | 40°C / 75°C |
| Power Type | Class 2 (No GND Pin) |
| Plug Type | EU / US |
| Material | Metal |
| Country of Origin | Made in Mainland China |

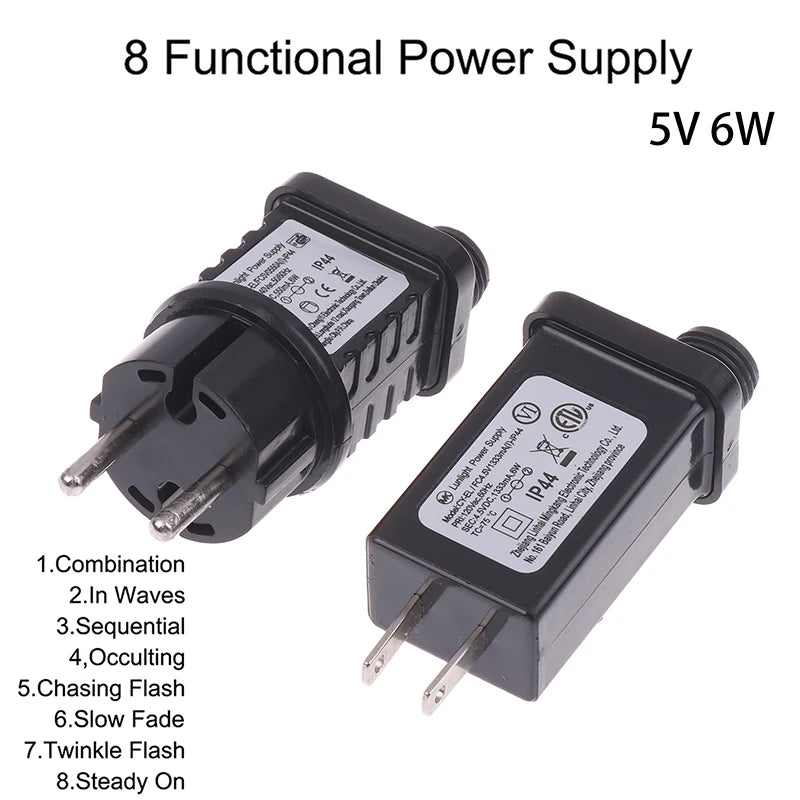

8 Functional Lighting Modes Explained
- Combination: Automatic continuous cycling through all various functions.
- In Waves: Wave mode cycling forward and backward at two speed settings.
- Sequential: Horse-running chase effect with four speed transformations.
- SLO-GLO: Single lamp gradual brightening and dimming in three speeds.
- Chasing Flash: Forward/backward horse-running combined with star flicker.
- Slow Fade: Two lights fading simultaneously in three speed settings.
- Twinkle/Flash: Twinkling stars mode and horse-running mode in automatic alternation.
- Steady On: Fixed, non-flashing constant light output.
Safety Warnings
⚠️ Risk of Electric Shock. Mount the unit at a height greater than 0.3 m from the ground surface. Install only to a covered Class A GFCI receptacle with a weatherproof enclosure whether the attachment plug cap is inserted or removed. Not for use with receptacles that are weatherproof only when covered with the attachment plug cap not inserted.
What's in the Box
- 1 × SELV LED Lamp Driver Switch Adapter (EU or US plug)
Related Products You May Like
- Black Waterproof Inline Cord Switch 3A 250V Double Pole
- B22 to E27 360° Adjustable Gooseneck Bulb Socket Adapter
- G9 Ceramic Lamp Holder Socket – DIY LED Bulb Base Converter
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this LED lamp driver compatible with both EU and US electrical outlets?
A: Yes! This SELV LED lamp driver switch adapter supports both EU and US plug configurations and accepts a wide AC input of 100–240V at 50/60Hz, making it suitable for use in most countries around the world.
Q: What does the IP44 waterproof rating mean for outdoor use?
A: An IP44 rating means the adapter is protected against solid objects larger than 1mm and water splashing from any direction. This makes it suitable for covered outdoor installations, though it should not be submerged or exposed to heavy rain directly.
Q: How do I switch between the 8 lighting modes?
A: The adapter features a built-in switch that cycles through all 8 functional modes — including Combination, Twinkle/Flash, Sequential, Steady On, and more — so you can select your preferred lighting effect with ease.
Q: What type of connector does this adapter use for the LED light string output?
A: The output interface is a standard 16mm C-Type Female Socket, which is compatible with most LED decorative light strings designed for this adapter type.
