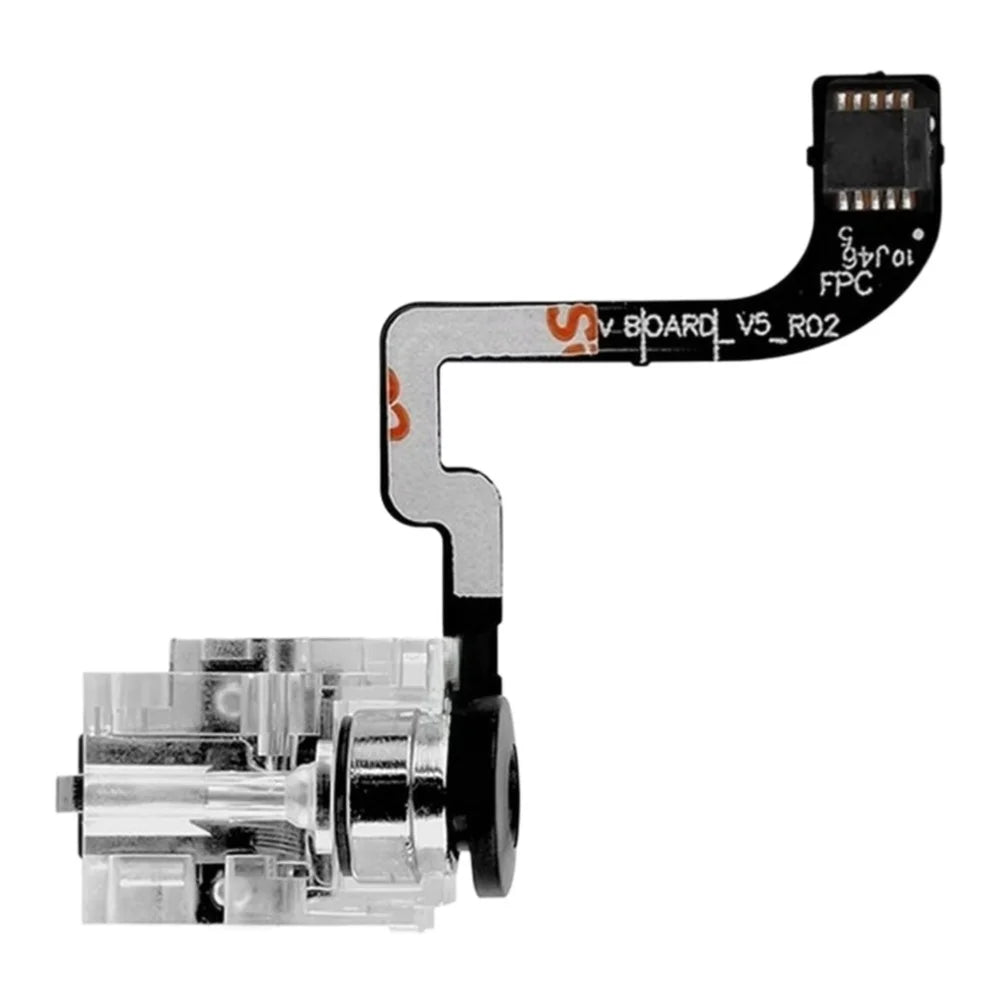

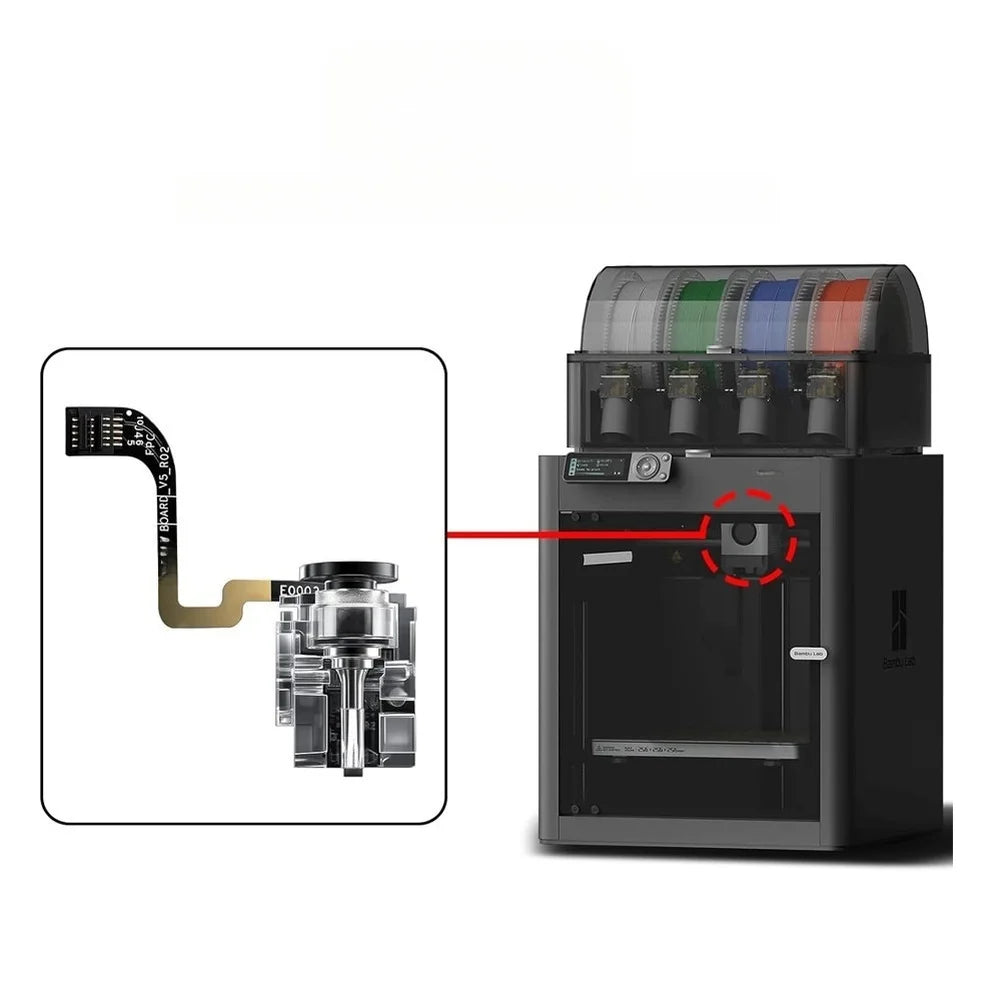

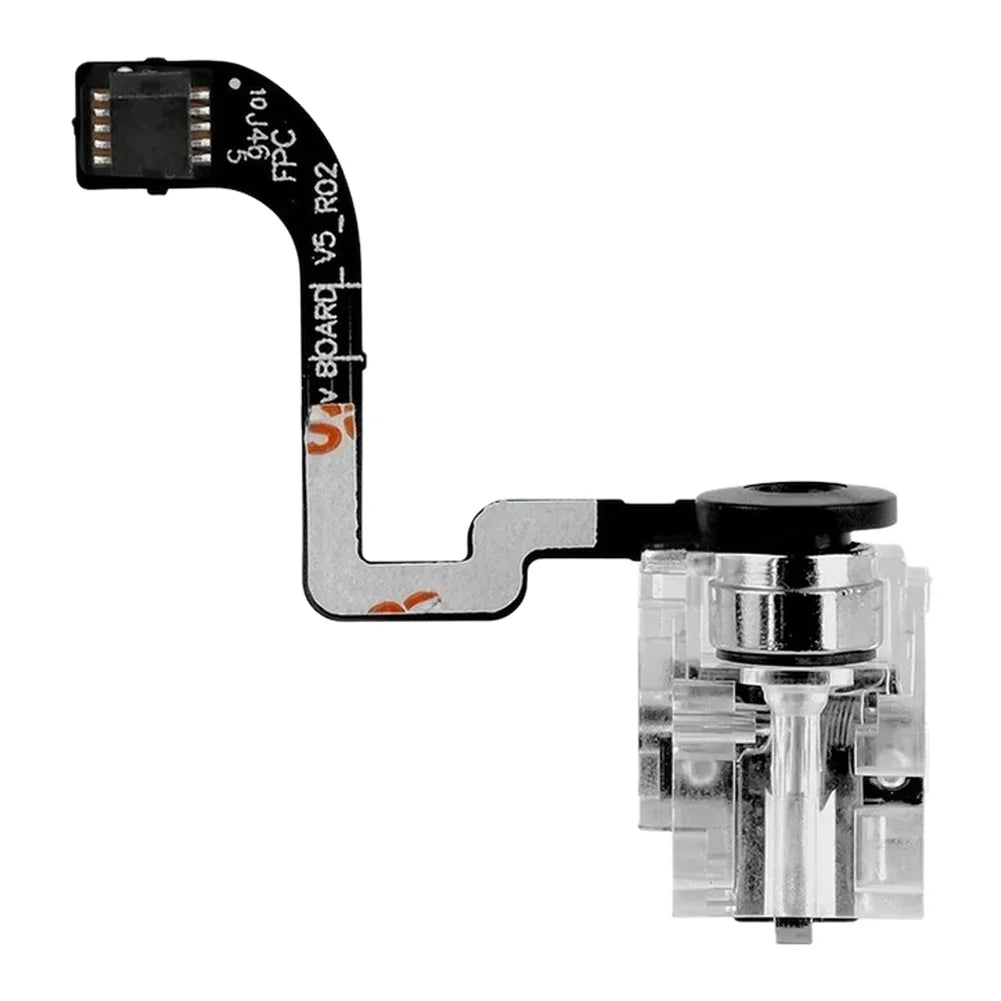

3D Printer Filament Detection Module with Shielded Ribbon Cable & Locking Connector
Keep your 3D prints running smoothly with this precision-engineered Filament Detection Module. Designed for high-frequency printing environments, this accessory accurately monitors filament status and lever position within the extruder assembly — helping you avoid failed prints, wasted material, and unexpected downtime.
Key Features
- Precise Filament Detection: Continuously monitors filament presence and lever position within the extruder assembly to help ensure uninterrupted 3D printing sessions.
- Wear-Resistant Hall Sensor Board: Built with durable components engineered to withstand high-frequency printing cycles while maintaining consistent, reliable switching performance over time.

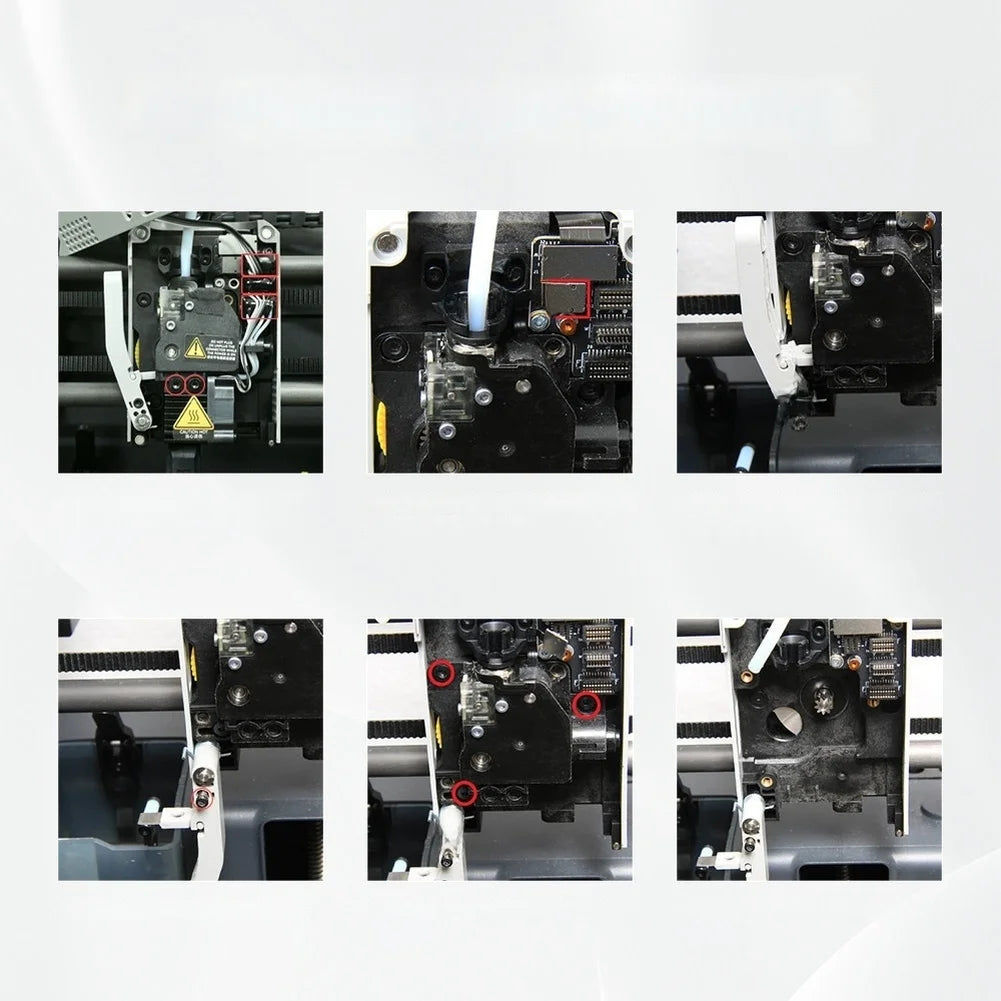

- Tool-Free Installation: Snap-fit pneumatic fittings and pre-aligned mounting holes allow for quick, secure attachment to your extruder housing — no special tools needed.
- Anti-Clog Operation: Provides real-time feedback on material flow to help prevent filament jams, reducing waste and lowering the risk of print failure mid-job.
- Stable Signal Transmission: Utilizes shielded ribbon cables and a secure locking connector design to ensure stable data transmission even during fast, high-speed printing movements.
Specifications
| Part Name | 3D Printer Filament Detection Module |
| Material | ABS Plastic |
| Color | Black |
| Voltage | Low Voltage: Below 50V AC or 75V DC |
| Battery | Not included |
| Wireless | No wireless functionality |
| Country of Origin | Made in Mainland China |
Package Contents
- 1× Filament Detection Module (with shielded ribbon cable and locking connector)
Important Notes
- Actual color may vary slightly from product images due to display brightness and lighting conditions.
- Please allow for slight manual measurement deviations in listed dimensions.
You May Also Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What 3D printers is this filament detection module compatible with?
A: This filament detection module is designed as a universal 3D printer accessory. It features snap-fit pneumatic fittings and pre-aligned mounting holes, making it compatible with a wide range of FDM 3D printers that use standard extruder assemblies. We recommend checking your printer's extruder specifications before purchasing to confirm fitment.
Q: How does the Hall sensor board improve print reliability?
A: The wear-resistant Hall sensor board detects the position of the filament lever within the extruder, providing real-time feedback on material flow. This allows the printer to detect filament runout or jams quickly, helping to pause or stop the print before failure occurs — saving time and material.
Q: Why does this module use a shielded ribbon cable?
A: Shielded ribbon cables reduce electromagnetic interference (EMI) that can occur during high-speed printing movements, ensuring the detection signal remains stable and accurate throughout the print process. The locking connector adds an extra layer of security, preventing accidental disconnection during operation.
Q: Is any wiring or soldering required to install this module?
A: No soldering is required. The module is designed for tool-free installation with snap-fit fittings and a pre-terminated locking connector, making setup straightforward for most users familiar with basic 3D printer maintenance.
