18V Li-ion Battery Protection PCB – BL1830 BL1850 BL1860

18V Li-ion Battery Protection PCB – BL1830 / BL1840 / BL1850 / BL1860

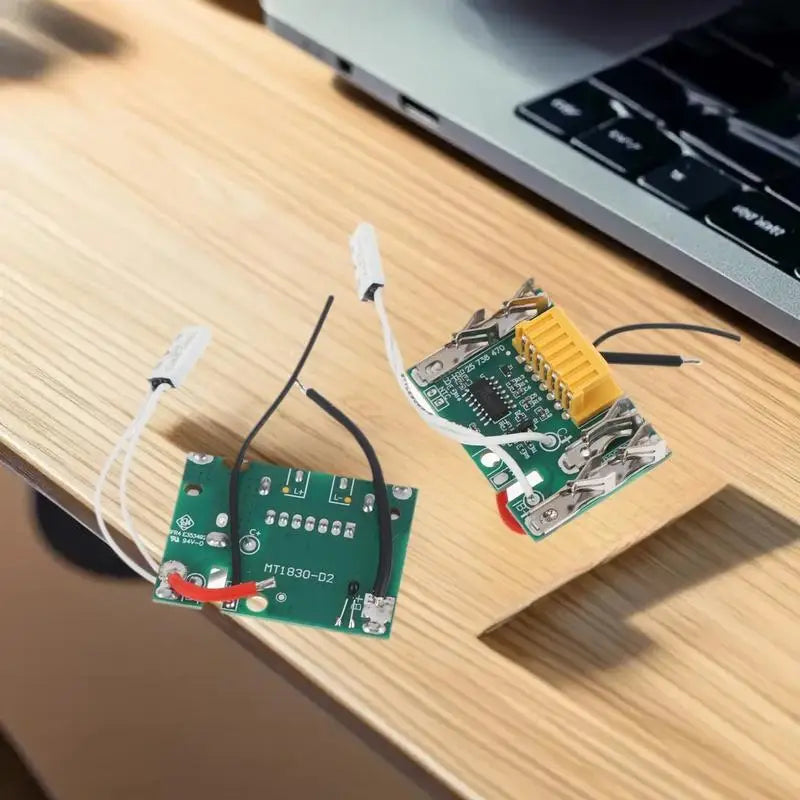

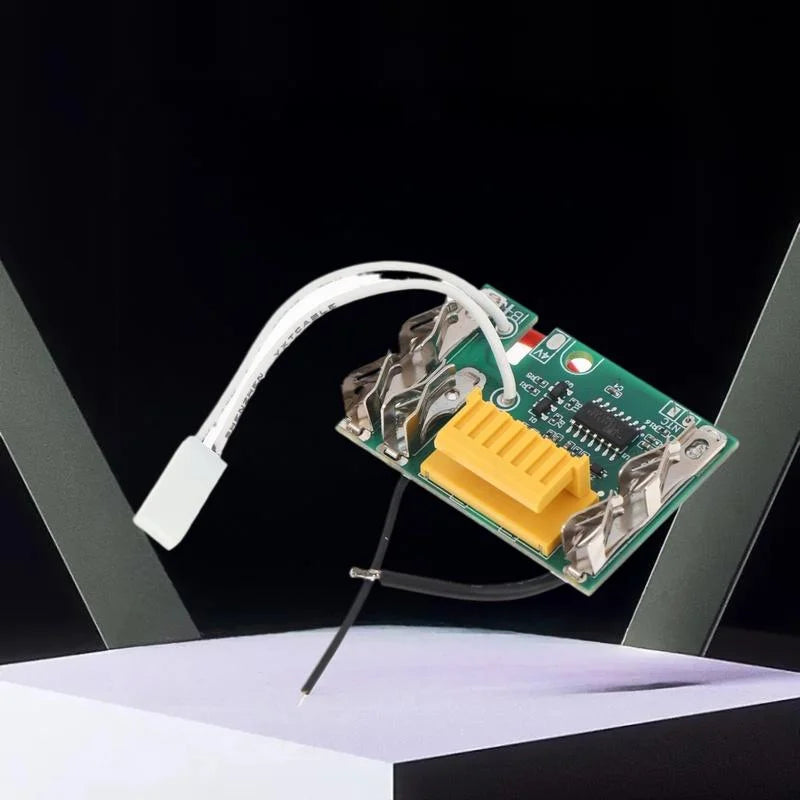

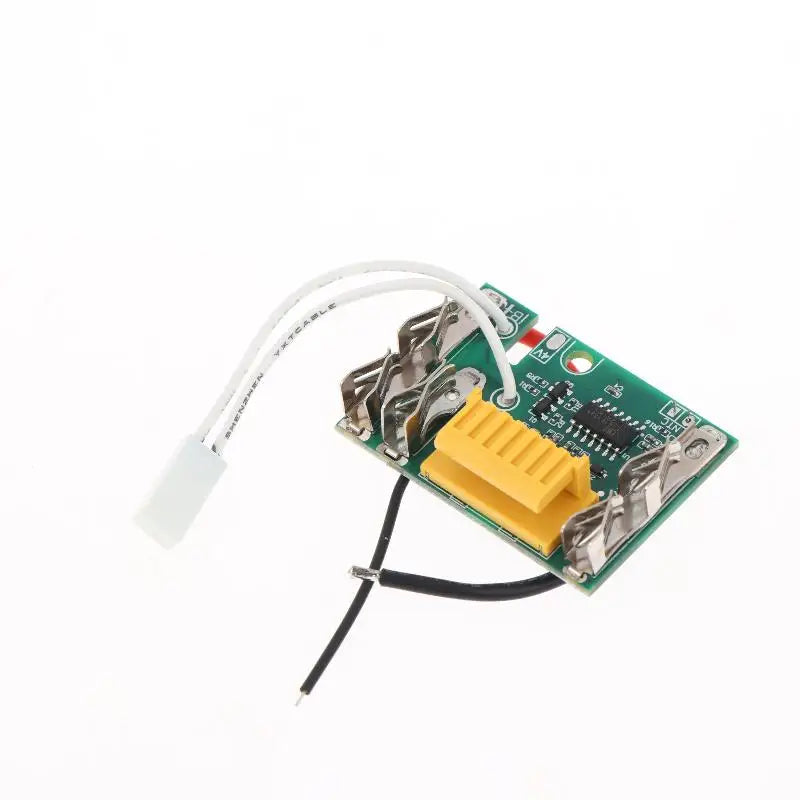

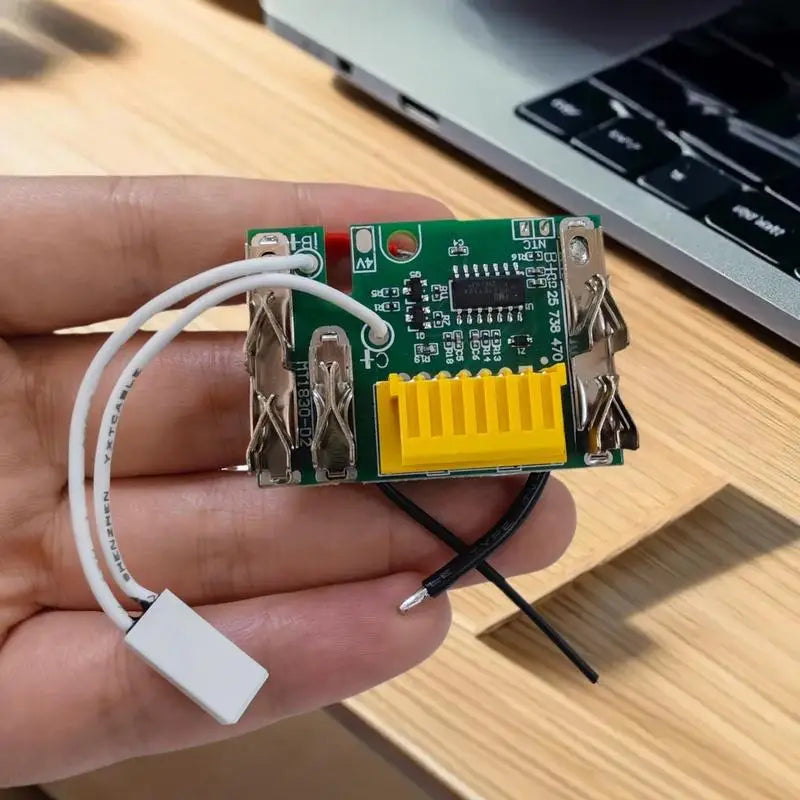

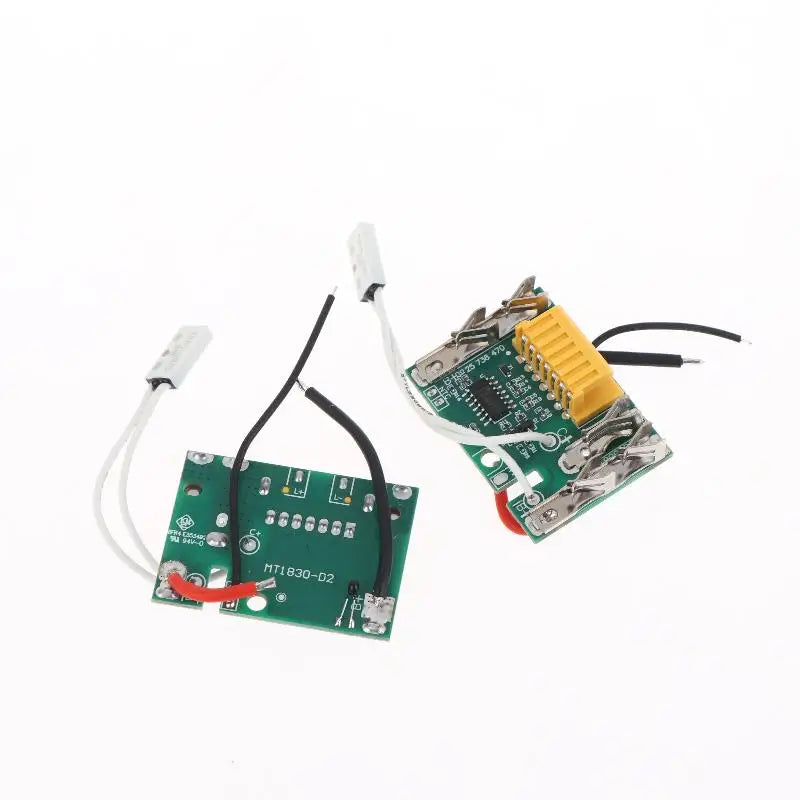

Keep your 18V lithium-ion power tool batteries running safely and efficiently with this dedicated Battery Protection PCB Board. Designed as a direct replacement for Makita BL-series batteries (1.5Ah–9Ah), this compact circuit board integrates overcharge protection, over-discharge protection, and over-temperature safeguards — all in one durable copper-clad laminate (CCL) package.

Why You Need This PCB Board

Li-ion battery cells are sensitive to voltage extremes and heat. Without a proper protection circuit, overcharging or deep-discharging can permanently damage cells — or worse, create a safety hazard. This board monitors every string of your 5S battery pack and automatically cuts the circuit when limits are exceeded, helping extend the usable life of your battery cells.

Key Features

• Wide Compatibility: Fits 18V BL1830, BL1840, BL1850, and BL1860 power tool battery packs (1.5Ah – 9Ah range)
• Overcharge Protection: Triggers at 4.25V per cell with a 2-second detection delay to avoid nuisance trips
• Over-Discharge Protection: Cuts circuit at 14V total pack voltage to protect cell integrity
• Over-Temperature Protection: Activates at 100°C; automatically resets at 85°C
• Maximum Charging Current: Supports up to 12A charging current
• 5-String (5S) Configuration: Matched to standard 18V Li-ion 5-cell series pack architecture
• Durable Build: Made from CCL (copper-clad laminate) for long-lasting, reliable circuit performance

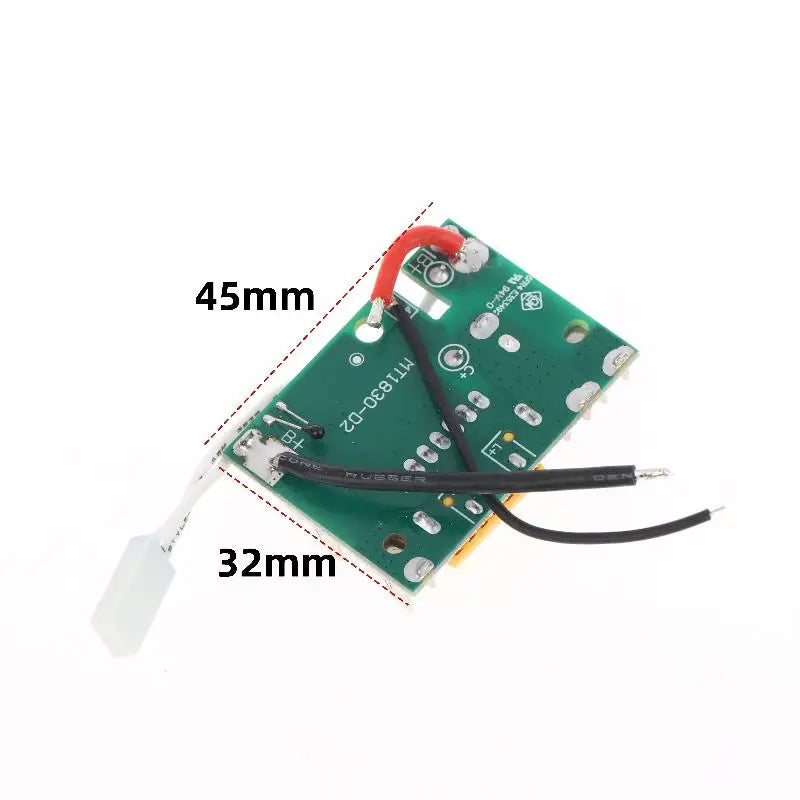

• Compact Size: 45 × 32mm — easy drop-in fit for most BL-series battery housings

Technical Specifications

What's in the Box

• 1 × 18V Li-ion Battery Protection PCB Board

Made in Mainland China.
