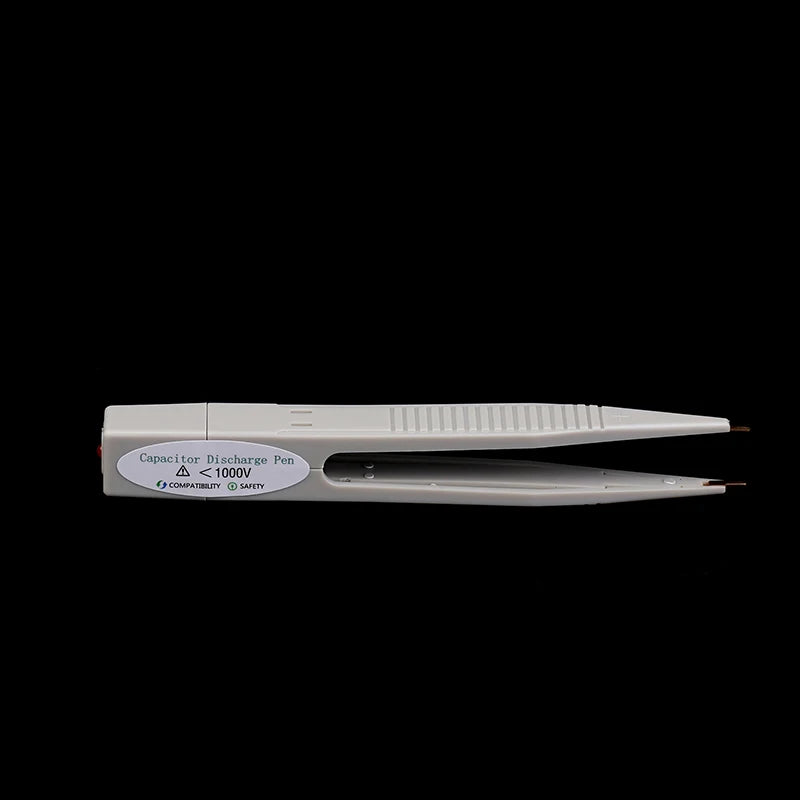

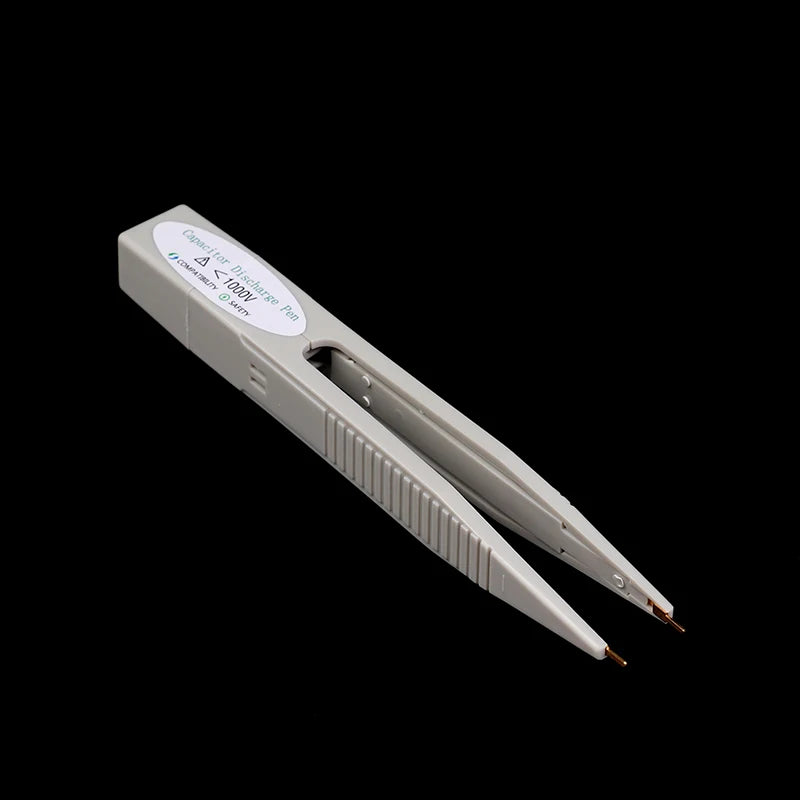

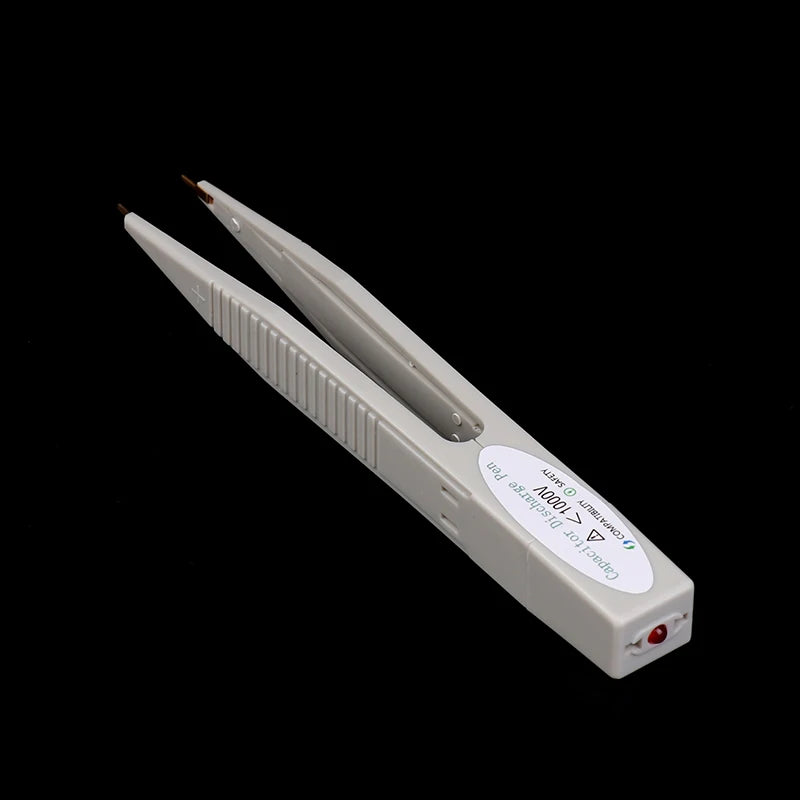

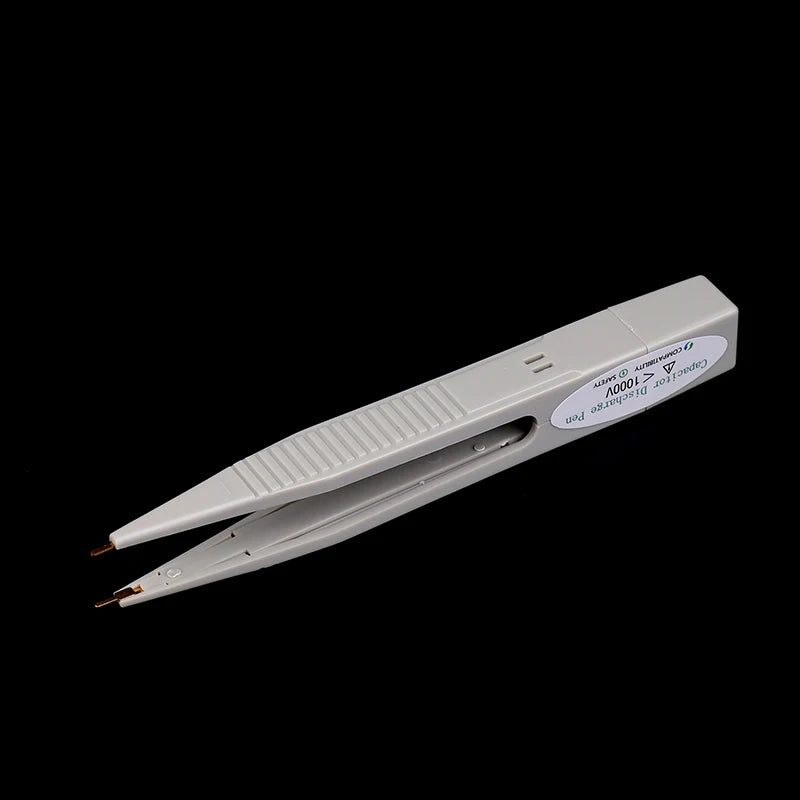

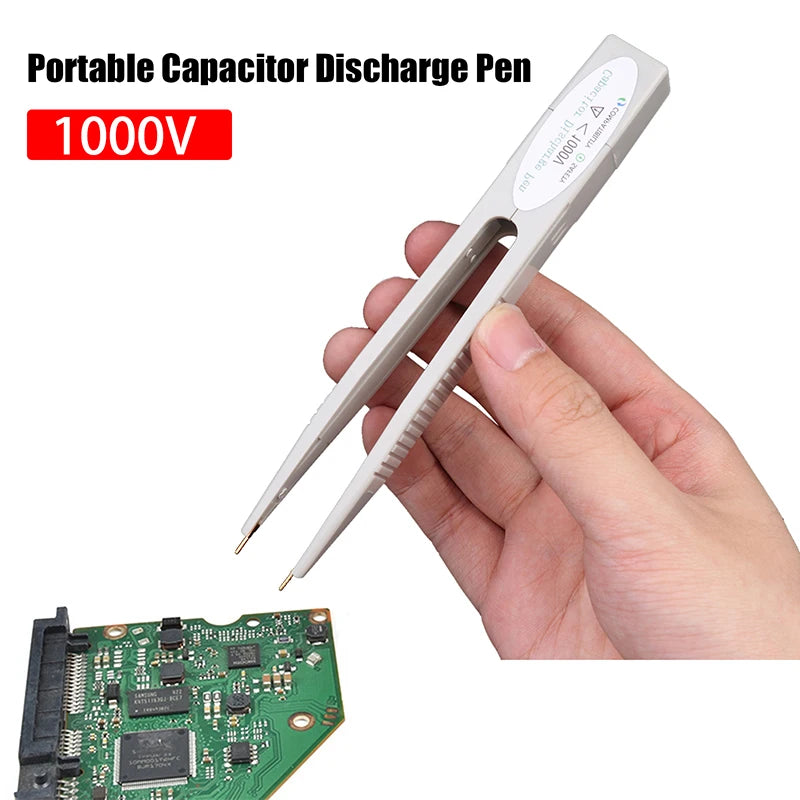

1000V Portable Capacitor Discharge Pen
Work safely on high-voltage circuits with this professional-grade Capacitor Discharge Pen. Engineered for electronics technicians, repair professionals, and DIY enthusiasts, this compact stainless steel tool safely dissipates stored charge from capacitors rated up to 1000V — with zero sparking and fully automatic polarity detection. No more guessing or risky manual discharge methods.
Key Features
- Wide Voltage Range: Safely discharges any capacitor below 1000V, with no limitation by capacitance value.
- Spark-Free Operation: Constant current discharge mode eliminates sparking for a controlled, safe discharge every time.
- Automatic & Intelligent: Polarity-independent design — simply touch the probes to the capacitor leads regardless of positive or negative orientation.
- Low Termination Voltage: Discharges capacitors down to under 2V, ensuring full and thorough dissipation of stored energy.

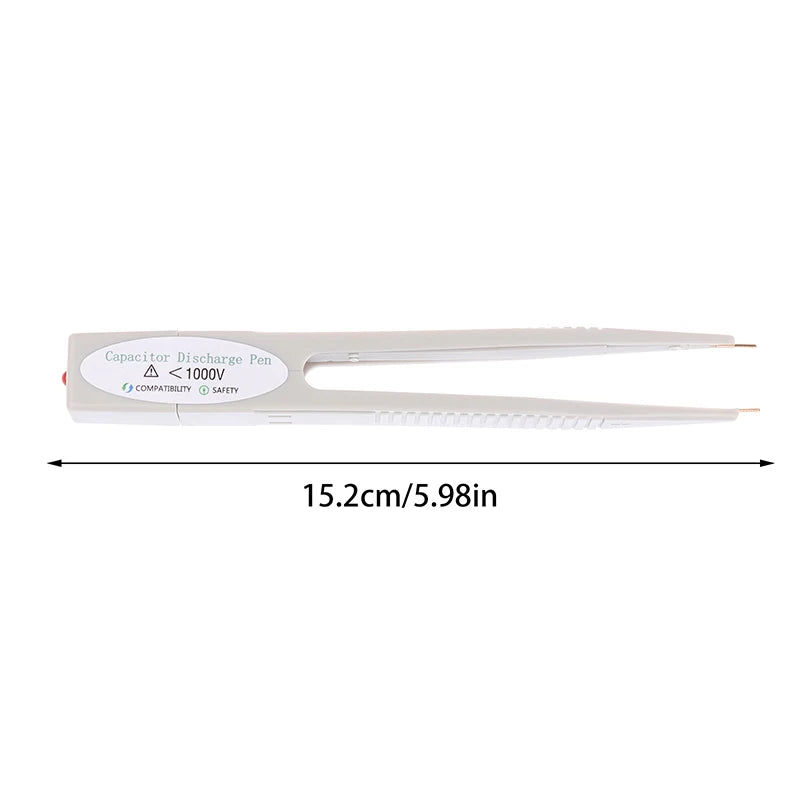

- Compact & Portable: At just 15.2 cm (approx. 5.98 in), this pen fits easily in a tool pouch or technician's kit.
- Durable Stainless Steel Build: Robust construction designed to withstand the demands of regular repair and maintenance work.
Specifications
| Discharge Voltage | Up to 1000V |
| Termination Voltage | < 2V |
| Discharge Mode | Constant current, automatic, polarity-independent, spark-free |
| Material | Stainless Steel |
| Length | ~15.2 cm / 5.98 in |
| Package Contents | 1 × Discharge Pen |
Who Is This For?
This discharge pen is ideal for anyone working on AC/DC power supplies, inverters, motor drives, microwave ovens, air conditioning units, CRT displays, and any other equipment containing high-voltage capacitors. It's an essential safety tool for electronics repair shops and home workshops alike.
Made in Mainland China.
Related Tools You May Like
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- 3-Jaw Keyless Ratchet Drill Chuck 0.8–10mm Self-Locking
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of capacitors can this discharge pen be used on?
A: This capacitor discharge pen can be used on any capacitor rated below 1000V, with no restriction on capacitance value. This includes electrolytic capacitors, film capacitors, and high-voltage capacitors found in power supplies, inverters, microwaves, air conditioners, and more.
Q: Do I need to worry about polarity when using this discharge pen?
A: No — the tool features an automatic, polarity-independent discharge mode. You can touch the probes to the capacitor terminals in any orientation and it will safely discharge without sparking.
Q: How low does it discharge the capacitor voltage?
A: The discharge pen brings the stored voltage down to under 2V, effectively eliminating any hazardous stored charge before you handle the component.
Q: Is this tool suitable for beginners or only professionals?
A: While the tool is designed for electronics repair and should always be used with proper safety awareness, its automatic operation and spark-free design make it straightforward to use for both experienced technicians and informed hobbyists working on high-voltage circuits.
