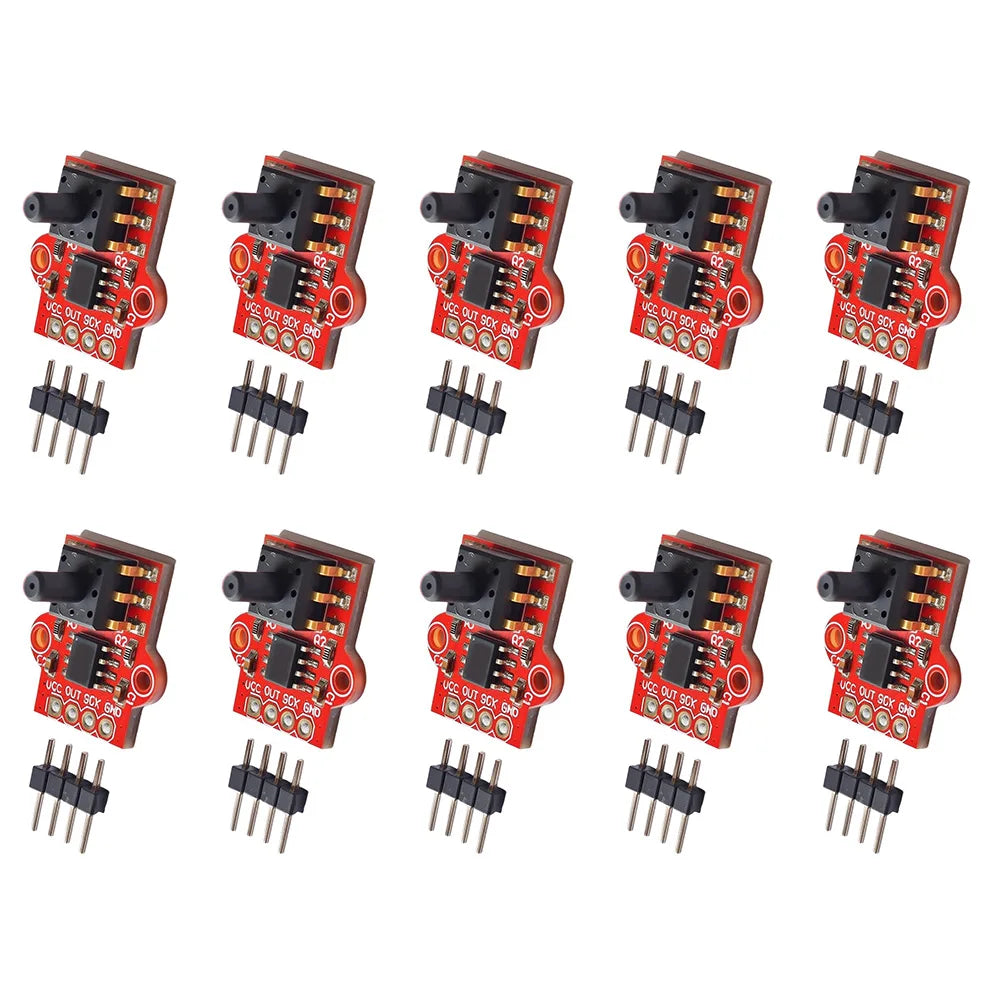

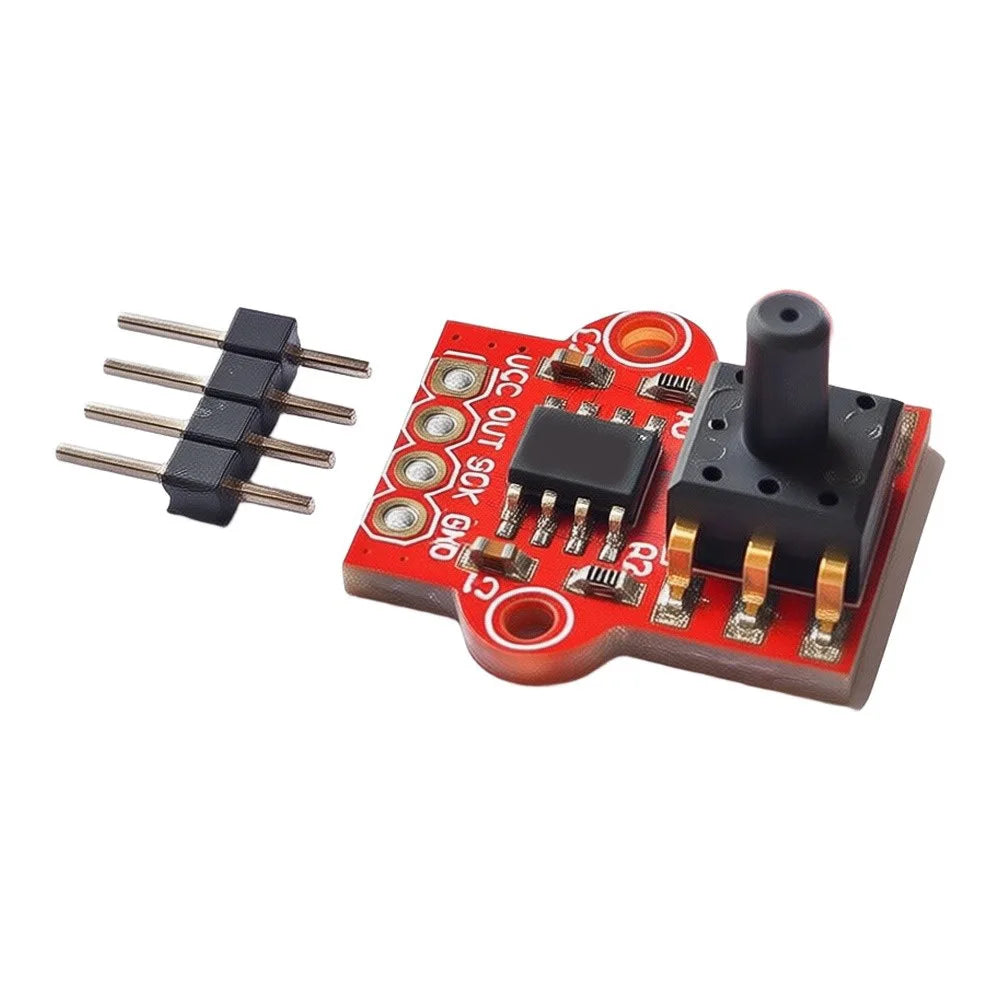

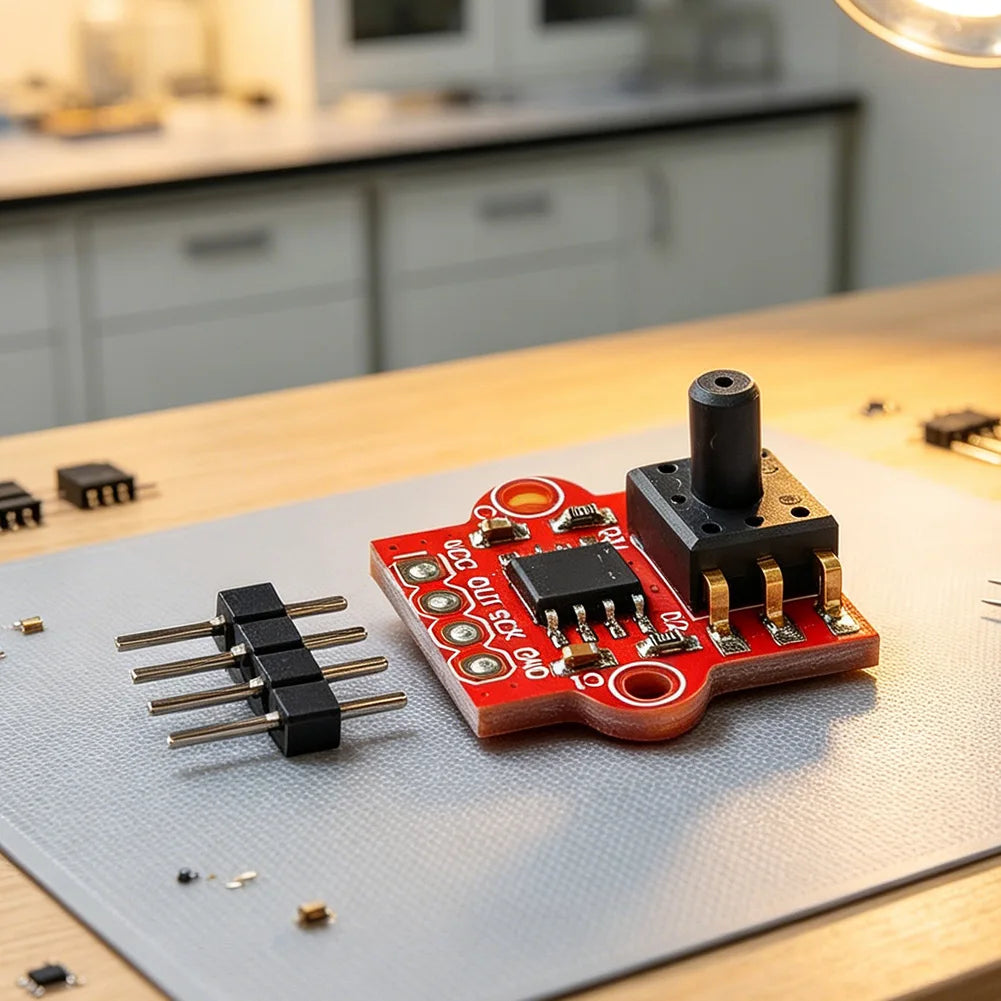

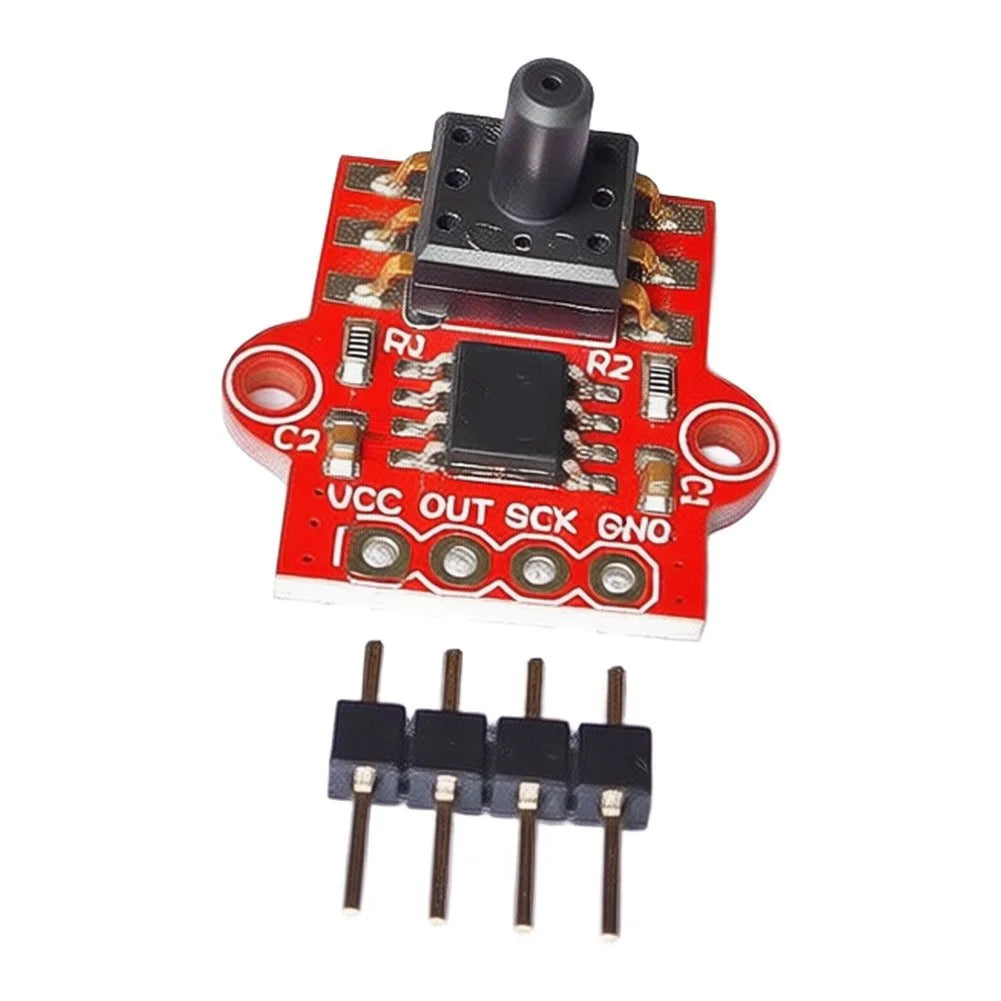

10-Pack Air Pressure & Water Level Sensor Modules – 5K Resistor Bridge with ADC Chip
Get precise, reliable readings for air pressure and water level monitoring with this set of 10 compact sensor modules from HpLive. Each module features a built-in analog-to-digital sampling chip and a 5K resistor bridge, delivering stable, accurate output across a wide range of hobbyist and professional applications. Made in Mainland China.
Key Features
- Accurate Measurement: Reads air pressure and water levels within a 0–40 KPa range using an integrated ADC (analog-to-digital conversion) chip for precise, consistent output.
- Flexible Connectivity: Designed to connect seamlessly with a 2.5mm flexible hose, allowing easy integration into a variety of systems — from automated watering setups to pressure monitoring arrays.
- Wide Power Supply Range: Operates on 3.3V to 5V, making it compatible with Arduino, Raspberry Pi, and most microcontroller platforms right out of the box.
- Compact PCB Design: At just 19×18mm with a 2mm mounting hole, each module fits into tight enclosures and small devices without sacrificing performance.
- Durable 5K Resistor Bridge: The high-quality resistor bridge ensures long-term stability and consistent accuracy across repeated measurements.
- Pack of 10: Stock up for multiple projects, replacements, or large-scale installations — excellent value per unit.
Specifications
| Part Name | Pressure Sensor Module |
| Material | PCB |

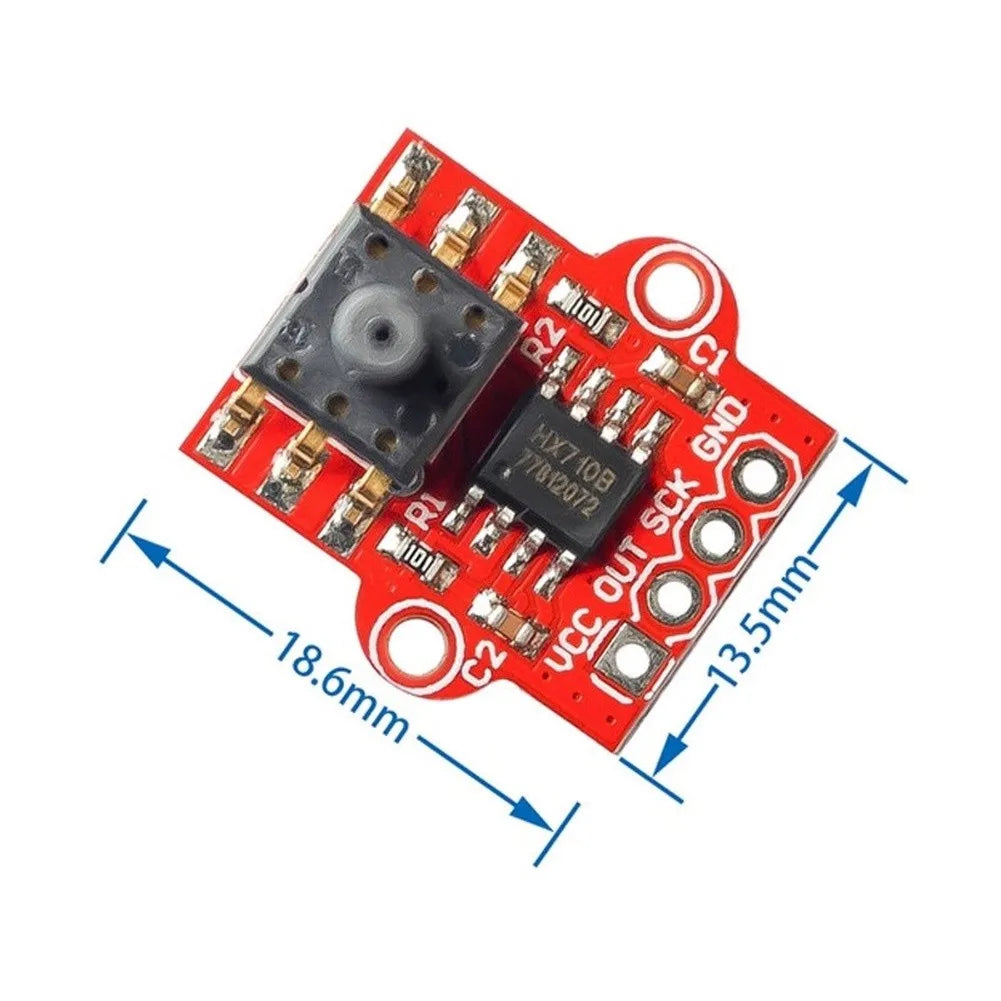

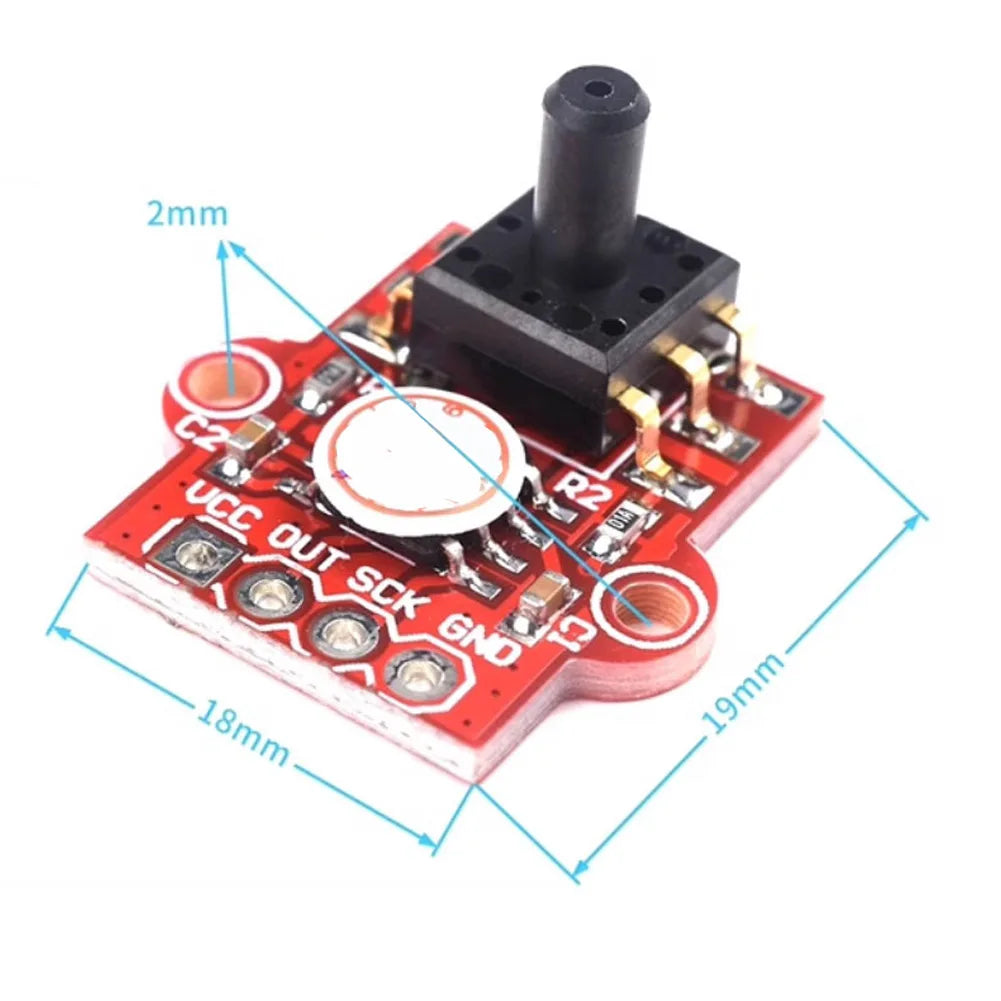

| Size | 19 × 18 mm (2mm mounting hole) |
| Color | Red |
| Power Supply | 3.3V – 5V |
| Pressure Range | 0 – 40 KPa |
| Resistor Bridge | 5K |
| Compatible Hose Size | 2.5mm flexible hose |
| Quantity | 10 modules per pack |
| Battery Required | No |
| Country of Origin | Made in Mainland China |
Package Contents
- 10 × Air Pressure / Water Level Sensor Modules
Related Products You May Like
- Non-Contact Capacitive Water Level Sensor 3.3V–5V
- 50Pcs Nickel Sheets for 18650 Battery Spot Welding Tool
- Molex Mini-Fit Jr 4-Pin 4.2mm Pitch Wire-to-Board Housing
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What pressure range do these water level sensor modules support?
A: Each module measures air pressure and water levels within a range of 0–40 KPa, making them suitable for a wide variety of liquid level detection and low-pressure monitoring applications.
Q: Are these sensor modules compatible with Arduino and Raspberry Pi?
A: Yes. With a power supply range of 3.3V to 5V, these modules are fully compatible with Arduino, Raspberry Pi, ESP32, and most other popular microcontroller and development board platforms.
Q: What hose size do I need to connect to these sensor modules?
A: The modules are designed to connect with a 2.5mm diameter flexible hose. Make sure your tubing matches this diameter for a secure, leak-free connection.
Q: Why buy a 10-pack instead of individual units?
A: The 10-pack offers excellent value for prototyping, classroom projects, or multi-node installations where several sensors are needed simultaneously. Having spares on hand also ensures uninterrupted project continuity.
