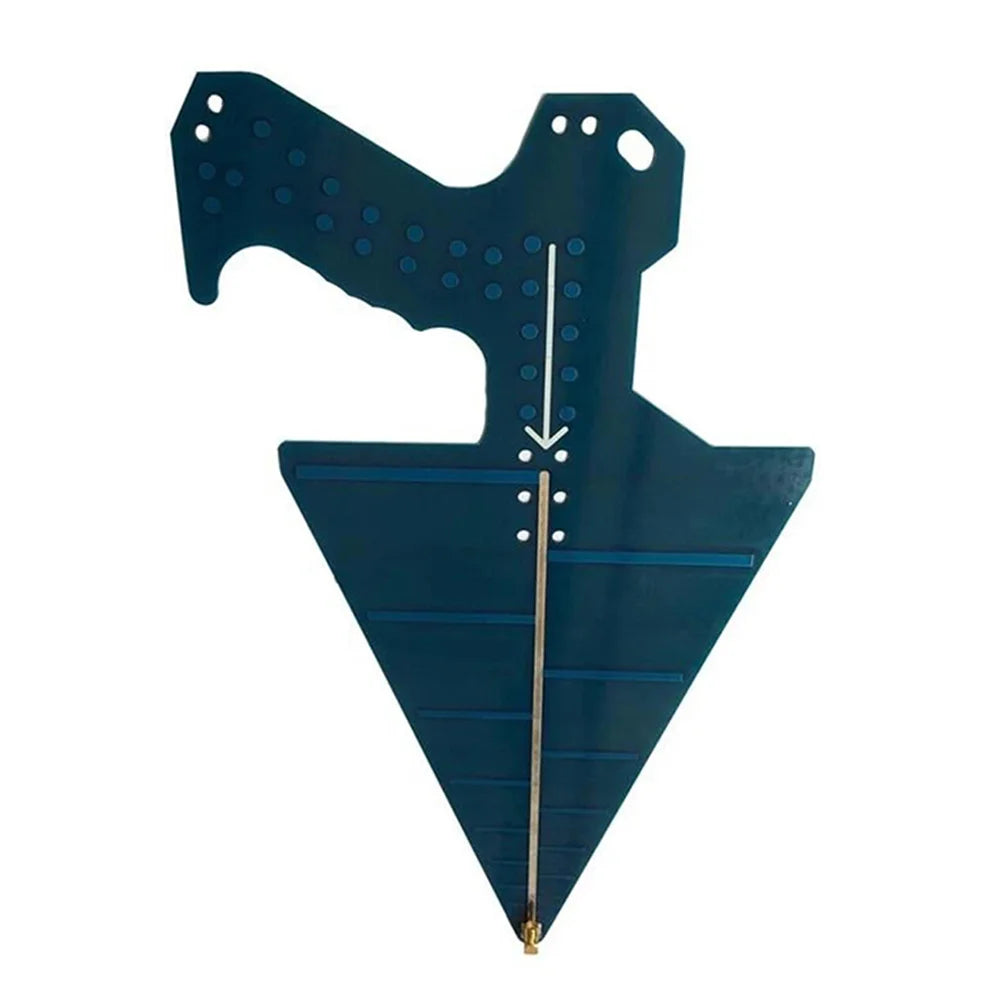

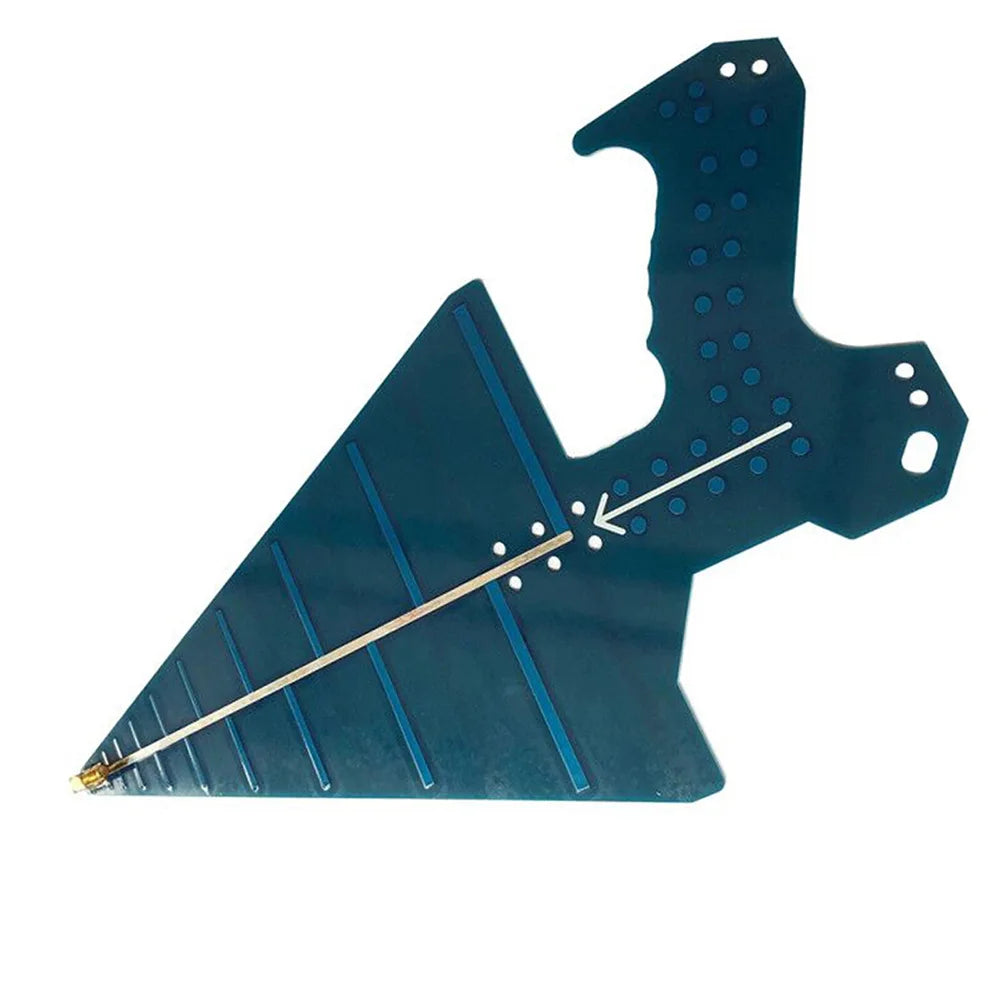

0.6–10 GHz Broadband Log Periodic Antenna
Take your RF measurement, signal analysis, and EMC testing to the next level with this high-performance log periodic broadband antenna. Engineered for professionals and enthusiasts alike, it covers an impressive 0.6 GHz to 10 GHz frequency range, making it a versatile workhorse for spectrum analyzers, direction finding setups, and compliance test systems.
Why Choose This Log Periodic Antenna?
- Ultra-Wide Frequency Coverage: Operates across 600 MHz – 12 GHz, giving you reliable broadband performance in a single compact PCB antenna.
- High Directional Gain: Delivers 6–9 dBi directional gain across the 600 MHz–12 GHz range — ideal for precise RF direction finding and signal positioning.
- Low VSWR: VSWR of less than 2 across 680 MHz–7300 MHz ensures excellent impedance matching and minimal signal reflection, meeting stringent EMC testing requirements for continuous high field strength.
- Compact & Lightweight: PCB construction keeps the form factor slim (approx. 240 × 350 × 1.6 mm) and lightweight (approx. 150 g), perfect for both lab bench and field deployment.
- Versatile Application: Suitable for spectrum analysis, broadband measurement, RF positioning, EMC antenna setups, and signal intelligence workflows.
Technical Specifications
| Part Name | Log Periodic Antenna |
| Frequency Range | 0.6 GHz – 10 GHz (operating); 600 MHz – 12 GHz (gain specified) |
| Gain | 6–9 dBi (directional) |
| VSWR | < 2 (680 MHz – 7300 MHz) |
| Material | PCB |
| Dimensions | Approx. 240 × 350 × 1.6 mm |
| Weight | Approx. 150 g |
| Country of Origin | Made in China |
Package Contents

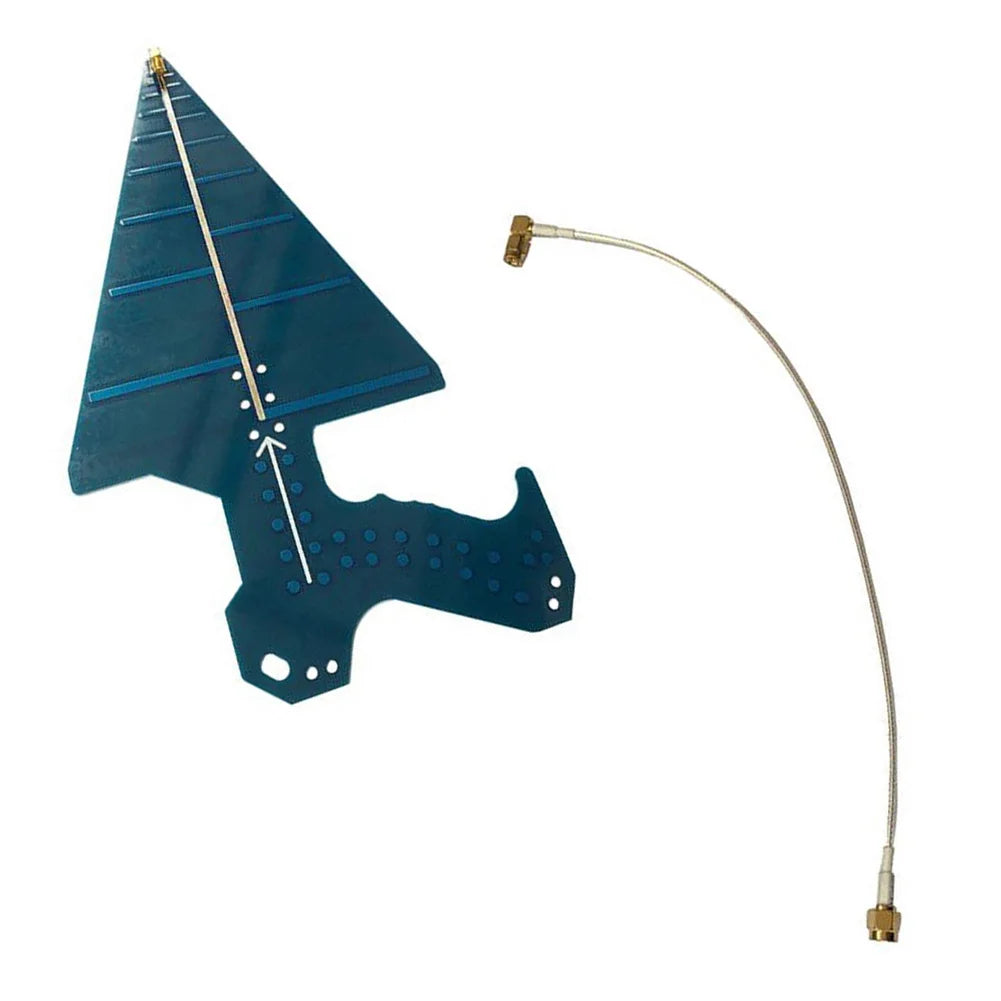

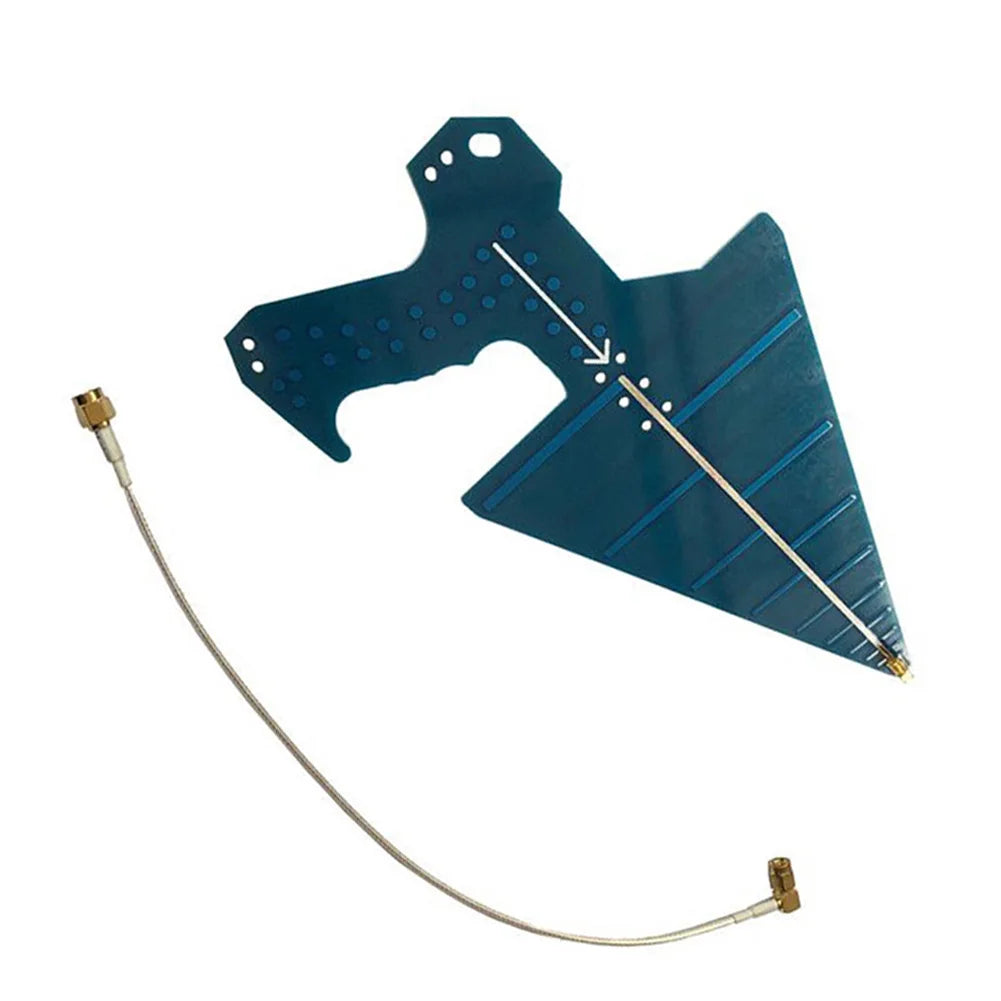

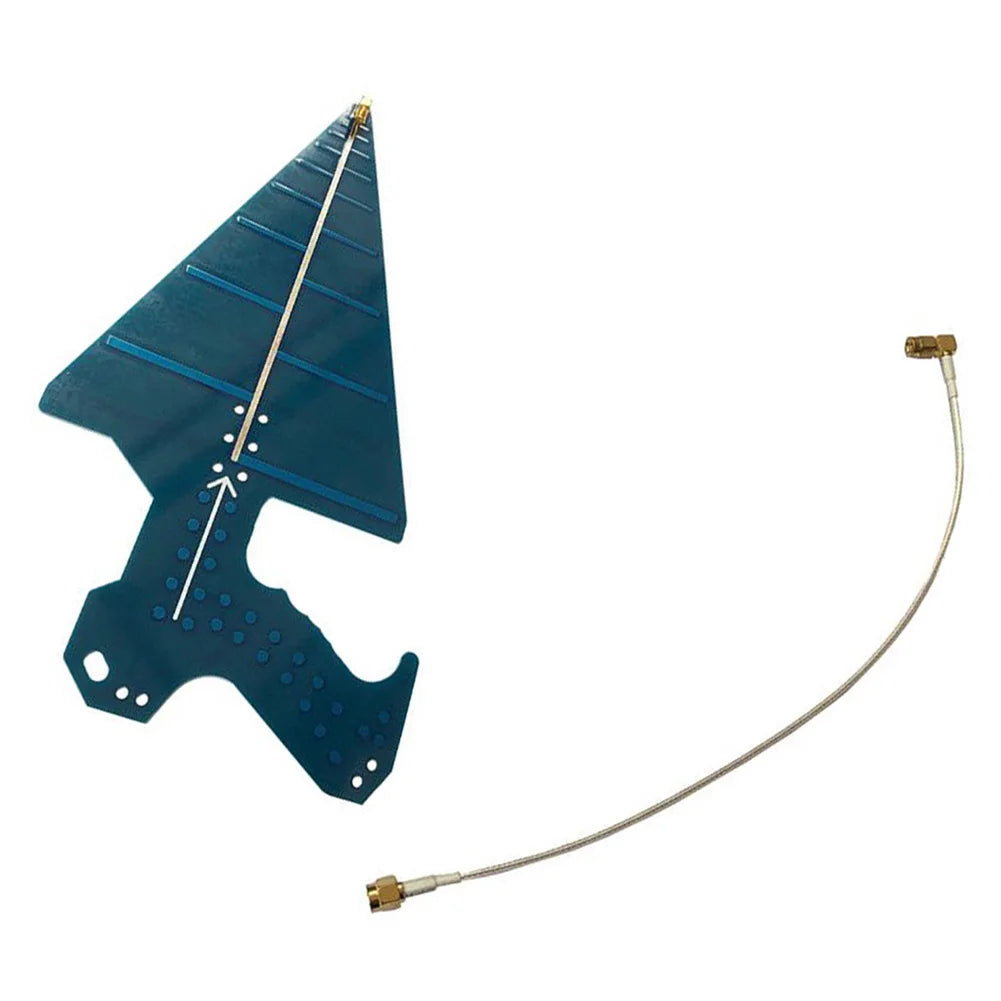

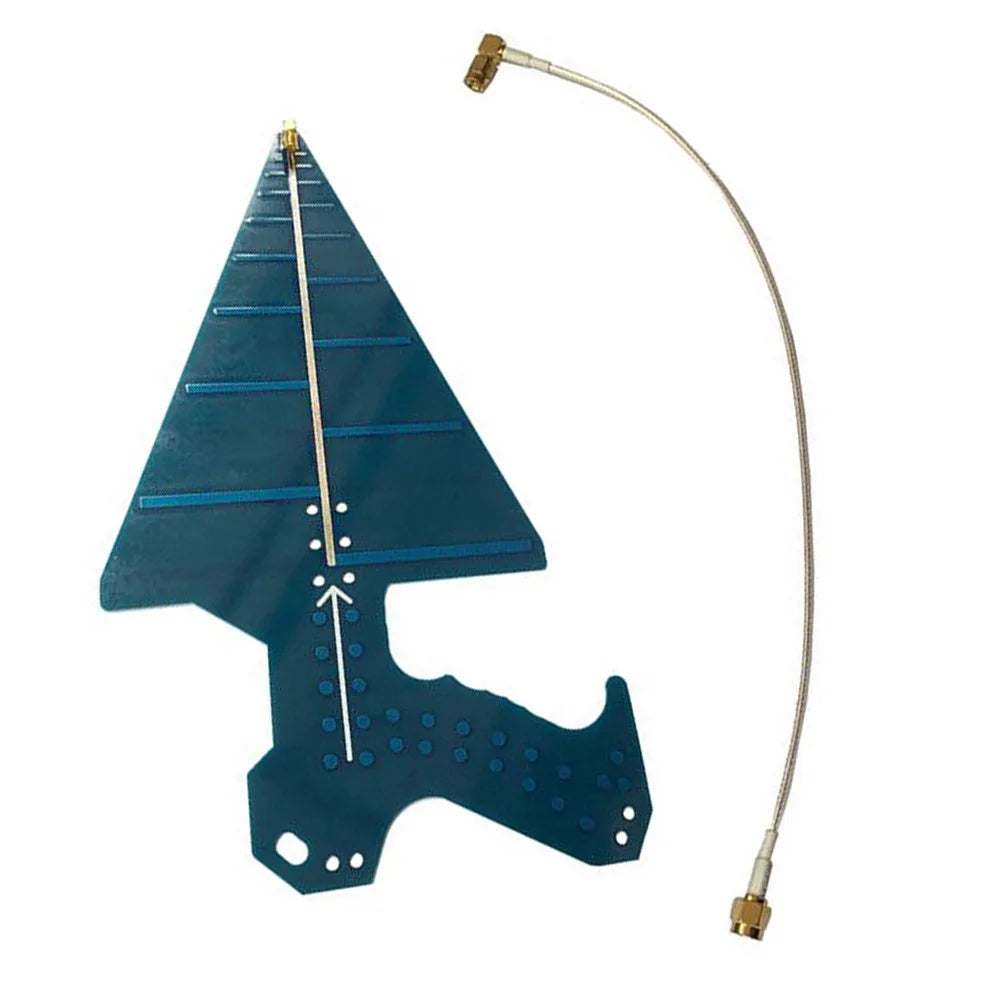

- 1 × Log Periodic Antenna
